1000kg Electric Rope Winch 12m Motor Winch Hoist Pulley Crane Winch With Emergency Stop Electric Hoist European Standard 1000KG
1000kg Electric Rope Winch 12m Motor Winch Hoist Pulley Crane Winch With Emergency Stop Electric Hoist European Standard 1000KG
1000kg Electric Rope Winch 12m Motor Winch Hoist Pulley Crane Winch With Emergency Stop Electric Hoist European Standard 1000KG
1000kg Electric Rope Winch 12m Motor Winch Hoist Pulley Crane Winch With Emergency Stop Electric Hoist European Standard 1000KG
1000kg Electric Rope Winch 12m Motor Winch Hoist Pulley Crane Winch With Emergency Stop Electric Hoist European Standard 1000KG
1000kg Electric Rope Winch 12m Motor Winch Hoist Pulley Crane Winch With Emergency Stop Electric Hoist European Standard 1000KG
1000kg Electric Rope Winch 12m Motor Winch Hoist Pulley Crane Winch With Emergency Stop Electric Hoist European Standard 1000KG
1000kg Electric Rope Winch 12m Motor Winch Hoist Pulley Crane Winch With Emergency Stop Electric Hoist European Standard 1000KG
1000kg Electric Rope Winch 12m Motor Winch Hoist Pulley Crane Winch With Emergency Stop Electric Hoist European Standard 1000KG
1000kg Electric Rope Winch 12m Motor Winch Hoist Pulley Crane Winch With Emergency Stop Electric Hoist European Standard 1000KG
1000kg Electric Rope Winch 12m Motor Winch Hoist Pulley Crane Winch With Emergency Stop Electric Hoist European Standard 1000KG
1000kg Electric Rope Winch 12m Motor Winch Hoist Pulley Crane Winch With Emergency Stop Electric Hoist European Standard 1000KG
1000kg Electric Rope Winch 12m Motor Winch Hoist Pulley Crane Winch With Emergency Stop Electric Hoist European Standard 1000KG
1000kg Electric Rope Winch 12m Motor Winch Hoist Pulley Crane Winch With Emergency Stop Electric Hoist European Standard 1000KG
1000kg Electric Rope Winch 12m Motor Winch Hoist Pulley Crane Winch With Emergency Stop Electric Hoist European Standard 1000KG
1000kg Electric Rope Winch 12m Motor Winch Hoist Pulley Crane Winch With Emergency Stop Electric Hoist European Standard 1000KG

1000kg Electric Rope Winch 12m Motor Winch Hoist Pulley Crane Winch With Emergency Stop Electric Hoist European Standard 1000KG

(0 reviews)
Ask a question
1,992.00SEK
  • Brand: CNCEST
  • Product Code: BI-HJCXX-1209
  • Availability: In Stock
Quantity
- +
Estimated Delivery:
Free Fast Shipping:
On all orders
estimated delivery guarantee

High-quality Material

This product is made of sturdy iron and aluminum as raw materials for long-term use. It also adopts high-strength braided steel wire rope with an anti-twist design, which can effectively extend the service life of the product.

Safe&Reliable

This product has an overheat protection and an automatic braking function. There is a built-in safety brake mechanism so that you can simply press the red emergency stop button when required. The pure copper core motor adopts a longer insulated wire package, which can effectively resist high temperatures.

High Lifting Capacity

  Thanks to the powerful motor and high-quality workmanship, this electric hoist meets various requirements for strength and rigidity. The load capacity is 1102 lbs on a single rope with a lifting speed of 26.24ft/min and 2204 lbs on a double rope with 13.12ft/min.

High Heat Dissipation Capability

This electric hoist has a built-in fan and mesh-type heat dissipation holes, which can quickly dissipate heat and reduce the risk of burning out the machine, ensuring the stable operation of the machine for a long time.

Stop Device

The product is equipped with an anti-rush top limiter, which can effectively prevent the wire rope from shaking from side to side, and will automatically cut off the power when the goods reach the top. It can avoid the condition of damage to the machine caused by lifting too high.

Convenient Storage

The size of this miniature lift electric hoist is only 18.9*17*72 inches, the compact and lightweight design makes it easy to place the lift electric hoist wherever you need it.

Powerful Motor

The operational motor is made of premium copper that helps with heat dissipation. The copper is highly-conductive, which means it can provide higher powers while operating.

3.28ft Power Cord

The wired remote control with a length of 3.28ft allows you to control the hoist's raising and lowering functions from a safe distance.

Extended Silicon Steel Rotor

The silicon steel rotor adopts a one-piece molding design, which can effectively reduce the gap between the stator and rotor, thus making the motor more powerful.

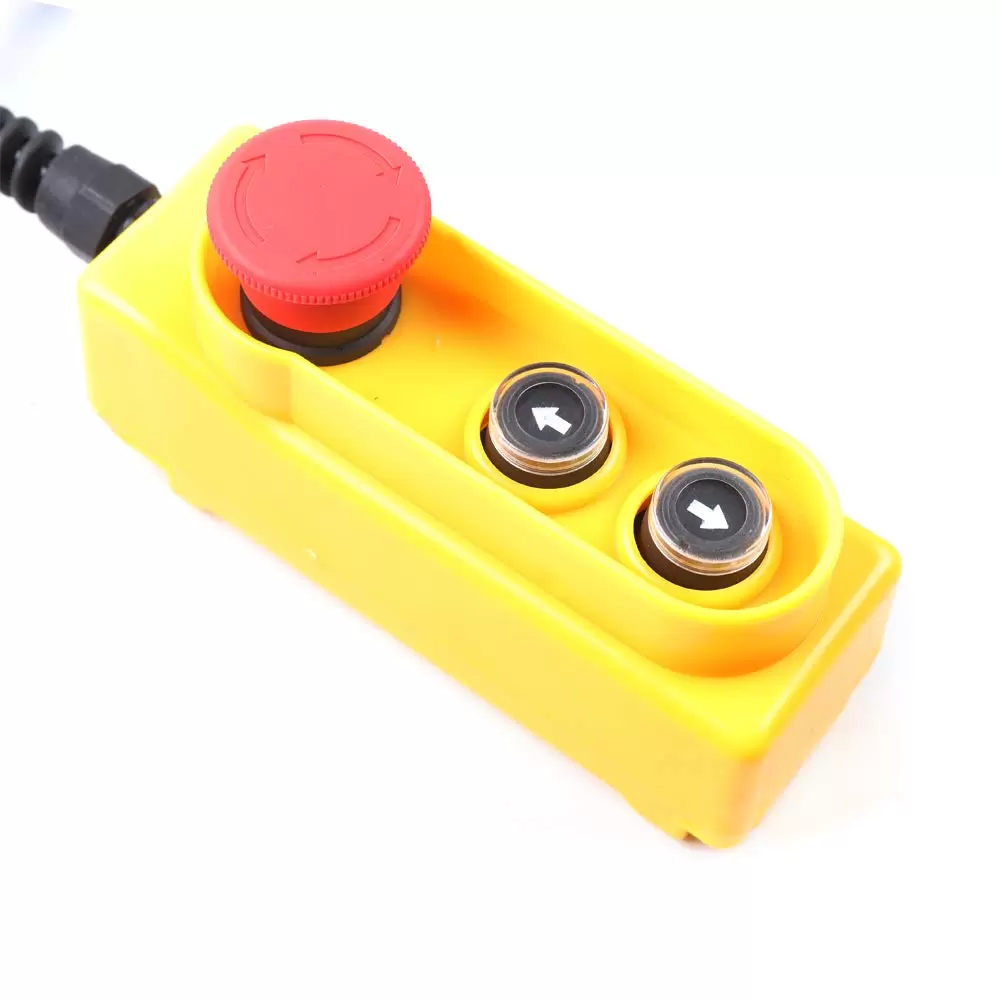

Clear Button Cover

The buttons on the control panel are protected by a clear cover. It not only won't affect your operation but also can effectively keep the buttons clean.

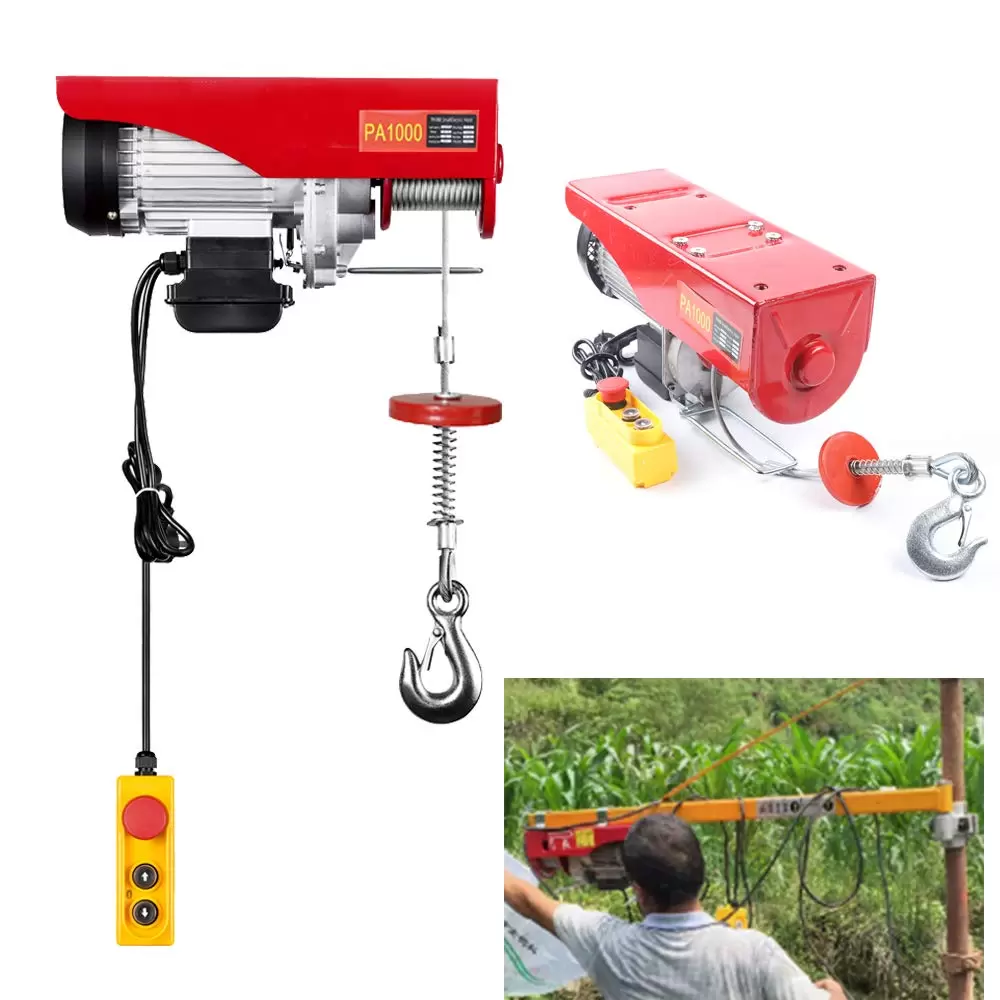

Application

This product can be used with monorail cars, hand crane, and electric monorail crane. It  also can be used with wall pillars and single pillars, as well as with gantry cranes.

External Capacitor

The capacitor is placed in the handle, which is far away from the motor. Therefore, it is not easy to burn the motor.

Specifications
Power Cord Length:  1m/3.28ft
Color:  Red, Silver
Item Shape:  Cylinder
Model:  PA1000 * 12 M
Assembly Required:  Yes
Motor:  100% Pure Copper
Material:  Iron, Aluminum
Lifting Mechanism:  Electrical
Product Type:  Load Bed Structure
Protecting Grade:  IP40
Voltage:  220V
Power:  1600W
Frequency:  50Hz
Mating Capacitor:  60μF
Wire Rope Length:  12 m/39.37 ft
Wire Rope Diameter:  6mm/0.24in
Single Rope Lifting Height:  12 m/39.37ft
Lifting Weight:  500kg/1102.31lbs
Lifting Speed:  8m/min; 26.24ft/min
Double Rope Lifting Height:  6 m/19.69ft
Lifting Weight:  1000kg/2204.62lbs
Lifting Speed:  4m/min; 13.12ft/min
Gross Weight:  26.5kg/ 58.42 lbs
Net Weight:  25.8kg/ 56.88 lbs
Product Size(L*H):  48*45cm/ 18.9*17*72 in
Package Size:  53*18*35cm/ 20.87*7.09*13.78in
Package Included
1 * Lift Electric Hoist
All Accessories for Installation

Specifications

Power Cord Length 1m/3.28ft Color Red, Silver
Item Shape Cylinder Model PA1000 * 12 M
Assembly Required Yes Motor 100% Pure Copper
Material Iron, Aluminum Lifting Mechanism Electrical
Product Type Load Bed Structure Protecting Grade IP40
Voltage 220V Power 1600W
Frequency 50Hz Mating Capacitor 60μF
Wire Rope Length 12 m/39.37 ft Wire Rope Diameter 6mm/0.24in
Single Rope Lifting Height 12 m/39.37ft Lifting Weight 500kg/1102.31lbs
Lifting Speed 8m/min; 26.24ft/min Double Rope Lifting Height 6 m/19.69ft
Lifting Weight 1000kg/2204.62lbs Lifting Speed 4m/min; 13.12ft/min
Gross Weight 26.5kg/ 58.42 lbs Net Weight 25.8kg/ 56.88 lbs
Product Size(L*H) 48*45cm/ 18.9*17*72 in Package Size 53*18*35cm/ 20.87*7.09*13.78in

Product Tips

How to Use:

It starts with a metal or solid wood pole to provide enough weight to suspend the crane from the ceiling indoors or outdoors.

Notes:

Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
