Single-Phase AC Electric Vibration Motor 3000rpm Asynchronous Vibration Motor IP65 Waterproof Concrete Vibrator Cable (40W)
Single-Phase AC Electric Vibration Motor 3000rpm Asynchronous Vibration Motor IP65 Waterproof Concrete Vibrator Cable (40W)
Single-Phase AC Electric Vibration Motor 3000rpm Asynchronous Vibration Motor IP65 Waterproof Concrete Vibrator Cable (40W)
Single-Phase AC Electric Vibration Motor 3000rpm Asynchronous Vibration Motor IP65 Waterproof Concrete Vibrator Cable (40W)
Single-Phase AC Electric Vibration Motor 3000rpm Asynchronous Vibration Motor IP65 Waterproof Concrete Vibrator Cable (40W)
Single-Phase AC Electric Vibration Motor 3000rpm Asynchronous Vibration Motor IP65 Waterproof Concrete Vibrator Cable (40W)
Single-Phase AC Electric Vibration Motor 3000rpm Asynchronous Vibration Motor IP65 Waterproof Concrete Vibrator Cable (40W)
Single-Phase AC Electric Vibration Motor 3000rpm Asynchronous Vibration Motor IP65 Waterproof Concrete Vibrator Cable (40W)
Single-Phase AC Electric Vibration Motor 3000rpm Asynchronous Vibration Motor IP65 Waterproof Concrete Vibrator Cable (40W)
Single-Phase AC Electric Vibration Motor 3000rpm Asynchronous Vibration Motor IP65 Waterproof Concrete Vibrator Cable (40W)
Single-Phase AC Electric Vibration Motor 3000rpm Asynchronous Vibration Motor IP65 Waterproof Concrete Vibrator Cable (40W)
Single-Phase AC Electric Vibration Motor 3000rpm Asynchronous Vibration Motor IP65 Waterproof Concrete Vibrator Cable (40W)
Single-Phase AC Electric Vibration Motor 3000rpm Asynchronous Vibration Motor IP65 Waterproof Concrete Vibrator Cable (40W)
Single-Phase AC Electric Vibration Motor 3000rpm Asynchronous Vibration Motor IP65 Waterproof Concrete Vibrator Cable (40W)
Single-Phase AC Electric Vibration Motor 3000rpm Asynchronous Vibration Motor IP65 Waterproof Concrete Vibrator Cable (40W)
Single-Phase AC Electric Vibration Motor 3000rpm Asynchronous Vibration Motor IP65 Waterproof Concrete Vibrator Cable (40W)
Single-Phase AC Electric Vibration Motor 3000rpm Asynchronous Vibration Motor IP65 Waterproof Concrete Vibrator Cable (40W)
Single-Phase AC Electric Vibration Motor 3000rpm Asynchronous Vibration Motor IP65 Waterproof Concrete Vibrator Cable (40W)

Single-Phase AC Electric Vibration Motor 3000rpm Asynchronous Vibration Motor IP65 Waterproof Concrete Vibrator Cable (40W)

(2 reviews)
Ask a question
924.00SEK
  • Brand: CNCEST
  • Product Code: KB1NA94FN2-1
  • Availability: In Stock
Quantity
- +
Estimated Delivery:
Free Fast Shipping:
On all orders
estimated delivery guarantee

Stable and Efficient

The bearings are made of high-strength, deformation-resistant 45 steel, which can make the small vibration motor run stably and efficiently.

High Speed

The rotor made of high-strength, impact-resistant cold-rolled steel provides a high speed of 3000RPM for small vibration motors. The high speed of the small vibration motor can greatly improve efficiency.

Waterproof and Dustproof

The small vibration motor with a fully enclosed structure design makes it has excellent sealing and an IP65 waterproof rating, so it can keep stable operation even in a wet and dusty environment.

Adjustable Eccentric Block Angle

The eccentric block angle of this small vibration motor can be adjusted to achieve step-less adjustment of vibration force so that it can meet various working requirements.

Excellent Vibration Force

The vibration force of this small vibration motor can reach 0.25KN to meet most vibration requirements. Excellent vibration force can also improve your work efficiency.

Low Noise

This small vibration motor adopts the pure copper coil and high precision rotor and bearing to provide stable and quiet operation. The low-noise operation can create a comfortable working environment for you.

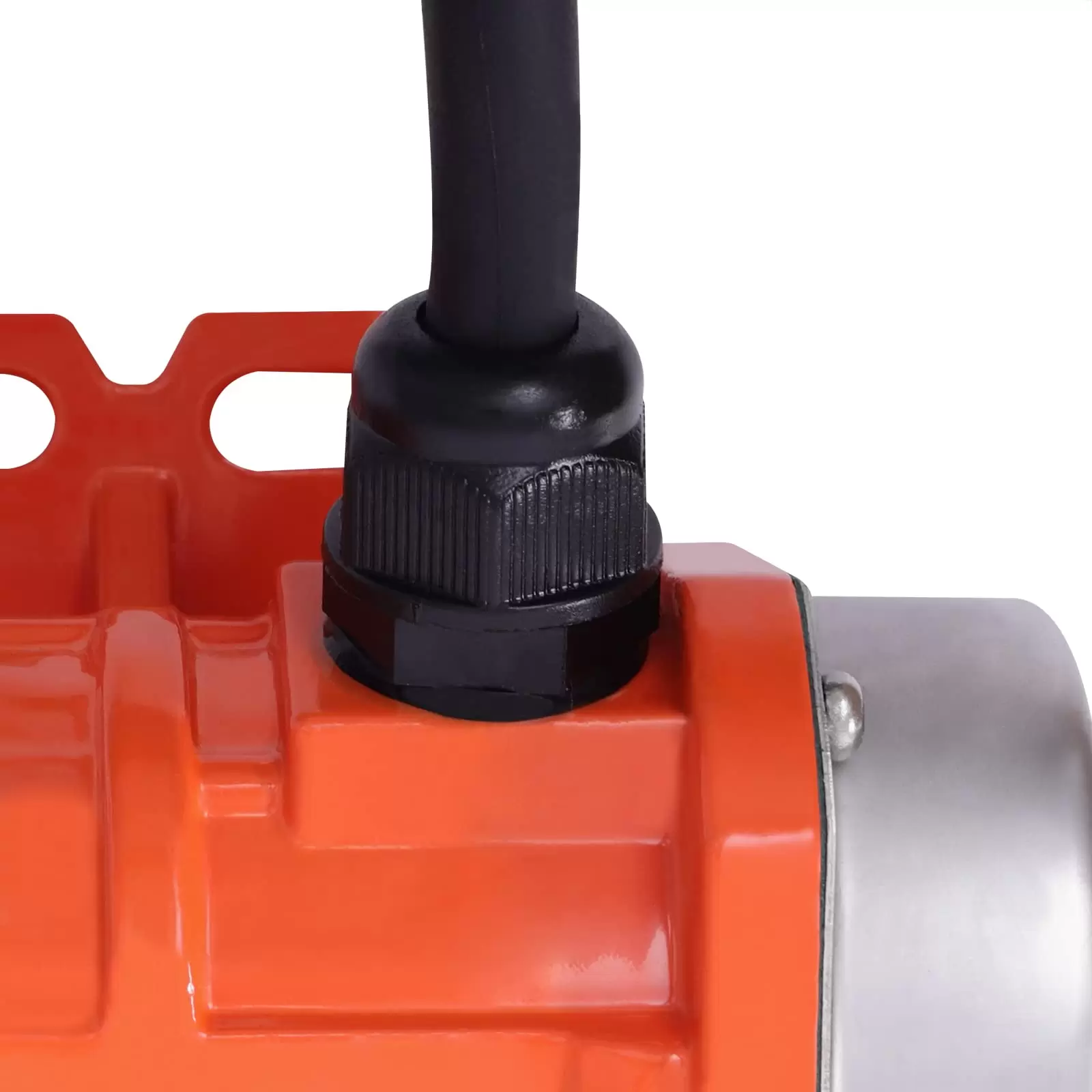

Power Cord

The power cord has been thickened and lengthened. Its 1/34 inch diameter makes it more durable and safe. Its 6.56 feet length is convenient to use.

Waterproof Sealing Groove

The sealing groove is made of high-quality aluminum alloy, which has the advantage of being dustproof and waterproof to prevent ordinary low-pressure water spray.

Pure Copper Coil

The pure copper coil is resistant to 180℃/356℉ high temperature, which has the advantages of low-temperature rise, long life, strong magnetic field, and high insulation grade. The pure copper coil makes the small vibration motor safer and more durable.

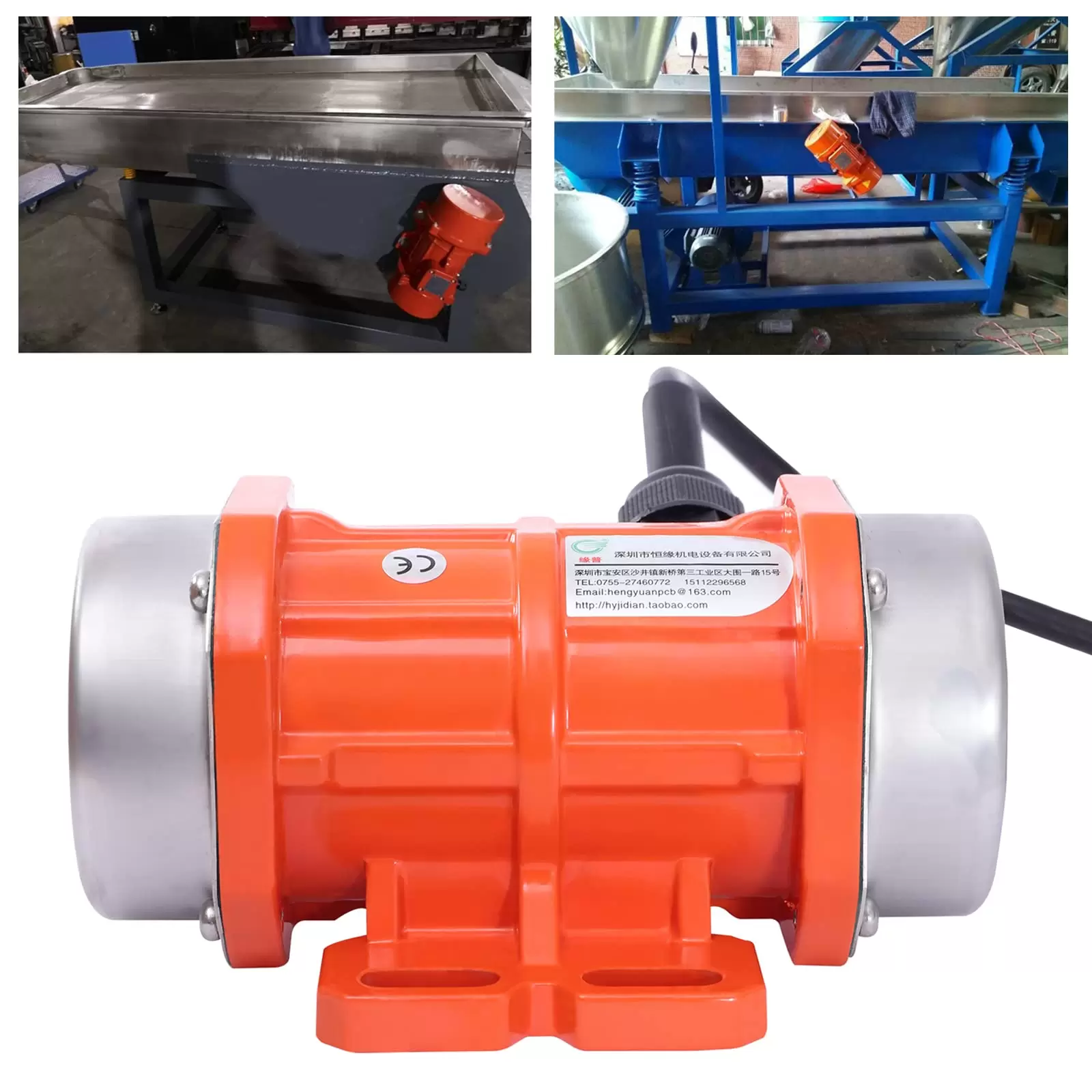

Application

It can be widely used in the following fields, such as mining, metallurgy, coal, electric power, construction, medical, casting, food, powder coating equipment, sieving powder, and grain machinery.

Specifications
Material:  Aluminum Alloy, 45 Steel, Cold-rolled Steel, Copper
Color:  Orange
Model:  HY-0.4
Voltage:  220V 50Hz
Phase:  Single-phase
Power:  40W
Current:  0.18A
Rotational Speed:  3000rpm
Vibration Power:  25kg/0.25KN
Waterproof Rating:  IP65
Coil Temperature Resistance:  180℃/356℉
Process:  Painting Spray, Vacuum Dipping Paint
Rotor Insulation Grade:  F Grade
Motor:  Pure Copper Motor
Gross Weight:  1.7kg/3.74lbs
Net Weight:  1.5kg/3.30lbs
Package Size:  19*15*10cm/7.48*5.90*3.93in

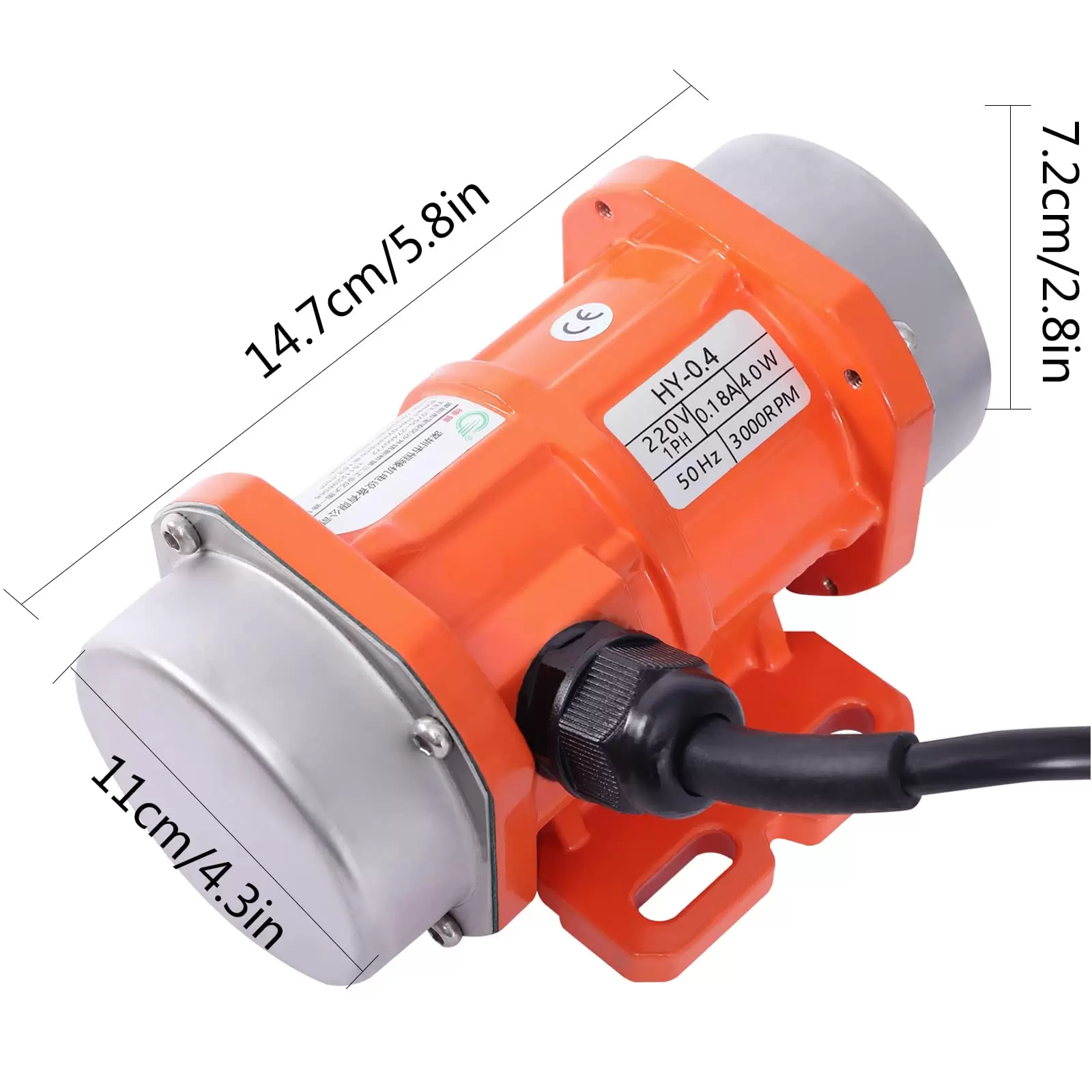

Product Size:  14.7*11*7.2cm/5.8*4.3*2.8in
Power Cord Diameter:  0.75mm/1/34in
Power Cord Length:  2m/6.56ft
Package Included
1*Small Vibrating Motor

Specifications

Material Aluminum Alloy, 45 Steel, Cold-rolled Steel, Copper Color Orange
Model HY-0.4 Voltage 220V 50Hz
Phase Single-phase Power 40W
Current 0.18A Rotational Speed 3000rpm
Vibration Power 25kg/0.25KN Waterproof Rating IP65
Coil Temperature Resistance 180℃/356℉ Process Painting Spray, Vacuum Dipping Paint
Rotor Insulation Grade F Grade Motor Pure Copper Motor
Gross Weight 1.7kg/3.74lbs Net Weight 1.5kg/3.30lbs
Package Size 19*15*10cm/7.48*5.90*3.93in Product Size 14.7*11*7.2cm/5.8*4.3*2.8in
Power Cord Diameter 0.75mm/1/34in Power Cord Length 2m/6.56ft

Product Tips

Notes

1.Be sure to fix the motor well, and make sure the voltage is 220V.
2.When adjusting the eccentric block, be sure to ensure that the two sides are symmetrical. After adjustment, the screws should be fixed tightly to prevent the screws from falling off during vibration.
3.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement. Please make sure you do not mind before you order.
