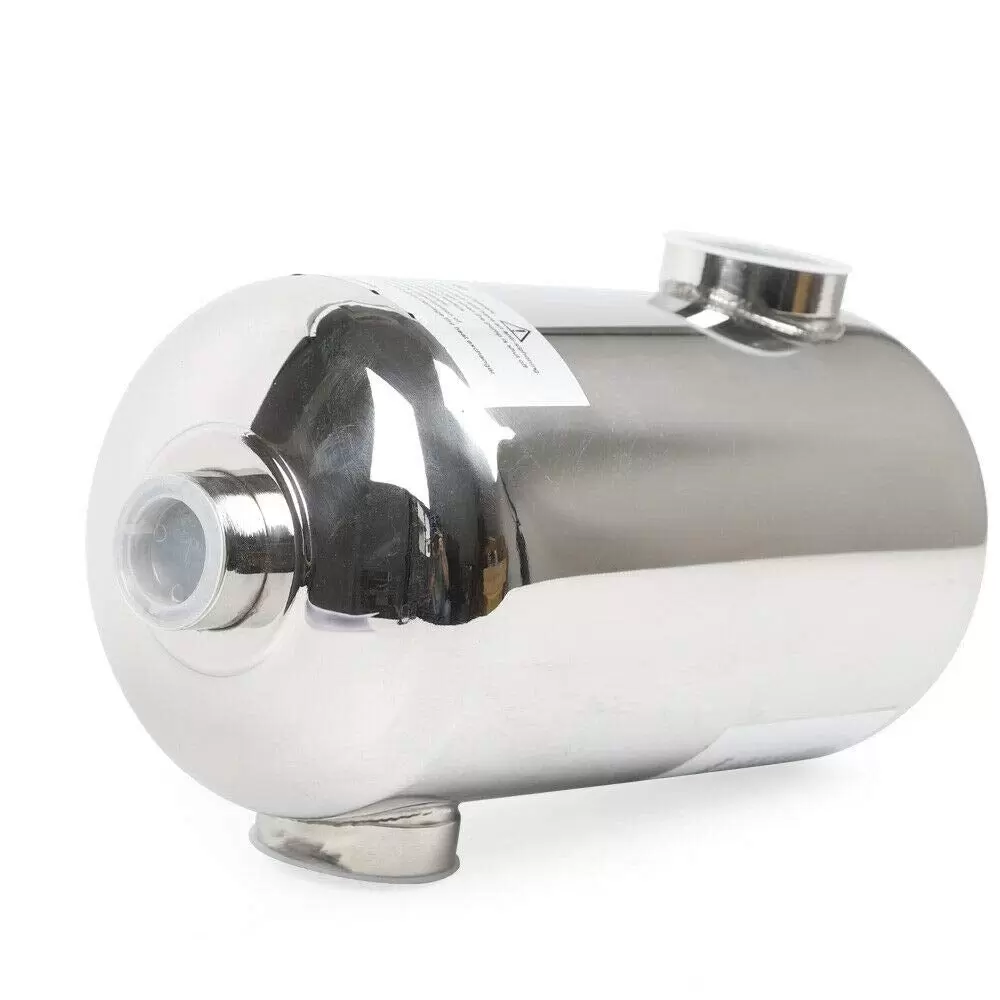

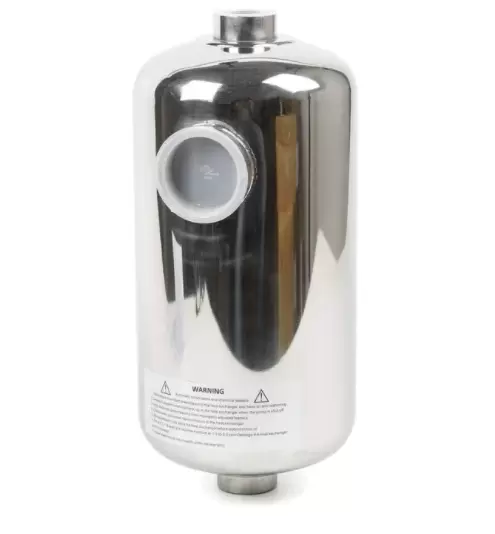

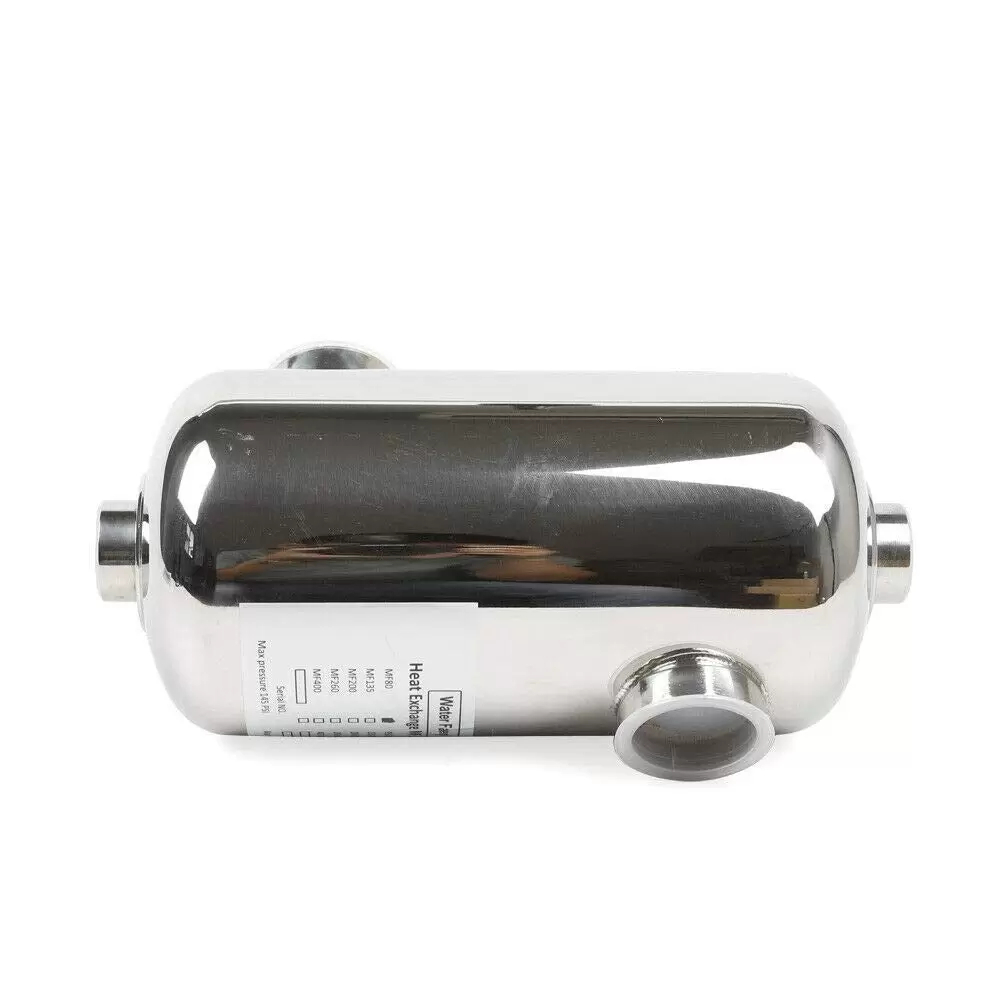

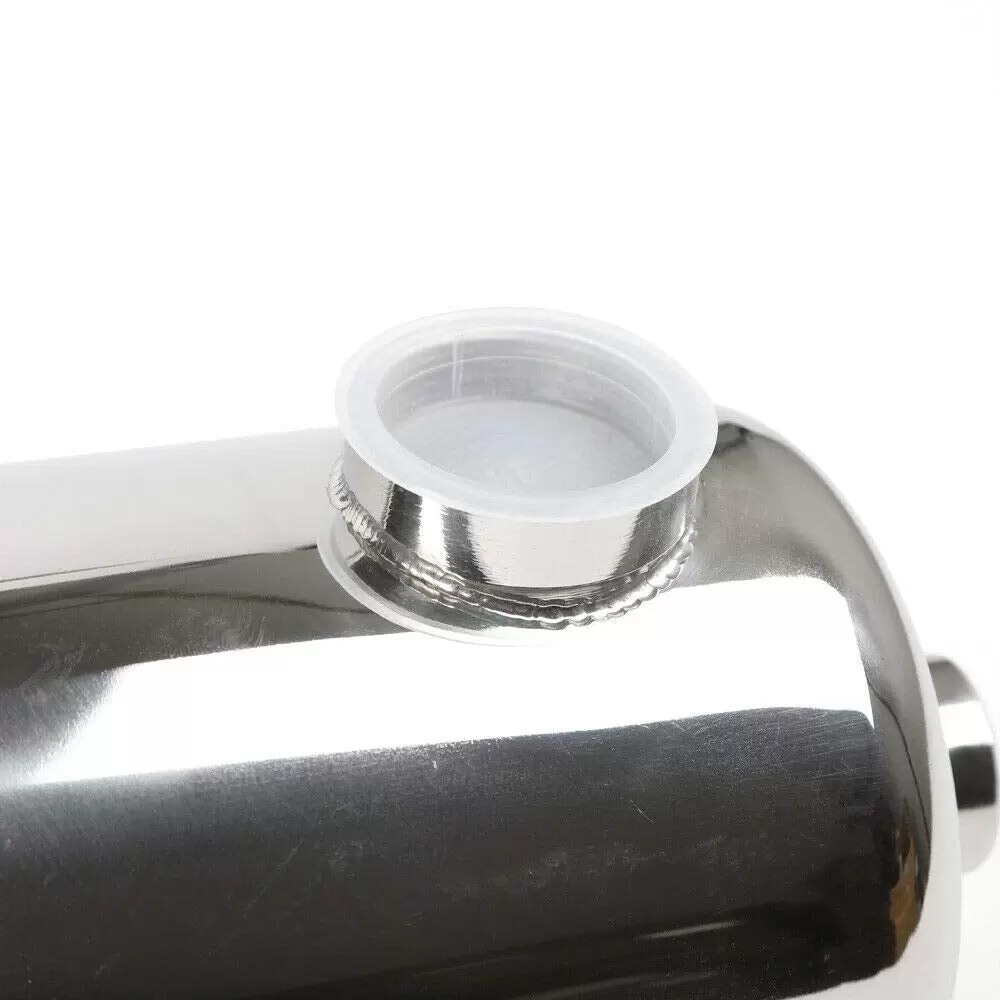

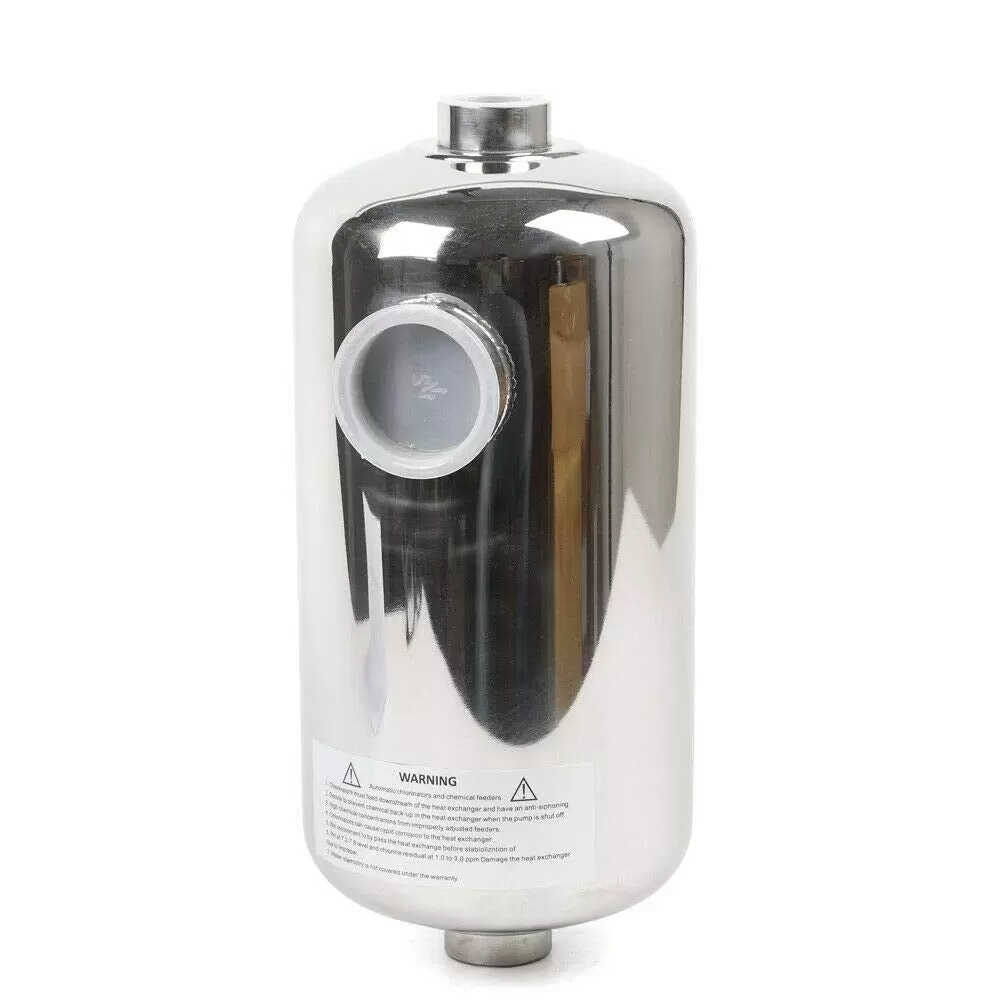

• ▲The heat exchanger is made of high quality stainless steel, corrosion resistant and very durable. It is designed with a bellows for optimal efficiency.
• ▲ This heat exchanger serves to separate pool water and boiler water and is an efficient method of transferring heat between the two systems.
• ▲ Thanks to the smooth construction of the tube and conduit jacket, water can flow at high speed through the heat exchanger to maximize heat transmission.
• ▲ This heat exchanger has been specially designed to complement your swimming pool system or sauna.
• ▲ Pool connection diameter: G1 1/2" | Heating connection diameter: G1'' | Number of tubes: 25 | Pressure control: pool cycle: 10 bar | Pool water flow (L / min: 28 kW) 150 | Hot water flow (L / min): (28 kW) 18 | Dimensions (length x width): (28 29 kW) 29 2 x 13.4 cm

The heat exchanger is made of high quality stainless steel, which is corrosion resistant and very durable. It is designed with a bellows for optimal efficiency.

This heat exchanger is used to keep the pool water and boiler water separate, and is an efficient way of transferring heat between the two systems.

The smooth tube and shell design allows water to flow at high speed through the heat exchanger to maximize heat transfer.

Product specifications:
Material: SS304 stainless steel
Power: 28 kW / 60 kW
Pool fitting diameter: G1 1/2''
Heating connection diameter: G1''
Tube name: 25
Pressure test: 10bar swimming pool water circuit
5bar hot water circuit
Pool water flow (l/min): (28 kW) 150
(60 kW) 250
Hot water flow (l / min): (28 kW) 18
(60 kW) 30

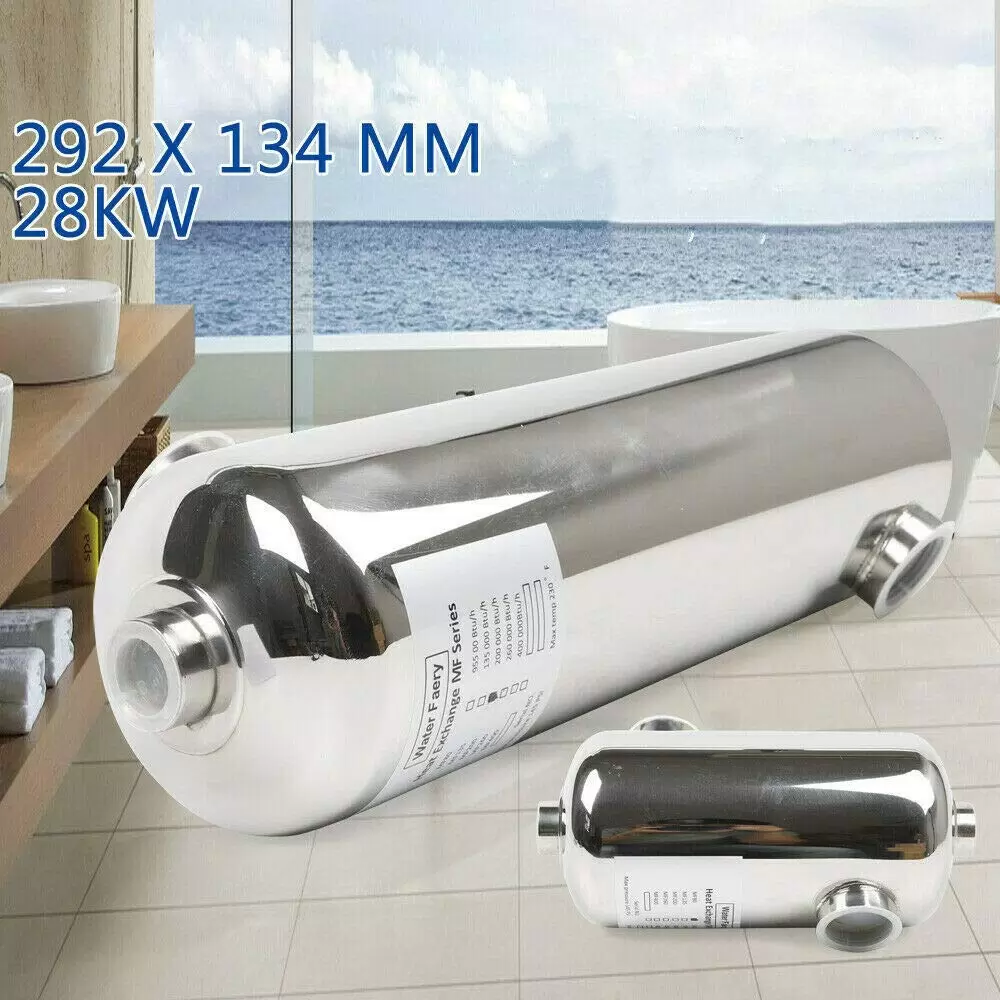

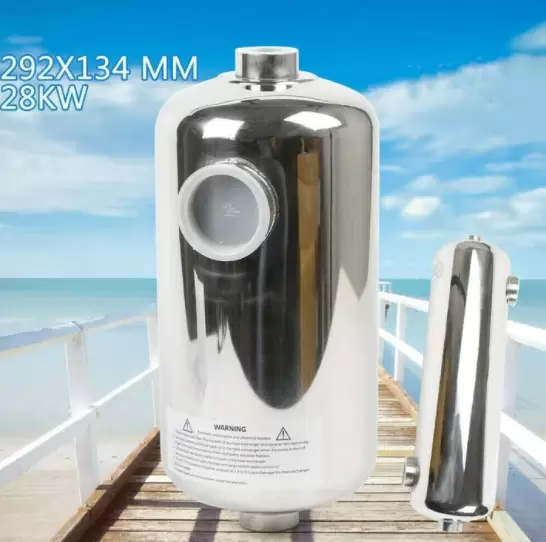

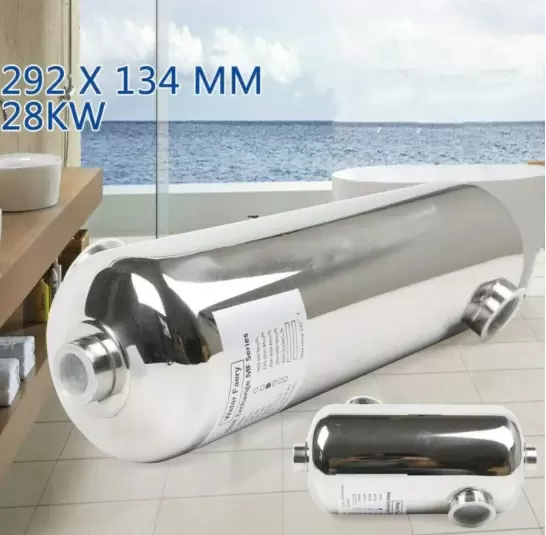

Dimensions (length x width): (28 kW) 29.2 x 13.4 cm
(60 kW) 48,5 x 13,4 cm
Package dimensions: (28 kW) 35 * 19 * 19 cm / 3.5 kg
(60 kW) 54 * 19 * 19 cm / 5.2 kg
Weight: (28 kW) 3.5 kg
(60 kW) 5.2 kg

The package includes:
1X heat exchanger
