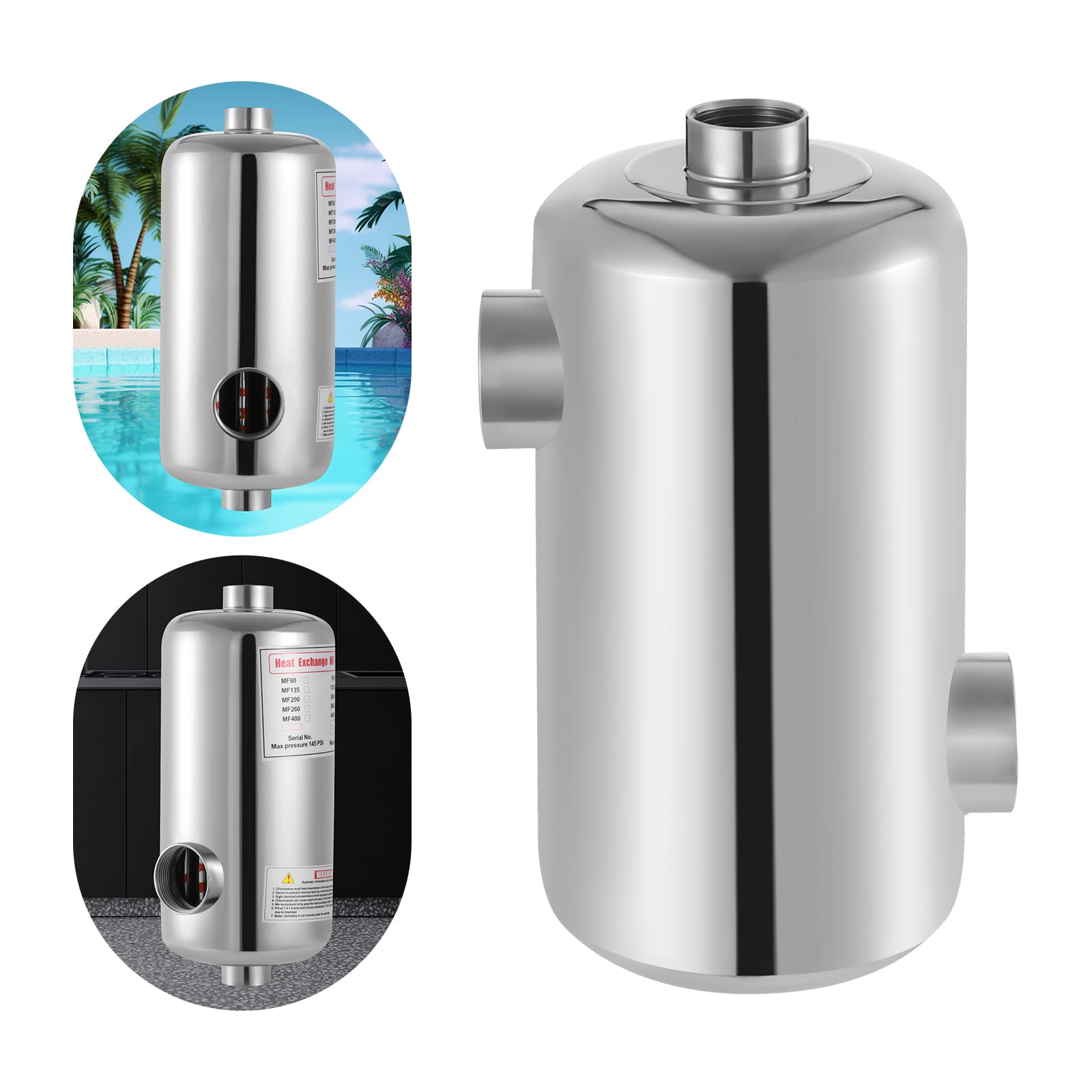

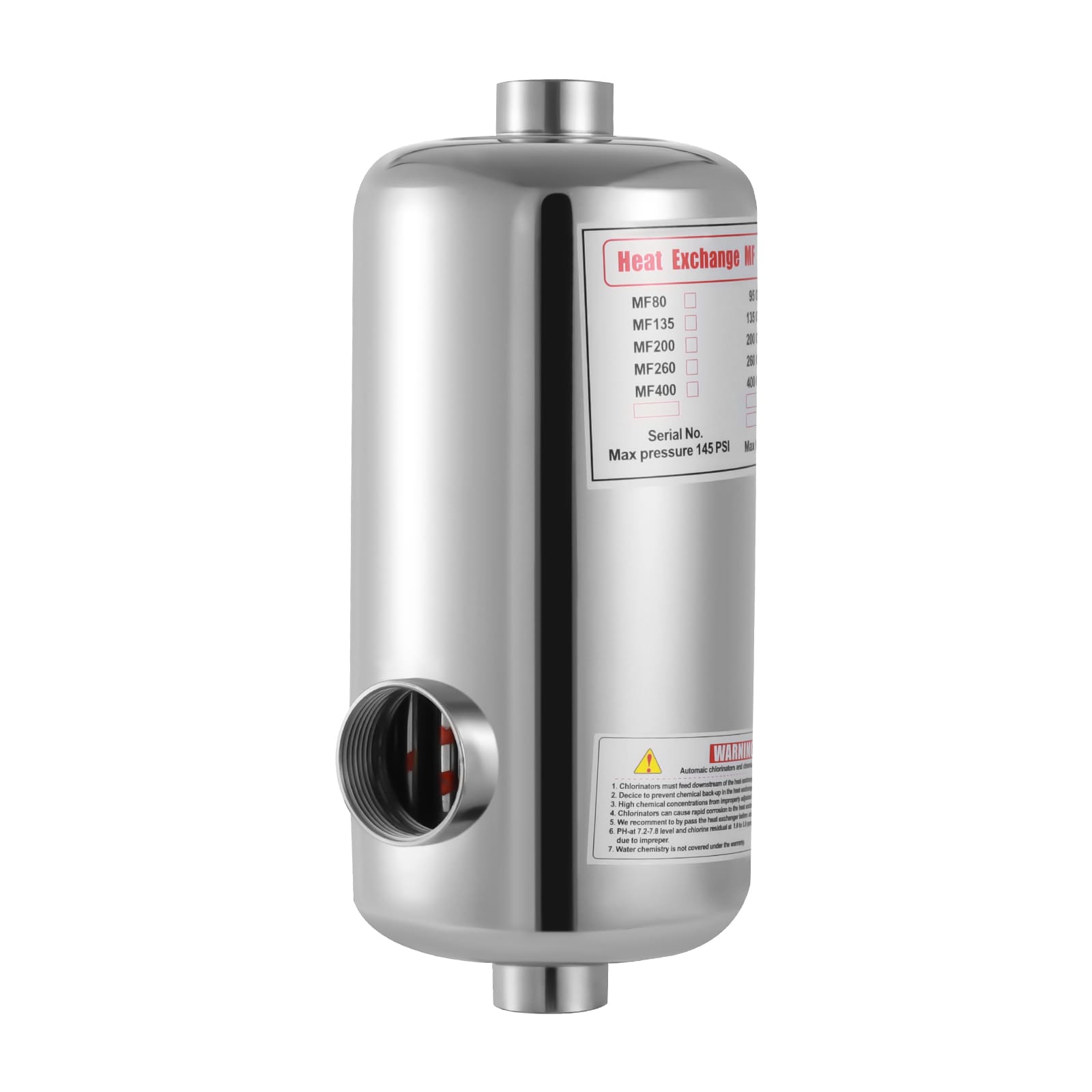

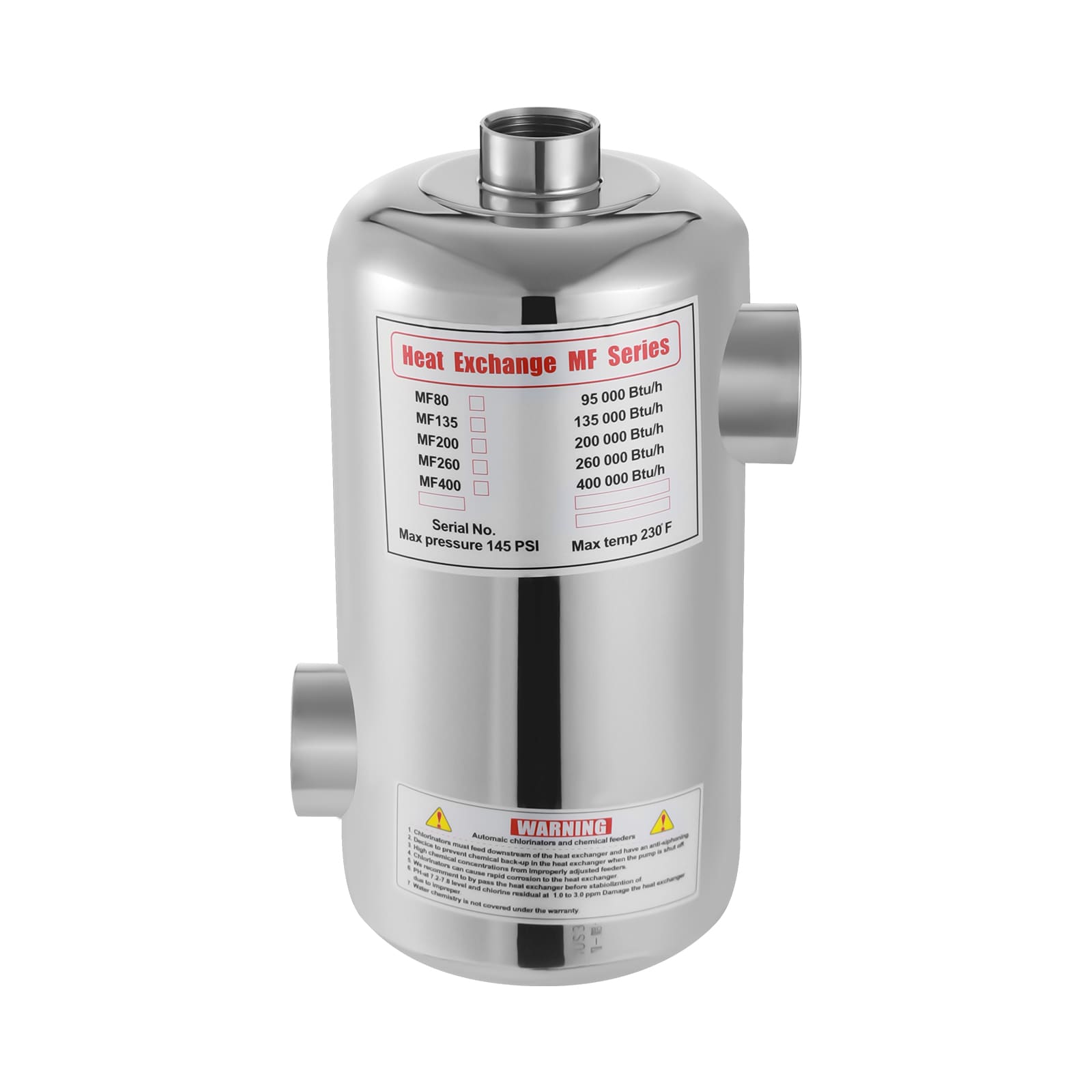

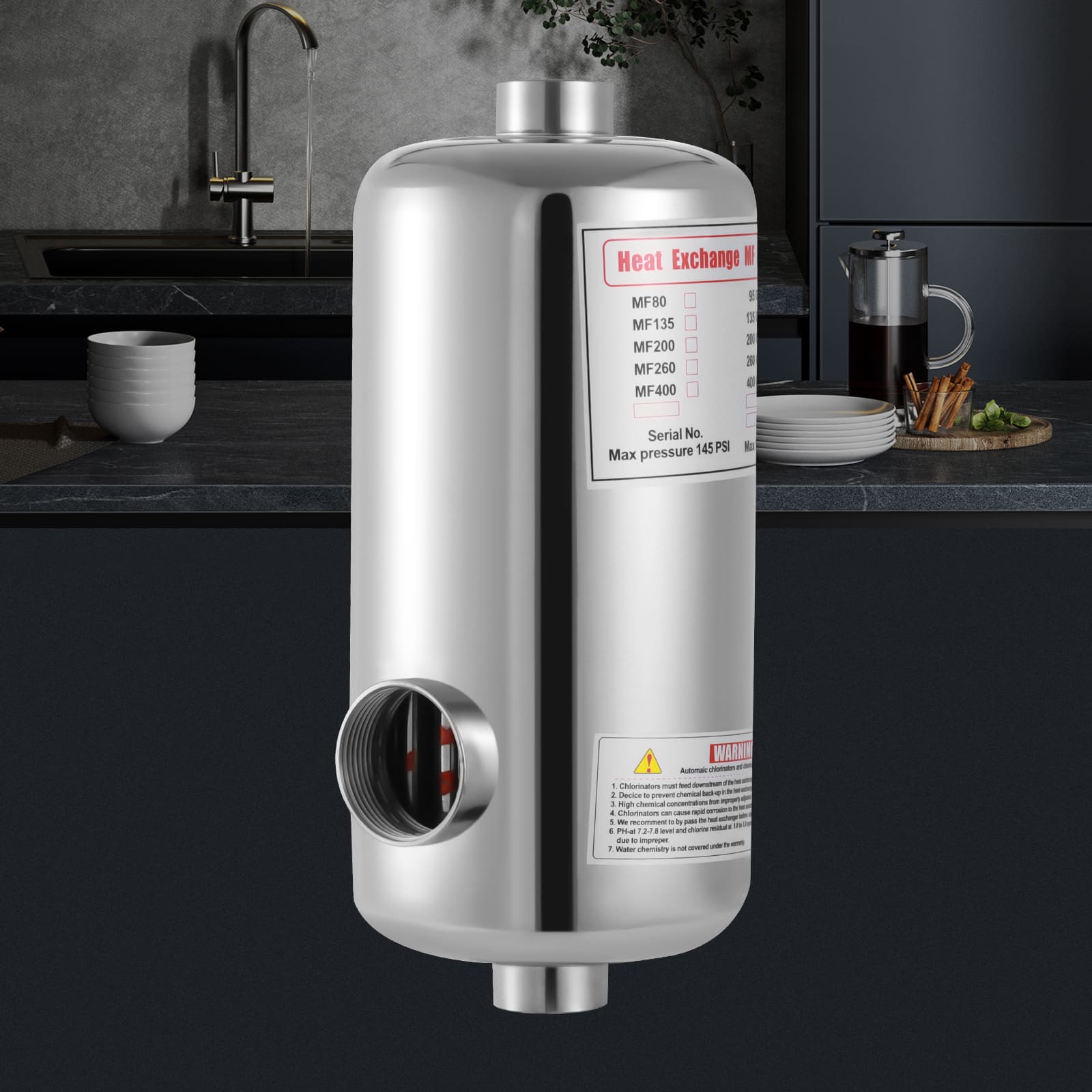

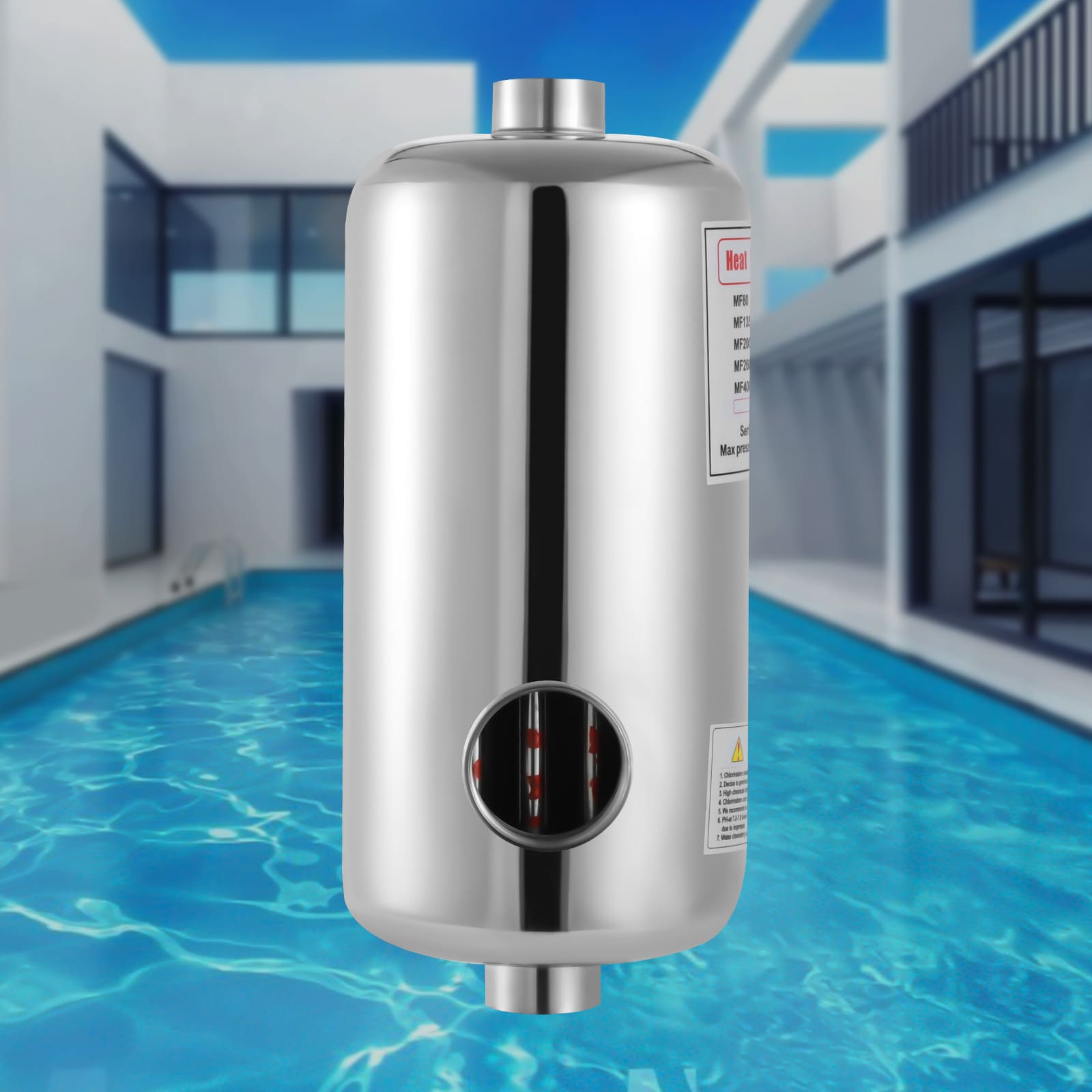

Pool heat exchanger, 28kW stainless steel pool heat exchanger, for pools, spas, hot tub heating, radiant heating, solar hot water, etc
Pool heat exchanger, 28kW stainless steel pool heat exchanger, for pools, spas, hot tub heating, radiant heating, solar hot water, etc
Pool heat exchanger, 28kW stainless steel pool heat exchanger, for pools, spas, hot tub heating, radiant heating, solar hot water, etc
Pool heat exchanger, 28kW stainless steel pool heat exchanger, for pools, spas, hot tub heating, radiant heating, solar hot water, etc
Pool heat exchanger, 28kW stainless steel pool heat exchanger, for pools, spas, hot tub heating, radiant heating, solar hot water, etc
Pool heat exchanger, 28kW stainless steel pool heat exchanger, for pools, spas, hot tub heating, radiant heating, solar hot water, etc
Pool heat exchanger, 28kW stainless steel pool heat exchanger, for pools, spas, hot tub heating, radiant heating, solar hot water, etc
Pool heat exchanger, 28kW stainless steel pool heat exchanger, for pools, spas, hot tub heating, radiant heating, solar hot water, etc
Pool heat exchanger, 28kW stainless steel pool heat exchanger, for pools, spas, hot tub heating, radiant heating, solar hot water, etc
Pool heat exchanger, 28kW stainless steel pool heat exchanger, for pools, spas, hot tub heating, radiant heating, solar hot water, etc
Pool heat exchanger, 28kW stainless steel pool heat exchanger, for pools, spas, hot tub heating, radiant heating, solar hot water, etc
Pool heat exchanger, 28kW stainless steel pool heat exchanger, for pools, spas, hot tub heating, radiant heating, solar hot water, etc
Pool heat exchanger, 28kW stainless steel pool heat exchanger, for pools, spas, hot tub heating, radiant heating, solar hot water, etc
Pool heat exchanger, 28kW stainless steel pool heat exchanger, for pools, spas, hot tub heating, radiant heating, solar hot water, etc
Pool heat exchanger, 28kW stainless steel pool heat exchanger, for pools, spas, hot tub heating, radiant heating, solar hot water, etc
Pool heat exchanger, 28kW stainless steel pool heat exchanger, for pools, spas, hot tub heating, radiant heating, solar hot water, etc
Pool heat exchanger, 28kW stainless steel pool heat exchanger, for pools, spas, hot tub heating, radiant heating, solar hot water, etc
Pool heat exchanger, 28kW stainless steel pool heat exchanger, for pools, spas, hot tub heating, radiant heating, solar hot water, etc

Pool heat exchanger, 28kW stainless steel pool heat exchanger, for pools, spas, hot tub heating, radiant heating, solar hot water, etc

(0 reviews)
Ask a question
1,620.00SEK
  • Brand: CNCEST
  • Product Code: JZ27ZH-000200
  • Availability: Out Of Stock
Quantity
- +
Estimated Delivery:
Free Fast Shipping:
On all orders
estimated delivery guarantee

Rugged and Durable

It is made of polished and sanded 304 stainless steel, so it is water-resistant and has a long service life, ideal for chlorinated or saltwater pools and spas.

High Efficiency

Its 28kW power provides you with 40 GPM of pool water flow and 4.75 GPM of hot water flow. Two fluids of different starting temperatures flow through the heat exchanger. Heat is transferred from one fluid to the other.

Fast Heating

This product provides a heat output of 28K Btu/H based on a temperature difference between the incoming water and the hot water, providing immediate heating without waiting.

Energy Saving

The ingenious bellows design ensures high-speed operation inside the unit, maximizing the use of solar or boiler energy and improving the overall thermal efficiency.

Healthy and Hygienic

The non-storage design ensures two separate channels for hot and cold fluids, greatly reducing the risk of contaminated water sources.

Flexible Installation

It can be installed vertically or horizontally according to your needs. The compact size (6.3*11.5in) can effectively save installation space.

Pipeline Heat Dissipation

It can speed up the heat exchange rate and ensure the maximum rate of heat exchange.

Protective Housing

A high-quality 304 stainless steel shield can protect the heating element from direct contact with people or animals, to protect your use of safety.

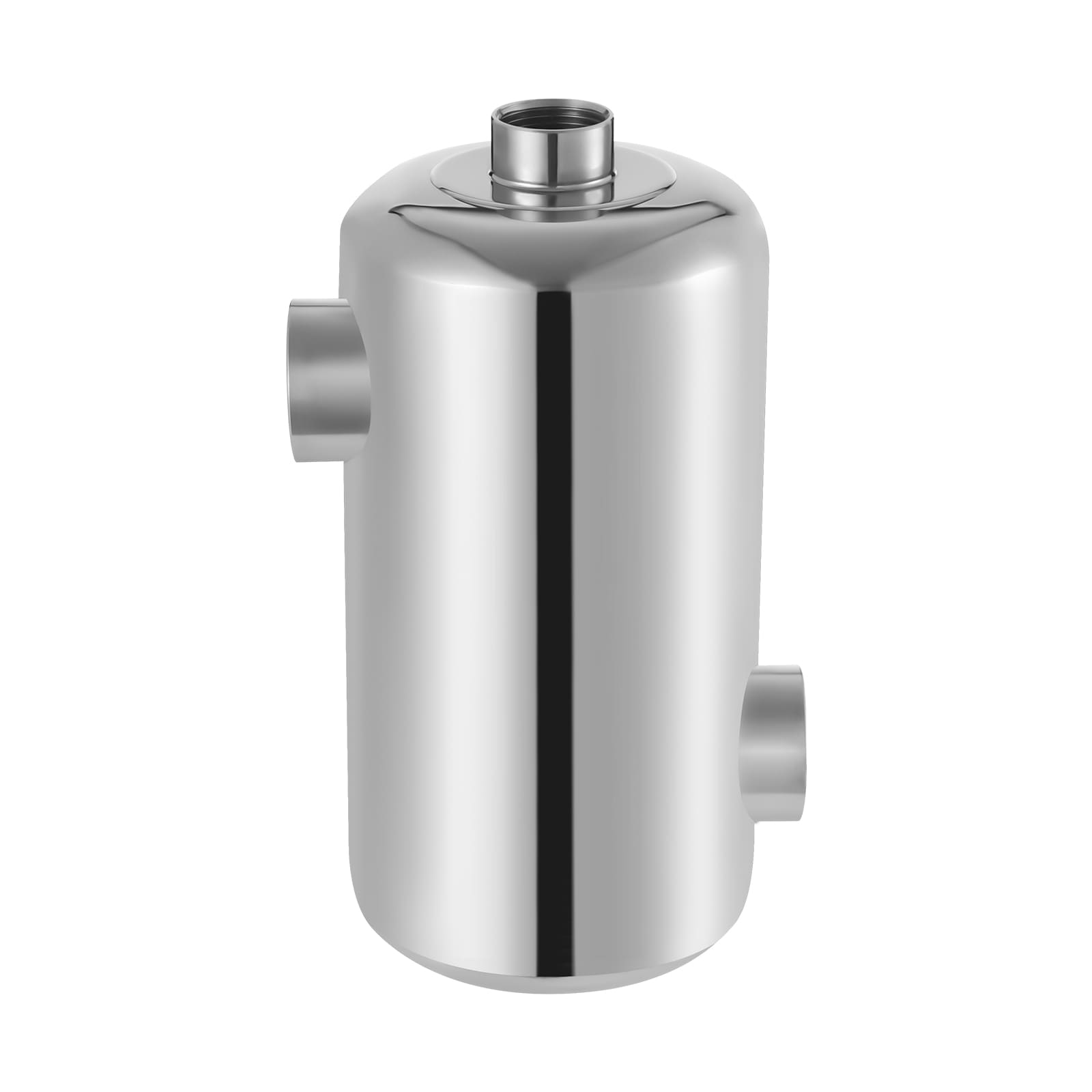

Reverse Outlet & Inlet

The inlet and outlet are reversed, both on opposite sides, which can optimize water flow dynamics and improve heat transfer efficiency.

Wide Application

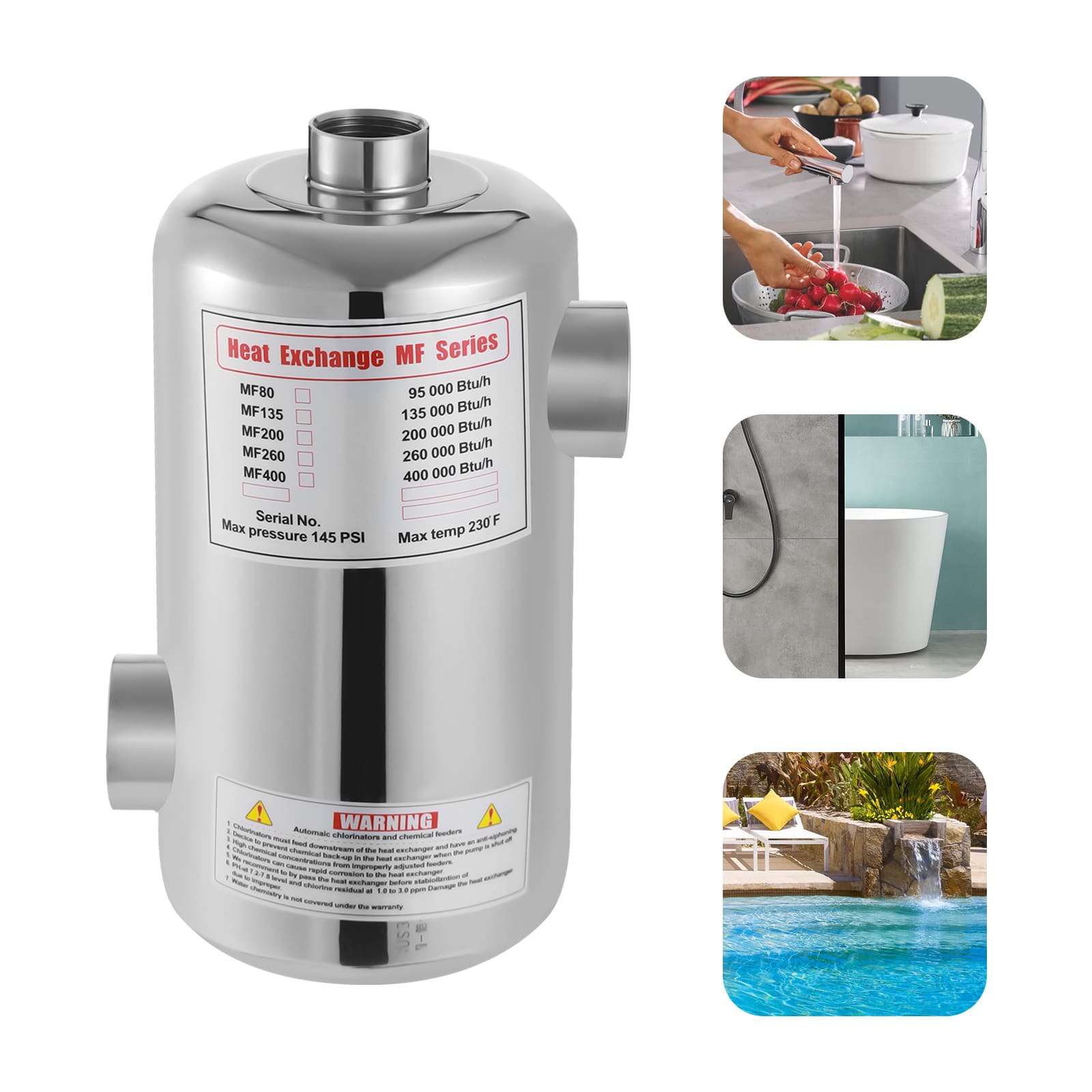

It is suitable for swimming pools, spas, hot tub tray heating, outdoor wood stoves, circulating heat, forced air heating, radiant floor heating, snow melting, solar hot water, and more. It can be used with any type of pool water, whether treated or salt water.

Specifications
Color:  Silver
Assembly Required:  Yes
Material:  304 Stainless Steel
Process:  Polishing, Sanding
Power:  28kW
Output:  28kBtu/h
Pressure Test:  2.5kg/cm³
Pool Water Circuit:  10bar
Hot Water Circuit:  5bar
Pressure Bearing:  2.5kg/5.51lbs
Pool Water Flow:  150L/40gal/min
Hot Water Flow:  18L/4.75gal/min
Max Pressure:  4kg/cm³
Max Temp:  120℃/248 °F
Applicable Pool Volume:  150m³/5297.2ft³

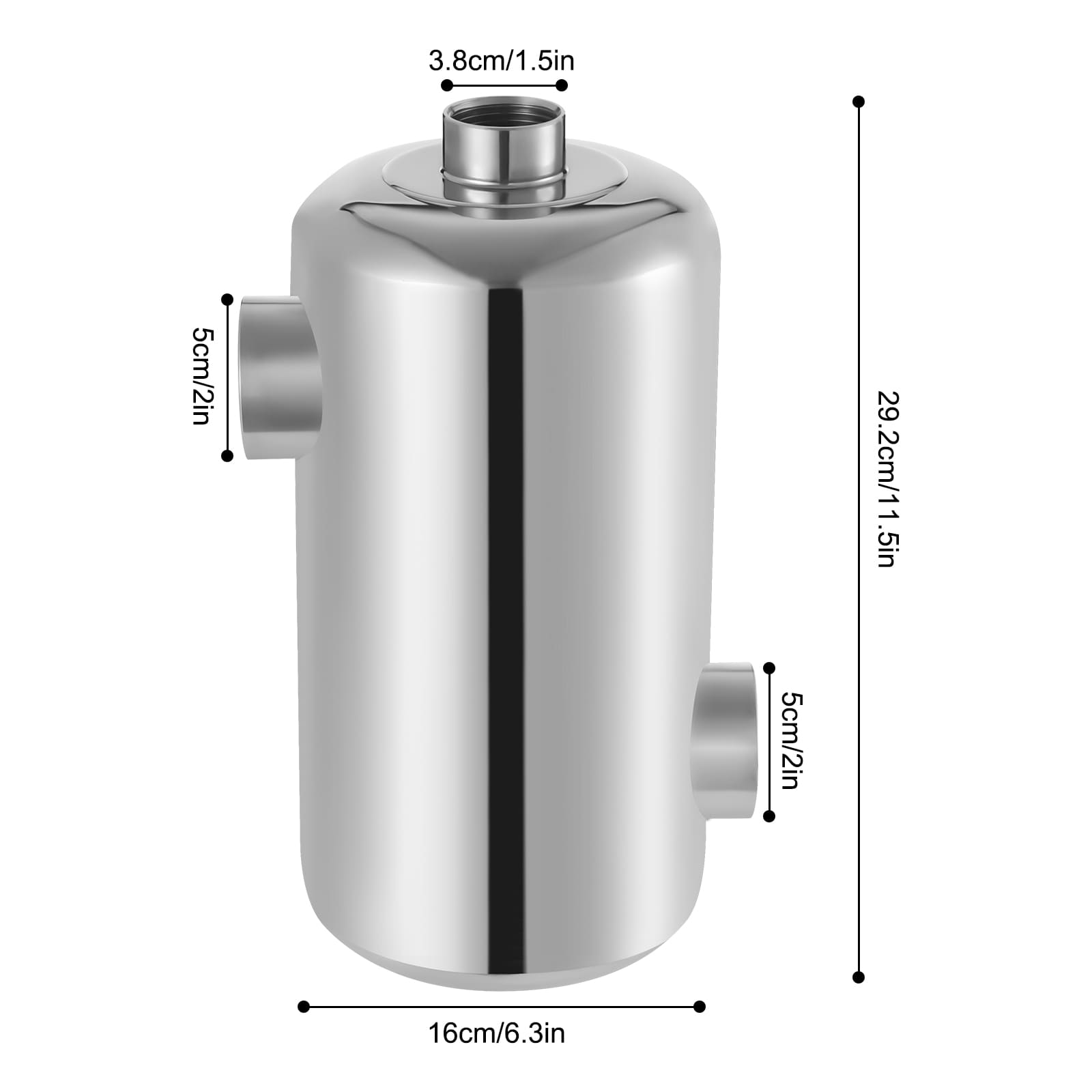

Product Size(D*L):  13.4*29.2cm/5.28*11.5in
Total Width:  16cm/6.3in
Each Side Port Size:  5cm/2in
Top Port Size:  3.8cm/1.5in
Gross Weight:  3.5kg/7.72lbs
Package Size:  35*20*20cm/13.78*7.87*7.87in

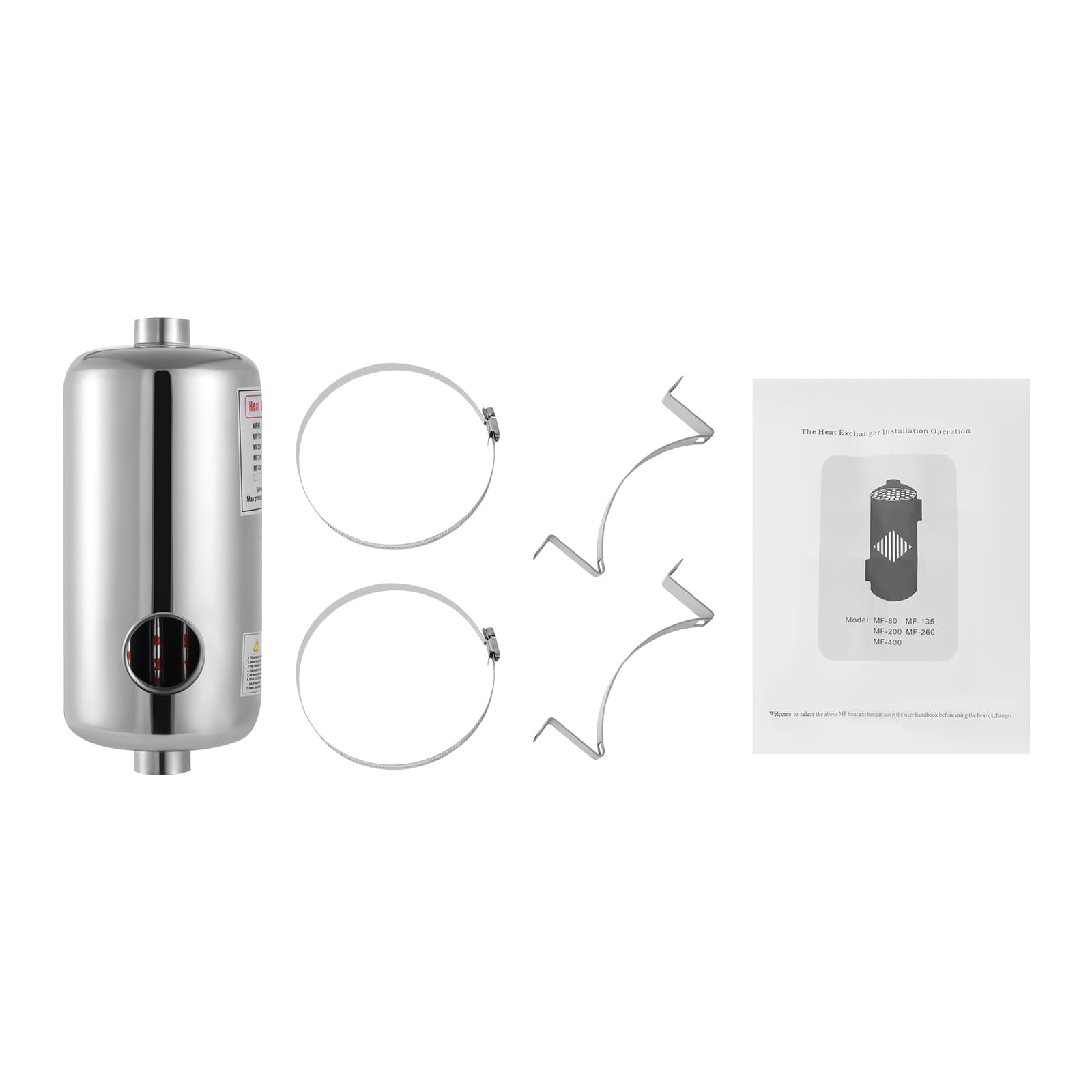

Package Included
1* Swimming Pool Heat Exchanger
1* Chinese&English Manual
All Accessories for Use

Specifications

Color Silver Assembly Required Yes
Material 304 Stainless Steel Process Polishing, Sanding
Power 28kW Output 28kBtu/h
Pressure Test 2.5kg/cm³ Pool Water Circuit 10bar
Hot Water Circuit 5bar Pressure Bearing 2.5kg/5.51lbs
Pool Water Flow 150L/40gal/min Hot Water Flow 18L/4.75gal/min
Max Pressure 4kg/cm³ Max Temp 120℃/248 °F
Applicable Pool Volume 150m³/5297.2ft³ Product Size(D*L) 13.4*29.2cm/5.28*11.5in
Total Width 16cm/6.3in Each Side Port Size 5cm/2in
Top Port Size 3.8cm/1.5in Gross Weight 3.5kg/7.72lbs
Package Size 35*20*20cm/13.78*7.87*7.87in

Product Tips

Notes

1. Please check the style and size before purchasing.
2. Please read the instruction manual and label completely before installation and use, and pay particular attention to the safety instructions included.

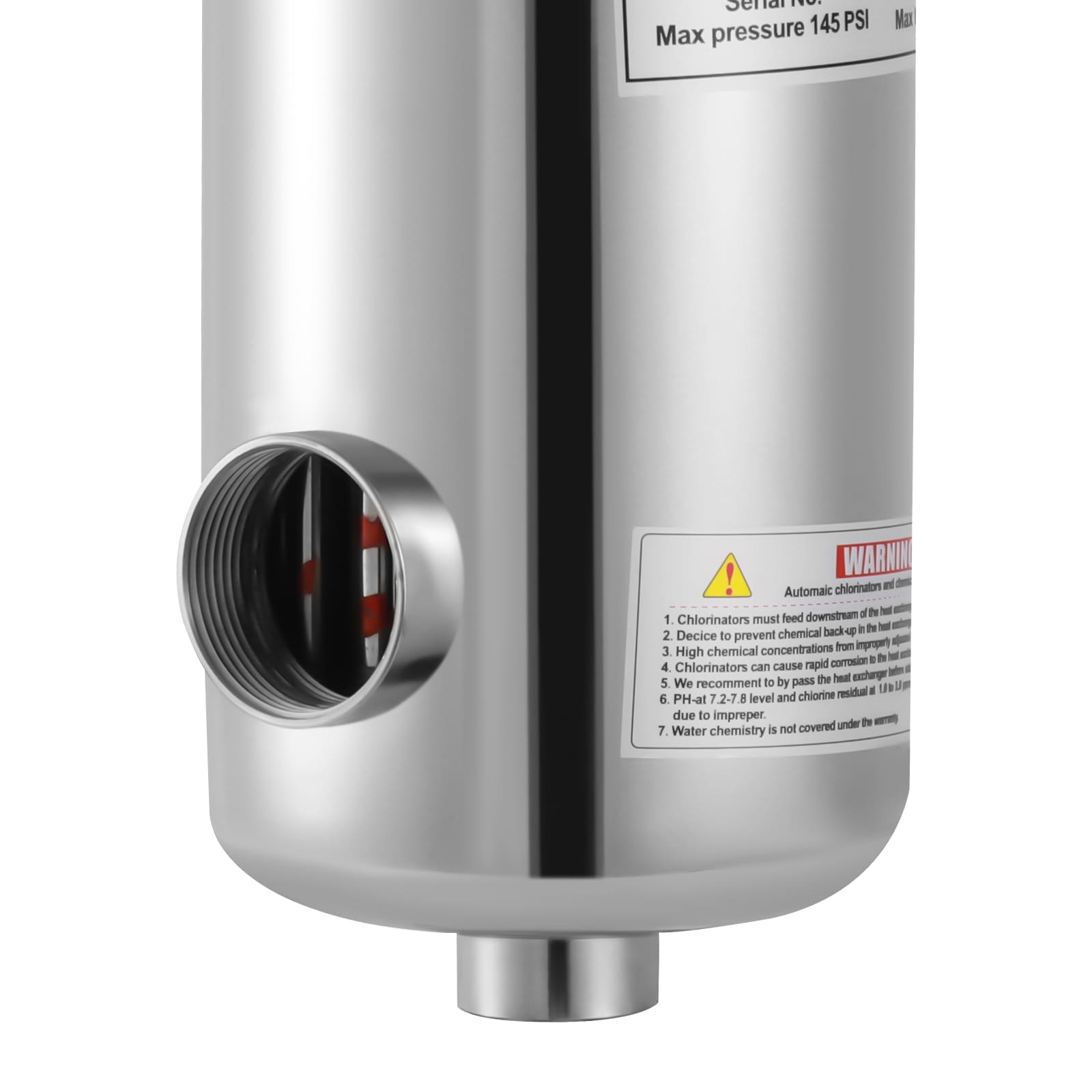

3. Please note that the recommended maximum chloride concentration in fresh/clean water below 140°F in the exchanger is 300 mg/L and should be reduced as the water temperature increases. Exceeding the recommended chloride concentration or direct use of the chlorinator may result in stainless steel pitting. Titanium pool heat exchangers are recommended for use in environments with high chloride concentrations.
4. Please note that the heat exchanger should always be installed in reverse flow and should be installed downstream of the filter and pump equipment. It must be an auxiliary equipment for boiler water and take usual precautions to prevent air lock.
5. People must not be in the water while the heat exchanger is working.
6. Please do not put 2 heat exchangers into a swimming pool at the same time.
7. The product requires a heating circuit to work properly and a thermostat circuit to ensure a continuous thermostatic effect.
8. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
