Name: Vertical Wind Turbine 3 blades with regulator 24 V 400 W Vertical Wind Turbine with regulator
Brand: CNCEST
SKU: YLLNTC3XNDYC8
Price: 3311.88 SEK
Availability: InStock

Free Shipping for All Orders! Fast Delivery!

Hello, Sign In

Account & Order

Track Order Browsing History Contact Us

Vertical Wind Turbine 3 blades with regulator 24 V 400 W Vertical Wind Turbine with regulator

Vertical Wind Turbine 3 blades with regulator 24 V 400 W Vertical Wind Turbine with regulator

(0 reviews)

Ask a question

3,311.88SEK

Brand: CNCEST
Product Code: YLLNTC3XNDYC8
Availability: In Stock

Estimated Delivery:

Free Fast Shipping:

On all orders

Description
Reviews (0)
Recommer
Delivery and Return

Premium Blade

The blade material is made of injection molded plastic with high strength fiberglass material.

Powerful Performance

It uses a three-phase AC permanent magnet motor design with a low-torque, high-power intelligent microprocessor, which can effectively adjust current and voltage. Double bearing, more stable fan movement. Low vibration and low noise.

Easy to Install

Contains everything you need for installation. Humanized and practical flange design, easy installation and maintenance.

Versatile Use

Ideal for boats, gazebos, cabins or campers, as well as green windmills, energy supplements for home, business and industry

Protective Packaging

The bubble wrap can better protect your product during transportation and make it delivered to you completely to the greatest extent.

Good Customer Service

We stand behind all our guests and look forward to assisting you with your purchase. It is our pleasure to answer your confusion and questions.

Three-phase Permanent Magnet Generator

The wind turbine with low torque and high power intelligent tracking microprocessor can effectively regulate current and voltage. It significantly increases the use of wind energy and annual electricity production.

Strong Wind Resistance

Horizontal rotation brings low wind pressure, so it can withstand super wind. When the wind turbine reaches the maximum speed of 300rpm, it is automatically braked.

Electricity Generation At Low Wind Speed

Due to its compact shape, low start-up wind speed and large surface area rotated by the wind, the wind turbine can generate electricity even at speeds of lower winds.

Application

Ideal for boats, gazebos, cabins or campers, as well as green windmills, energy supplements for home, business and industry

Specifications

Starting wind speed: 2.0-2.5m/s.

Wind speed: 2.5 m/s.

Rated wind speed: 14 m/s.

Max. Wind speed: ≤40m/s.

Current maximum wind speed: ≤45m/s.

Number of blades: 3.

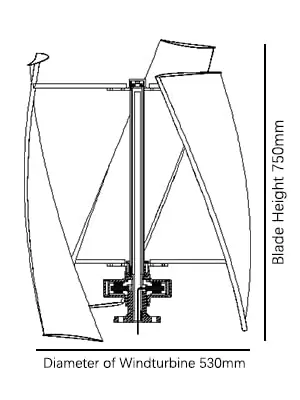

Leaf diameter: 0.6 m.

Leaf height: 0.8 m.

Speed adjustment: automatic.

Tension nominale : 24 V.

Rated power: 400 W.

Maximum power: 450 W.

Generator protection rating: IP67.

Working environment temperature: 25 to 45 +.

Product mounting weight: Overspeed protection

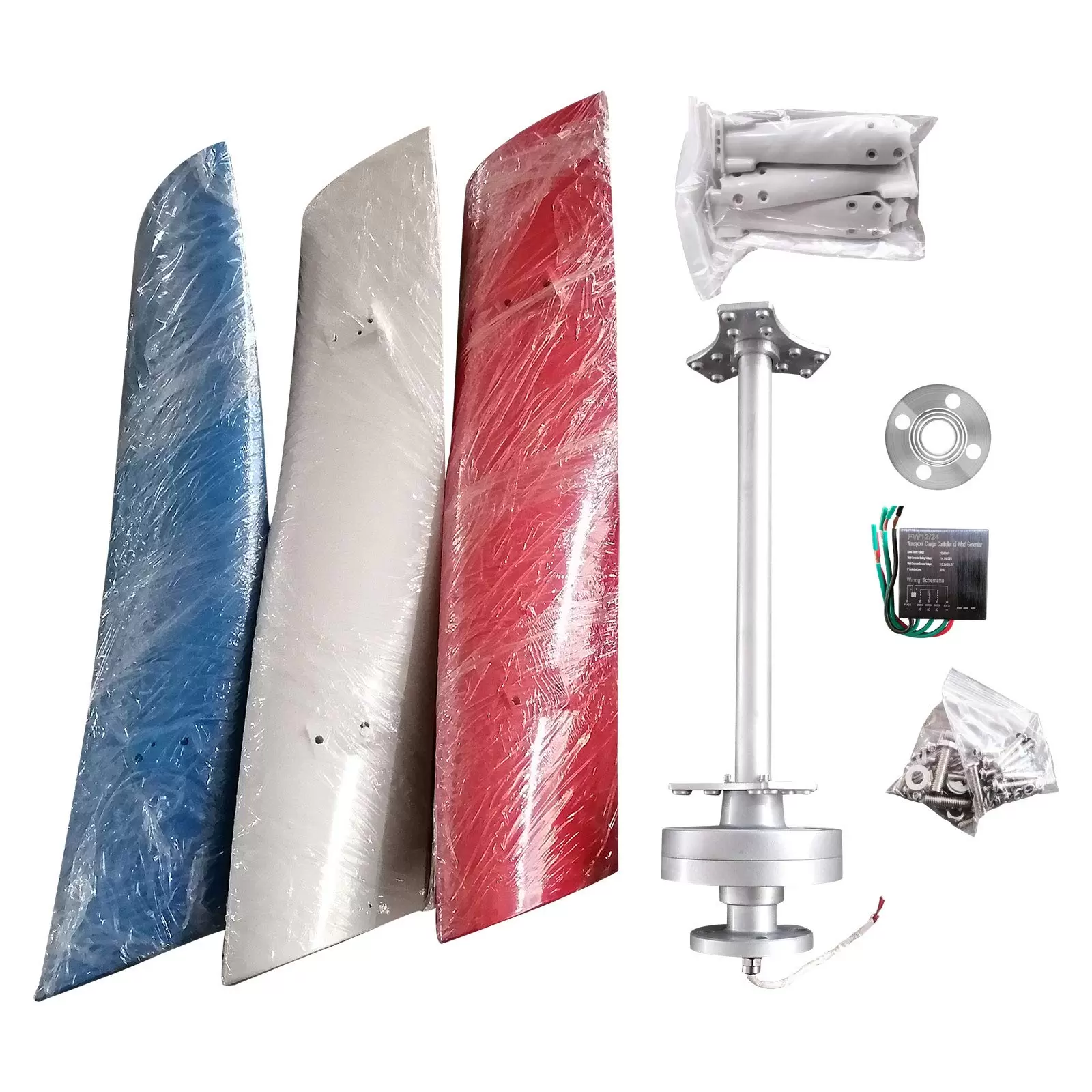

Package Included

1 wind turbine.

1 control box.

3 sheets.

1 bag of screws to connect the main body.

1 bag of screws to connect the bracket wings.

Specifications

Starting wind speed	2.0-2.5m/s.	Wind speed	2.5 m/s.
Rated wind speed	14 m/s.	Max. Wind speed	≤40m/s.
Current maximum wind speed	≤45m/s.	Number of blades	3.
Leaf diameter	0.6 m.	Leaf height	0.8 m.
Speed adjustment	automatic.	Tension nominale	24 V.
Rated power	400 W.	Maximum power	450 W.
Generator protection rating	IP67.	Working environment temperature	25 to 45 +.
Product mounting weight	Overspeed protection

Product Tips

Notes

The controller, screws and flange are secured in the foam.

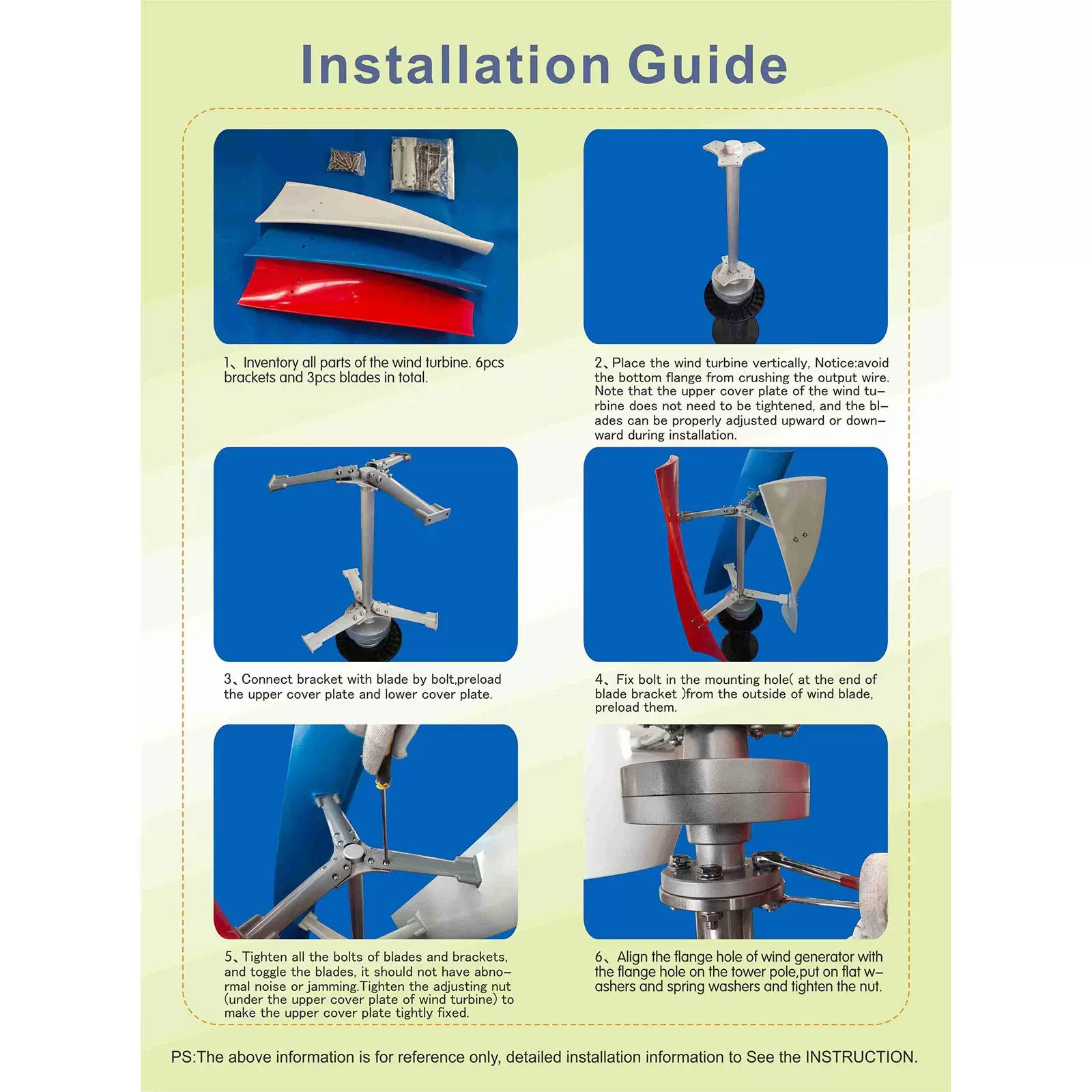

How to Use

Montage :
1. Check all parts of the wind turbine and place the wind turbine vertically.
2. Connect the brackets to the fenders through the screws. Place the top and bottom plates.
3. Secure the screw into the mounting hole (at the end of the bracket) from the outside of the wind wheel.
4. Tighten all screws on the wings and bracket and turn on the wings. There should be no unusual noises or blockages. Tighten the nut (under the impeller top plate) to secure the top plate firmly.
5. Align the flange hole of the wind turbine with the flange hole of the mast, place washers and spring washers and tighten the nut.
