• With wider input voltage ranges.
• With high frequency operation, the size of the
• power transformers.
• Small in size, light in weight and high in density.
• Up to 70% higher total yield

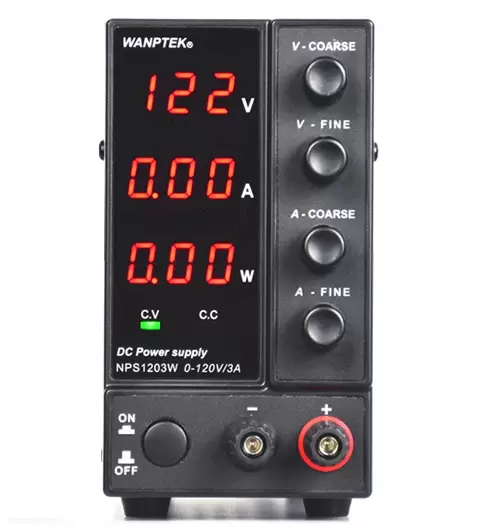

This current measuring device has 3 screens. These three 3-digit LED indicators can display current, voltage and power simultaneously, with a display accuracy of up to 0.5% + 3 digits.

This stabilized laboratory power supply is widely used for the maintenance of mobile phones, computers, production lines, etc., in school classes and laboratories, etc. This power supply can also be used as a current meter, ammeter, voltmeter, etc.

Product Description :
The series of power substrates for measuring instruments no longer have difficulty gaining the volume and heaviness of a traditional power supply. The output voltage and current are controlled by two variable resistors for precise cell phone adjustment.

Features :
With a larger input voltage range.
With high frequency operation can reduce the size of power transformation.
With small size, light weight and high density power.
Maximum efficiency rate: up to 70%.
lZero setting for voltage and current output.

Features :
Model: NPS1203W.
Input power: 220 V AC, 50 Hz.
Output current: 0-3A.
Output power: 360W.
Operating temperature: 0°C to 40°C Relative humidity: Storage temperature: -10℃ ~ 70℃; relative humidity :
Constant tension :
Voltage stability: 0.1% ± 3 MV.
Load stability: 0.2% ± 3 MV.
Ribbed tension: ≤ 0.5% Vp-p.
Continuously adjustable from 0 to nominal voltage.

Constant current operation:
Current stability: 0.1% ± 3 mA.
Ripple current: ≤ 0.5% Vp-p.
Recovery time: ≤500 μs.
Temperature coefficient: ≤100ppm/℃
L0 for continuously adjustable nominal current.

lHead screen:
Three digital tube screens: voltage, current, power.
Screen accuracy: 0.5% + 3 words.
Display staging rate: voltage 0.1V, current 0.01A, power 0.1W/1W.
Product dimensions: 70 x 130 x 230 mm
Package dimensions: 110 x 170 x 290 mm.
Net weight: 1.3 kg.
Weight: 1.6 kg.

Content :
1 alimentation CC.

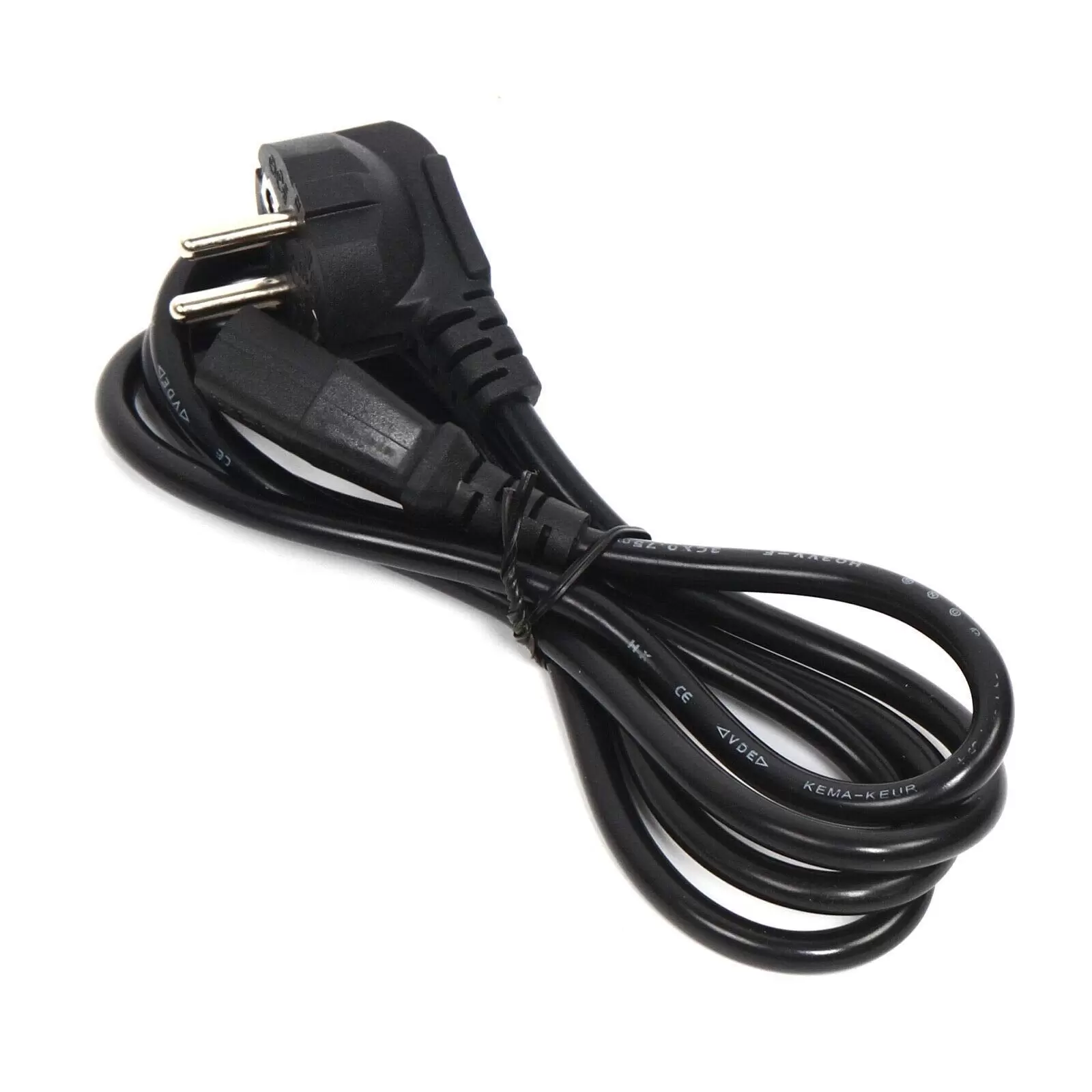

1 x power cable.

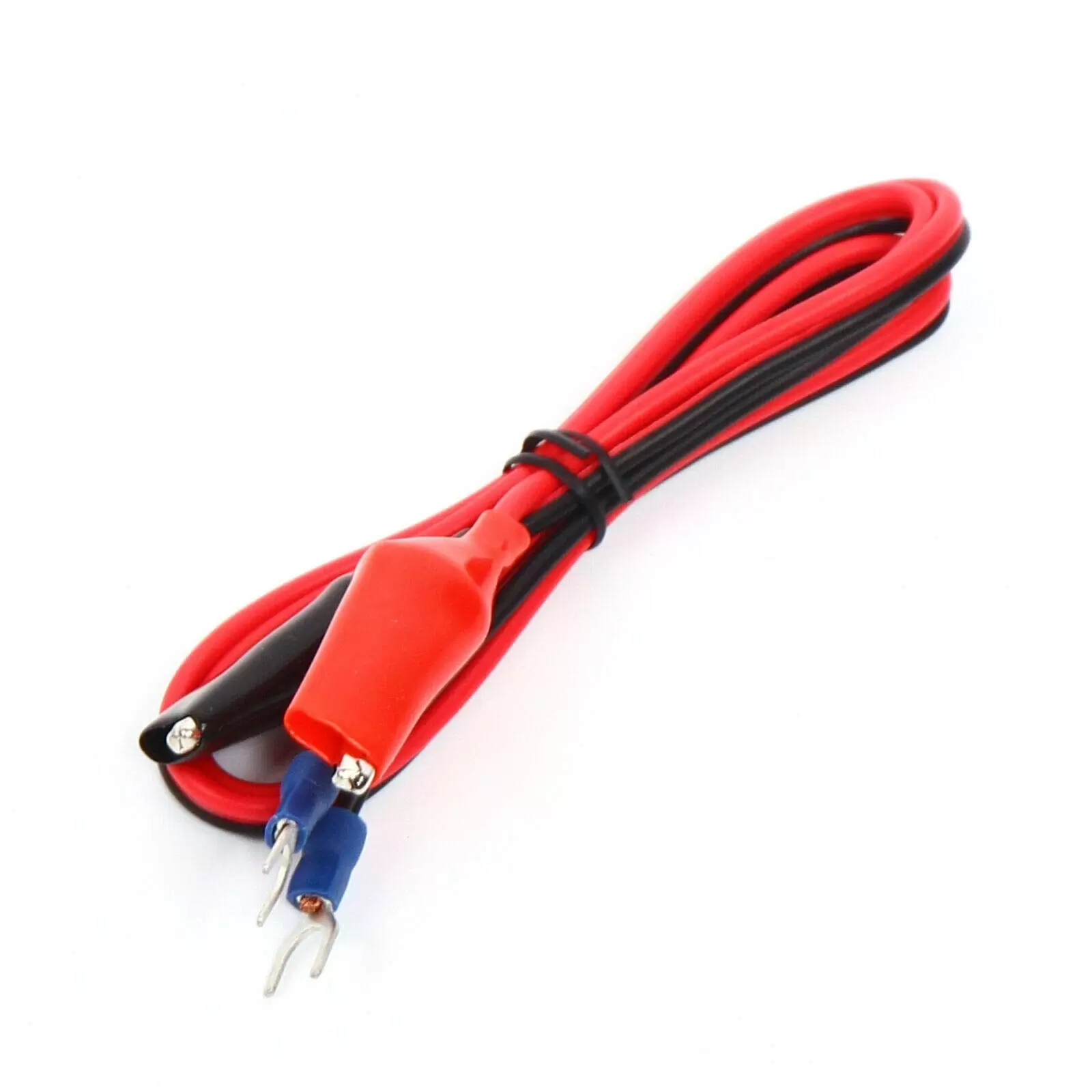

1 output line.
