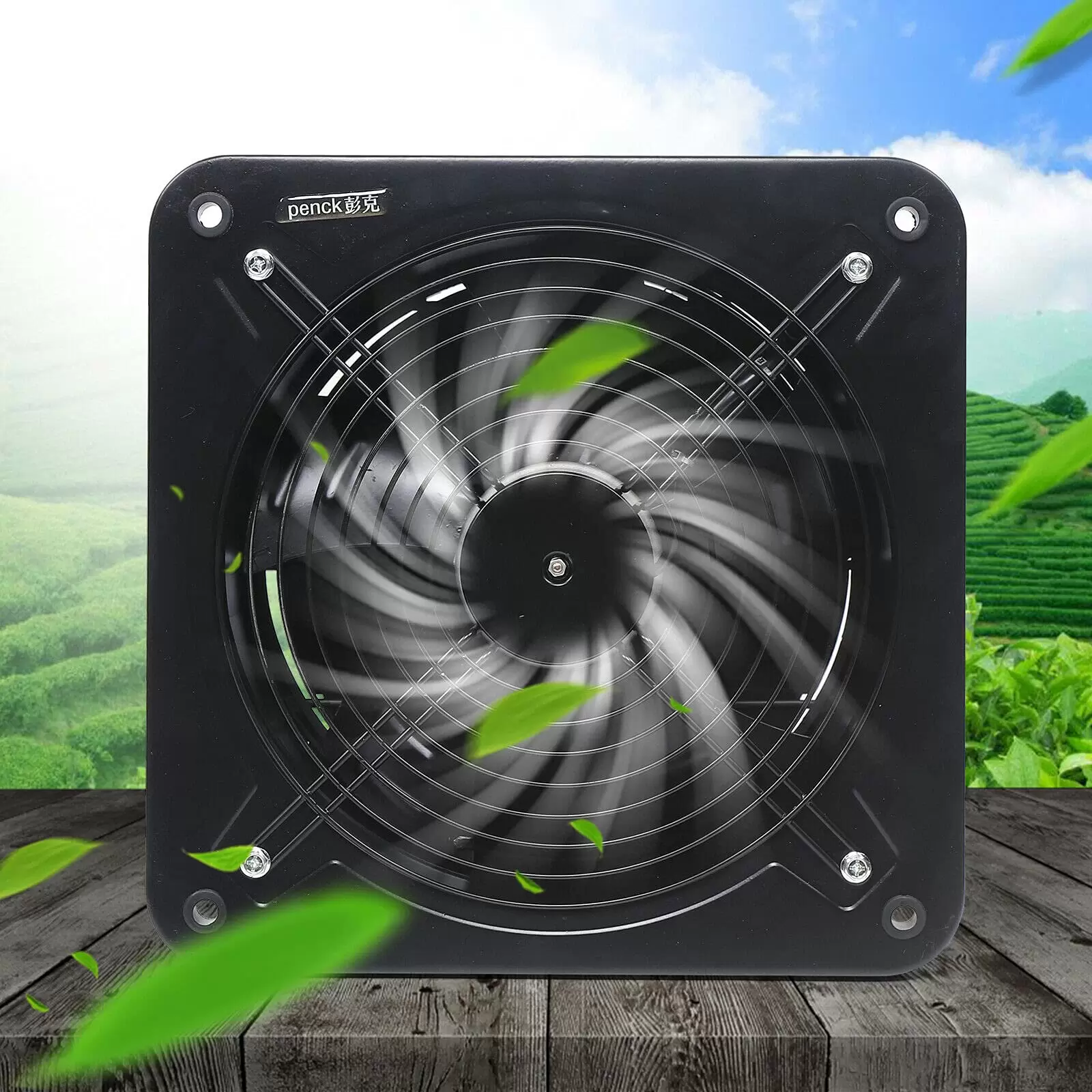

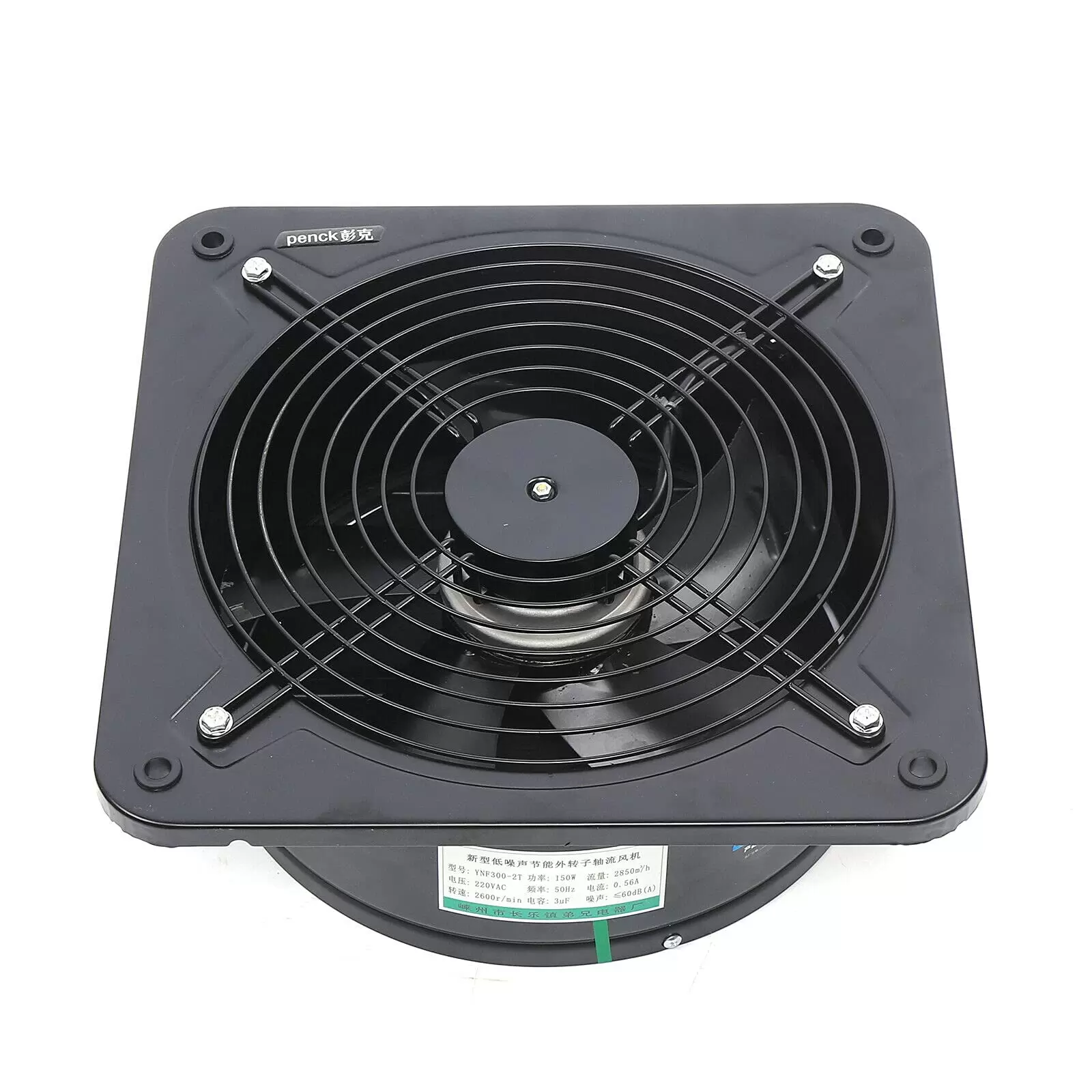

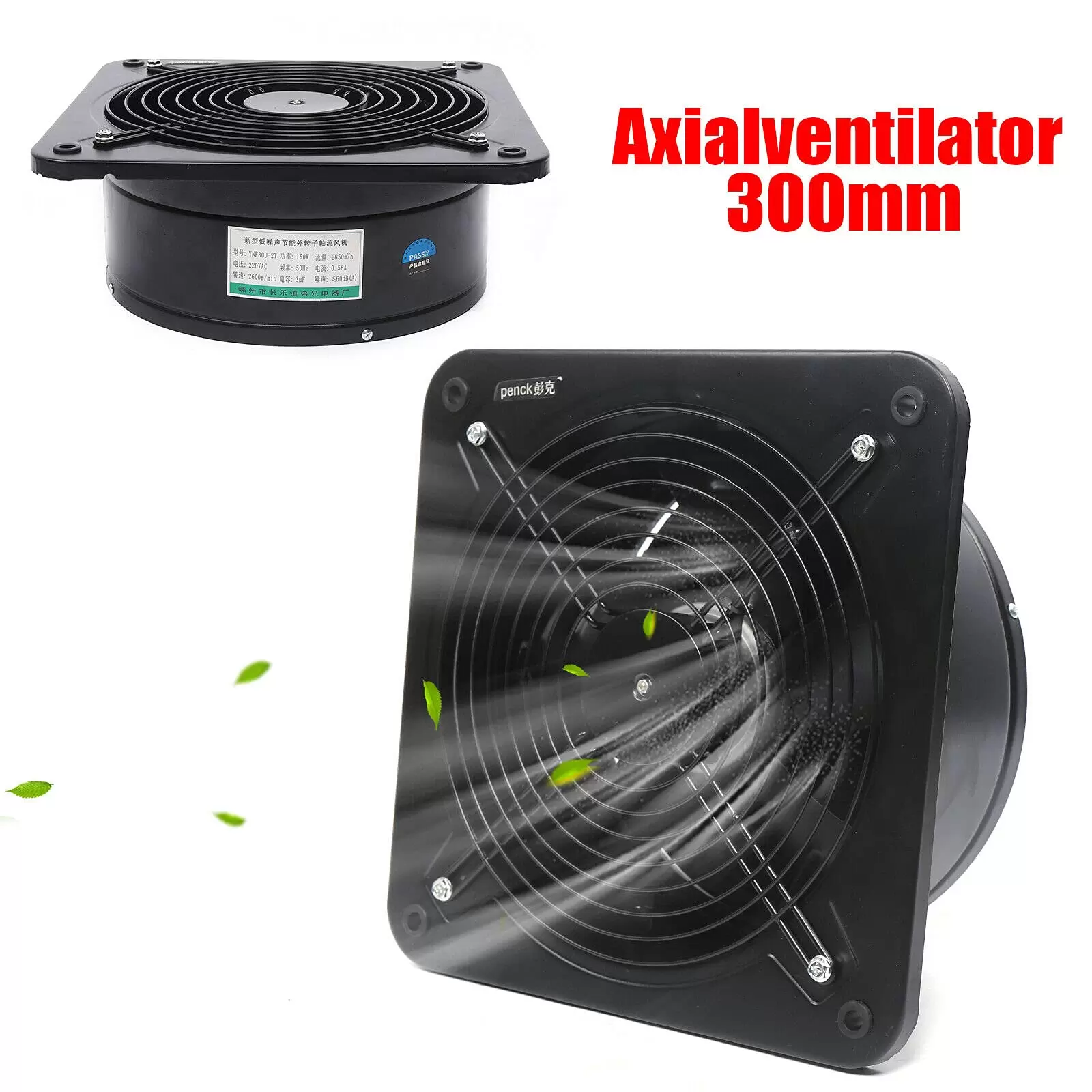

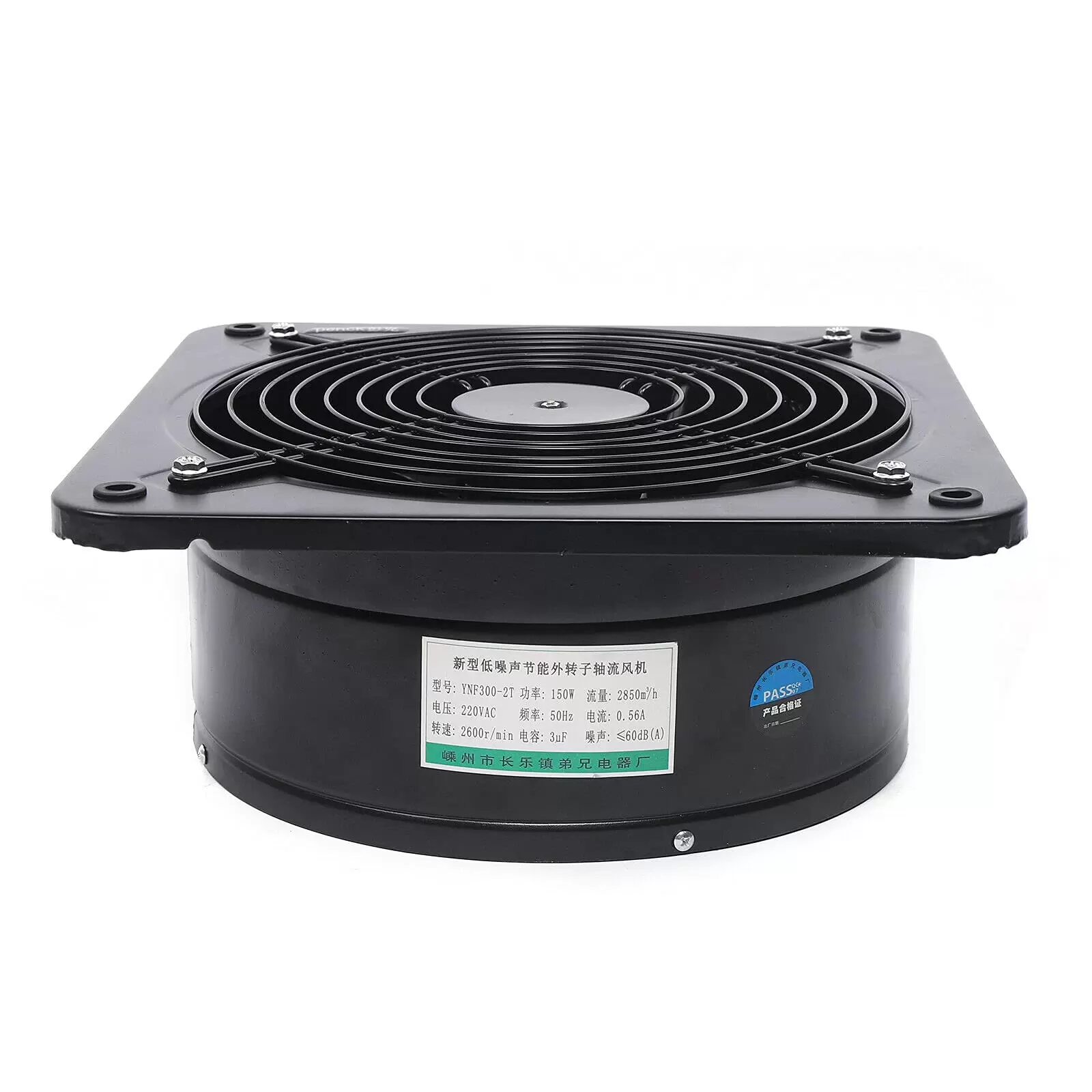

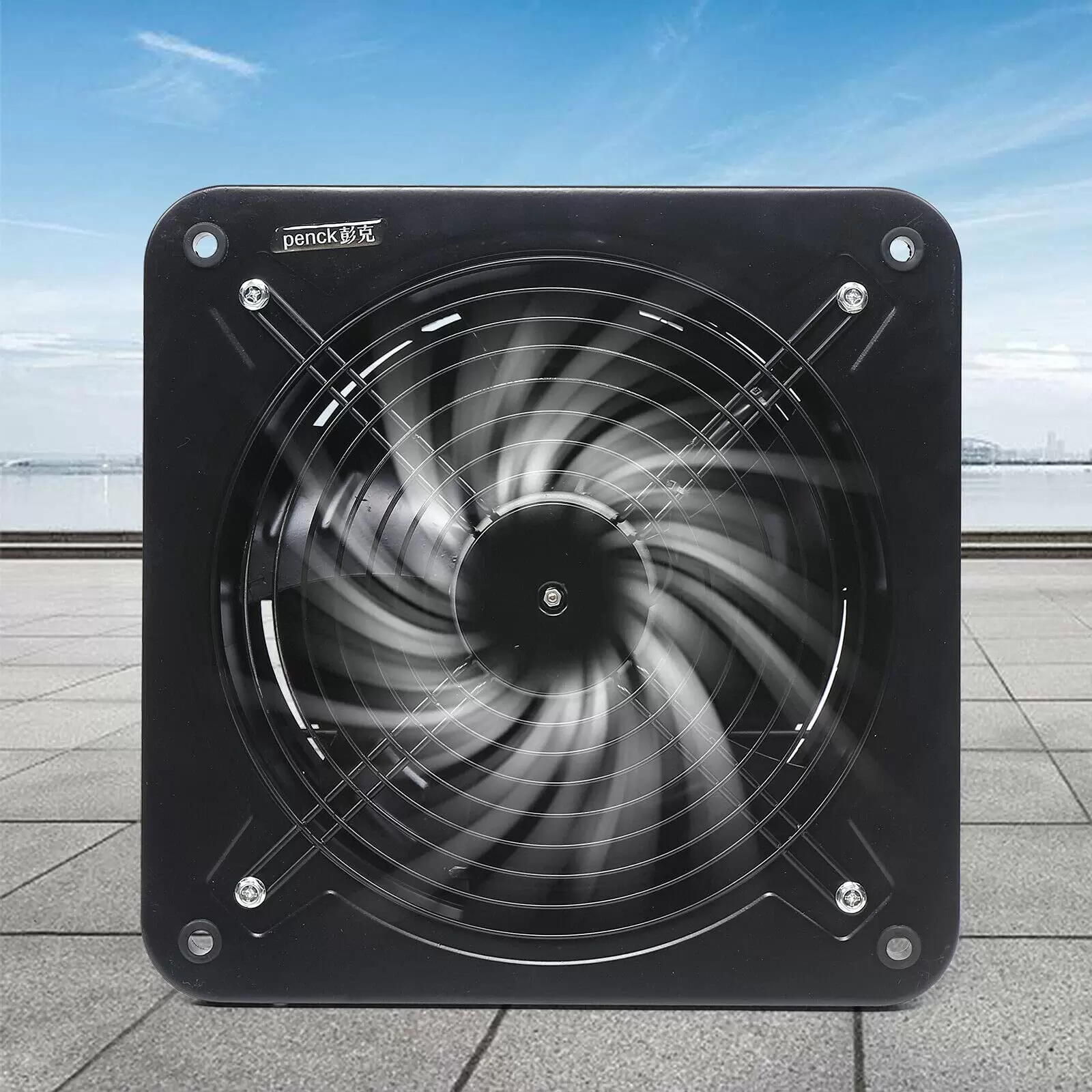

CNCEST-Wall fan for bathroom - 300 mm - With discharge plate

CNCEST-Wall fan for bathroom - 300 mm - With discharge plate

(0 reviews)

Ask a question

743.88SEK

Brand: CNCEST
Product Code: HG-WMTZXL-4058-DE
Availability: In Stock

Estimated Delivery:

Free Fast Shipping:

On all orders

Description
Reviews (0)
Recommer
Delivery and Return

High Safety

The built-in overheat protection device can cut off the contacts when the motor overheats and provide power failure protection, making this exhaust fan safe to use.

Modern Appearance

The smooth lines, compact structure, and timeless black color give this product a modern and beautiful appearance, which fits any decoration style.

Easy to Clean

You can remove the fan by unscrewing the four corner screws. The removable design facilitates regular cleaning of debris or oil, extending its service life.

Easy to Install

The simple structure with four mounting holes allow for easy installation.

Tight Mesh Cover

The thickened protective mesh cover firmly fixed with four enlarged screws can prevent fragments from being involved in the motor blades and avoid accidental touch injury.

Backdraft Damper

It can automatically open and close with the operation of the fan, preventing mosquitoes&mice from entering and polluted air from returning into the room.

Premium Material

All metal materials and painting surface treatment give this exhaust fan strong corrosion, rust, and wear resistance. The double ball bearing rather than an oil-bearing sleeve is more wear-resistant and durable.

Strong Performance

Adopting a double-ball copper wire bearing motor with 2677r/min speed and 5 wide-angle fan blades with an integrated stamping process, this exhaust fan can achieve fast wind speed(2677m³/h), ensuring better and efficient air circulation while saving electricity.

Low-noise

With a stable intake gate and even air back, this exhaust fan operates at lower noise(≤60db), providing you with a more cozy environment.

Fresh Life

This exhaust fan is designed to remove exhaust gases and help ventilation, and keeps your living space cooler and more comfortable year-round.

Specifications

Model: YNF300-2T

Color: Black

Material: Metal

Surface Treatment: Painting

Shape: Square, Round

Room Type: Bathroom, Kitchen

Recommended Uses For Product: Exhausting, Ventilating

Mounting Type: Wall/Ceiling Mount

Power Source: Corded Electric

Voltage: 220V AC

Power: 107W

Frequency: 50Hz

Current: 0.57A

Capacitance: 3μF

Air Flow: 2677m³/h

Number of Blades: 5

Speed: 2677 r/min

Operating Noise: ≤60db(A)

Opening Diameter: 30cm/12inch

Panel Size(L*W): 35*35cm/13.8*13.8inch

Product Size: 35*35*13cm/13.8*13.8*5.1inch

Package Size: 37*37*17cm/14.56*14.56*6.69inch

Net Weight: 3.9kg/8.59 lbs

Gross Weight: 4.09kg/9.01 lbs

Package Included

1* Kitchen Exhaust Fan

Specifications

Model	YNF300-2T	Color	Black
Material	Metal	Surface Treatment	Painting
Shape	Square, Round	Room Type	Bathroom, Kitchen
Recommended Uses For Product	Exhausting, Ventilating	Mounting Type	Wall/Ceiling Mount
Power Source	Corded Electric	Voltage	220V AC
Power	107W	Frequency	50Hz
Current	0.57A	Capacitance	3μF
Air Flow	2677m³/h	Number of Blades	5
Speed	2677 r/min	Operating Noise	≤60db(A)
Opening Diameter	30cm/12inch	Panel Size(L*W)	3535cm/13.813.8inch
Product Size	353513cm/13.813.85.1inch	Package Size	373717cm/14.5614.566.69inch
Net Weight	3.9kg/8.59 lbs	Gross Weight	4.09kg/9.01 lbs

Product Tips

Notes

1.Please check the product size before ordering to make sure it fits your room.
2.Please make sure the power is cut off before installation. To ensure your safety, we recommend that two people install this exhaust fan together. Please install it by someone with an electrical license if necessary.
3.When installing, please leave enough space for the operation of the fan. Please note that the exhaust fan is recommended to be installed vertically, not horizontally, to avoid the damper cannot be opened.
4.Due to inconsistent installation requirements, this product does not contain screws.
5.The product requires wiring. Wiring tips: There are two wiring methods: 1. Blue to black (L), brown to white (N), and yellow to green (E). 2. Blue to black.

How to Install

1.Cut a hole in the wall according to the size of the fan opening.
2.Place the tail end of the exhaust fan in the hole and mark the location of the screw hole with a pen.
3.Use the electric drill to open the screw hole at the marked position.
4.Put the exhaust fan in again and tighten the screws.
