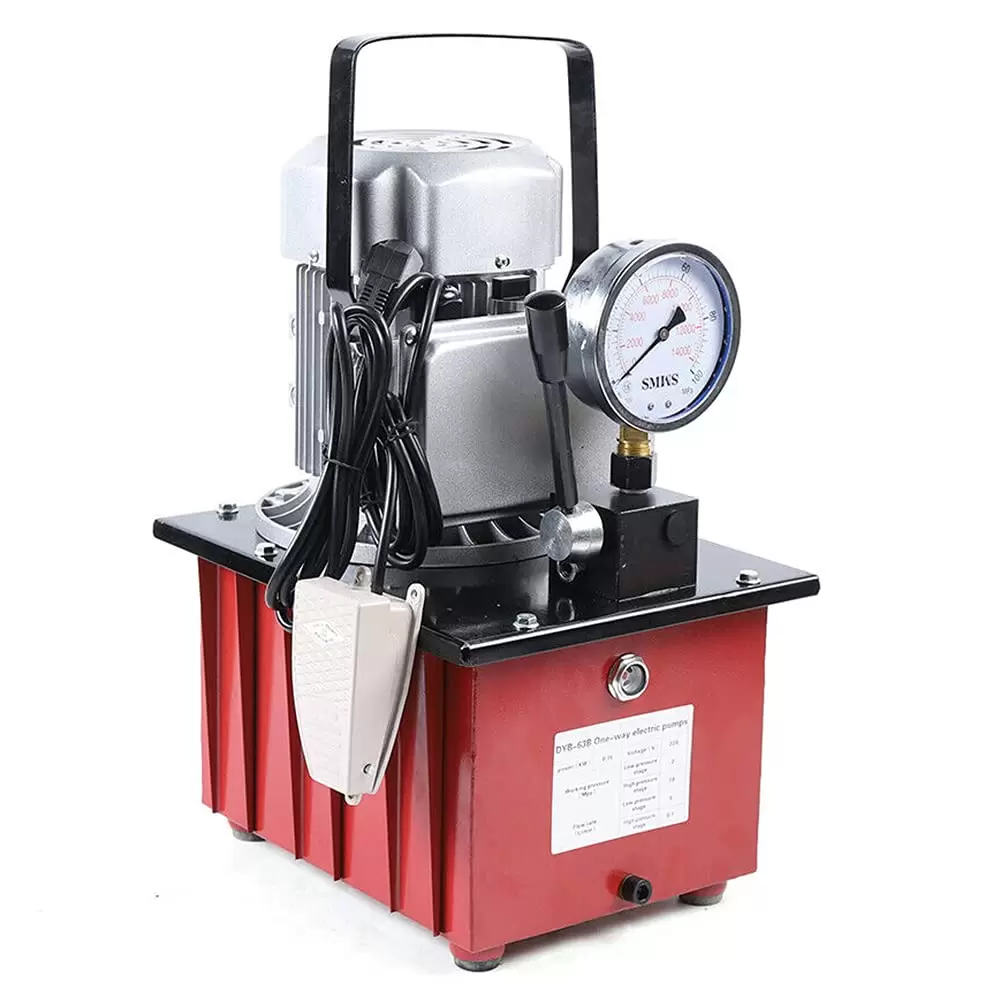

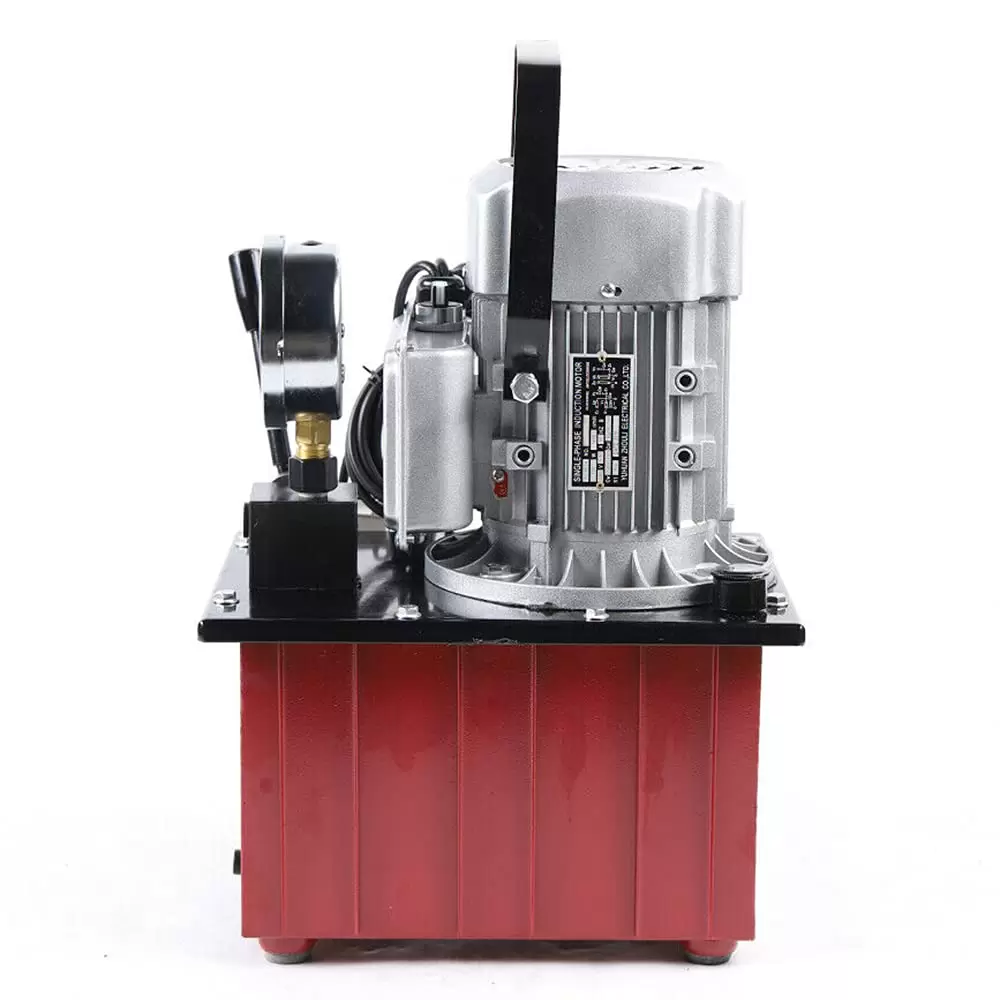

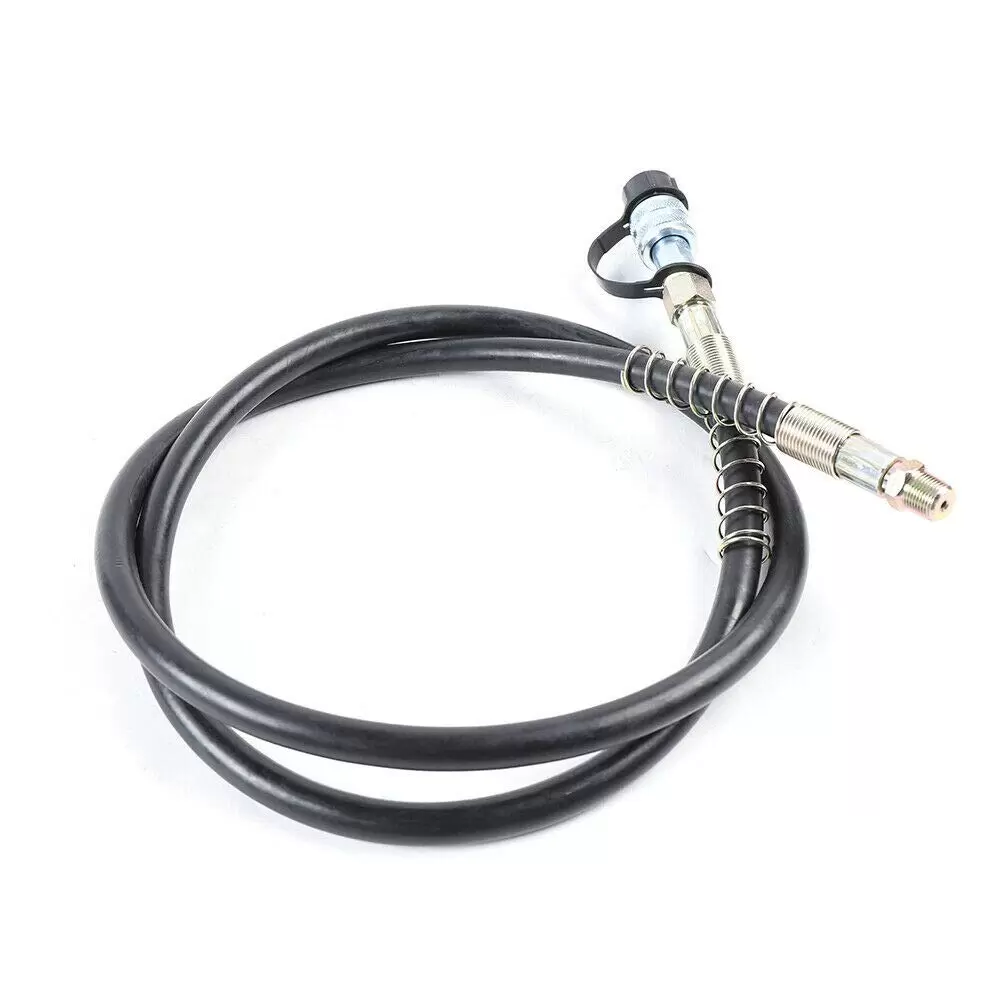

Hydraulic Pump Electro-Hydraulic Pump 2-70Mpa Hydraulic Pump 750W with Oil Pipe Electric Hydraulic Pump 750W Single Acting Manual Valve 10000 PSI
- Brand: CNCEST
- Product Code: HG-WMTCXX-2253-DE
- Availability: In Stock

Specifications
Tension d'entrée | AC 220V 50Hz | Flow rate | 0.6 l/min (~7 MPa) - 5 l/min (~7 MPa) |
Working pressure | 290PSI - 10152PSI (2 MPa - 70 MPa) | Oil capacity | 7L |
Motor power | 750W | Motor speed | 1400r/min |
Machine size | 360 x 280 x 440 mm (14.2" x 11" x 17.3") | Weight | 26 kg |
Product Tips


Notes:
1. Open the filler neck before use, electric pump and power connections before oiling, then press the black button next to the motor to open it. Press the manual override switch (up). After a few air pressures, press the manual control switch (down), turn off the engine, connected to the pipe.
2. Open the motor after connecting the pump to the device, and place the operating valve in the pressure position after running the motor for 1-2 minutes. At this time, hydraulic oil enters the cylinder to do the work and exiting the hydraulics, the oil rises up to 63 MPa with the charge of its own booster.
3. The normal operating temperature of the oil pump between 10℃~50℃, if the oil temperature ≥70℃ is determined, the use should be stopped after continuous work under high pressure. Let them cool before use.
