Triple Manual Control Valve - One-piece Double Action Cylinder - Adjustable Pressure Relief Valve - Hydraulic Cylinder - Oil Tank
Triple Manual Control Valve - One-piece Double Action Cylinder - Adjustable Pressure Relief Valve - Hydraulic Cylinder - Oil Tank
Triple Manual Control Valve - One-piece Double Action Cylinder - Adjustable Pressure Relief Valve - Hydraulic Cylinder - Oil Tank
Triple Manual Control Valve - One-piece Double Action Cylinder - Adjustable Pressure Relief Valve - Hydraulic Cylinder - Oil Tank
Triple Manual Control Valve - One-piece Double Action Cylinder - Adjustable Pressure Relief Valve - Hydraulic Cylinder - Oil Tank
Triple Manual Control Valve - One-piece Double Action Cylinder - Adjustable Pressure Relief Valve - Hydraulic Cylinder - Oil Tank
Triple Manual Control Valve - One-piece Double Action Cylinder - Adjustable Pressure Relief Valve - Hydraulic Cylinder - Oil Tank
Triple Manual Control Valve - One-piece Double Action Cylinder - Adjustable Pressure Relief Valve - Hydraulic Cylinder - Oil Tank
Triple Manual Control Valve - One-piece Double Action Cylinder - Adjustable Pressure Relief Valve - Hydraulic Cylinder - Oil Tank
Triple Manual Control Valve - One-piece Double Action Cylinder - Adjustable Pressure Relief Valve - Hydraulic Cylinder - Oil Tank
Triple Manual Control Valve - One-piece Double Action Cylinder - Adjustable Pressure Relief Valve - Hydraulic Cylinder - Oil Tank
Triple Manual Control Valve - One-piece Double Action Cylinder - Adjustable Pressure Relief Valve - Hydraulic Cylinder - Oil Tank
Triple Manual Control Valve - One-piece Double Action Cylinder - Adjustable Pressure Relief Valve - Hydraulic Cylinder - Oil Tank
Triple Manual Control Valve - One-piece Double Action Cylinder - Adjustable Pressure Relief Valve - Hydraulic Cylinder - Oil Tank

Triple Manual Control Valve - One-piece Double Action Cylinder - Adjustable Pressure Relief Valve - Hydraulic Cylinder - Oil Tank

(0 reviews)
Ask a question
1,235.88SEK
  • Brand: CNCEST
  • Product Code: HG-WMTZXL-2191
  • Availability: In Stock
Quantity
- +
Estimated Delivery:
Free Fast Shipping:
On all orders
estimated delivery guarantee

3 Spool 11 GPM

Equipped with 3 spools and G1/2 type inlet/outlet ports. Maximum pressure of this hydraulic is 3600 PSI, and maximum flow can reach 11 GPM.

Spring Return

All slide valves are equipped with spring return, which can be reset to the neutral position with a slight shaking, which is easy to operate and convenient.

Double Acting

Our hydraulic control valve is used to operate double-acting cylinders, which will be more convenient and practical when you use it.

Parallel Oil Circuit

Parallel oil circuit, manual control, closed valve, through the pressure output port connected with other hydraulic components to provide power source.

100% Satisfactory Service

Please rest assured to buy our Hydraulic control valve . Our products are guaranteed. If you encounter any problems during use, please feel free to contact us. We will definitely give you a satisfactory answer.

Protective Packaging

The bubble wrap can better protect your product during transportation and make it delivered to you completely to the greatest extent.

Manual Control

Parallel oil circuit, closed valve, through the pressure output port connected with other hydraulic components to provide power source.

Operate Double-acting

Our hydraulic control valve is used to operate double-acting cylinders, which will be more convenient and practical when you use it.

Durability

The hydraulic control valve is a accuracy appliance, with a strong cast iron construction, accuracy grinding, not easy to damage.

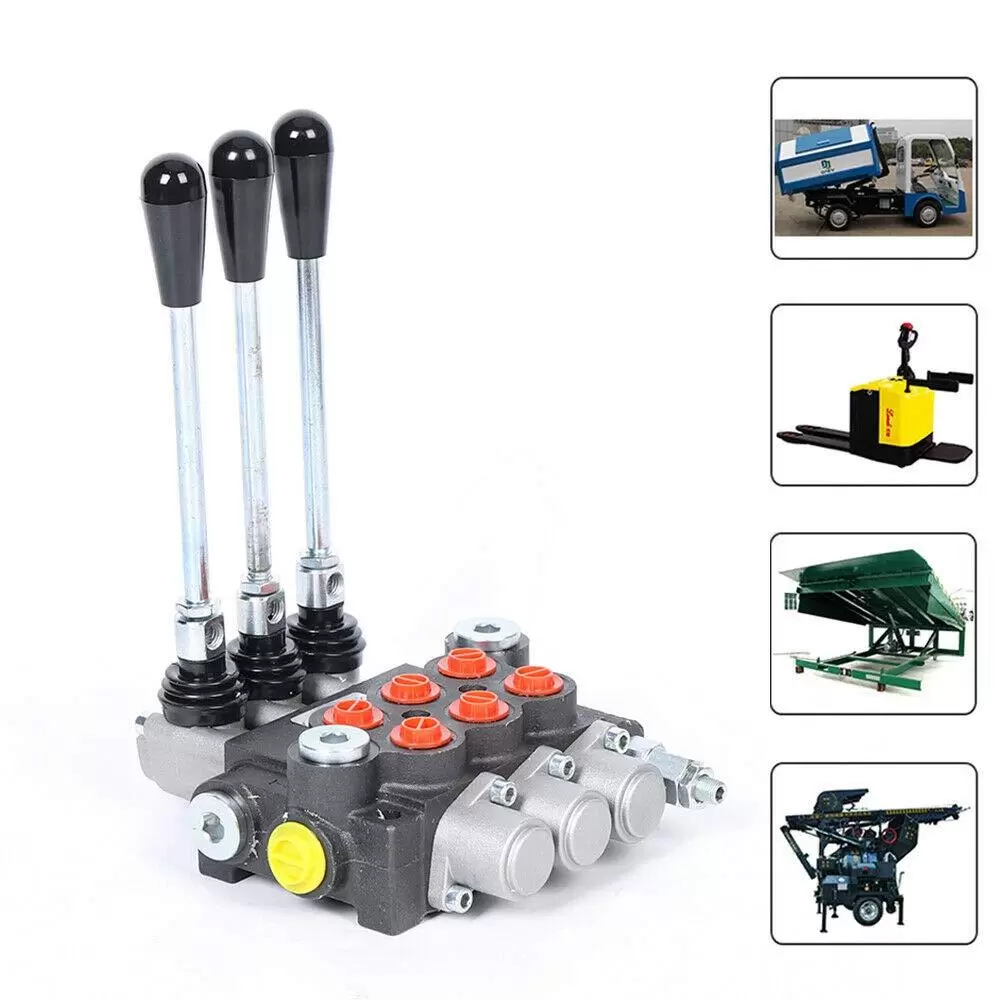

Application

Suitable for forklift, sanitation truck, small tractor, small loader, wood splitting machine, etc

Specifications
Maximum working pressure:  P = 3600 psi (250 bar); T = 150 bar (150 psi) ; ON B = 300 bar (4300 psi)
Rated flow:  13 gpm (60 l/min)
Relief valve:  Adjustable
Central system:  Open
Connections A, B:  3/8" BSPP
P, T, N Connection:  1/2" BSPP
Back pressure:  ≤1MPA
Temperature:  -20 - 80°C
Vice clinic:  10 - 400 mm2/s
Filtration accuracy:  ≤10um
Package Included
3 Hydraulic distributor Coil P40

Specifications

Maximum working pressure P = 3600 psi (250 bar); T = 150 bar (150 psi) ; ON B = 300 bar (4300 psi) Rated flow 13 gpm (60 l/min)
Relief valve Adjustable Central system Open
Connections A, B 3/8" BSPP P, T, N Connection 1/2" BSPP
Back pressure ≤1MPA Temperature -20 - 80°C
Vice clinic 10 - 400 mm2/s Filtration accuracy ≤10um
