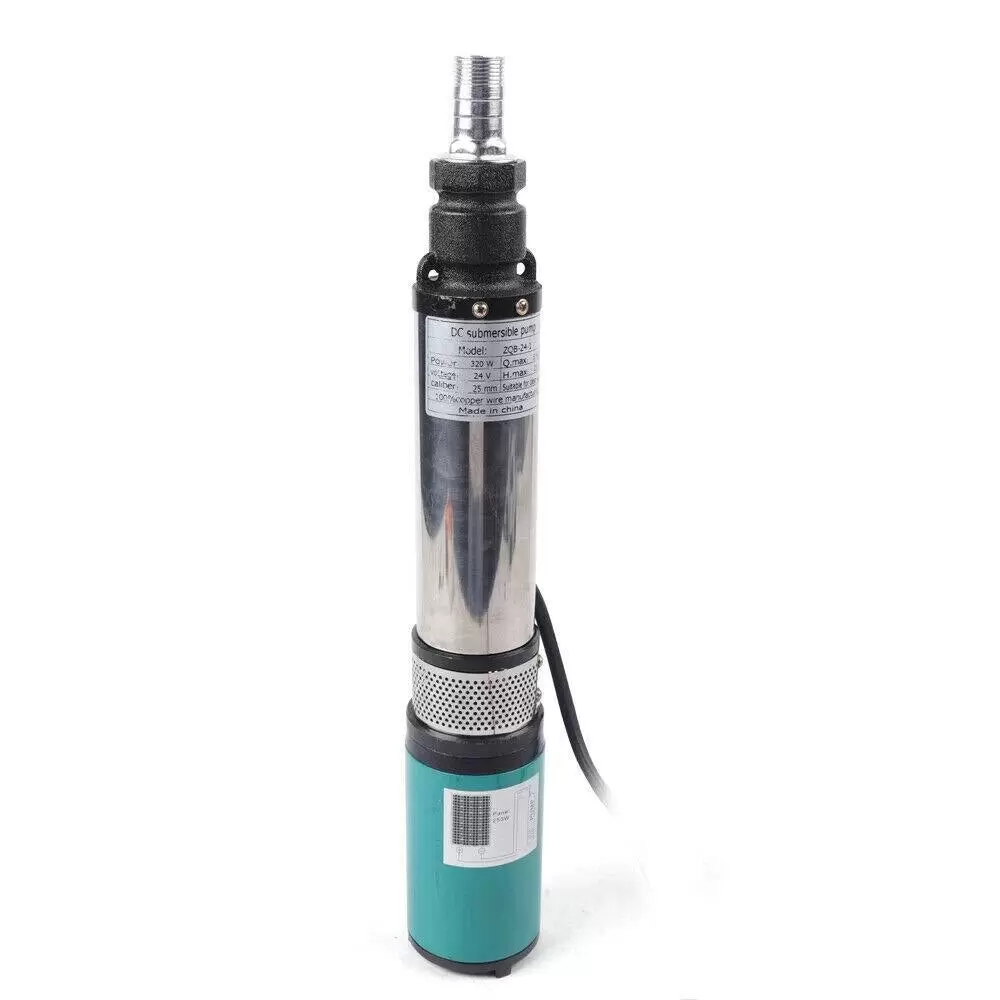

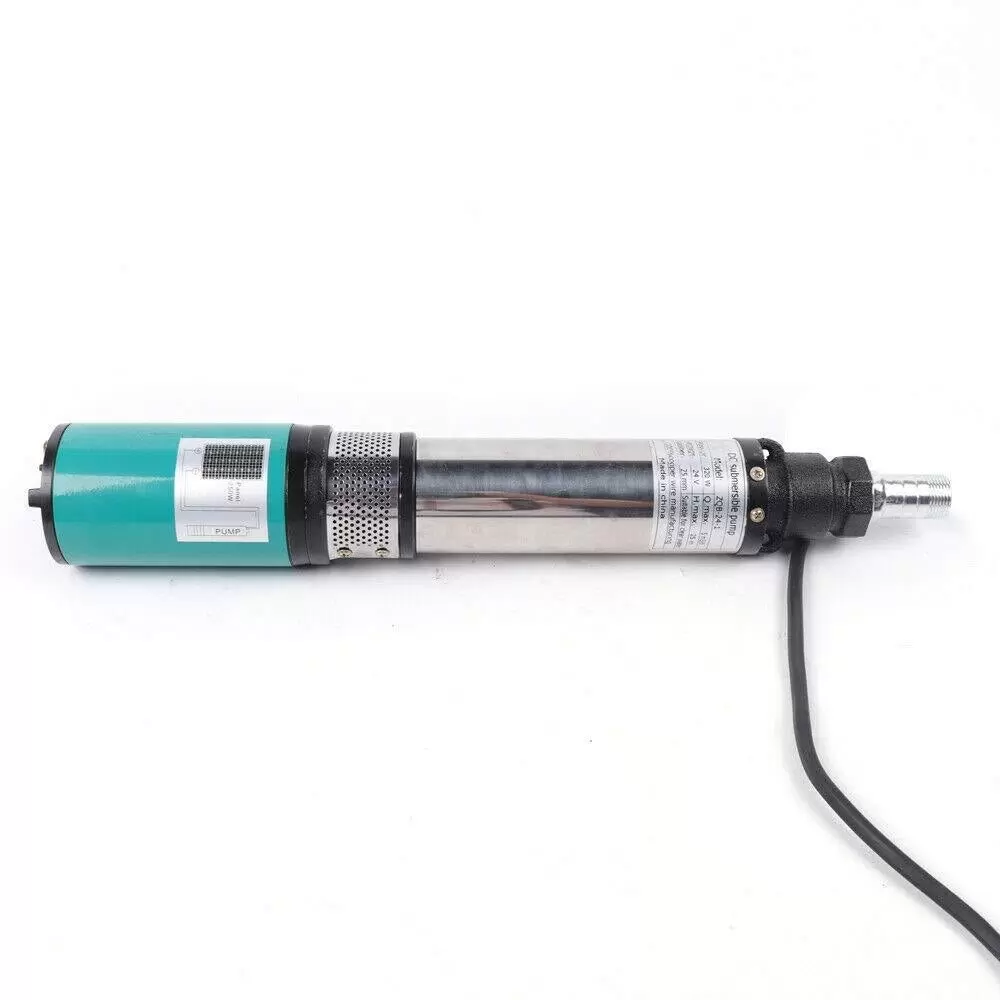

24V 320W Solar Submersible Pump Stainless Steel DC 24V Submersible Pump 25m 5m³/h Used In Rivers Reservoirs Canals Silver
- Brand: CNCEST
- Product Code: OT-ZJGJ-3478-1
- Availability: Out Of Stock

Specifications
Color | Silver | Model | ZQB-24-1 |
Material | Stainless Steel, Aluminium, Copper | Process | Electroplating, Painting |
Motor Type | Pure Copper Motor | Power Source | Electric Powered |
Voltage | 24V | Power | 320W |
Speed | 4500r/min | Protection Class | IPX8 |
Max. Flow Rate | 3m³/h | Max. Lift | 25m/82ft |
Number of Impellers | 4 | Cable Wire Length | 16m/52.5ft |
Water Outlet Size(D*L) | 2.5*5cm/1*1.9in | Product Size(D*H) | 8*50cm/3.1*19.7in |
Product Tips


Notes
1.Please note that the wellhead must be larger than the pump body to be placed inside the well for pumping. The pumping speed is related to the depth at which the water pump enters the water, and the deeper the depth, the lower the speed.
2.The water pump prohibits the use of 110V for household use. (Pump voltage and input voltage are to be used in voltage pairs).
3.Forbidden to use in water with sediment to prevent the sediment from jamming the pump and burning the motor.

How to Install
1. Wrap the adapter with PTFE tape (not included).
2. Attach connector to outlet.
3. Secure the pump lifting rope (not included). Please note that the use of cables as lifting ropes is strictly prohibited!
4. Secure with clips (not included).
5. Installation is complete.
