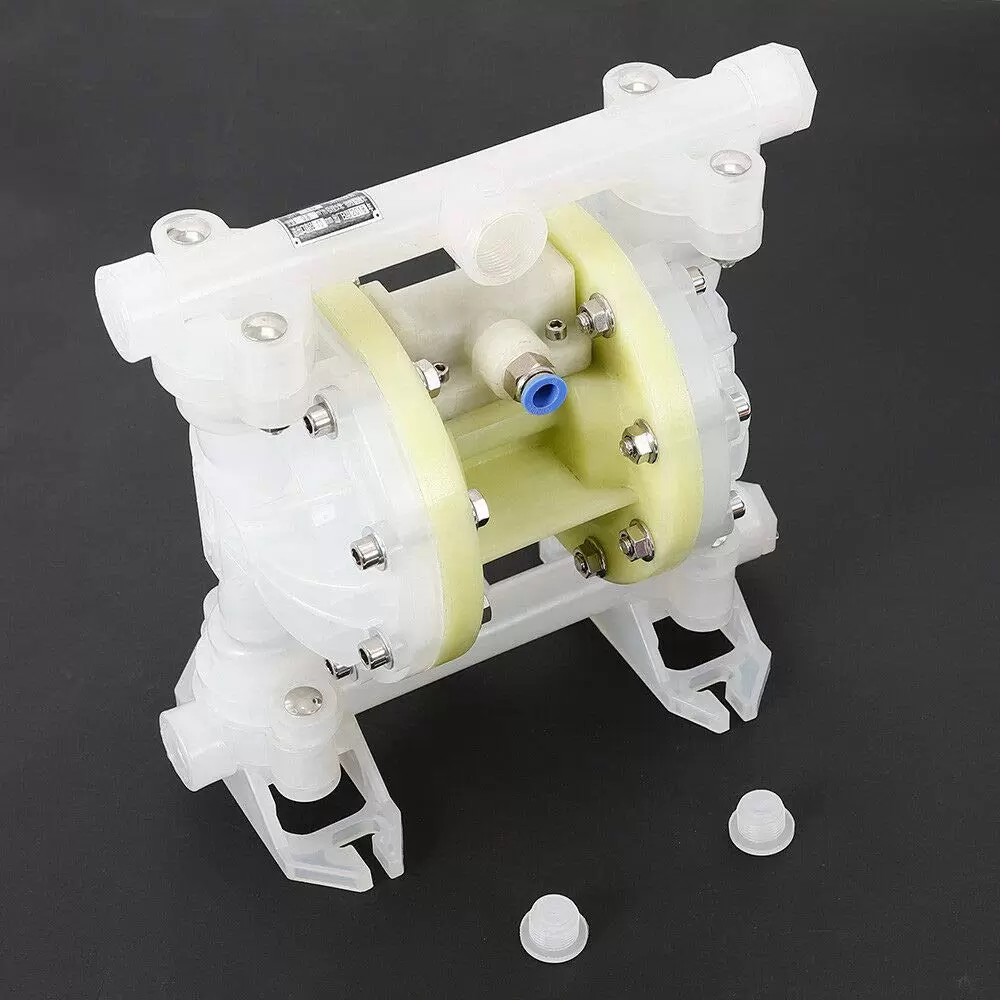

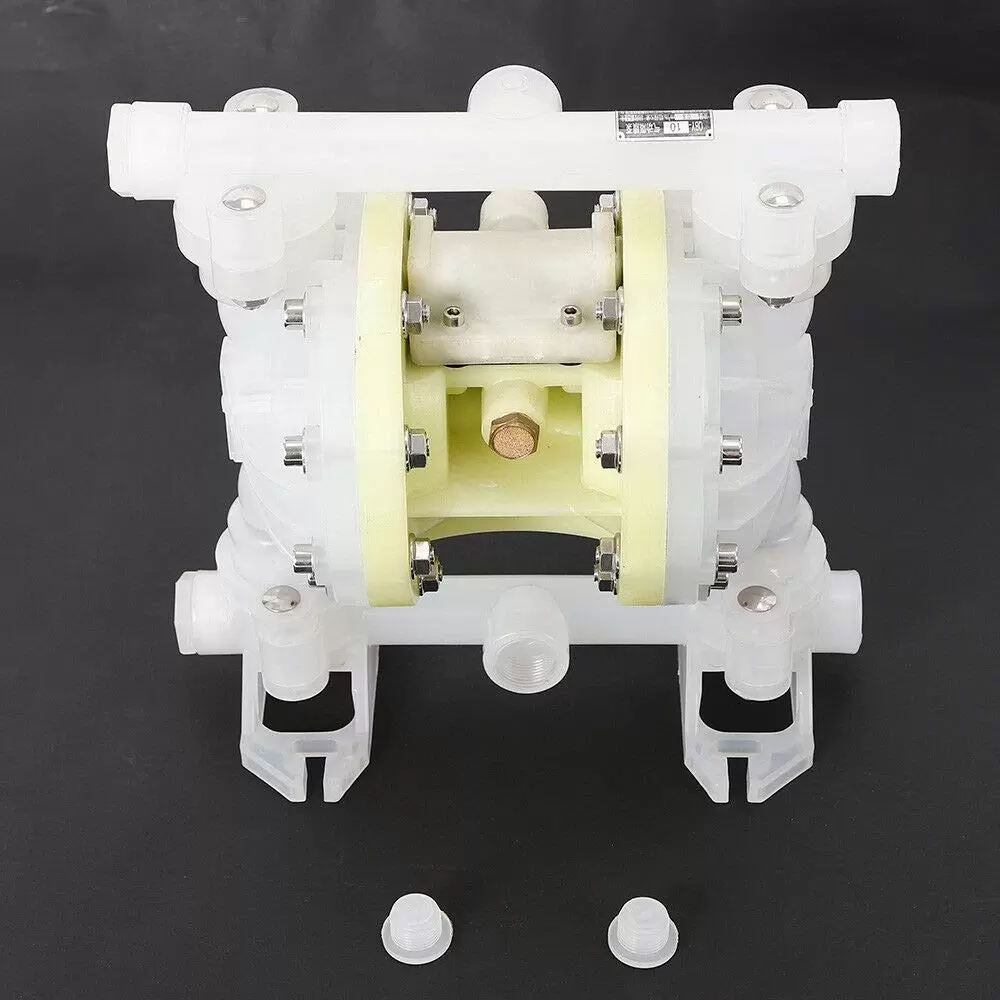

Double Diaphragm Compressed Air Pump with 1/2" Inlet and Outlet 100 PSI Perfect For All Your Needs In Every Sector Diaphragm Pump

Double Diaphragm Compressed Air Pump with 1/2" Inlet and Outlet 100 PSI Perfect For All Your Needs In Every Sector Diaphragm Pump

(0 reviews)

Ask a question

1,823.88SEK

Brand: CNCEST
Product Code: HG-WMTZXL-1333
Availability: Out Of Stock

Estimated Delivery:

Free Fast Shipping:

On all orders

Description
Reviews (0)
Recommer
Delivery and Return

Double Diaphram

Chloroprene rubber and nitrile rubber;polypropylene dual dissepiment.Double diaphragm pump motor design delivers optimum air efficiency.

Stainless Steel Body

Air operated diaphragm pump body made of stainless steel, aluminum alloy and cast iron.Air diaphragm pump bolted construction for leak-free fluid handling.

Easy to Install

With its simple structure, and we provide a fully equipped installation kit , so you can install it easily.

Protective Package

To prevent the product from being damaged and bumped during transportation, we packed it with bubble bags, sponges, and cartons to protect your products to the maximum extent possible.

Customer Service

We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Excellent Performance

Double Diaphragm Pump features an externally serviceable air distribution system and all-bolted construction. Modular air valve is stall-free, this low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes down time

Excellent Construction

Rugged construction - resists corrosion for reliable performance and long life. Bolted construction for leak-free fluid handling.

Unique Design

Features an externally serviceable air distribution system and all-bolted construction. Modular air valve is stall-free,this low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes down time.

Versatile Use

The diaphragm pump with convenient operating are widely used in various industries, such as petroleum, metallurgy, mining, coating material, printing, paper making, water treatment, automotive etc.

Specifications

Product: diaphragm pump

Type : double membrane

Type of operation: aerial.

Body material: polypropylene

Inlet connection: 1/2"

Outlet connection: 1/2"

Air inlet size: 1/4"

Gas in buse: 8 mm.

Max. Flow rate: 2 m3/h (7 GPM).

Suction power: 0-5 m

Max. Suspended solids: 2.38 mm.

Max. Fall height: 69 m.

Max. DOGS: 100 psi.

Temperature: Rating

Self-priming dryer: 3 m.

Self-priming: 4.5 m.

Valve type: spherical.

Check the seat material: polypropylene.

Package dimensions: 28 x 19 x 39 cm.

Gross weight: 6 kg.

Package Included

1 compressed air double diaphragm pump.

Specifications

Product	diaphragm pump	Type	double membrane
Type of operation	aerial.	Body material	polypropylene
Inlet connection	1/2"	Outlet connection	1/2"
Air inlet size	1/4"	Gas in buse	8 mm.
Max. Flow rate	2 m3/h (7 GPM).	Suction power	0-5 m
Max. Suspended solids	2.38 mm.	Max. Fall height	69 m.
Max. DOGS	100 psi.	Temperature	Rating
Self-priming dryer	3 m.	Self-priming	4.5 m.
Valve type	spherical.	Check the seat material	polypropylene.
Package dimensions	28 x 19 x 39 cm.	Gross weight	6 kg.
