1500W Engraving Machine - 3 Axis 6040 VFD Milling Cutter - Engraving Cutter, Router, Engraving Milling Machine - with Remote Control
1500W Engraving Machine - 3 Axis 6040 VFD Milling Cutter - Engraving Cutter, Router, Engraving Milling Machine - with Remote Control
1500W Engraving Machine - 3 Axis 6040 VFD Milling Cutter - Engraving Cutter, Router, Engraving Milling Machine - with Remote Control
1500W Engraving Machine - 3 Axis 6040 VFD Milling Cutter - Engraving Cutter, Router, Engraving Milling Machine - with Remote Control
1500W Engraving Machine - 3 Axis 6040 VFD Milling Cutter - Engraving Cutter, Router, Engraving Milling Machine - with Remote Control
1500W Engraving Machine - 3 Axis 6040 VFD Milling Cutter - Engraving Cutter, Router, Engraving Milling Machine - with Remote Control
1500W Engraving Machine - 3 Axis 6040 VFD Milling Cutter - Engraving Cutter, Router, Engraving Milling Machine - with Remote Control
1500W Engraving Machine - 3 Axis 6040 VFD Milling Cutter - Engraving Cutter, Router, Engraving Milling Machine - with Remote Control
1500W Engraving Machine - 3 Axis 6040 VFD Milling Cutter - Engraving Cutter, Router, Engraving Milling Machine - with Remote Control
1500W Engraving Machine - 3 Axis 6040 VFD Milling Cutter - Engraving Cutter, Router, Engraving Milling Machine - with Remote Control
1500W Engraving Machine - 3 Axis 6040 VFD Milling Cutter - Engraving Cutter, Router, Engraving Milling Machine - with Remote Control
1500W Engraving Machine - 3 Axis 6040 VFD Milling Cutter - Engraving Cutter, Router, Engraving Milling Machine - with Remote Control
1500W Engraving Machine - 3 Axis 6040 VFD Milling Cutter - Engraving Cutter, Router, Engraving Milling Machine - with Remote Control
1500W Engraving Machine - 3 Axis 6040 VFD Milling Cutter - Engraving Cutter, Router, Engraving Milling Machine - with Remote Control
1500W Engraving Machine - 3 Axis 6040 VFD Milling Cutter - Engraving Cutter, Router, Engraving Milling Machine - with Remote Control
1500W Engraving Machine - 3 Axis 6040 VFD Milling Cutter - Engraving Cutter, Router, Engraving Milling Machine - with Remote Control
1500W Engraving Machine - 3 Axis 6040 VFD Milling Cutter - Engraving Cutter, Router, Engraving Milling Machine - with Remote Control
1500W Engraving Machine - 3 Axis 6040 VFD Milling Cutter - Engraving Cutter, Router, Engraving Milling Machine - with Remote Control

1500W Engraving Machine - 3 Axis 6040 VFD Milling Cutter - Engraving Cutter, Router, Engraving Milling Machine - with Remote Control

(0 reviews)
Ask a question
23,999.88SEK
  • Brand: CNCEST
  • Product Code: 3AIX60401-2ITEM
  • Availability: Out Of Stock
Quantity
- +
Estimated Delivery:
Free Fast Shipping:
On all orders
estimated delivery guarantee

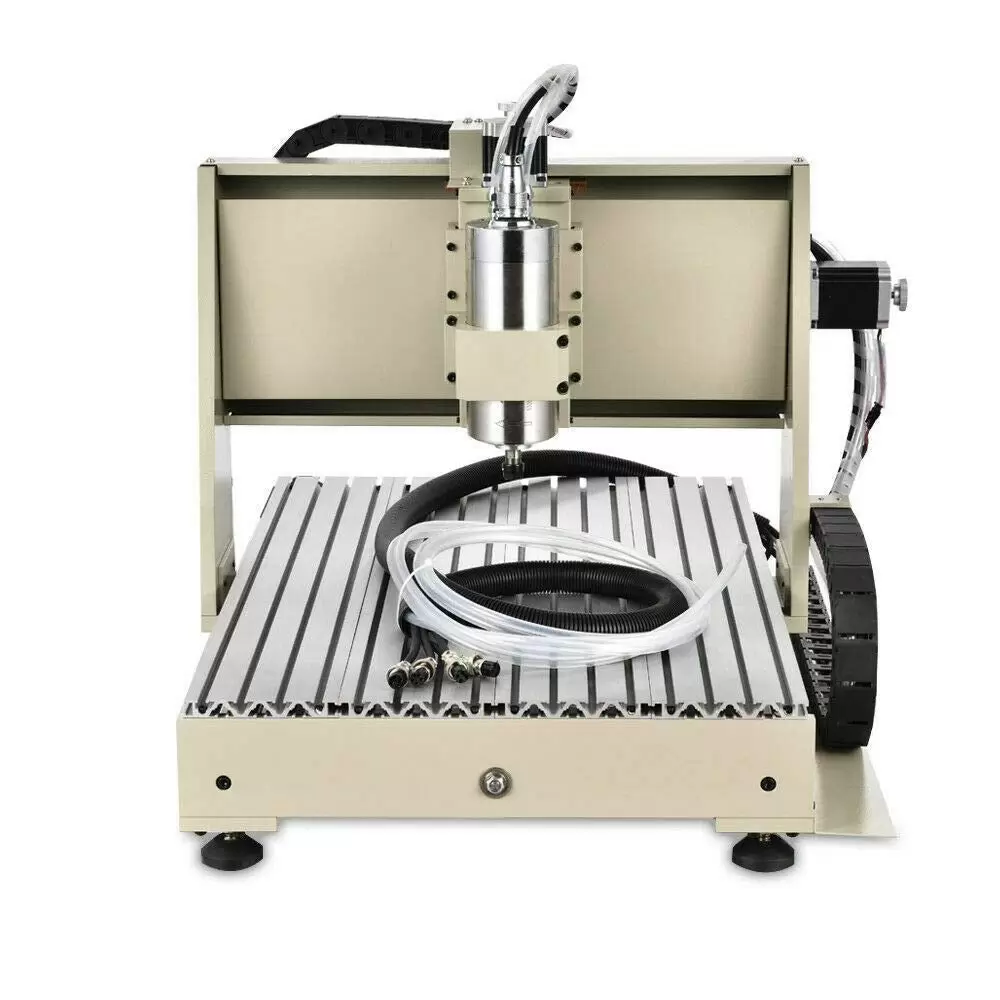

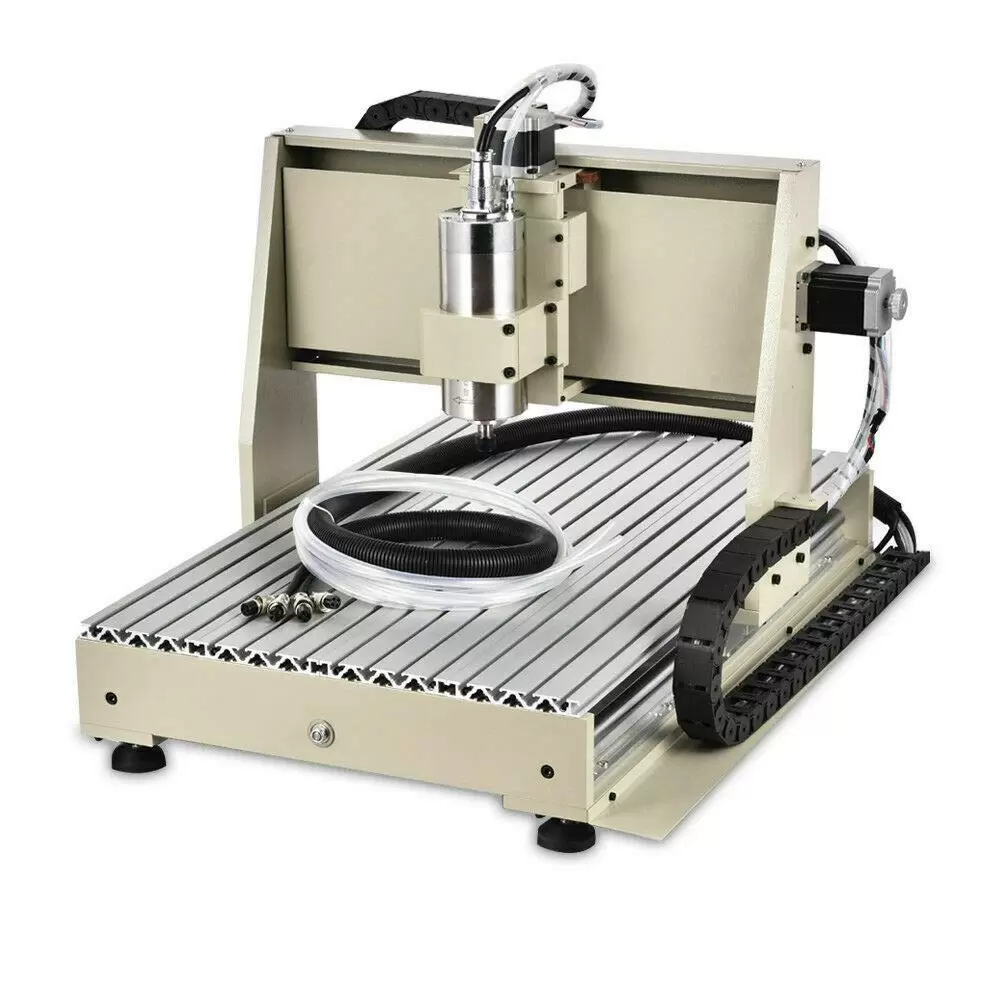

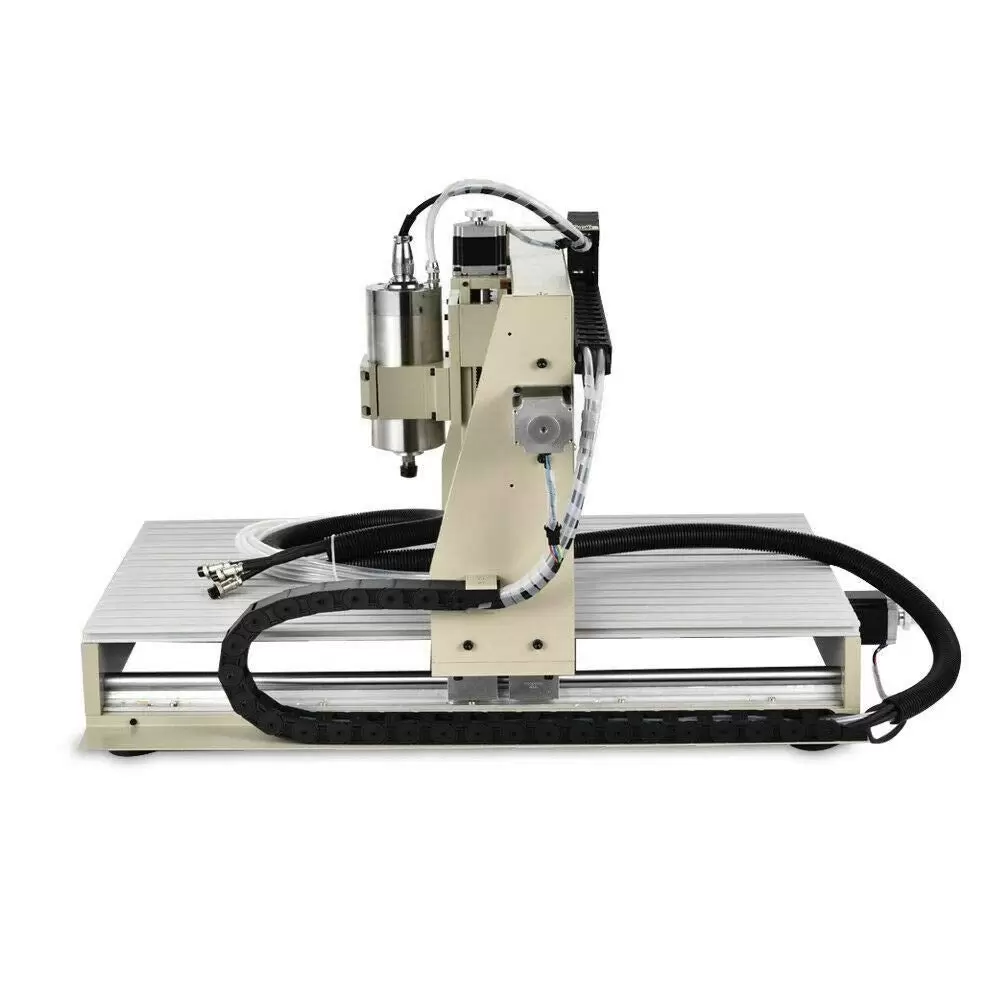

  • ♦ This 6040 CNC machine is suitable for industry, technological research, advertising design, artistic creation, teaching, student projects and hobbies.
  • ♦ It can work with different materials (metallic and non-metallic), such as wood, PMMA or other plastics, MDF boards, local wood, PVC, acrylic, wood, plywood and metal soft like aluminum, copper and silver for engraving in 3D/2D factories, etc.
  • ♦ It can be used for engraving: advertising signs, PCB, nameplates, seal, bronzing plate, aluminum alloy, acrylic plates, double ABS resin, PVC foam plate, printing plates, signs, templates construction, instrument panels, wooden products, etc.
  • ♦ The frame of the mini CNC router is movable. The machine can be used with the computer as another external device like printer, scanner

Attention :

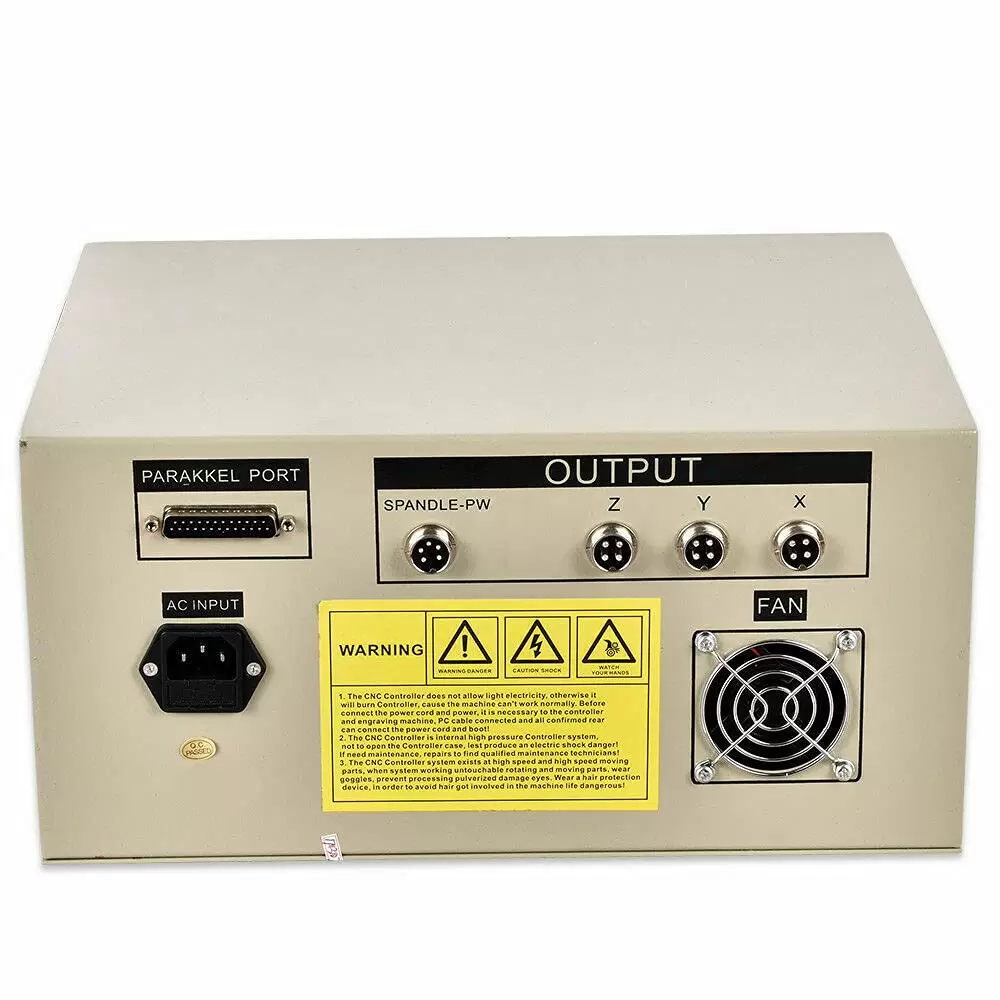

This device must be connected to a computer via its control box with a parallel cable (included in delivery). It is not recommended to plug it into a laptop via a parallel port as the power saving features tend to interrupt the data flow. It is also not recommended to connect it to computers with 64-bit versions of Windows due to problems with the parallel driver. These issues are explained in detail and comprehensively on the data payment software website.


♦ Parameters of CNC engraving machine:
X, Y, Z Working range: 600 (Y) x 390 (X) x 120 (Z) mm.
External dimensions (L x W x H): 865 x 680 x 570 mm.
Table dimensions: 770 (Y) x 490 (X)mm.
Lathe structure: 6061/6063 aluminum alloy.
Max. Feed height: ≤100mm.

♦Drive unit:
X axis: 1605 ball thread.
Y axis: 1605 ball thread.
Z axis: 1204 ball thread.
♦Sliding unit:
X axis: high intensity chrome rod.
Y axis: high intensity chrome wave.
Z axis: high intensity chrome shaft.
Stepper motor: 57 two-phase 3 A 150 N.cm.
Spindle motor

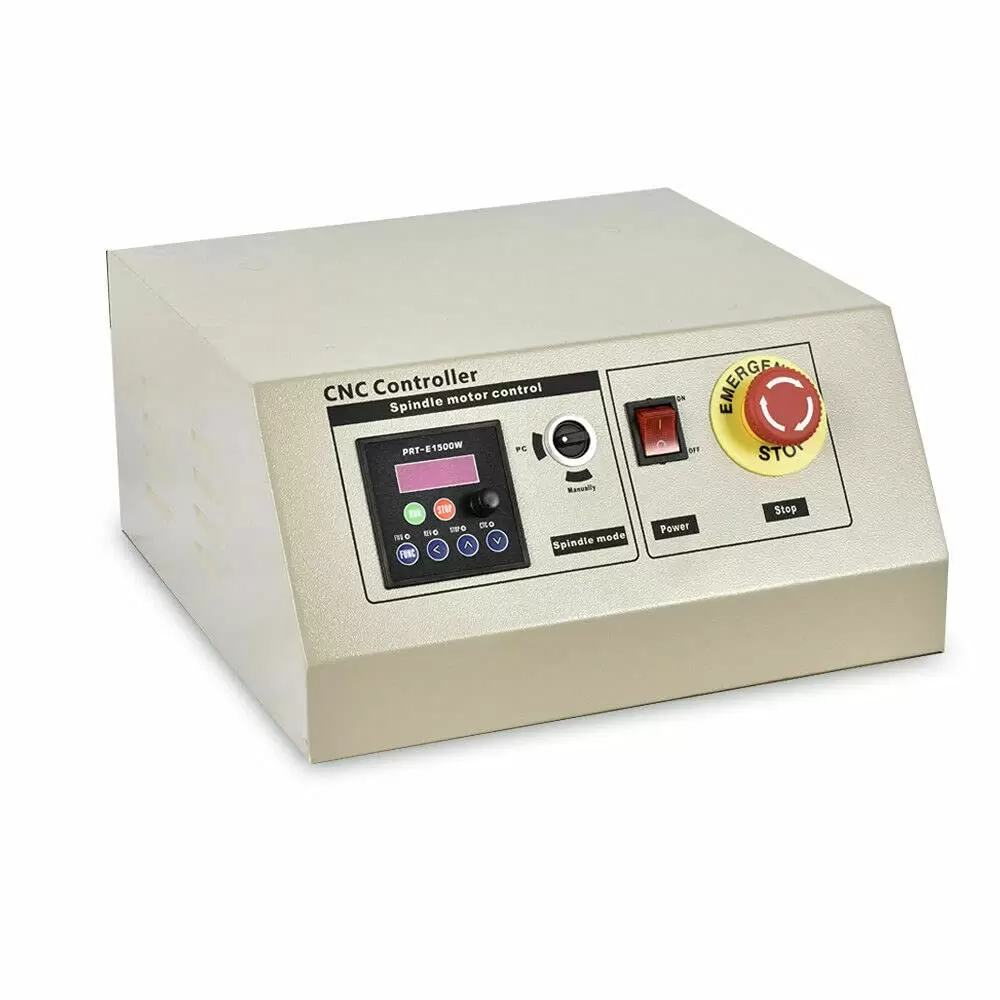

(Tips: 1, The spindle motor should be connected to the VFD.
2. It cannot be directly connected to the power supply voltage (AC110V).
3. Please do not modify the data parameters of the VFD if you are not a professional technician, or if you are not a professional or the spindle motor may be damaged.
External dimensions: 80 x 188 mm
Material: 304 stainless steel, copper coil, die-cast aluminum water jacket.
Volts, Current, Power: AC220/50Hz, 5A, 1.5kW VFD.
Spindle speed: 24000 rpm.
Maximum operating frequency: 400Hz

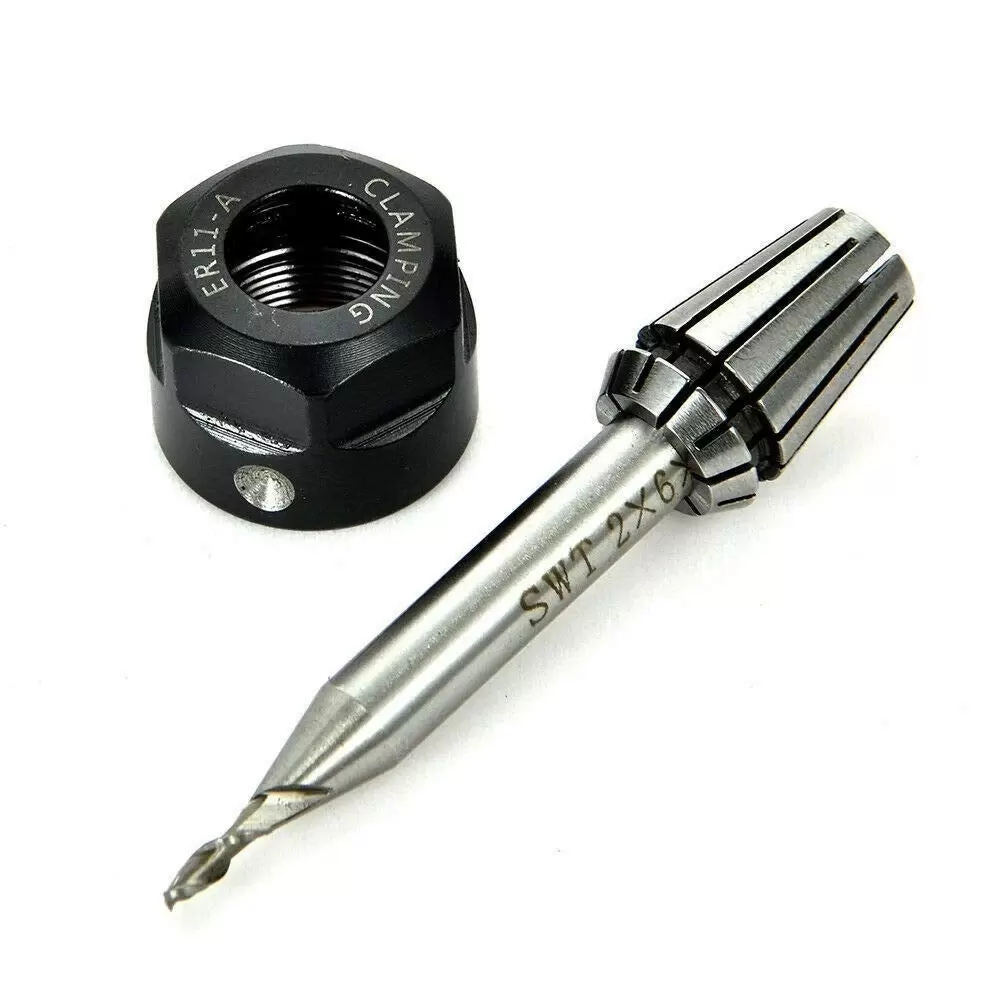

Main collet: ER11 collet, standard configuration.
