Smart Door Lock, Door Lock, Lock Cylinder Door Lock, with fingerprint recognition, password, keys, and APP
- Brand: CNCEST
- Product Code: JZWBYK-000900
- Availability: In Stock

Specifications
Color | Silver | Model | C001D |
Material | Aluminum Alloy, Copper | Will Low Battery Remind | Yes |
Standby Time | About 180 Days | Fingerprint Capacity | 100 |
Password Capacity | 30 Sets | Working Power Supply | 3.6-4.5V |
Battery Type | 3*AAA Batteries(Not Included) | Alarm Voltage | 3.6V |
Standby Current | <20uA | Working Current | <130mA |
Applicable Temperature | -20~70℃/-4~158℉ | Back Panel Diameter | 3.9cm/1.54in |

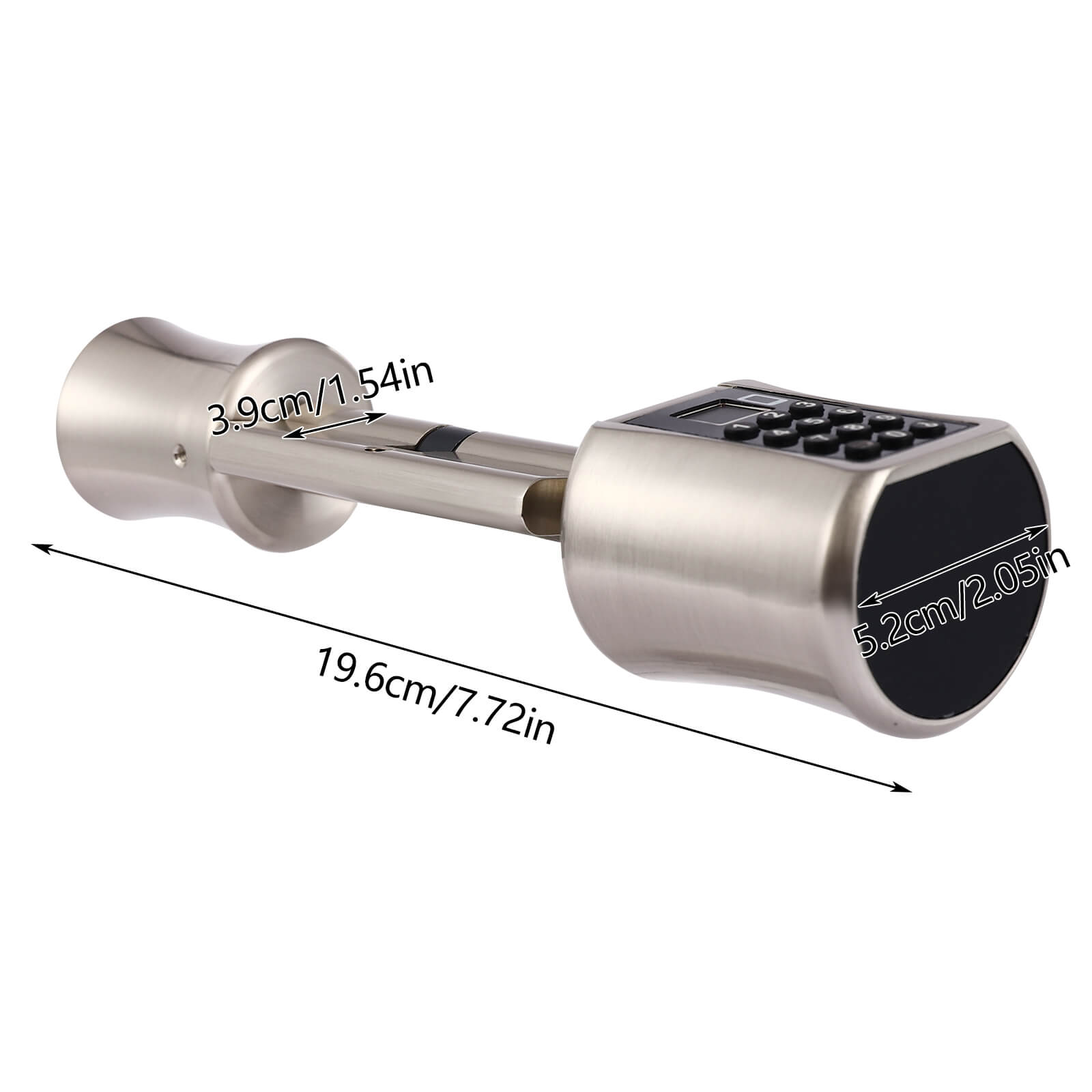

Product Size(L*D) | 19.6*5.2cm/7.72*2.05in | Package Size | 22.8*11*6.5cm/8.98*4.33*2.56in |
Gross Weight | 0.8kg/1.76lbs | Net Weight | 0.7kg/1.54lbs |
Product Tips


Notes
1.Please measure the thickness of the door and the size of the lock cylinder hole before purchasing to make sure this product can match your needs. For an asymmetric door, the distance from the middle screw hole to the inside and outside of the door must be measured.
2.Before use, please carefully read the English manual.
3.Please note that the USB interface is only used for unlocking and cannot be charged.
4.Please note that this product does not include batteries. You need to purchase 3 AAA batteries separately.
5.Please note that the front handle cannot be removed.
6.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.

How to Install
1. Unscrew the screw and remove the rear handle.
2. Insert the lock cylinder into the lock hole from outside.
3. Install fixing screws.
4. Install the rear handle.
5. Fix the screws on the rear handle.

Application
This product is suitable for homes, apartments, hotels, offices, anti-theft doors, wooden doors, etc.
