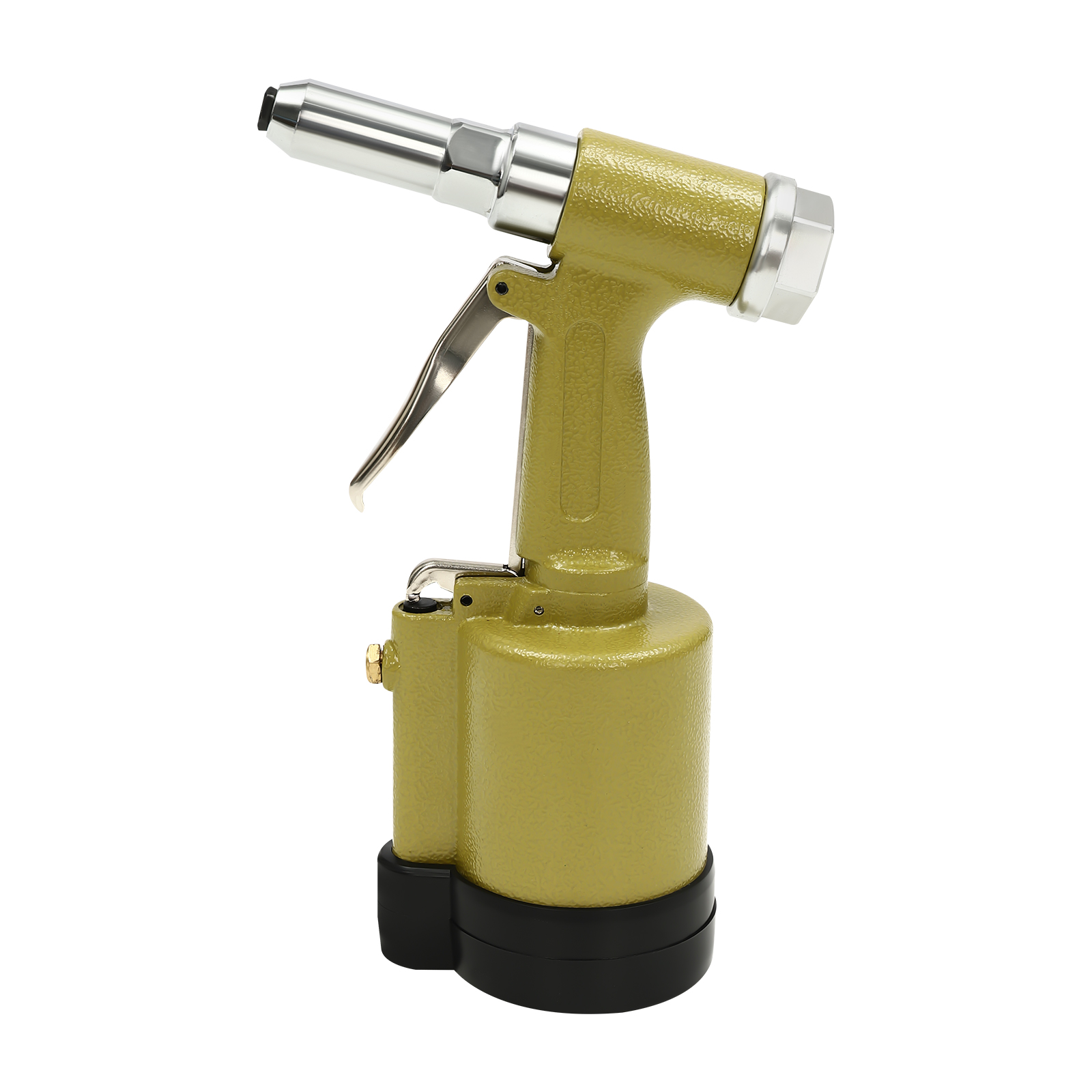

Pneumatic Riveting Gun Compressed Air Riveting Machine 0.6-0.8 Mpa 4 Nozzles 2.4mm 3.2mm 4.0mm 4.8mm Used In Aluminum Ladder Industry
Pneumatic Riveting Gun Compressed Air Riveting Machine 0.6-0.8 Mpa 4 Nozzles 2.4mm 3.2mm 4.0mm 4.8mm Used In Aluminum Ladder Industry
Pneumatic Riveting Gun Compressed Air Riveting Machine 0.6-0.8 Mpa 4 Nozzles 2.4mm 3.2mm 4.0mm 4.8mm Used In Aluminum Ladder Industry
Pneumatic Riveting Gun Compressed Air Riveting Machine 0.6-0.8 Mpa 4 Nozzles 2.4mm 3.2mm 4.0mm 4.8mm Used In Aluminum Ladder Industry
Pneumatic Riveting Gun Compressed Air Riveting Machine 0.6-0.8 Mpa 4 Nozzles 2.4mm 3.2mm 4.0mm 4.8mm Used In Aluminum Ladder Industry
Pneumatic Riveting Gun Compressed Air Riveting Machine 0.6-0.8 Mpa 4 Nozzles 2.4mm 3.2mm 4.0mm 4.8mm Used In Aluminum Ladder Industry
Pneumatic Riveting Gun Compressed Air Riveting Machine 0.6-0.8 Mpa 4 Nozzles 2.4mm 3.2mm 4.0mm 4.8mm Used In Aluminum Ladder Industry
Pneumatic Riveting Gun Compressed Air Riveting Machine 0.6-0.8 Mpa 4 Nozzles 2.4mm 3.2mm 4.0mm 4.8mm Used In Aluminum Ladder Industry
Pneumatic Riveting Gun Compressed Air Riveting Machine 0.6-0.8 Mpa 4 Nozzles 2.4mm 3.2mm 4.0mm 4.8mm Used In Aluminum Ladder Industry
Pneumatic Riveting Gun Compressed Air Riveting Machine 0.6-0.8 Mpa 4 Nozzles 2.4mm 3.2mm 4.0mm 4.8mm Used In Aluminum Ladder Industry
Pneumatic Riveting Gun Compressed Air Riveting Machine 0.6-0.8 Mpa 4 Nozzles 2.4mm 3.2mm 4.0mm 4.8mm Used In Aluminum Ladder Industry
Pneumatic Riveting Gun Compressed Air Riveting Machine 0.6-0.8 Mpa 4 Nozzles 2.4mm 3.2mm 4.0mm 4.8mm Used In Aluminum Ladder Industry
Pneumatic Riveting Gun Compressed Air Riveting Machine 0.6-0.8 Mpa 4 Nozzles 2.4mm 3.2mm 4.0mm 4.8mm Used In Aluminum Ladder Industry
Pneumatic Riveting Gun Compressed Air Riveting Machine 0.6-0.8 Mpa 4 Nozzles 2.4mm 3.2mm 4.0mm 4.8mm Used In Aluminum Ladder Industry
Pneumatic Riveting Gun Compressed Air Riveting Machine 0.6-0.8 Mpa 4 Nozzles 2.4mm 3.2mm 4.0mm 4.8mm Used In Aluminum Ladder Industry
Pneumatic Riveting Gun Compressed Air Riveting Machine 0.6-0.8 Mpa 4 Nozzles 2.4mm 3.2mm 4.0mm 4.8mm Used In Aluminum Ladder Industry
Pneumatic Riveting Gun Compressed Air Riveting Machine 0.6-0.8 Mpa 4 Nozzles 2.4mm 3.2mm 4.0mm 4.8mm Used In Aluminum Ladder Industry
Pneumatic Riveting Gun Compressed Air Riveting Machine 0.6-0.8 Mpa 4 Nozzles 2.4mm 3.2mm 4.0mm 4.8mm Used In Aluminum Ladder Industry

Pneumatic Riveting Gun Compressed Air Riveting Machine 0.6-0.8 Mpa 4 Nozzles 2.4mm 3.2mm 4.0mm 4.8mm Used In Aluminum Ladder Industry

(0 reviews)
Ask a question
780.00SEK
  • Brand: CNCEST
  • Product Code: JZONTJ2QWDWJ8
  • Availability: In Stock
Quantity
- +
Estimated Delivery:
Free Fast Shipping:
On all orders
estimated delivery guarantee
Pneumatic Riveting Gun Compressed Air Riveting Machine 0.6-0.8 Mpa 4 Nozzles 2.4mm 3.2mm 4.0mm 4.8mm Used In Aluminum Ladder Industry

Pneumatic Riveting Gun Compressed Air Riveting Machine 0.6-0.8 Mpa 4 Nozzles 2.4mm 3.2mm 4.0mm 4.8mm Used In Aluminum Ladder Industry

  • Description
  • Reviews (0)
  • Recommer
  • Delivery and Return

Strong and Durable

Made of premium cast iron, aluminum with a quenching process, it has high hardness and precision, ensuring a long service life.

High Efficiency

The pneumatic design can generate strong power with 0.6-0.8Mpa working pressure, and the 866.8 Kgf pulling pressure can help you work with high efficiency, saving time and effort.

Thoughtful Design

The silenced exhaust can effectively reduce noise. The standard air inlet (1/2" NPT) makes this product suitable for most air compressors.

Powerful Kit

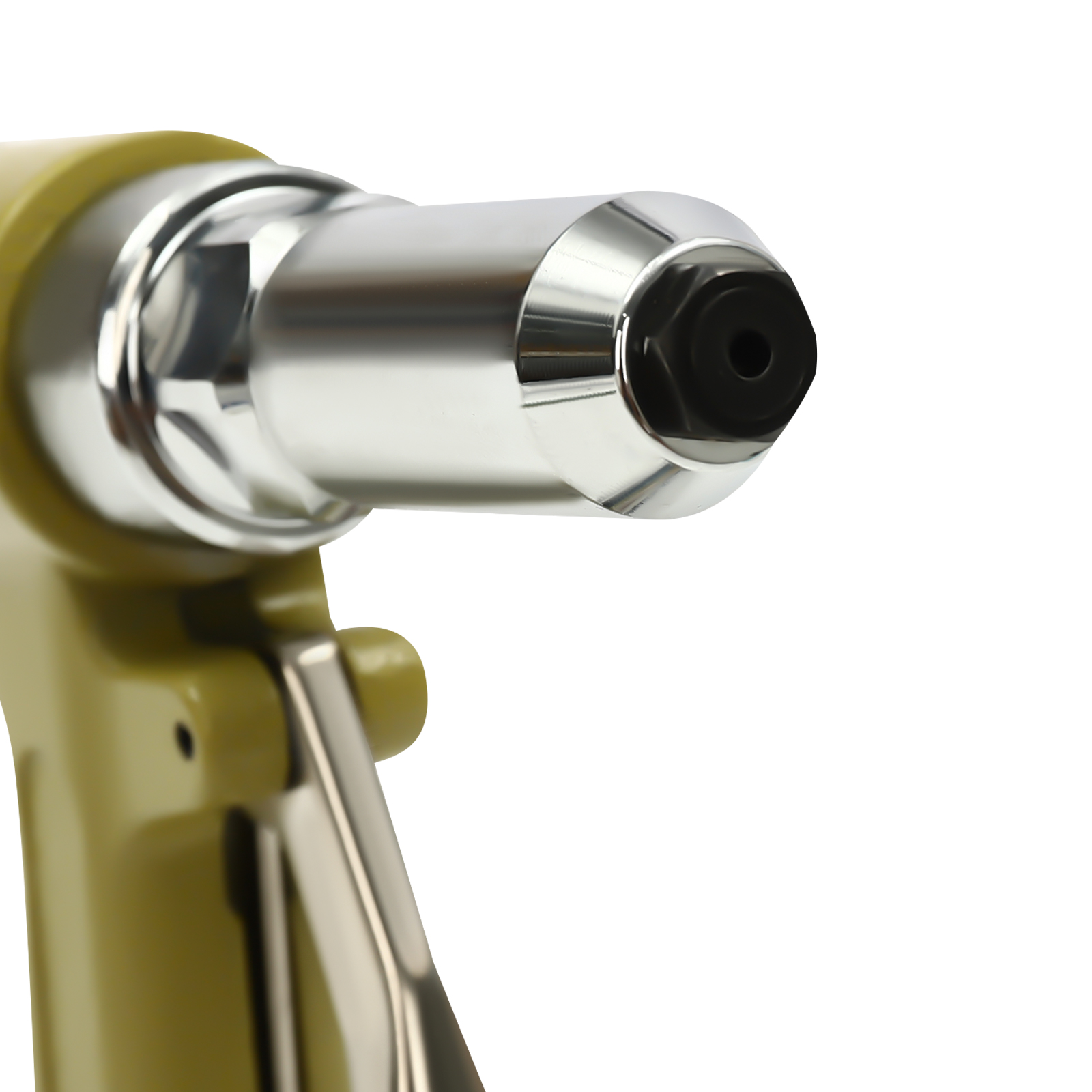

It is equipped with 4 different sized guide nozzles (0.09inch, 0.13inch,0.16inch, 0.19inch) that are hardened and quenched to ensure stable tension output., meeting your different rivet needs.

Easy to Use

The pneumatic riveting machine has a quick release valve that allows the quick cylinder to return to high-speed assembly operation. The rivet collection bottle can automatically collect used rivets to keep the workbench clean and facilitate recycling.

Comfortable Handle

The ergonomic handle has a comfortable grip and reduces hand fatigue. It is very comfortable to operate even for women.

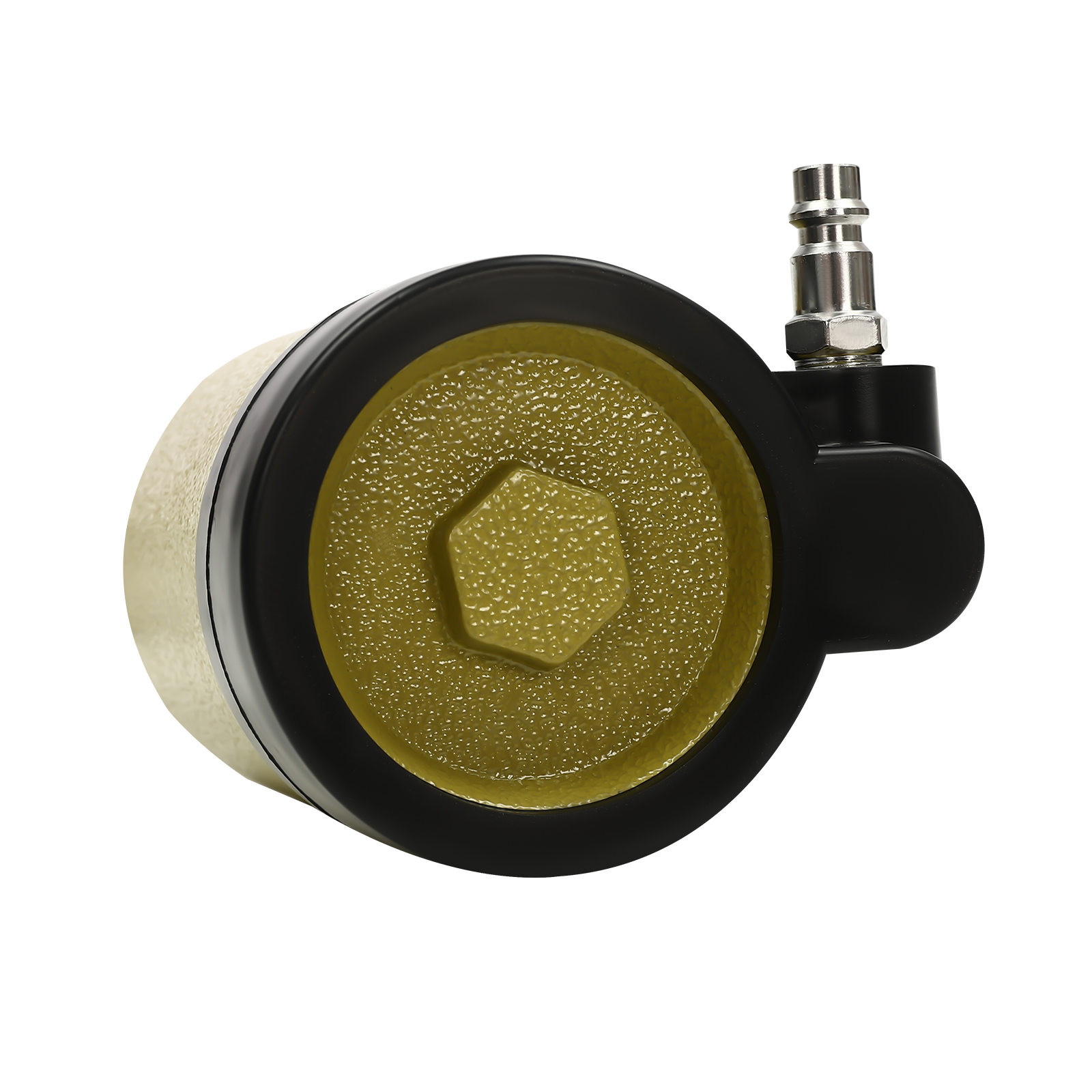

Shockproof Rubber Pad

Made of high quality rubber, it is wear-resistant and durable, and can prevent bumps and falls.

Smooth Edge

The entire edge of the product is very smooth and without sharp corners, making it very safe to use.

Specifications
Model:  KD-903
Color:  Black+Green+ Silver
Interface:  EU
Material:  Cast Iron, Aluminum, Rubber,
Process:  Quenching
Power Source:  Air-powered
Applicable Rivets:  Aluminum/Iron Rivets
Working Stroke:  14mm/0.55in
Riveter Type:  Rivet Gun
Working Pressure:  0.6-0.8Mpa
Nozzle Size:  2.4mm/0.09inch, 3.2mm/0.13inch, 4mm/0.16inch, 4.8mm/0.19inch
Applicable Hose Diameter:  10mm/0.39in

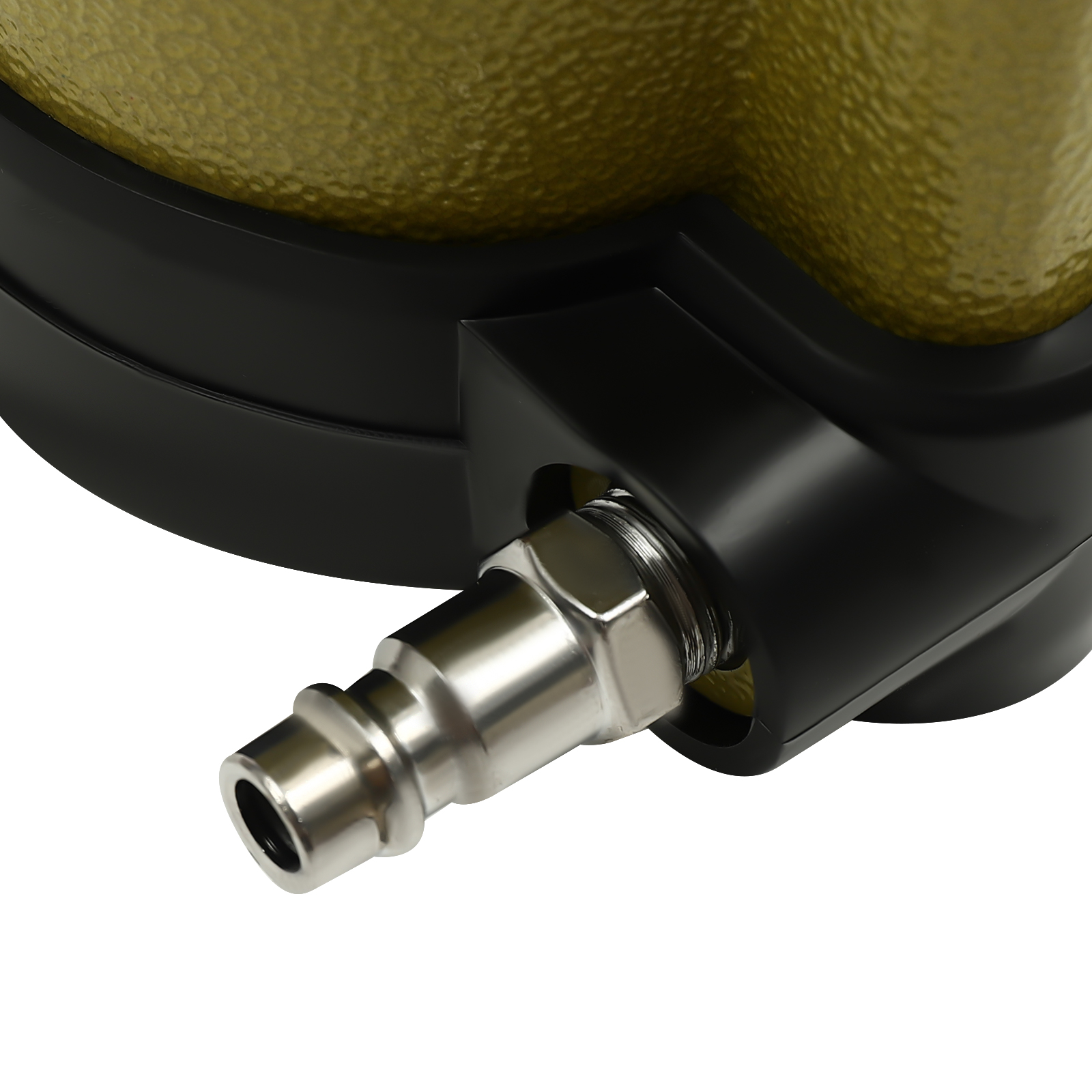

Air Inlet Thread:  1/2" NPT
Pulling Pressure:  8500N/866.8 Kgf

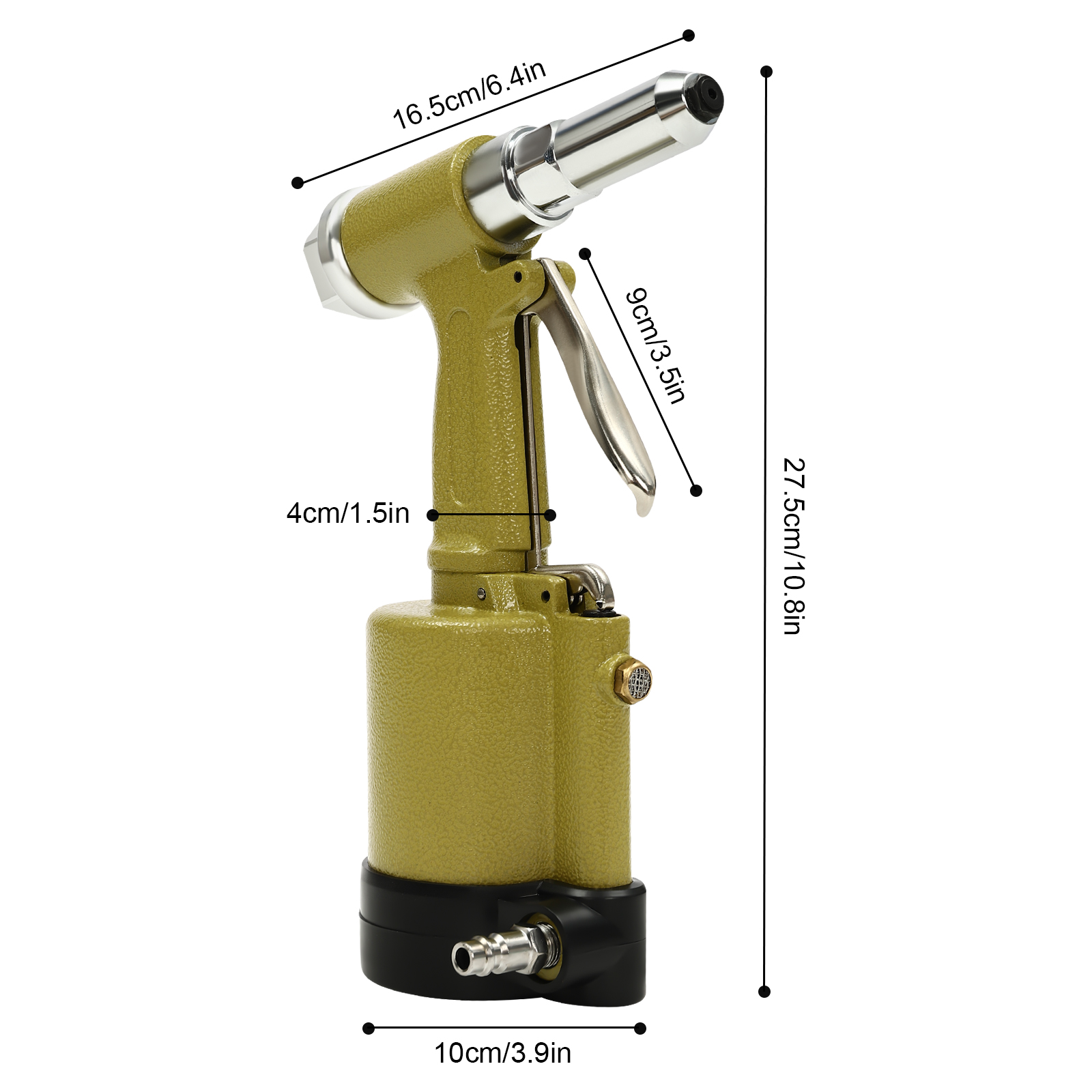

Switch Trigger Length:  90mm/3.54in
Spear Length:  165mm/6.5in
Product Size(D*H):  100*275mm/3.94*10.83in
Package Size:  31*12*16cm/12*4.7*6in
Item Weight:  1.48kg/3.26lb
Gross Weight:  1.55kg/3.4lb

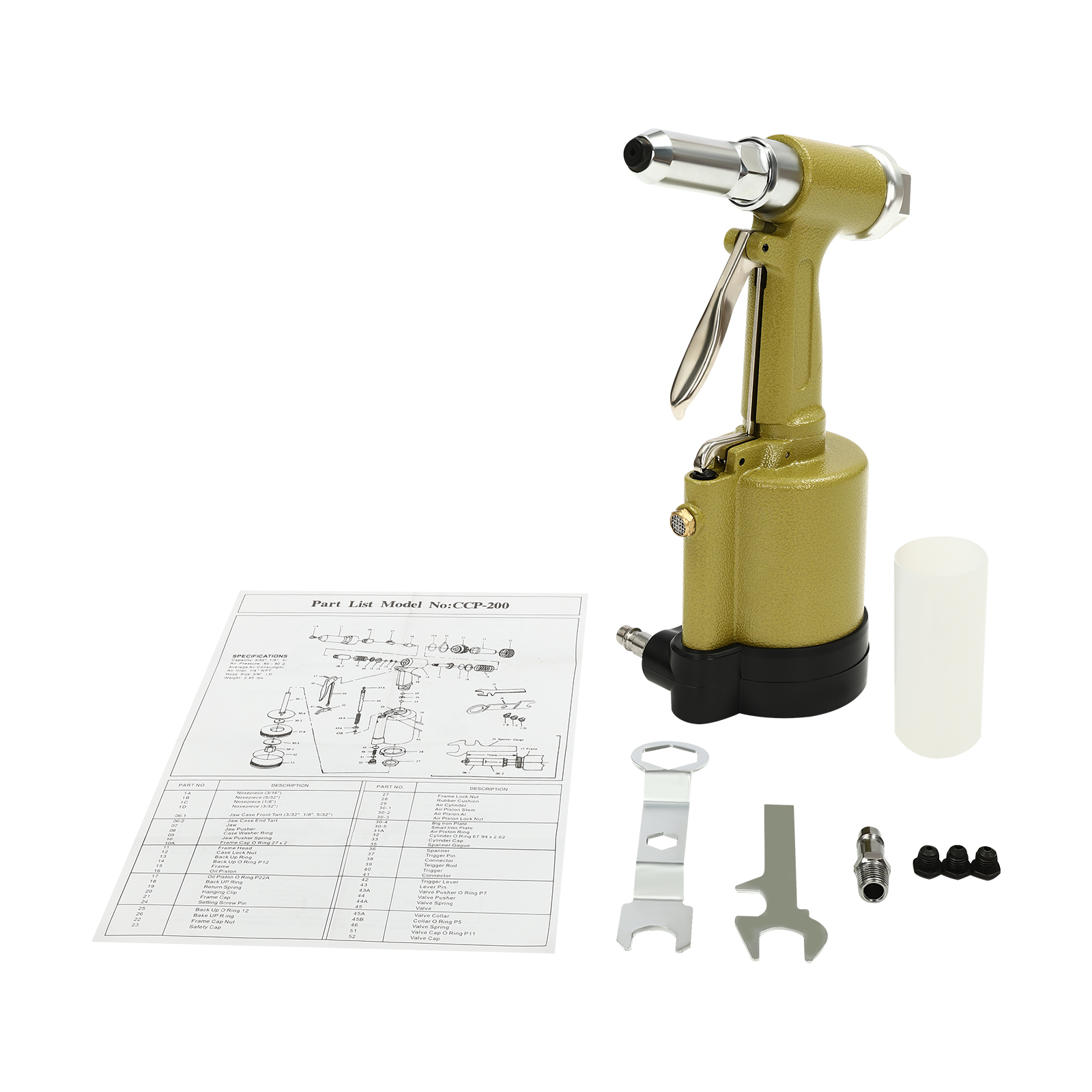

Package Included
1 * Pneumatic Air Riveter Gun
4 * Guide nozzles (one is already installed)
1 * Rivet Collection Bottle
1 * English Instruction
Other mounting accessories

It is air-powered and has powerful accessories, which efficiently saves you

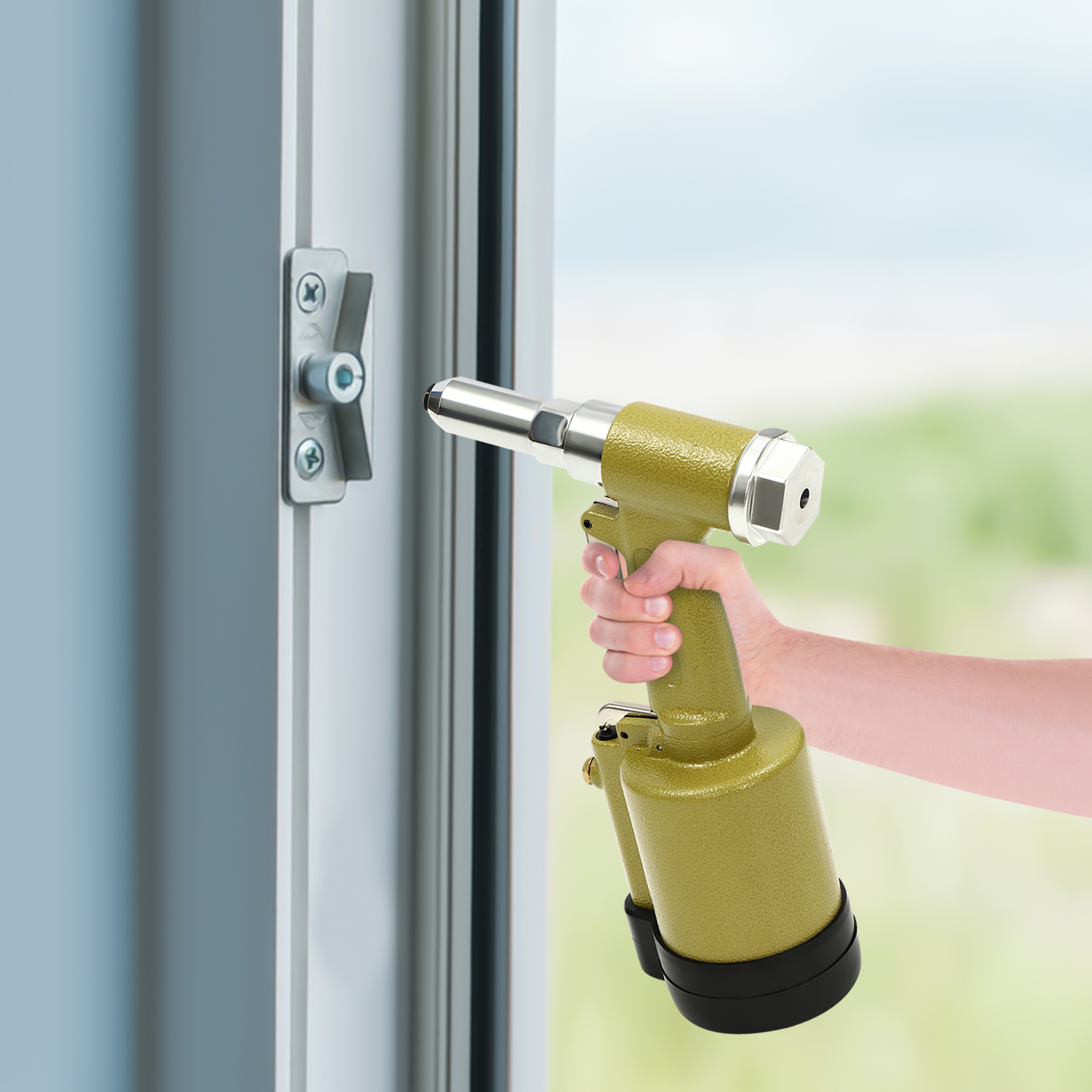

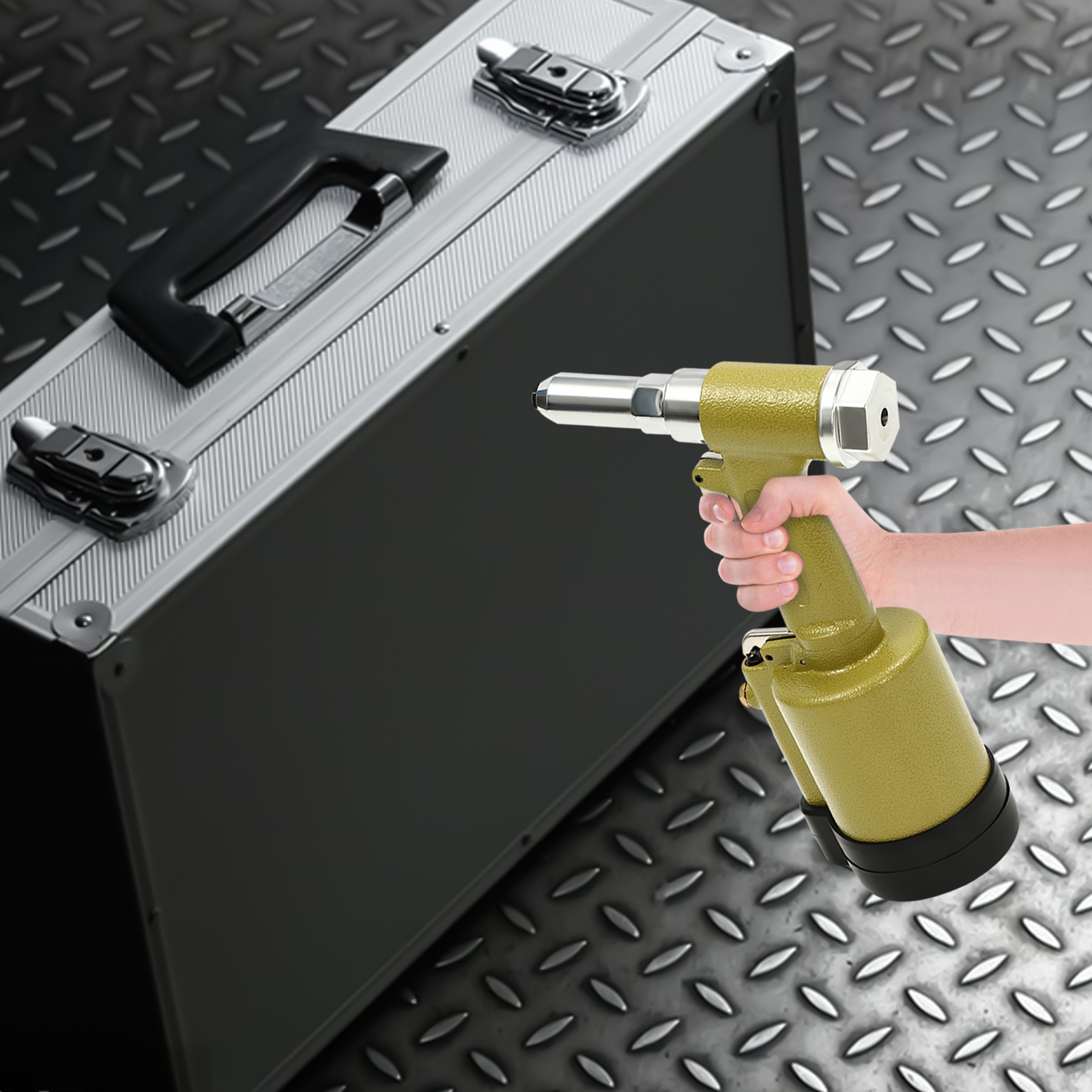

It can be widely used in aluminum ladder industry, luggage industry, door and window industry, computer chassis, aviation equipment, automobile manufacturing, electronic manufacturing and mechanical manufacturing industries, etc.

Specifications

Model KD-903 Color Black+Green+ Silver
Interface EU Material Cast Iron, Aluminum, Rubber,
Process Quenching Power Source Air-powered
Applicable Rivets Aluminum/Iron Rivets Working Stroke 14mm/0.55in
Riveter Type Rivet Gun Working Pressure 0.6-0.8Mpa
Nozzle Size 2.4mm/0.09inch, 3.2mm/0.13inch, 4mm/0.16inch, 4.8mm/0.19inch Applicable Hose Diameter 10mm/0.39in
Air Inlet Thread 1/2" NPT Pulling Pressure 8500N/866.8 Kgf
Switch Trigger Length 90mm/3.54in Spear Length 165mm/6.5in
Product Size(D*H) 100*275mm/3.94*10.83in Package Size 31*12*16cm/12*4.7*6in
Item Weight 1.48kg/3.26lb Gross Weight 1.55kg/3.4lb

Product Tips

How to Use

1.Connect the air pipe connector.
2. Place the core pulling nail into the guide nozzle.
3.Place the core pulling nail into the workpiece.
4.Align and buckle the riveted workpiece.
5.Riveting is completed.

How to Add Pneumatic Oil

1.Remove its base.
2.Clamp the hex nut and carefully pull out the chassis.
3.Fill the small hole with pneumatic oil(not included).
4.It is best to inject pneumatic oil into the central circular hole through a conduit(not included).

How to Replace the Rivet Gun Claw Piece

1.Loosen counterclockwise.
2.Remove the guide nozzle.
3.Tighten clockwise.
4.Loosen the outer sleeve counterclockwise.
5.Clamp the sleeve with a wrench and loosen the claw sleeve counterclockwise.
6.Remove the claw piece and complete the replacement.

Notes

1.This product is not suitable for stainless steel rivets.
2.Please check compatibility before purchasing.
