Closed Loop Stepper Motor Nema 23 4A 3.6 Nm Stepper Motor with HBS57 Driver Kit

Closed Loop Stepper Motor Nema 23 4A 3.6 Nm Stepper Motor with HBS57 Driver Kit

(0 reviews)

Ask a question

1,415.88SEK

Brand: CNCEST
Product Code: BI-ZMLJM-741
Availability: In Stock

Estimated Delivery:

Free Fast Shipping:

On all orders

Description
Reviews (0)
Recommer
Delivery and Return

Enhanced Control Accuracy

Utilizes the latest DSP chip and closed-loop vector control technology to eliminate step loss, ensuring precise positioning.

High Torque & Speed

Delivers a robust 3.6 Nm of torque at 4A, ideal for demanding applications requiring high performance.

Efficiency Boost

Significantly improves motor efficiency by reducing heating and vibration, enhancing machining speed and precision.

Overload Protection

Built-in alarm system alerts users to continuous overloads, mirroring AC system reliability.

Versatile Compatibility

Compatible with both 42mm and 57mm series closed-loop stepper motors, facilitating easy upgrades from traditional open-loop systems.

Cost-Effective Solution

Offers significant savings, costing only 50% compared to an equivalent AC servo system.

Robust Construction

Engineered for durability and reliable operation even under continuous heavy loads.

Instant Operation

Quick startup feature enables immediate use right after power connection, enhancing user convenience.

Extended Cable Length

Comes with a 3-meter long cable, providing flexibility in machine placement without compromising performance.

Upgrade Pathway

Perfect for upgrading existing stepper systems to enjoy the benefits of closed-loop technology without extensive modifications or high costs.

Specifications

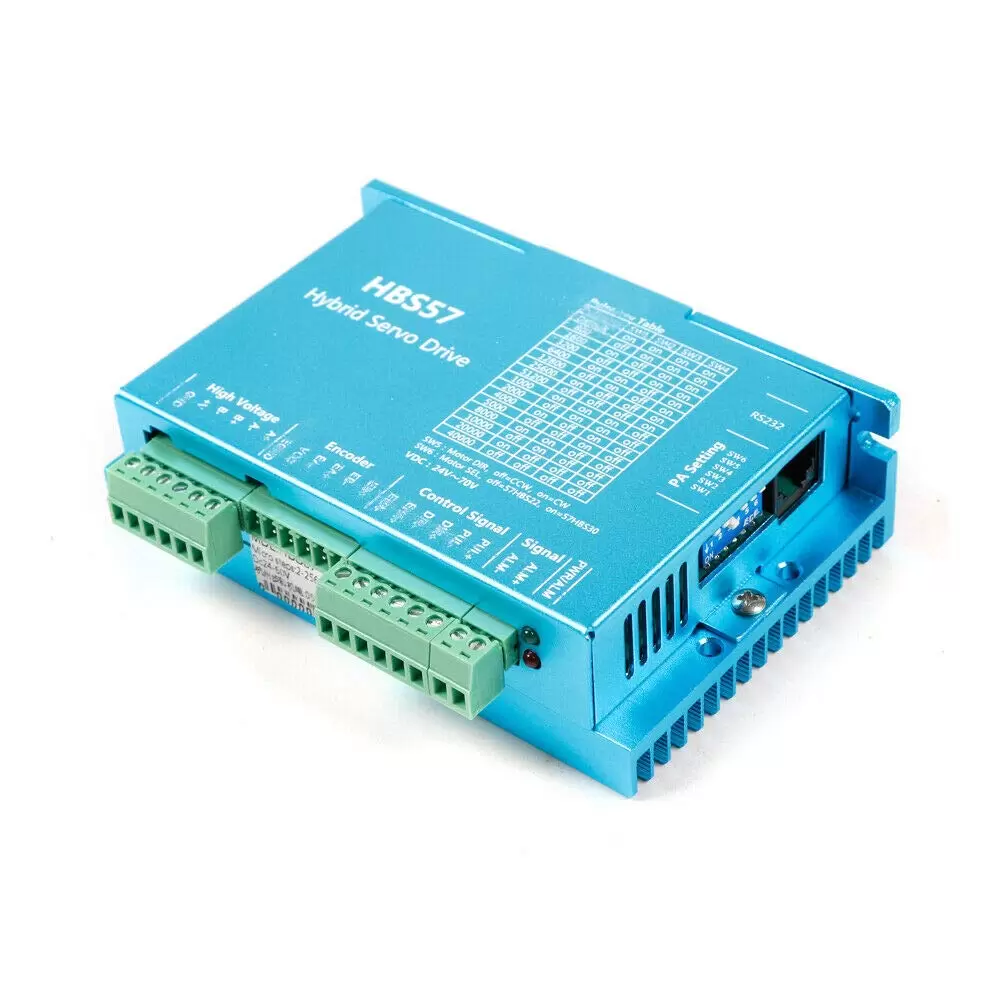

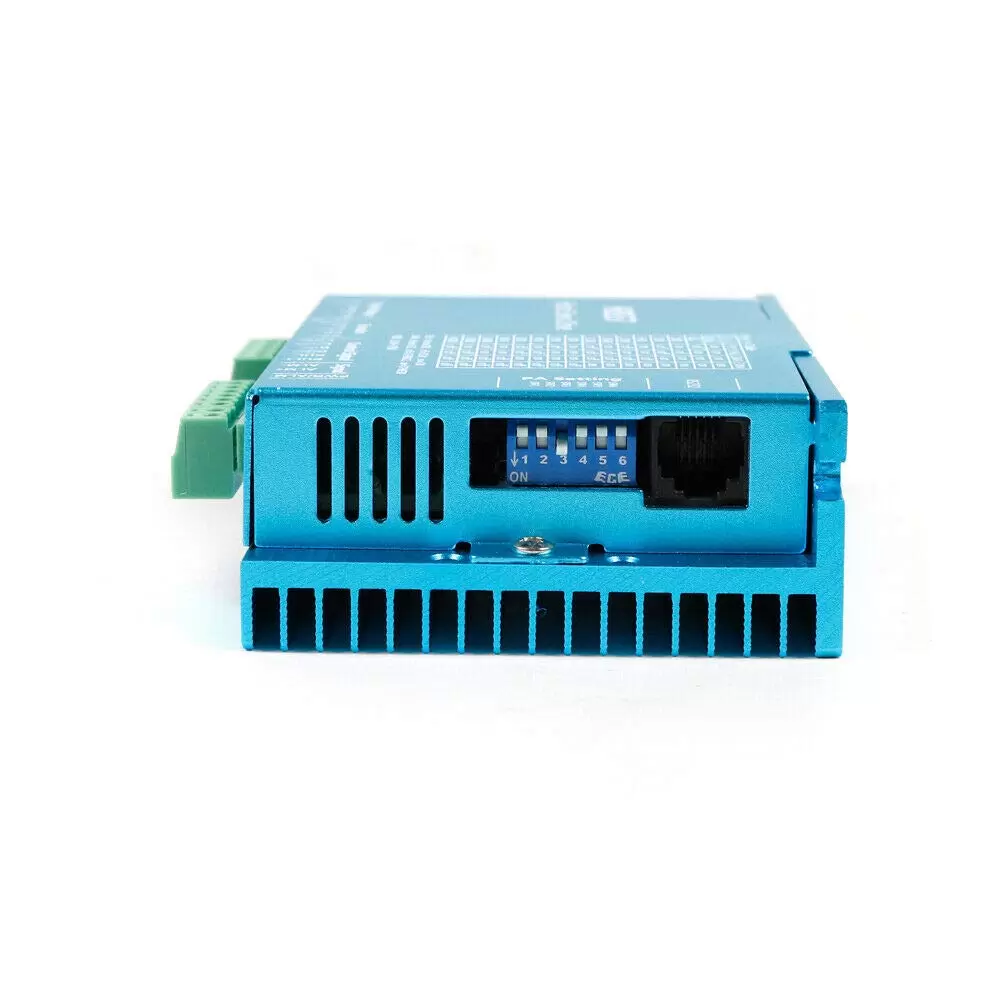

Driver Model: HBS57

Voltage: DC24-60V±10V

Phase current: 5A/Pha (peak current)

Subdivision: 2-256 subdivision Maximum 51200 steps / lap

Processor: 32-bit DSP digital

Pulse voltage: 5V-24V signal compatible

Response frequency: up to 200KHz

Pulse mode: single pulse (default) double pulse (software adjustable)

Cooling method: natural cooling

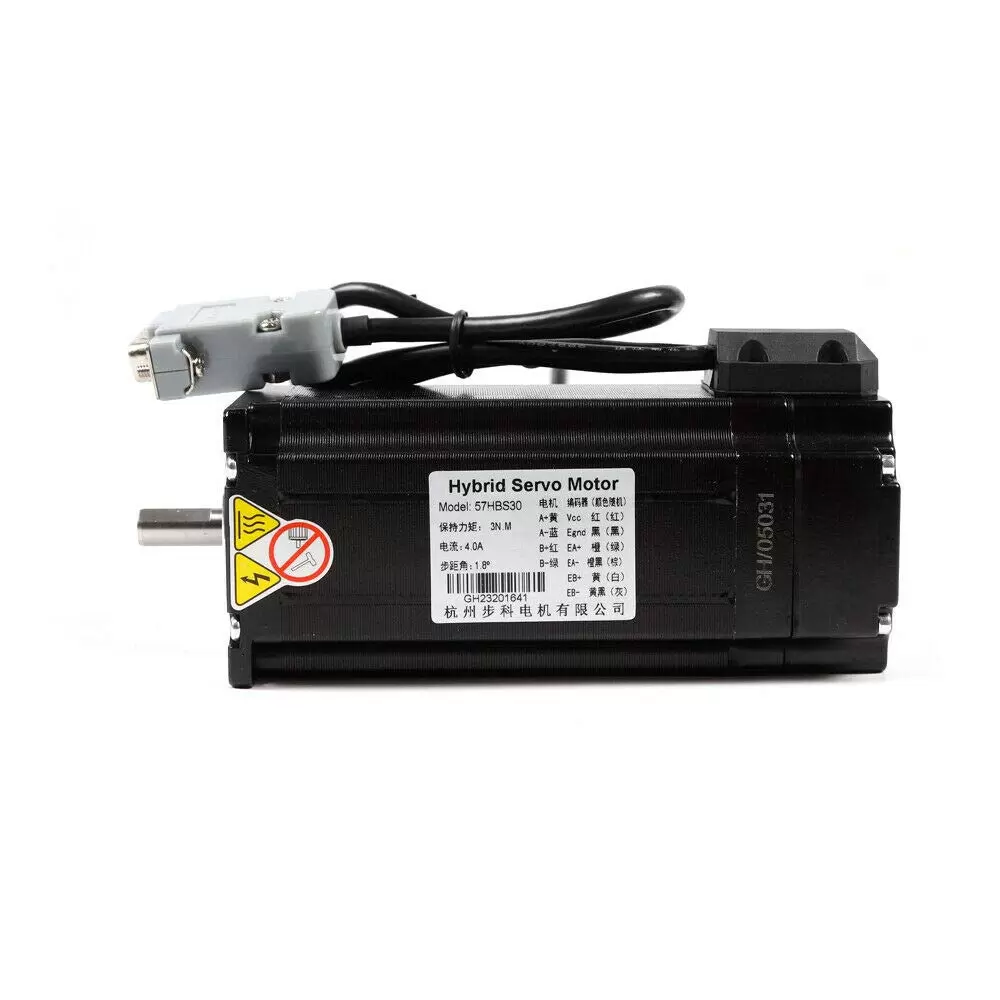

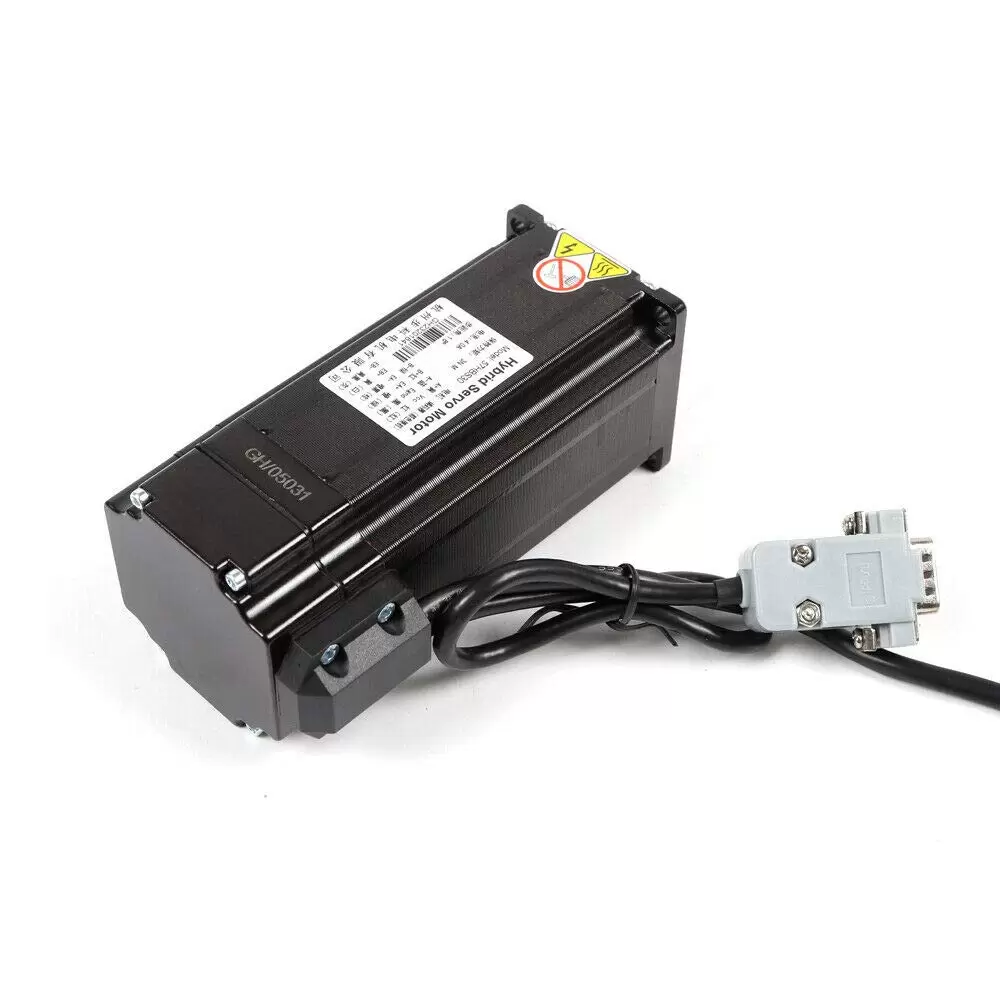

Motor Model: 57HBS36

Phase current: 4.0A/Pha

Torque: 3.0N.m

Shaft diameter: 8mm

Shaft length: 21mm

Step angle;: 1.8°

Step angle accuracy: ±5%

Surface temperature: 80℃ or less (rated current)

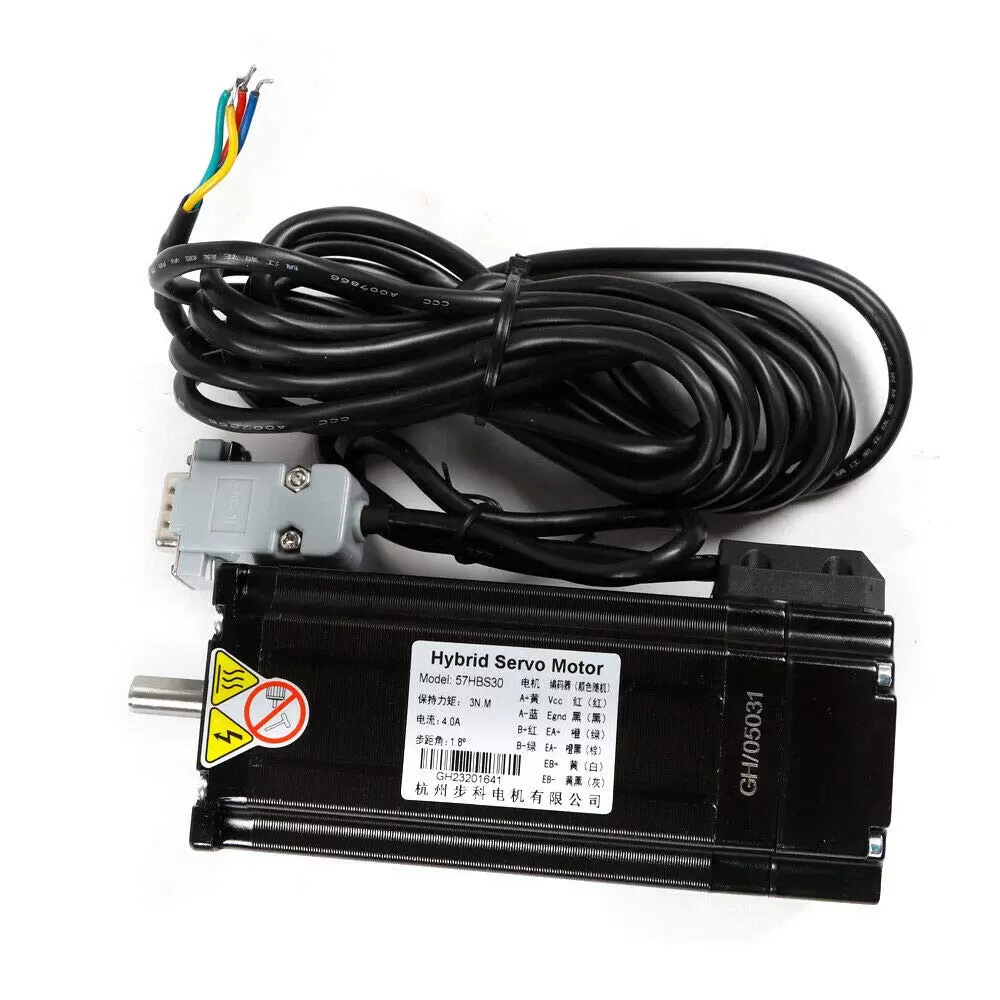

Motor line: 3m

Encoder line: 3m

Package Included

1x HBS57 driver

1x 57HBS30 motor

1x 3m motor line

1x 3m encoder line

Specifications

Driver Model	HBS57	Voltage	DC24-60V±10V
Phase current	5A/Pha (peak current)	Subdivision	2-256 subdivision Maximum 51200 steps / lap
Processor	32-bit DSP digital	Pulse voltage	5V-24V signal compatible
Response frequency	up to 200KHz	Pulse mode	single pulse (default) double pulse (software adjustable)
Cooling method	natural cooling	Motor Model	57HBS36
Phase current	4.0A/Pha	Torque	3.0N.m
Shaft diameter	8mm	Shaft length	21mm
Step angle;	1.8°	Step angle accuracy	±5%
Surface temperature	80℃ or less (rated current)	Motor line	3m
Encoder line	3m
