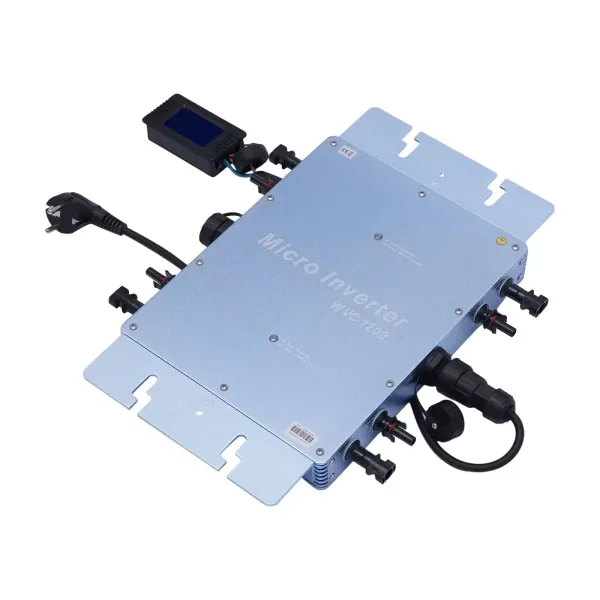

Micro Solar Inverter 1200 W Automatic Micro Inverter Solar ID MPPT DC20-50 V IP65 Used In Residential Or Commercial Areas
Micro Solar Inverter 1200 W Automatic Micro Inverter Solar ID MPPT DC20-50 V IP65 Used In Residential Or Commercial Areas
Micro Solar Inverter 1200 W Automatic Micro Inverter Solar ID MPPT DC20-50 V IP65 Used In Residential Or Commercial Areas
Micro Solar Inverter 1200 W Automatic Micro Inverter Solar ID MPPT DC20-50 V IP65 Used In Residential Or Commercial Areas
Micro Solar Inverter 1200 W Automatic Micro Inverter Solar ID MPPT DC20-50 V IP65 Used In Residential Or Commercial Areas
Micro Solar Inverter 1200 W Automatic Micro Inverter Solar ID MPPT DC20-50 V IP65 Used In Residential Or Commercial Areas
Micro Solar Inverter 1200 W Automatic Micro Inverter Solar ID MPPT DC20-50 V IP65 Used In Residential Or Commercial Areas
Micro Solar Inverter 1200 W Automatic Micro Inverter Solar ID MPPT DC20-50 V IP65 Used In Residential Or Commercial Areas
Micro Solar Inverter 1200 W Automatic Micro Inverter Solar ID MPPT DC20-50 V IP65 Used In Residential Or Commercial Areas
Micro Solar Inverter 1200 W Automatic Micro Inverter Solar ID MPPT DC20-50 V IP65 Used In Residential Or Commercial Areas
Micro Solar Inverter 1200 W Automatic Micro Inverter Solar ID MPPT DC20-50 V IP65 Used In Residential Or Commercial Areas
Micro Solar Inverter 1200 W Automatic Micro Inverter Solar ID MPPT DC20-50 V IP65 Used In Residential Or Commercial Areas
Micro Solar Inverter 1200 W Automatic Micro Inverter Solar ID MPPT DC20-50 V IP65 Used In Residential Or Commercial Areas
Micro Solar Inverter 1200 W Automatic Micro Inverter Solar ID MPPT DC20-50 V IP65 Used In Residential Or Commercial Areas
Micro Solar Inverter 1200 W Automatic Micro Inverter Solar ID MPPT DC20-50 V IP65 Used In Residential Or Commercial Areas
Micro Solar Inverter 1200 W Automatic Micro Inverter Solar ID MPPT DC20-50 V IP65 Used In Residential Or Commercial Areas

Micro Solar Inverter 1200 W Automatic Micro Inverter Solar ID MPPT DC20-50 V IP65 Used In Residential Or Commercial Areas

(0 reviews)
Ask a question
282.48 330.00
  • Brand: CNCEST
  • Product Code: YLLNMV9DEUZFP
  • Availability: In Stock
Quantity
- +
Estimated Delivery:
Free Fast Shipping:
On all orders
estimated delivery guarantee

Digital Control

The inverter adopts intelligent soft switching technology, high-frequency switching power supply technology, and 32-bit DSP full digital SPWM control technology, making the product strong anti-interference ability, fast operation speed, high intelligence, and a powerful functional system, which can meet the needs of users.

Electrical Isolation

The output and input of the system are completely electrically isolated, the insulation performance of the entire power distribution system is good, and the fully isolated booster circuit is safer and more reliable.

Easy Maintenance

After the installation of the power station, you don't need to do maintenance work. After a long time, you only need to remove the dust on the photovoltaic panel.

Small Footprint

With a size of 8.27*14.72*1.57inch, the inverter adopts high-frequency telephone, micro processing, and other technologies, so it is smaller, lighter, and won’t occupy too much space.

Flexible Installation Mode

During installation, you can stack multiple inverters at will, form a single-phase parallel stacking system, or conveniently form a three-phase system to provide a three-phase AC.

Worry-free Service

We have been working hard to provide better service and quality for our customers, which is our goal. If there is any quality problem with our inverters. Please contact us in time.

Premium Material

The inverter is made of aluminum alloy, which is durable, corrosion-resistant, and not easy to rust. You can use it for a long time without frequent replacement, and your cost can be saved.

LCD Display

The inverter is equipped with an LCD display screen to monitor voltage, power, frequency, current, etc. so you can see the machine clearly in operation.

High Efficiency

The inverter has built-in high-precision maximum power point tracking, which can optimize the power collection from the solar panel, accurately capture and lock the maximum output power point, and greatly increase power generation to more than 25%.

Gasket

The inverter is equipped with two gaskets to help you install the photovoltaic support, making the inverter more stable.

Application

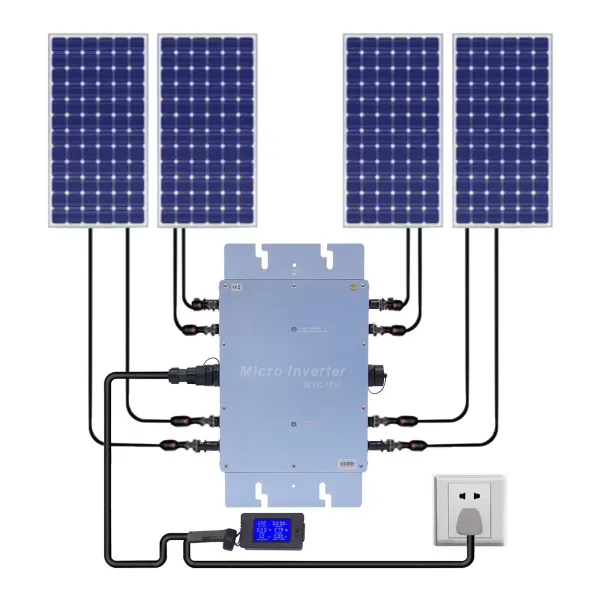

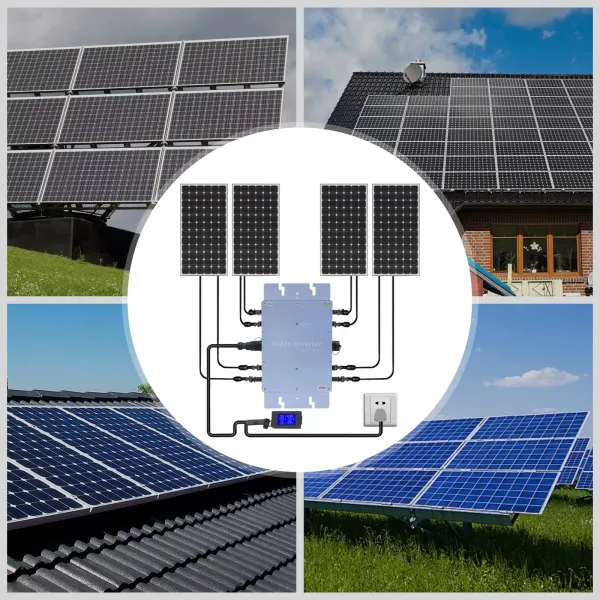

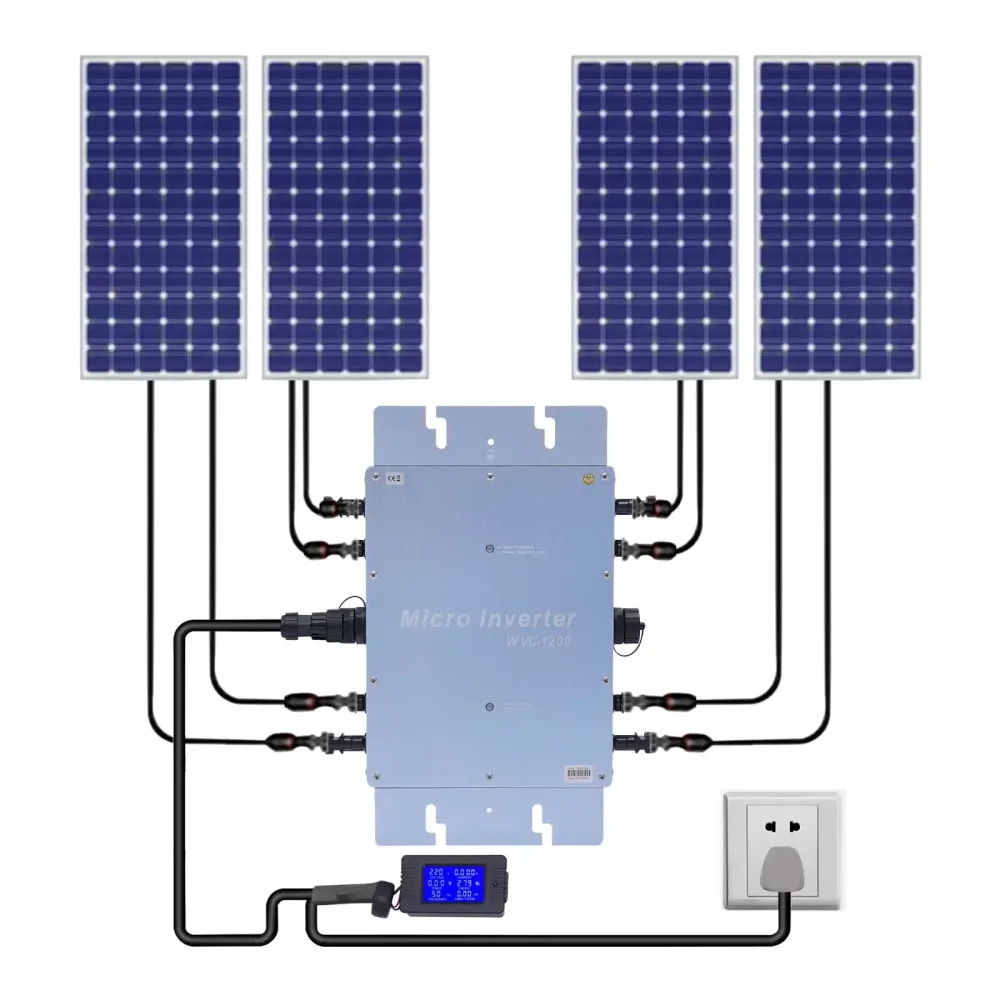

This product is applicable to 30V or 36V solar panels, 36V batteries. The inverter can be widely used in residential or commercial areas for turning the direct current generated by solar panels into alternating current.

Heat Dissipation Holes

The inverter is provided with heat dissipation holes, which can play a good role in heat dissipation and prolong the service life of the inverter.

Specifications
Model:  WVC-1200W
Color:  Blue
Material:  Aluminium Alloy
Power:  1200W
Voltage:  220V
Plug Type:  EU Standard
Maximum Input DC Voltage:  54V
Peak Power Tracking Voltage:  22-45V
Operating Voltage Range:  17-50V
Min/Max Start-up Voltage:  22-50VDC
Maximum DC Short Circuit Current:  80A
Maximum Input Operating Current:  54.4A
Peak Power Output:  1200watt
Rated Output Power:  1150watt
Rated Output Current:  5A
Rated Voltage Range:  180-260VAC
Rated Frequency Range:  47-52.5Hz
Power Factor:  >99%
Max Unit Per Branch Circut:  6pcs(Single-phase)
Static MPPT Efficiency:  99.5%
Maximum Output Efficiency:  92.5%
Night Time Power Loss:  <1W
Total Flow Distortion:  <5%
Operating Temperature Range:  ﹣40℃~60℃/﹣40℉~140℉
Waterproof Rating:  IP65
Cooling Method:  Self-cooling
Communication Mode:  Power Line Carrier
Power Transmission Mode:  Reverse Transmission, Load Priority
Gross Weight:  4.08kg/8.99lbs
Net Weight:  2.88kg/6.35lbs

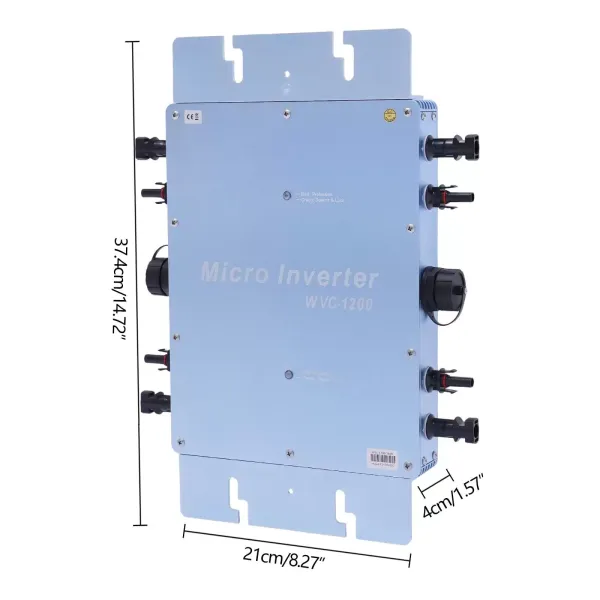

Product Size:  21*37.4*4cm/8.27*14.72*1.57inch
Package Size:  47.5*34*11.5cm/18.7*13.39*4.53inch

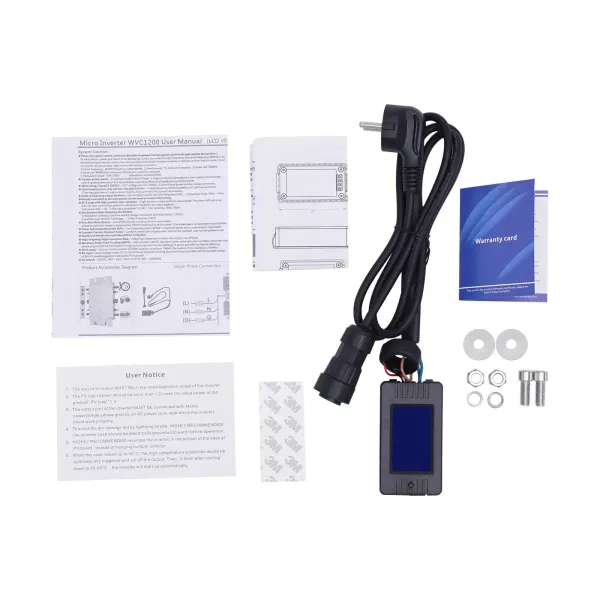

Package Included
1* Micro Inverter
1* Power Cord
1* English Manual
Other Accessories for Installation

Specifications

Model WVC-1200W Color Blue
Material Aluminium Alloy Power 1200W
Voltage 220V Plug Type EU Standard
Maximum Input DC Voltage 54V Peak Power Tracking Voltage 22-45V
Operating Voltage Range 17-50V Min/Max Start-up Voltage 22-50VDC
Maximum DC Short Circuit Current 80A Maximum Input Operating Current 54.4A
Peak Power Output 1200watt Rated Output Power 1150watt
Rated Output Current 5A Rated Voltage Range 180-260VAC
Rated Frequency Range 47-52.5Hz Power Factor >99%
Max Unit Per Branch Circut 6pcs(Single-phase) Static MPPT Efficiency 99.5%
Maximum Output Efficiency 92.5% Night Time Power Loss <1W
Total Flow Distortion <5% Operating Temperature Range ﹣40℃~60℃/﹣40℉~140℉
Waterproof Rating IP65 Cooling Method Self-cooling
Communication Mode Power Line Carrier Power Transmission Mode Reverse Transmission, Load Priority
Gross Weight 4.08kg/8.99lbs Net Weight 2.88kg/6.35lbs
Product Size 21*37.4*4cm/8.27*14.72*1.57inch Package Size 47.5*34*11.5cm/18.7*13.39*4.53inch

Product Tips

Notes

1.Please install the inverter correctly according to the instructions. If you have any questions, please contact the relevant personnel.
2.Please don't dismantle the machine. Only qualified maintenance personnel can repair the inverter.
3.Please install the inverter in a place with low humidity and good ventilation to avoid overheating the inverter and remove the surrounding inflammable and explosives.
