Nozzle Oil Tester Kit Diesel Injector Tester 4000ml Injector Pressure Tester 0-600 Bar 60 MPA 0-8000 PSI For All Types Of Diesel Injectors

Nozzle Oil Tester Kit Diesel Injector Tester 4000ml Injector Pressure Tester 0-600 Bar 60 MPA 0-8000 PSI For All Types Of Diesel Injectors

(0 reviews)

Ask a question

109.99€

Brand: CNCEST
Product Code: AC-WMTLCR-1199
Availability: Out Of Stock

Estimated Delivery:

Free Fast Shipping:

On all orders

Description
Reviews (0)
Recommer
Delivery and Return

Portable

This diesel injector nozzle tester weighs about 12.13lbs, so it is easy to carry with you.

High-quality Material

This diesel injector nozzle tester is made of iron and plastic with a black coating for durability and corrosion resistance.

Versatile Testing

This injector nozzle tester can verify various mechanical tests of injectors, such as pressure test, leak test, injection test, fogging, and chattering test.

Accurate Testing

The 0-8000 PSI gauge of this injector nozzle tester helps to accurately test the opening pressure of injectors and valves.

Wide Range of Applications

This injector nozzle tester is widely used to calibrate diesel injectors other than (CRDI) common rail diesel injectors for automobiles, tractors, etc.

Fixed Installation

The base of this injector nozzle tester has four pre-installed fixing holes, you can use 2/5'' screws to fix the installation.

Function

This diesel injector nozzle tester is suitable for calibrating the oil pressure lift safety valve pressure and sealing performance of various diesel engines.

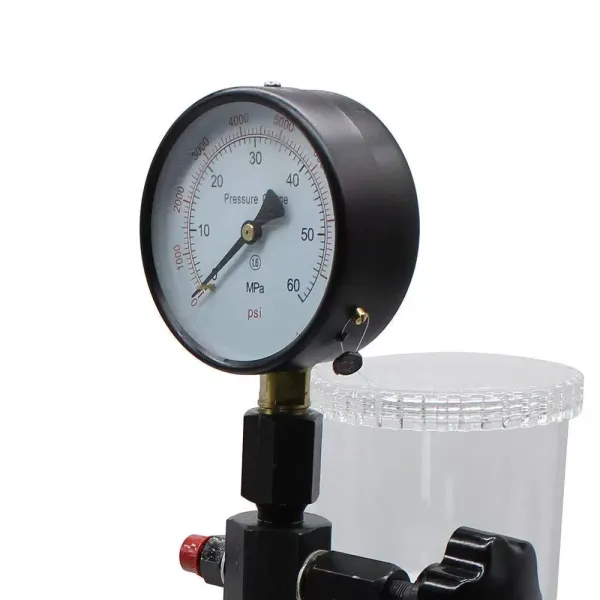

Dual Scale Pressure Gauge

This injector nozzle tester comes with a 0-60Mpa/0-8000Psi gauge with two-scale units to meet different people's needs.

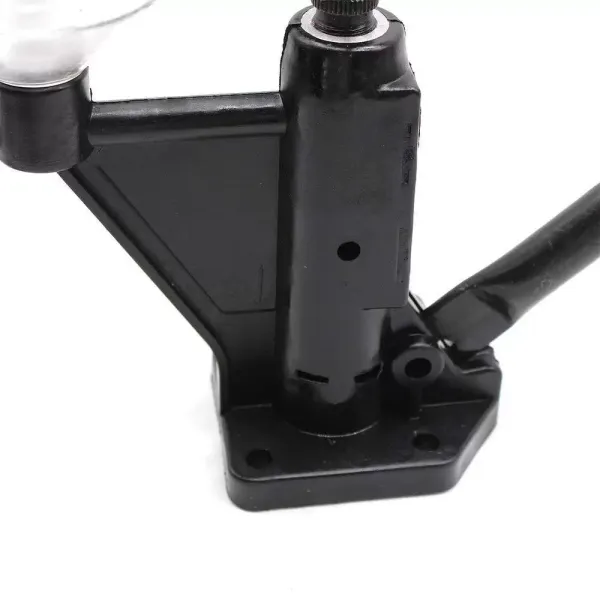

Pre-assembled Holes in the Base

The four pre-assembled holes in the base are convenient for you to fix this injector tester and avoid sliding when using it.

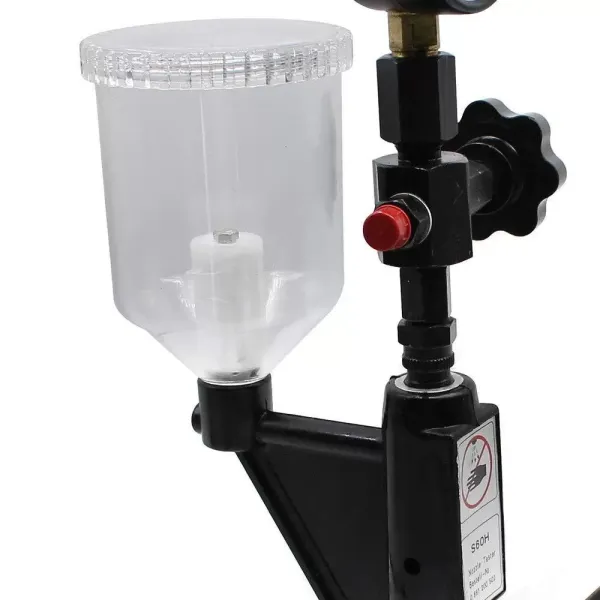

Transparent Plastic Oil Cup

It is convenient for you to observe the amount of oil to avoid the phenomenon of not having enough oil.

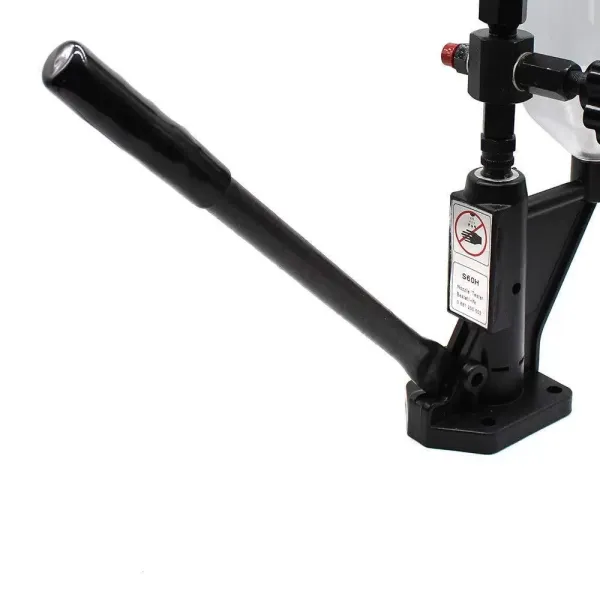

Comfortable Handle

This injector nozzle oil tester has a sleeve made of comfortable material on the handle, so you won't pinch your hand when pushing the lever up and down.

Application

These diesel injector testers are suitable for all types of diesel injectors except Common Rail (CRDI) diesel injectors.

Specifications

Material: Iron + Plastic

Color: Black

Measuring Ranges: 0-600 bar/0-8000 PSI

Pressure Range: 60Mpa (600 bar)

Can Test Pressure: ≥35.0MPa (350 bar)

Fuel Tank Capacity: 4L/0.88Gal

Oil Cup: 0.8L/0.18Gal

Pressure: 0-60Mpa

Plunger Hole: 2/5''

Nozzle Connector: M14x1.5-M14x1.5, M14x1.5-M12x1.25, M14x1.5-M12x1.5

Volume of Fuel Box: 900cc

Dimensions: 190 x 110 x 390 mm/7.5"x 4.3"x 15.4"

Weight: 5.5kg/12.13lbs

Package Included

1 x Diesel Injector Nozzle Tester

1 x M12 x 1.5 High-Pressure Hose

1 x M14 x 1.5 High-Pressure Hose

1 x Delivery Valve

1 x Filter

1x Semi-transparent Fuel Tank

Accessories Required for Use

Specifications

Material	Iron + Plastic	Color	Black
Measuring Ranges	0-600 bar/0-8000 PSI	Pressure Range	60Mpa (600 bar)
Can Test Pressure	≥35.0MPa (350 bar)	Fuel Tank Capacity	4L/0.88Gal
Oil Cup	0.8L/0.18Gal	Pressure	0-60Mpa
Plunger Hole	2/5''	Nozzle Connector	M14x1.5-M14x1.5, M14x1.5-M12x1.25, M14x1.5-M12x1.5
Volume of Fuel Box	900cc	Dimensions	190 x 110 x 390 mm/7.5"x 4.3"x 15.4"
Weight	5.5kg/12.13lbs

Product Tips

Notes

1. The working pressure of the pressure gauge should be less than two-thirds of its upper limit.
2. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.

Installation

The instruction is easy for you. We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.
