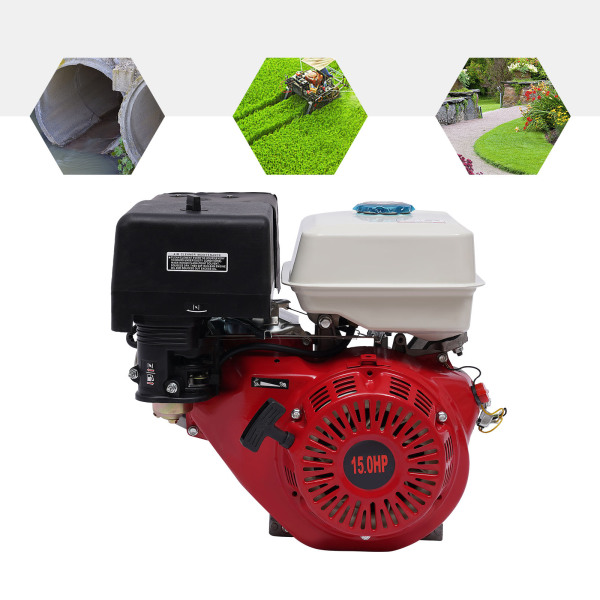

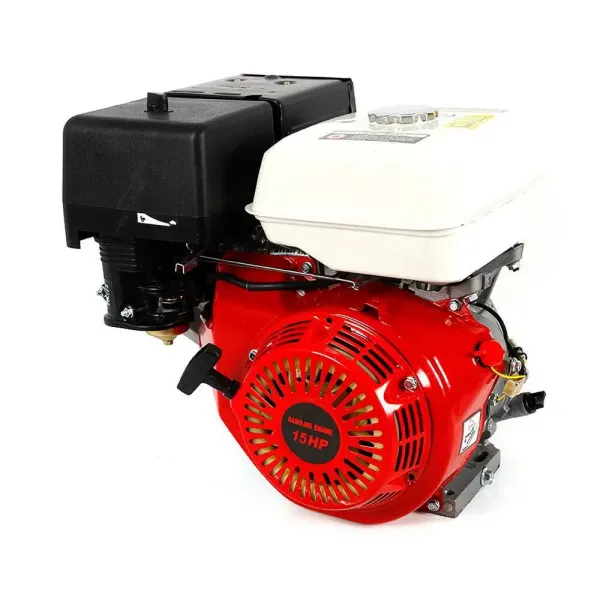

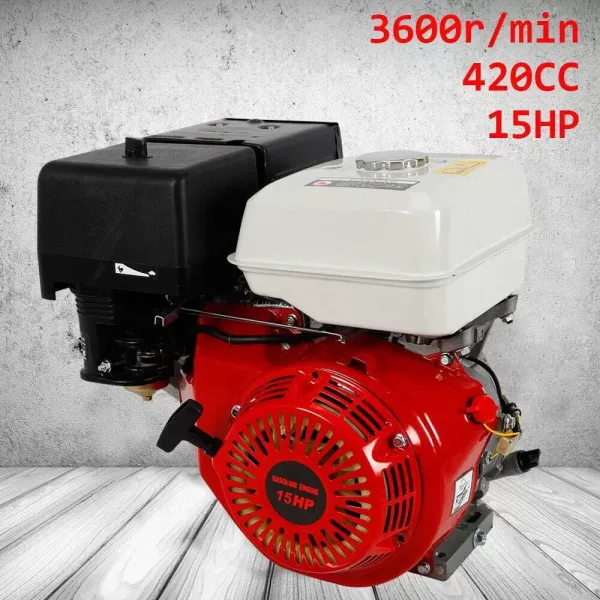

4 Stroke 420CC 9 KW 15 HP Petrol Engine Stationary Motor Kart Engine Drive Motor Replacement Engine Gasoline Engine 15 HP
- Brand: CNCEST
- Product Code: YLNXIK-001400
- Availability: In Stock

Specifications
Model | 190F | Material | Aluminium+Iron |
Engine Type | 4 Stroke | Description | Gasoline Engine |
Starting System | Pull Start | Power | 9700W 15HP |
Rated Power | 8800W | Color | Red+Black |
Fuel Type | Gasoline | Engine Displacement | 420cc |
Rotational Speed | 3000-3600rpm/min | Fuel Capacity | 6.5L/6.5L/274.74oz |
Engine Oil Capacity | 1.1L/46.5oz | Gross Weight | 31kg/68.34lbs |
Net Weight | 28.26kg/62.3lbs | Package Size | 48.92*39.9*46.55cm/19.26*15.71*18.33inch |
Product Tips


How to Use:
1.Before starting the machine, take out this black rubber and put the red breath plug into it. If the red air is not changed, it will cause damage to the oil seal in the pump.
2.Check the oil level, to the line above H. Add about 700ml 4- stroke gasoline engine oil, series: 15W30 or 15W40 (Remark: if the engine oil is not enough will cause the engine can't start or if starts, the engine will work in shaking, seems will work.)
3.Add petrol 92# or 95#(Remark: when you put the fuel tank cap, you should fix the two ears in the cap well with the part concave in, the finger point part, then press the cap and turn the fuel tank cap.)
4.Turn the adjusted arm to the left side (new machine keep the position, don't move it). Turn the throttle to the left side. Turn the fuel control valve on the right side.
5.Turn the engine switch to the ON position.
6.Straighten the hose. 7.Start the engine.8.After the engine starts, turn the check valve to right.

Notes:
1.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
2.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
