AC 220V/1.5KW 2HP 7A CNC VFD converter single phase to 3 phase for spindle motor speed control
AC 220V/1.5KW 2HP 7A CNC VFD converter single phase to 3 phase for spindle motor speed control
AC 220V/1.5KW 2HP 7A CNC VFD converter single phase to 3 phase for spindle motor speed control
AC 220V/1.5KW 2HP 7A CNC VFD converter single phase to 3 phase for spindle motor speed control
AC 220V/1.5KW 2HP 7A CNC VFD converter single phase to 3 phase for spindle motor speed control
AC 220V/1.5KW 2HP 7A CNC VFD converter single phase to 3 phase for spindle motor speed control
AC 220V/1.5KW 2HP 7A CNC VFD converter single phase to 3 phase for spindle motor speed control
AC 220V/1.5KW 2HP 7A CNC VFD converter single phase to 3 phase for spindle motor speed control
AC 220V/1.5KW 2HP 7A CNC VFD converter single phase to 3 phase for spindle motor speed control
AC 220V/1.5KW 2HP 7A CNC VFD converter single phase to 3 phase for spindle motor speed control
AC 220V/1.5KW 2HP 7A CNC VFD converter single phase to 3 phase for spindle motor speed control
AC 220V/1.5KW 2HP 7A CNC VFD converter single phase to 3 phase for spindle motor speed control
AC 220V/1.5KW 2HP 7A CNC VFD converter single phase to 3 phase for spindle motor speed control
AC 220V/1.5KW 2HP 7A CNC VFD converter single phase to 3 phase for spindle motor speed control
AC 220V/1.5KW 2HP 7A CNC VFD converter single phase to 3 phase for spindle motor speed control
AC 220V/1.5KW 2HP 7A CNC VFD converter single phase to 3 phase for spindle motor speed control
AC 220V/1.5KW 2HP 7A CNC VFD converter single phase to 3 phase for spindle motor speed control
AC 220V/1.5KW 2HP 7A CNC VFD converter single phase to 3 phase for spindle motor speed control

AC 220V/1.5KW 2HP 7A CNC VFD converter single phase to 3 phase for spindle motor speed control

(0 reviews)
Ask a question
123.21€ 170.00€
  • Brand: CNCEST
  • Product Code: ZX-HS0473-325
  • Availability: In Stock
Quantity
- +
Estimated Delivery:
Free Fast Shipping:
On all orders
estimated delivery guarantee
AC 220V/1.5KW 2HP 7A CNC VFD converter single phase to 3 phase for spindle motor speed control

AC 220V/1.5KW 2HP 7A CNC VFD converter single phase to 3 phase for spindle motor speed control

  • Description
  • Reviews (0)
  • Recommer
  • Delivery and Return

Remote Control

Remote operation is possible via an external extension panel up to 50m/164ft away, so you can easily operate the machine without being close to it.

8-Way Protective System

Our 1.5kw VFD has 8 kinds of protection including over voltage, over current, overload, overheating, stalling and open phase to secure the utilization. Supporting external braking resistor for fast accelerating/decelerating speed control.

High Safety

The variable frequency drive is made of industrial flame retardant ABS plastic, which is high temperature resistant and flame retardant, so it has high safety and reliability.

Space-saving

The variable frequency drive's size is only 4.33*3.3*5.71in, so it can save installation space for you.

Easy to Operate

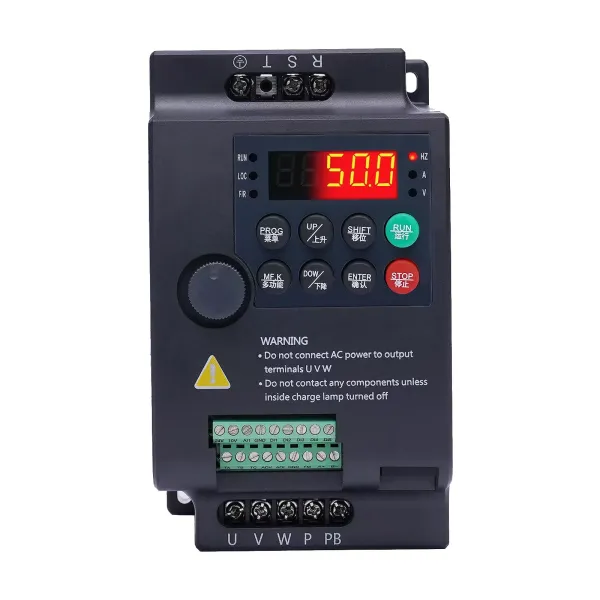

With a user-friendly and well-laid-out keyboard, it is easy to operate. The digital display allows you to see every step of the operation visually and clearly.

DC Cooling Fan

The variable frequency drive is equipped with a fan to improve the stability of the inverter. The fan runs automatically when the temperature rises and switches off when the temperature stabilizes.

Heat Dissipation Holes

There are several heat dissipation holes on the surface of the machine to form a good heat dissipation system, keeping the machine running smoothly without burnout and extending its service life.

High-quality Motherboard

The surface of the motherboard is painted with tri-proof paint to protect the wiring from the environment and plays the role of insulation, moisture-proof, anti-leakage, shock-proof, dust-proof, anti-corrosion, anti-aging and corona-resistant.

Excellent Control Performance

With PG free vector control method, the control performance is excellent.

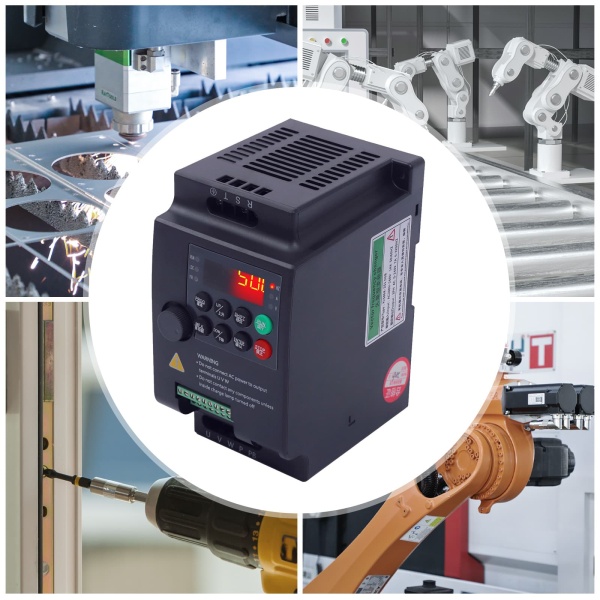

Application

It is suitable for spindle motor, drill press, CNC, HVAC, lathe, production lines, processing types of equipment, milling, pumps, conveyors, Mach3, Fan, cooling, compressor, three-phase motor, etc.

Specifications
Model:  YL568K
Color:  Black
Material:  ABS
Input Voltage:  220V
Output Voltage:  220V
Rated Current:  7A
Suitable Motor Power:  1.5KW, Horsepower
Power Supply Phase:  Single Phase
Output Phase:  3 Phase
DC Power Supply:  Voltage Type
Gross Weight:  1.2kg/2.7lbs
Net Weight:  1kg/2.2lbs
Product Size:  11*8.5*14.5cm/4.33*3.3*5.71in
Package Size:  20*16.5*12.5cm/7.97*6.5*4.92in

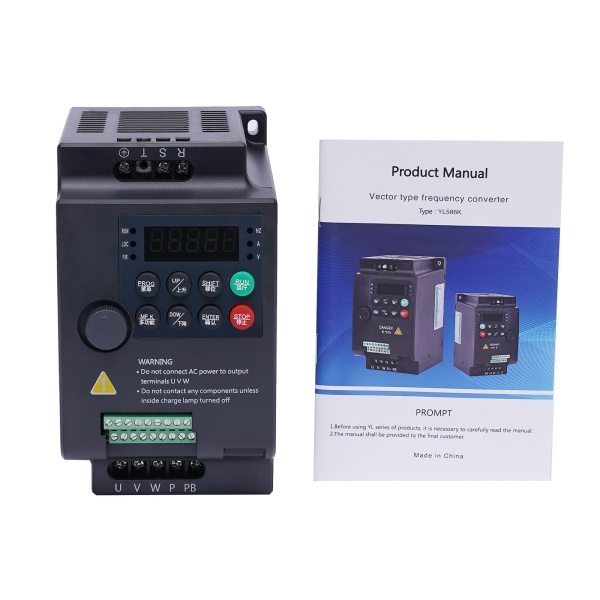

Package Included
1* Variable Frequency Drive
1* English Manual

Specifications

Model YL568K Color Black
Material ABS Input Voltage 220V
Output Voltage 220V Rated Current 7A
Suitable Motor Power 1.5KW, Horsepower Power Supply Phase Single Phase
Output Phase 3 Phase DC Power Supply Voltage Type
Gross Weight 1.2kg/2.7lbs Net Weight 1kg/2.2lbs
Product Size 11*8.5*14.5cm/4.33*3.3*5.71in Package Size 20*16.5*12.5cm/7.97*6.5*4.92in

Product Tips

Notes

1.Please avoid using the inverter in an environment where there is humidity, water mist, and metal debris falling, it may cause a short circuit. And your motor power should not be more than TWICE the power of this VFD.
2.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
3.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
