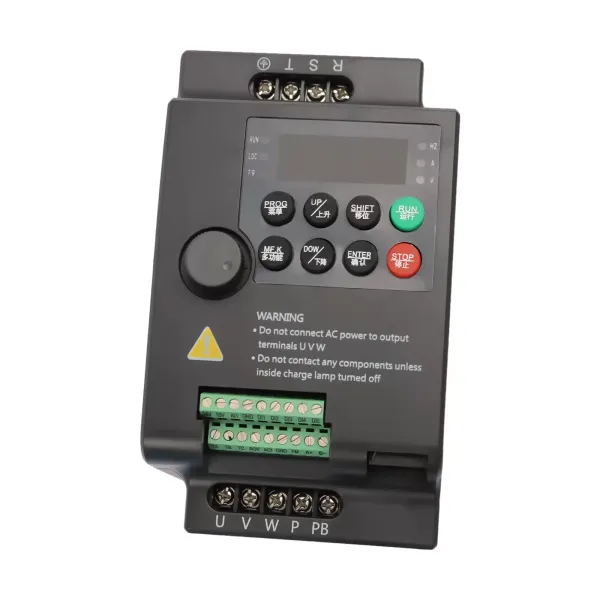

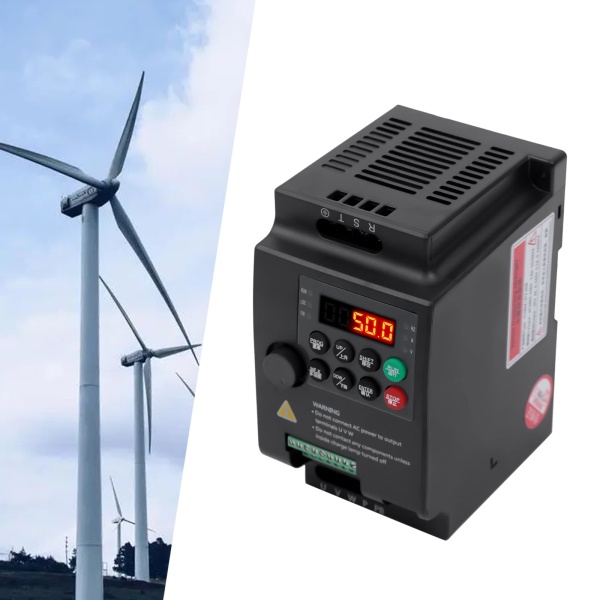

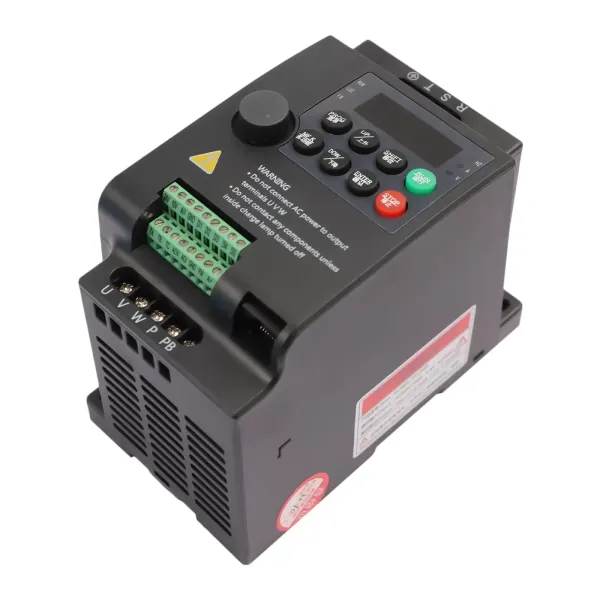

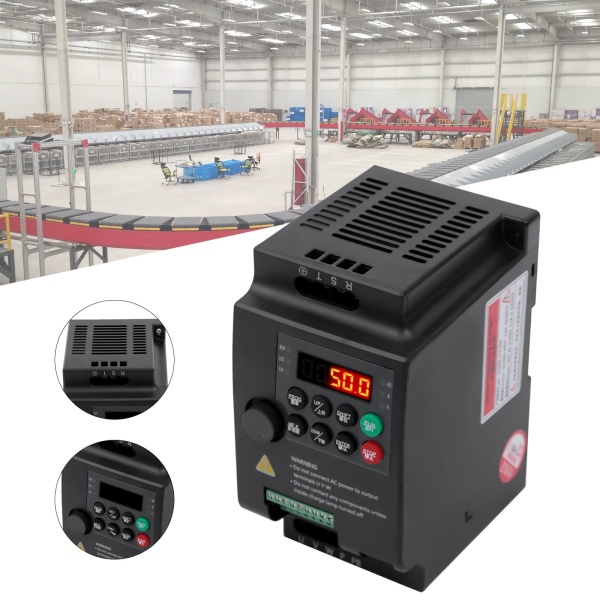

Mini VFD 380V Single Phase/Three Phase AC Inverter Frequency Converter for 2.2 kW Three Phase Motors

Mini VFD 380V Single Phase/Three Phase AC Inverter Frequency Converter for 2.2 kW Three Phase Motors

(0 reviews)

Ask a question

133.49€

Brand: CNCEST
Product Code: ZX-HS1700-009
Availability: In Stock

Estimated Delivery:

Free Fast Shipping:

On all orders

Description
Reviews (0)
Recommer
Delivery and Return

Three-phase Input and Output

This frequency converter with three-phase 380V input and three-phase 380V output can better meet your usage needs.

Support External Resistor

The converter has a braking function and supports an external resistor. But it also can be used directly without the external resistor.

High Torque

This converter has high torque and fast response so that it can output stable frequency to ensure stable motor speed. Moreover, its torque can be automatically compensated to meet various processing needs.

Good Heat Dissipation

The built-in heat dissipation fan and the heat dissipation holes in the housing can dissipate heat inside the machine in time and prolong the service life of the machine.

Easy to Operate

It adopts humanized keyboard design and reasonable layout, which is easy to operate. The digital display with indicator is intuitive and clear to show the machine voltage, frequency, and other values, making you operate it more accurately.

High Anti-jamming Capability

It meets users' requirements by optimizing PWM control technology and electromagnetic compatibility. So it can meet your requirements for low noise and low electromagnetic interference.

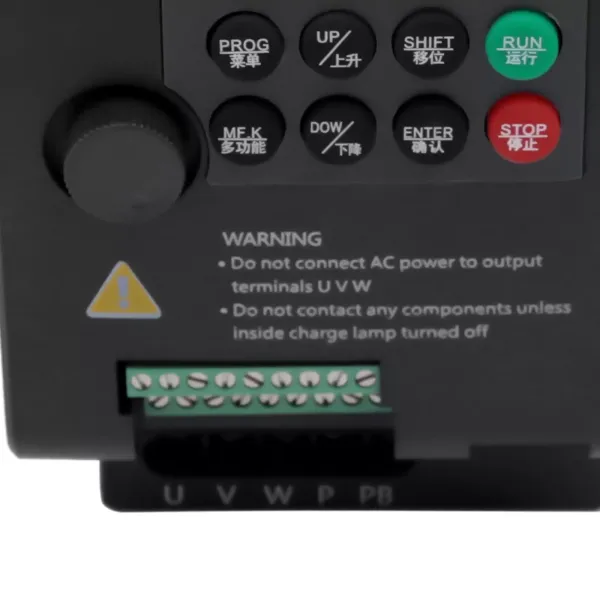

Knob

The knob allows you to precisely and infinitely adjust the output frequency.

Wiring Letters

In order to avoid wrong wiring, the output and input wiring ports are printed with letter markings.

Stable Operation

The motherboard that has been painted three times can also avoid temperature, humidity and dust, and other interference, so it offers you a stable operation.

Application

This frequency converter is suitable for motors, drilling machines, pumps, fans, coolers, compressors, and other industrial machinery.

Specifications

Color: Black

Material: Plastic

Input Voltage: 380V, 50/60Hz

Output Voltage: 380V

Power Supply Capacity: 4.0KVA

Input Current: 5.8A

Output Current: 5.1A

Suitable Motor Power: 2.2KW/3HP

Input Phase: 3 Phase

Output Phase: 3 Phase

Product Size: 11*8.5*14.5cm/4.33*3.3*5.71inch

Package Size: 20*16.5*12.5cm/7.9*6.5*4.9inch

Gross Weight: 1.2kg/2.6lbs

Net Weight: 1kg/2.2lbs

Package Included

1* Frequency Converter

1* English Instructions

Specifications

Color	Black	Material	Plastic
Input Voltage	380V, 50/60Hz	Output Voltage	380V
Power Supply Capacity	4.0KVA	Input Current	5.8A
Output Current	5.1A	Suitable Motor Power	2.2KW/3HP
Input Phase	3 Phase	Output Phase	3 Phase
Product Size	118.514.5cm/4.333.35.71inch	Package Size	2016.512.5cm/7.96.54.9inch
Gross Weight	1.2kg/2.6lbs	Net Weight	1kg/2.2lbs

Product Tips

Notes

1.Motors with capacitors are not allowed to use this converter.
2.If the working environment is relatively humid, with water mist, water droplets or metal objects falling in, the machine will cause a short circuit.
3.If you need an external resistors, please purchase it separately. It is not included in the package.
4.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
