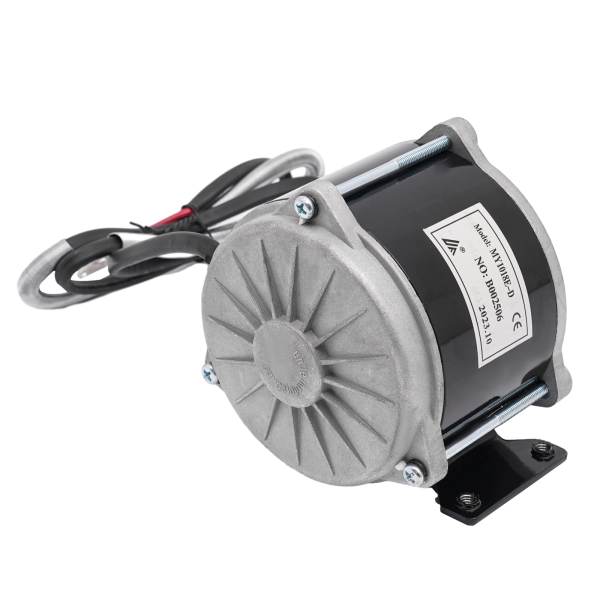

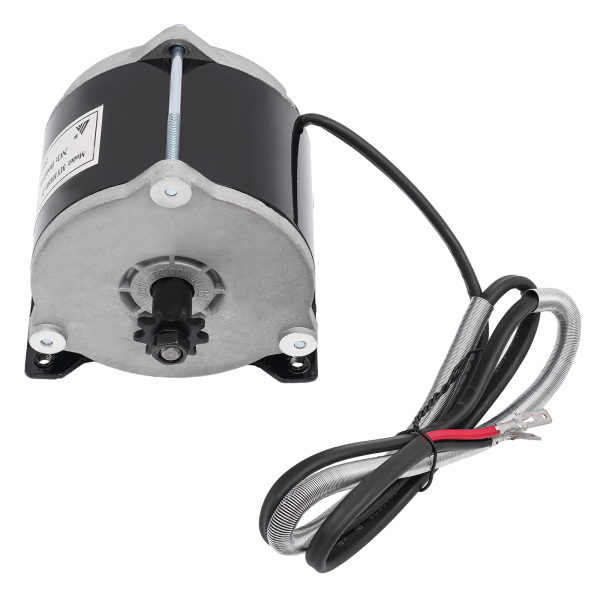

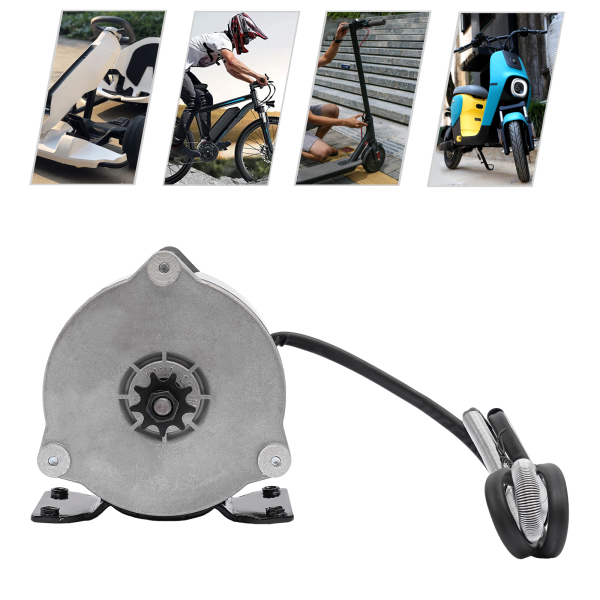

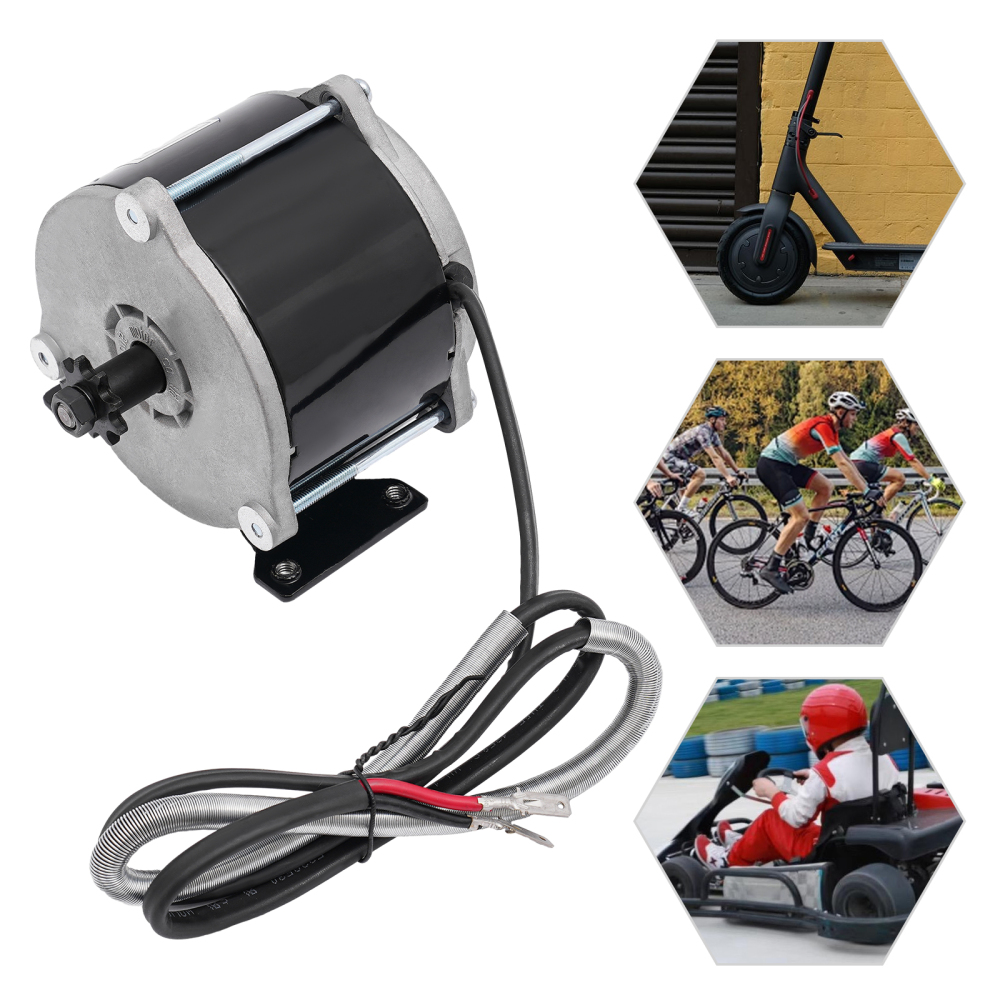

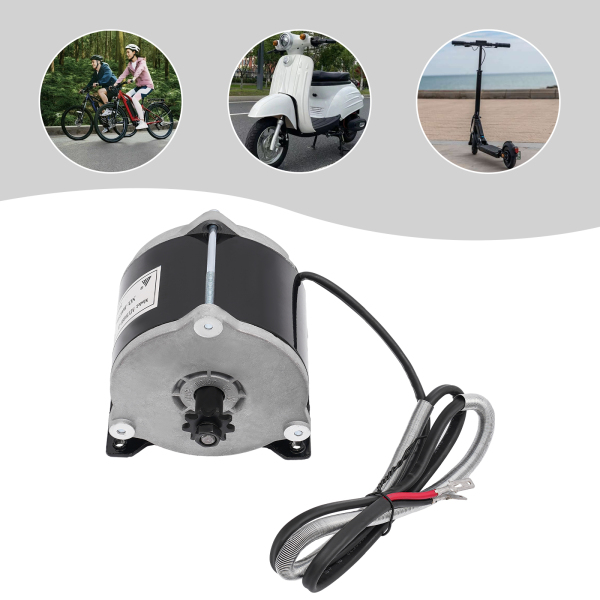

500W 24V Electric Gear Reduction Motor, Brushed Motor Reducer for Electric Bike, Brushed DC Motor

500W 24V Electric Gear Reduction Motor, Brushed Motor Reducer for Electric Bike, Brushed DC Motor

(0 reviews)

Ask a question

109.99€

Brand: CNCEST
Product Code: JZ8VVM-000200ND
Availability: In Stock

Estimated Delivery:

Free Fast Shipping:

On all orders

Description
Reviews (0)
Recommer
Delivery and Return

High quality material

The product is made of iron, copper and aluminum, with high hardness, high temperature resistance and corrosion resistance, ensuring long service life.

Excellent performance

The 500W brushed DC motor has a speed of 1700 rpm and high torque, achieving efficient deceleration.

Flexible rotation

By connecting the motor power cord in forward/reverse direction, this product can be adjusted to rotate clockwise or counterclockwise, increasing its flexibility and extending its service life.

High load capacity

Compared with high-speed motors, this product can support a heavy load of up to about 440.9 pounds, providing more powerful operation.

Protective package

To prevent the product from being damaged during transportation, we package it with foam to protect your products as much as possible.

Easy to move

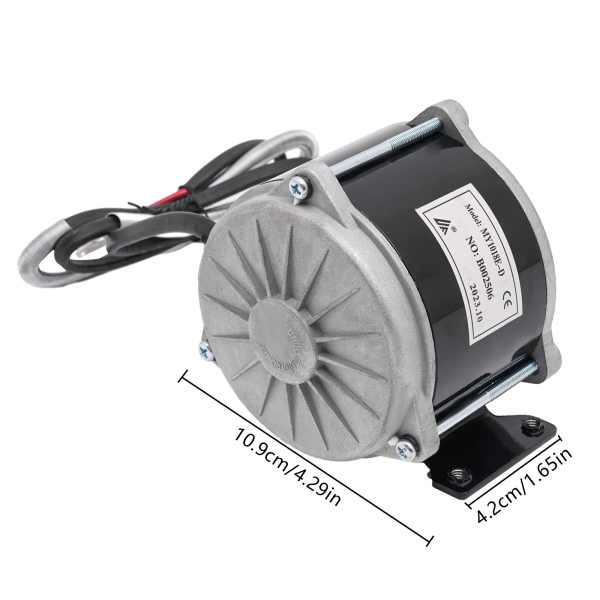

The compact size (4.3 x 1.65 inches) and light weight (gross weight: 6.2 pounds) make it easy to move everywhere.

Assembly in the blink of an eye

The simple structure and pre-drilled holes allow you to install it with less effort and time.

Long power cord

The long power cord (3.3 feet) adds extraordinary convenience and mobility when using and installing this motor.

Specifications

Model: MY1018E-D

Material: Iron, aluminum, copper

Color: Black, silver

Style: Modern

Form: round

Assembly required: No

Nominal voltage: 24 V.

Nominal speed: 1700 RPM

No-load current: ≤ 2A

Rated power: 500W

Rated efficiency: ≥ 78%

Protection level: IP44

Par nominal: 1,98 NM

Isolation level: F

Engine load capacity: About 200kg/440.9lbs

Gross weight: 2.8kg/6.2lbs

Power cord length: 1 m/3,3 pies

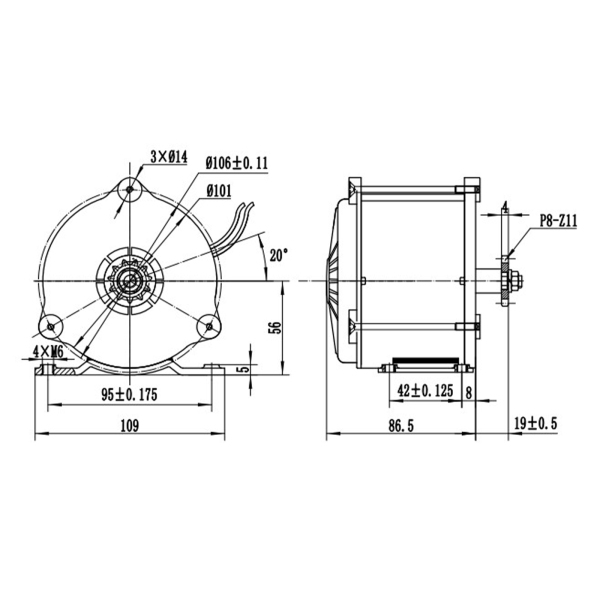

Product size: 10.9*4.2cm/4.3*1.65inch

Package size: 18.5*18.5*14.5cm/7.3*7.3*5.7inch

Package Included

1 * Electric Gear Reduction Motor

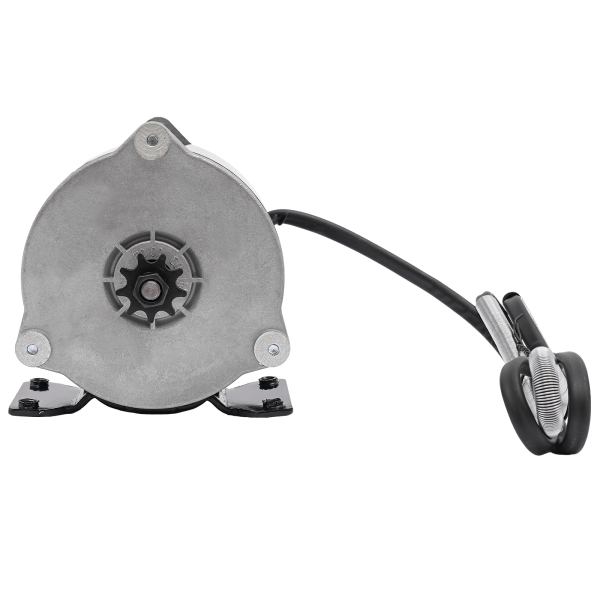

Four hole base

The motor features an enlarged and thickened base, which increases the contact area and ensures stability while the motor is running.

Specifications

Model	MY1018E-D	Material	Iron, aluminum, copper
Color	Black, silver	Style	Modern
Form	round	Assembly required	No
Nominal voltage	24 V.	Nominal speed	1700 RPM
No-load current	≤ 2A	Rated power	500W
Rated efficiency	≥ 78%	Protection level	IP44
Par nominal	1,98 NM	Isolation level	F
Engine load capacity	About 200kg/440.9lbs	Gross weight	2.8kg/6.2lbs
Power cord length	1 m/3,3 pies	Product size	10.94.2cm/4.31.65inch
Package size	18.518.514.5cm/7.37.35.7inch

Product Tips

Grades

1. Please note that if you need to adjust the speed, you need to use it with a controller (not included).
2. Please note that this product does not contain a cooling fan, do not use it in a small and confined space.
3. Please allow slight color difference caused by shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
