l High performance motor, motor with long life. High quality aluminum alloy material. High quality integrated limit switch.
l Quiet design, the noise level is less than 60dB. Linear drives for general applications. Often used in the automotive, medical and mechanical industries. CE and SGS certification passed.
l Wide voltage design, working voltage range is 8-30V DC. Overcurrent, overload and short circuit protection.
l It can control the forward and reverse rotation of DC motor as well as bidirectional DC charging.
l Wireless remote control with learning function, easy to code. There are millions of independent and extremely reliable group address codes. For very sensitive receivers, the remote control should be placed more than 100 meters away.

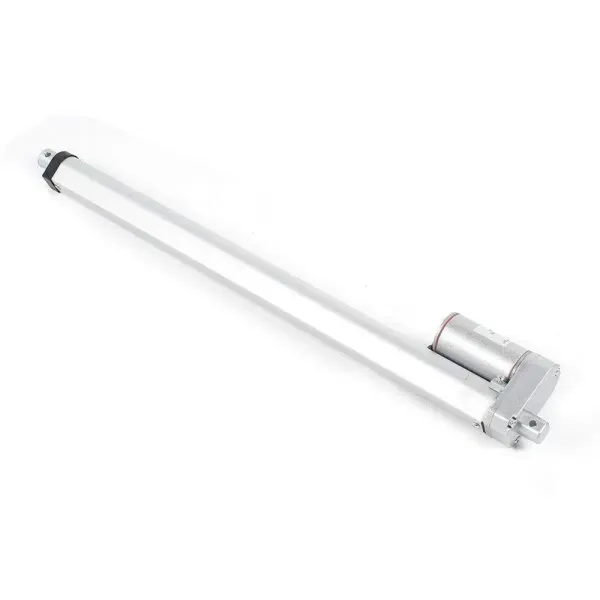

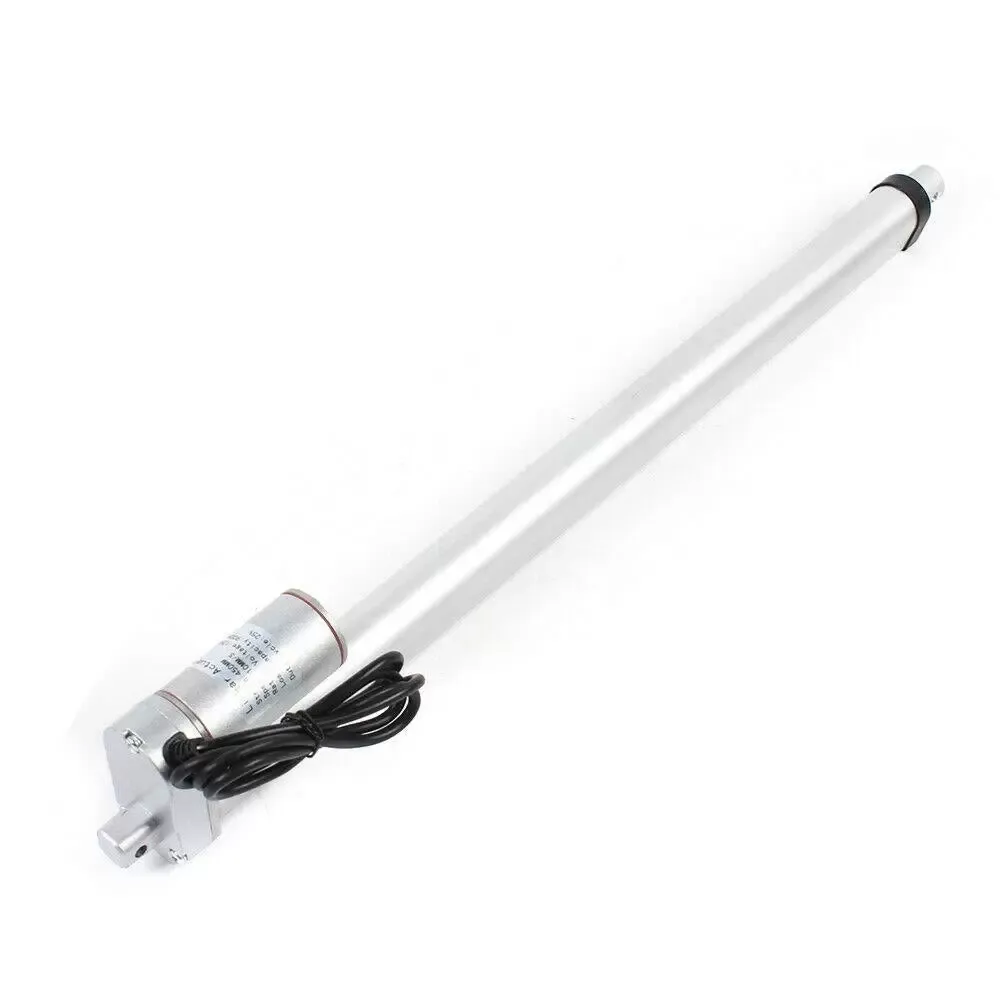

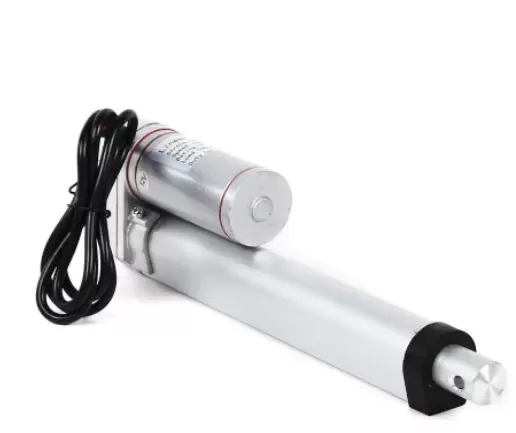

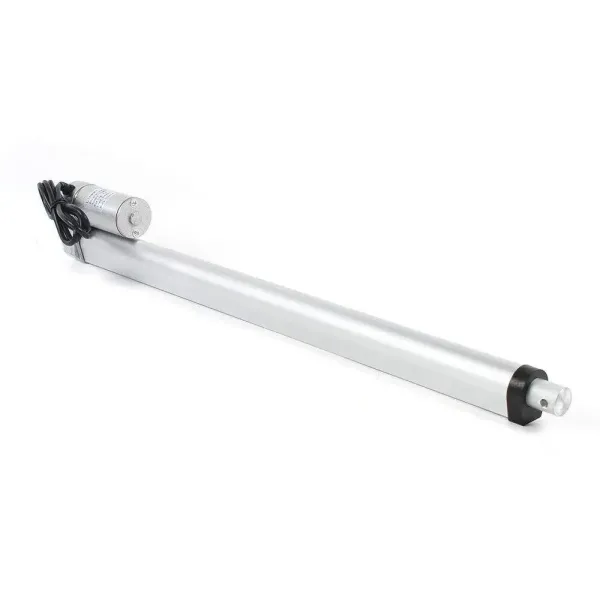

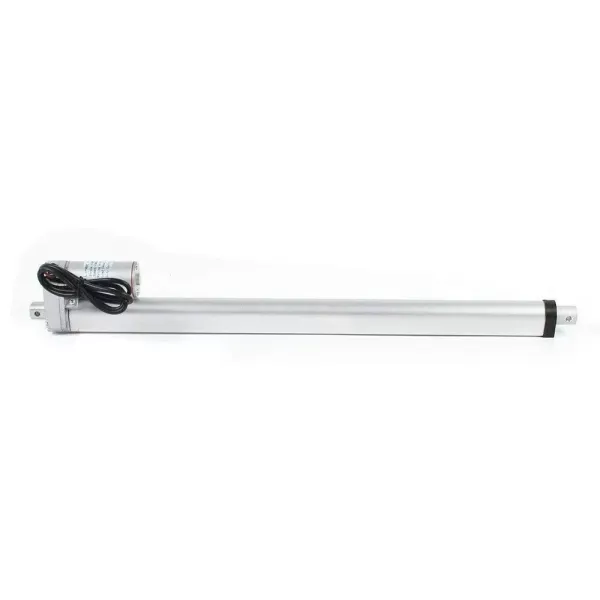

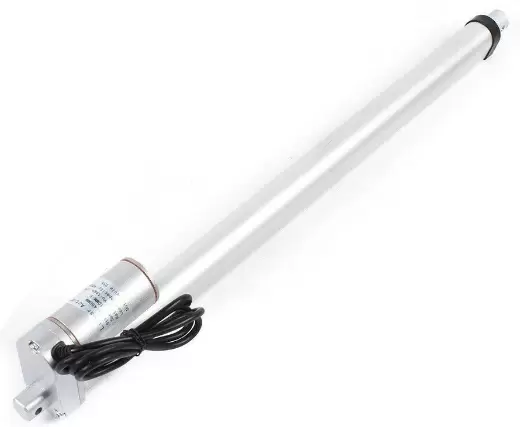

Professionally manufactured: The electric push bar is a kind of electric drive device that transforms the rotary motion of the motor into the linear reciprocating motion of the push bar, all-metal housing, waterproof water and dust resistant for rugged durability.

Positions load precisely at variable and repeatable locations across the hub assembly. Reliable performance, sensitive action, stable operation.

Wide range of applications: suitable for TV lift tables, massage beds, electric beds, medical chairs, electrical appliances, micro devices, electric sofas, camera frames, cameras and more Again.

Technical characteristics of linear actuators:
Technical characteristics of linear actuators:
l Input voltage: DC12V
l Maximum charging current: 3A
l No-load current: 0.8A
l Stroke length: 450 mm
l Vitesse : 10 mm / s
l Maximum compression load: 900 N
l Work cycle: 25
l Working temperature: -26°C ~ 65°C.
l Protection level: IP54
l Material: aluminum alloy
l Color: as shown
l Certification: CE

Installation size:
Minimum installation size (the distance between the two holes before and after the push rod is fully retracted):
l 555 mm (for a 450 mm motor)

Fully Expanded Product Size:
l 1005 mm for 450 mm motors

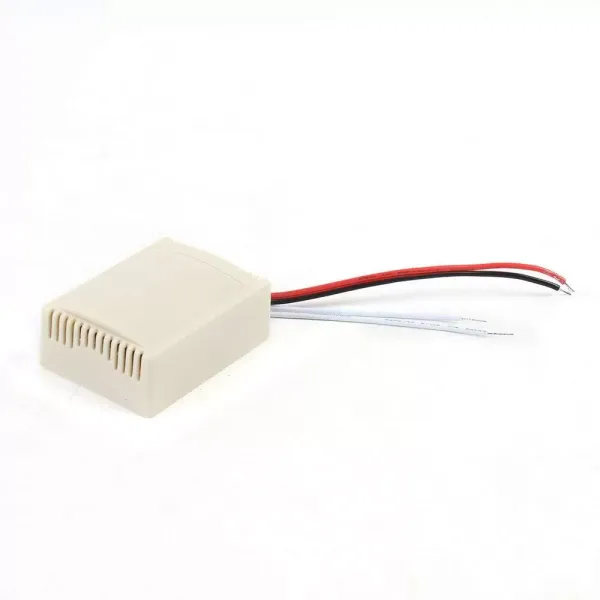

Technical characteristics of the motor control:
Input voltage: 8-30V
l Output voltage: 8-30V
l Fuse: 10A / 30V
l Reverse connection protection: yes
l Remote control distance: 100 m
l Stable voltage on/off: Yes
l Prevent overtime: Yes
l Operating temperature: -20 to 60°C.
l Control method: pulse control

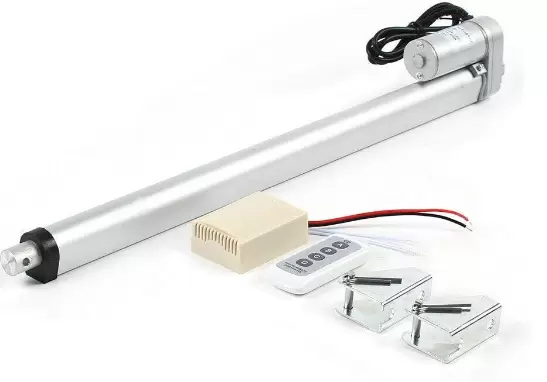

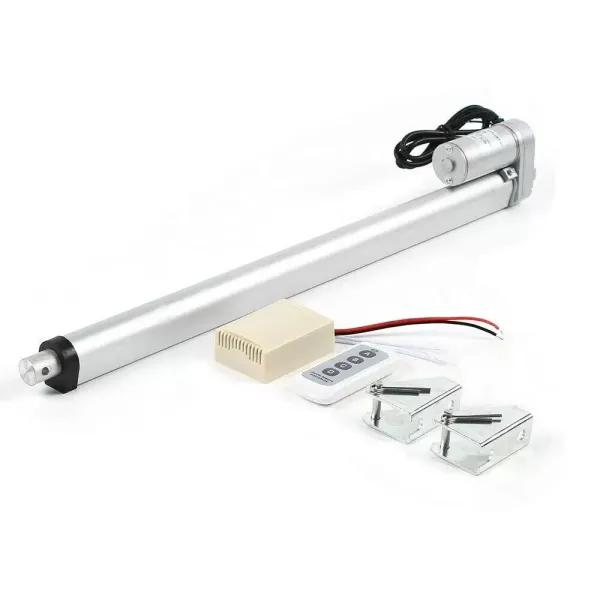

Box contents:
1 linear driver

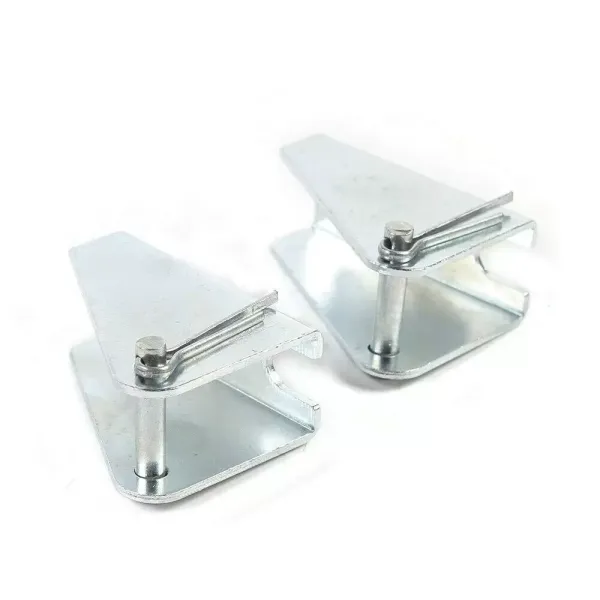

l 1 x set of installation accessories

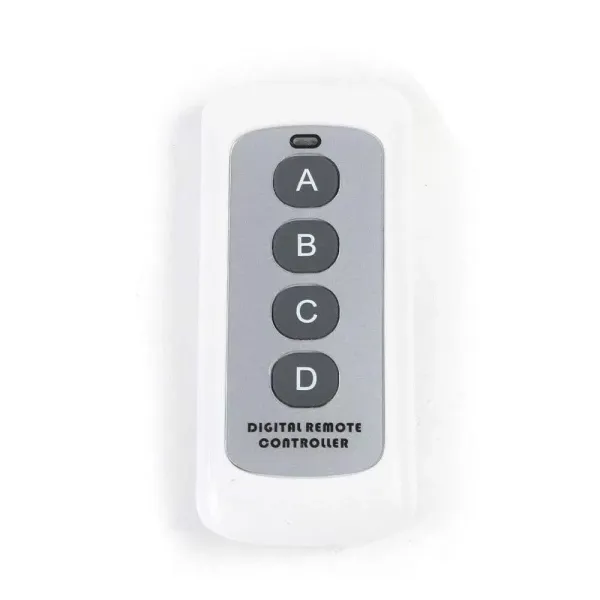

1 motor control with wireless remote control
1 control box
