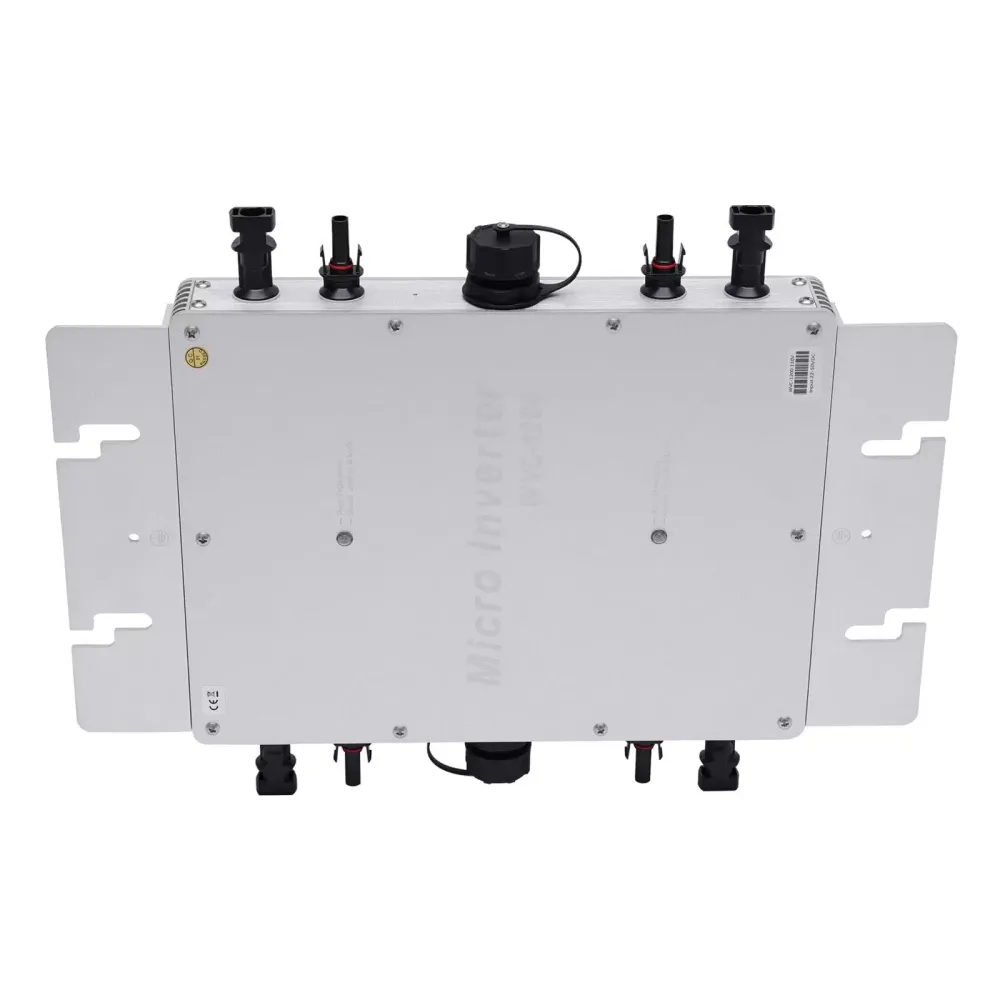

Micro Solar Inverter 1200 W - Automatic Micro Inverter - Solar ID - MPPT DC20-50 V - IP65

Micro Solar Inverter 1200 W - Automatic Micro Inverter - Solar ID - MPPT DC20-50 V - IP65

(1 reviews)

Ask a question

280.43€ 330.00€

Brand: CNCEST
Product Code: YLLNMVI2EUZFP
Availability: In Stock

Estimated Delivery:

Free Fast Shipping:

On all orders

Description
Reviews (1)
Recommer
Delivery and Return

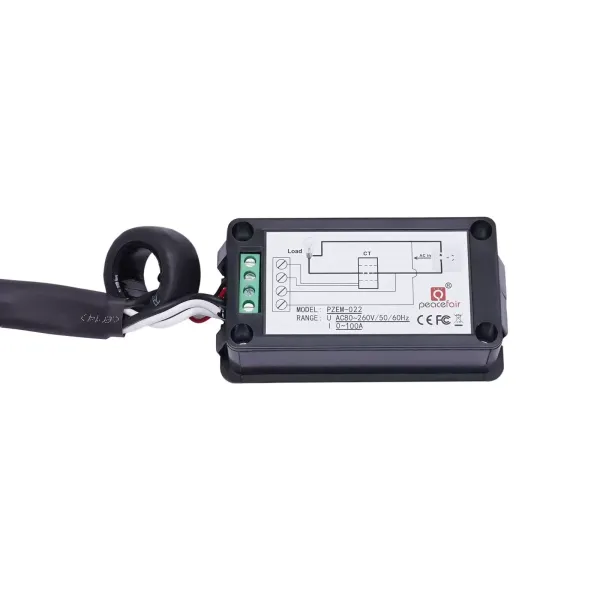

LCD Display

The inverter is equipped with an LCD display screen to monitor voltage, power, frequency, current, etc. so you can see the machine clearly in operation.

Electrical Isolation

The output and input of the system are completely electrically isolated, the insulation performance of the entire power distribution system is good, and the fully isolated booster circuit is safer and more reliable.

Easy Maintenance

After the installation of the power station, you don't need to do maintenance work. After a long time, you only need to remove the dust on the photovoltaic panel.

Small Footprint

With a size of 8.27*14.72*1.57inch, the inverter adopts high-frequency telephone, micro processing, and other technologies, so it is smaller, lighter, and won’t occupy too much space.

Flexible Installation Mode

During installation, you can stack multiple inverters at will, form a single-phase parallel stacking system, or conveniently form a three-phase system to provide a three-phase AC.

Heat Dissipation Holes

The inverter is provided with heat dissipation holes, which can play a good role in heat dissipation and prolong the service life of the inverter.

High Efficiency

The inverter has built-in high-precision maximum power point tracking, which can optimize the power collection from the solar panel, accurately capture and lock the maximum output power point, and greatly increase power generation to more than 25%. In addition, the efficient power reverse transmission technology can transmit the power that can not be used up to the grid in the reverse direction to other places for use, and the power transmission rate can reach 99.9%.

Premium Material

The inverter is made of aluminum alloy, which is durable, corrosion-resistant, and not easy to rust. You can use it for a long time without frequent replacement, and your cost can be saved.

Digital Control

The inverter adopts intelligent soft switching technology, high-frequency switching power supply technology, and 32-bit DSP full digital SPWM control technology, making the product strong anti-interference ability, fast operation speed, high intelligence, and a powerful functional system, which can meet the needs of users.

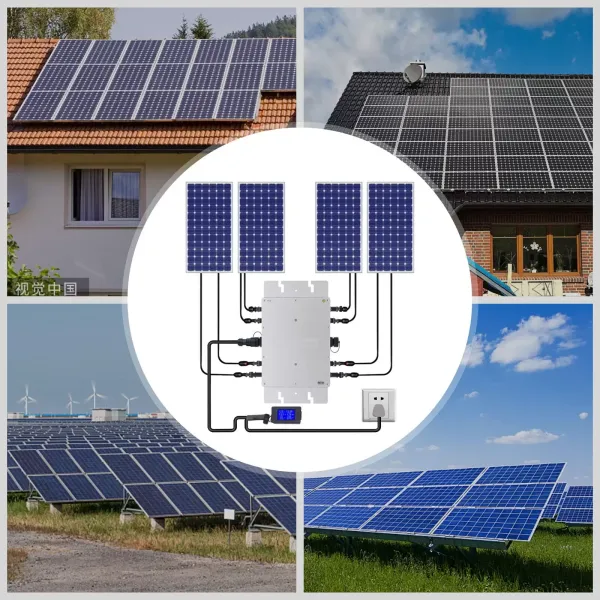

Application

This product is applicable to 30V or 36V solar panels, 36V batteries. The inverter can be widely used in residential or commercial areas for turning the direct current generated by solar panels into alternating current.

Specifications

Model: WVC-1200W

Color: Silver

Material: Aluminium Alloy

Power: 1200W

Voltage: 220V

Plug Type: EU Standard

Maximum Input DC Voltage: 54V

Peak Power Tracking Voltage: 22-45V

Operating Voltage Range: 17-50V

Min/Max Start-up Voltage: 22-50VDC

Maximum DC Short Circuit Current: 80A

Maximum Input Operating Current: 54.4A

Peak Power Output: 1200watt

Rated Output Power: 1150watt

Rated Output Current: 5A

Rated Voltage Range: 180-260VAC

Rated Frequency Range: 47-52.5Hz

Power Factor: ＞99％

Max Unit Per Branch Circut: 6pcs(Single-phase)

Static MPPT Efficiency: 99.5%

Maximum Output Efficiency: 92.5%

Night Time Power Loss: <1W

Total Flow Distortion: <5%

Operating Temperature Range: ﹣40℃~60℃/﹣40℉~140℉

Waterproof Rating: IP65

Cooling Method: Self-cooling

Communication Mode: Power Line Carrier

Power Transmission Mode: Reverse Transmission, Load Priority

Gross Weight: 4.08kg/8.99lbs

Net Weight: 2.88kg/6.35lbs

Product Size: 21*37.4*4cm/8.27*14.72*1.57inch

Package Size: 47.5*34*11.5cm/18.7*13.39*4.53inch

Package Included

1* Micro Inverter

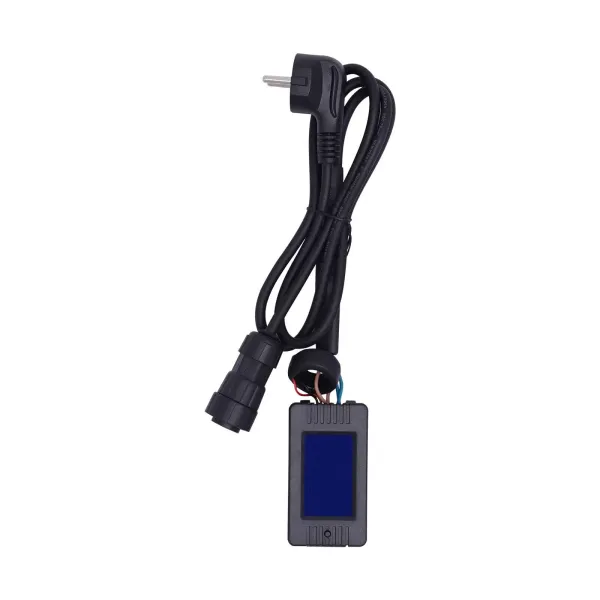

1* Power Cord

1* English Manual

Other Accessories for Installation

Specifications

Model	WVC-1200W	Color	Silver
Material	Aluminium Alloy	Power	1200W
Voltage	220V	Plug Type	EU Standard
Maximum Input DC Voltage	54V	Peak Power Tracking Voltage	22-45V
Operating Voltage Range	17-50V	Min/Max Start-up Voltage	22-50VDC
Maximum DC Short Circuit Current	80A	Maximum Input Operating Current	54.4A
Peak Power Output	1200watt	Rated Output Power	1150watt
Rated Output Current	5A	Rated Voltage Range	180-260VAC
Rated Frequency Range	47-52.5Hz	Power Factor	＞99％
Max Unit Per Branch Circut	6pcs(Single-phase)	Static MPPT Efficiency	99.5%
Maximum Output Efficiency	92.5%	Night Time Power Loss	<1W
Total Flow Distortion	<5%	Operating Temperature Range	﹣40℃~60℃/﹣40℉~140℉
Waterproof Rating	IP65	Cooling Method	Self-cooling
Communication Mode	Power Line Carrier	Power Transmission Mode	Reverse Transmission, Load Priority
Gross Weight	4.08kg/8.99lbs	Net Weight	2.88kg/6.35lbs
Product Size	2137.44cm/8.2714.721.57inch	Package Size	47.53411.5cm/18.713.394.53inch

Product Tips

Notes

1.Please install the inverter correctly according to the instructions. If you have any questions, please contact the relevant personnel.
2.Please don't dismantle the machine. Only qualified maintenance personnel can repair the inverter.
3.Please install the inverter in a place with low humidity and good ventilation to avoid overheating the inverter and remove the surrounding inflammable and explosives.
4.When using this inverter, please take good care of your children to prevent them from touching and playing to avoid electric shock.
5. Please note that our products are grid-connected, the AC output port has to be connected to the home grid in order to achieve grid-connected power generation.
6.When the input load is with solar panels, it is important that the VOC voltage is between 30-48V. We recommend that the solar panel is configured for 20% more power than the power of the product. For example, if the product is 600W, the total power of the solar panels should be between 700-750W.
7.When the input load is a battery, we recommend a battery voltage of 36V, which can be connected in series with 3 12V batteries. Please note that the positive and negative polarity should not be reversed when connecting the product. The recommended battery current is 36V/10mah for 300W, 36V/20mah for 600W, and 36V/40-45mah for 1200W.
8.The input and output voltage of the configuration is within the normal operating voltage range of the product in order for the product to work properly and achieve grid-connected power generation.
9.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement. Please make sure you do not mind before you order.

How to Use

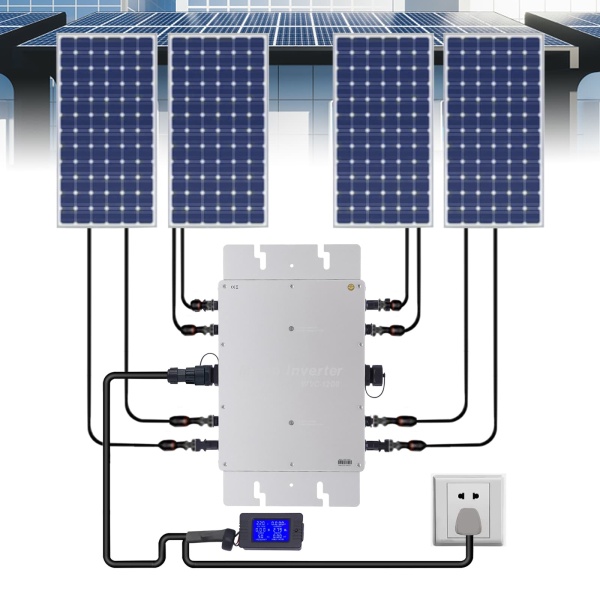

Step 1: Install the inverter on the support of the photovoltaic panel with the screws provided by the machine.
Step 2: Connect the positive and negative poles of the DC connection plug on the photovoltaic panel to the DC input terminal of the inverter.
Step 3: Open the waterproof cover of the AC output interface of the inverter and connect the AC cable to the AC waterproof plug.
Step 4: Connect the AC output cable to the AC main cable.
Step 5: Repeat steps 1 to 3 to install and connect all inverters.
Step 6: Connect the AC main cable to the public grid and start your green energy journey
