Battery Connection Details

The battery is connected using thick black (power negative) and thick red (power positive) cables, ensuring a stable power supply for optimal performance.

Motor Connection Details

Motor power is managed through thick yellow (engine negative) and thick blue (motor positive) cables, facilitating high torque output from the motor.

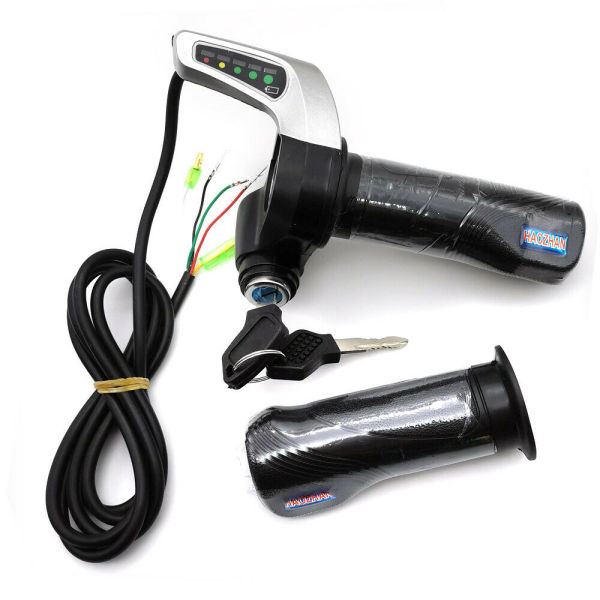

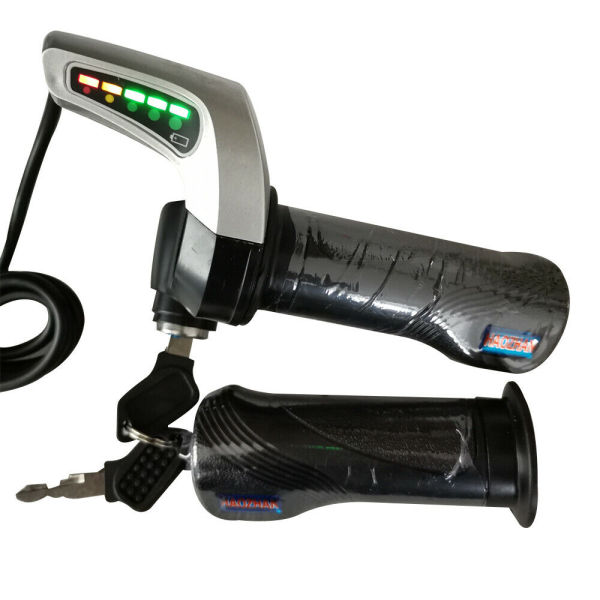

Ignition Switch Details

Powered by a pink (VCC) and blue wire, the ignition switch activates the scooter's electronic systems, serving as the primary interface for the rider.

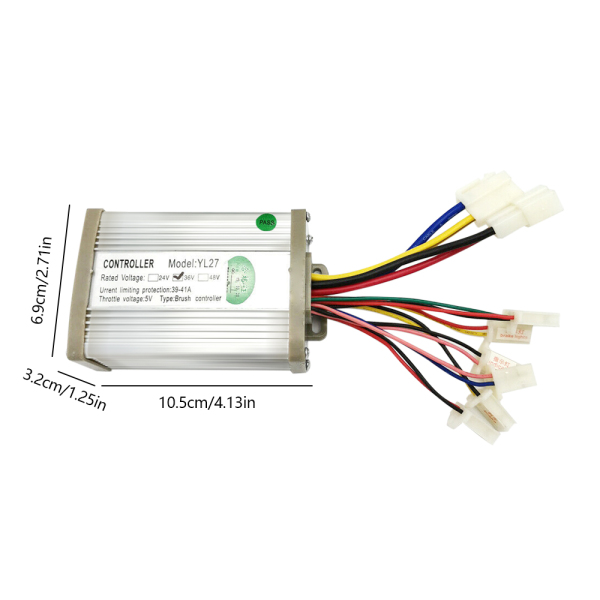

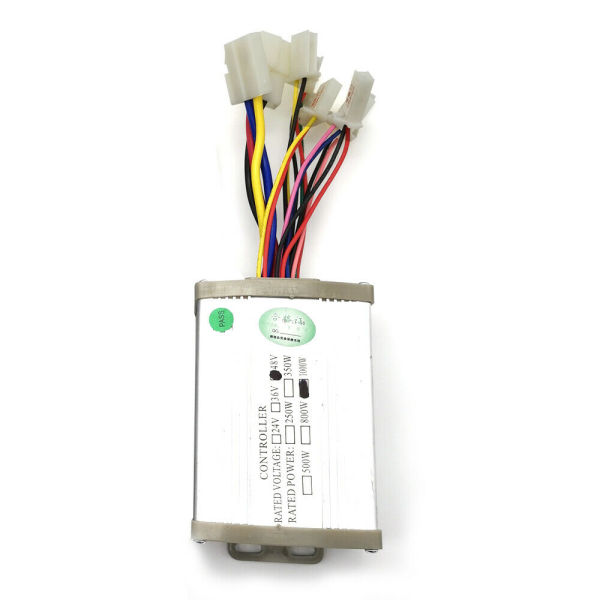

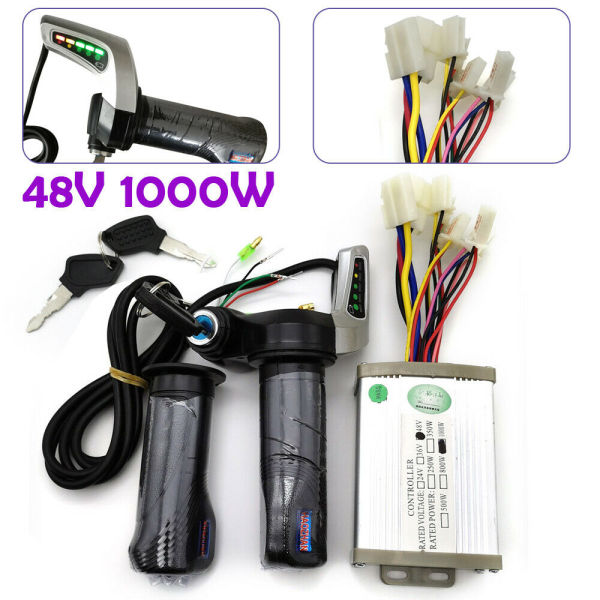

Controller Cable Interface Definition

A well-defined controller cable interface includes various color-coded connections for indicators, brake signal, speed control input, and charging input, simplifying the diagnostics and servicing process.

Advanced Safety Features

Includes brake light functionality and indicators, enhancing visibility and safety during low-light conditions or when braking.

Electric Charging Compatibility

Equipped with a charging port that follows standardized color coding for easy connection to charging sources without confusion.
