Name: 0-15V 0-60A Adjustable DC Power Supply Laboratory Power Supply Programmable Power Supply with Storage Function for Development Experiments
Brand: CNCEST
SKU: GYMYI3-000300EU
Price: 265.99 EUR
Availability: InStock

Free Shipping for All Orders! Fast Delivery!

Hello, Sign In

Account & Order

Track Order Browsing History Contact Us

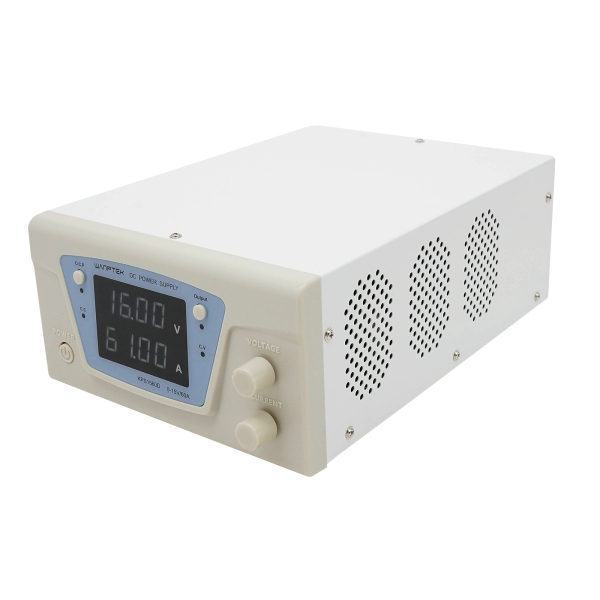

0-15V 0-60A Adjustable DC Power Supply Laboratory Power Supply Programmable Power Supply with Storage Function for Development Experiments

0-15V 0-60A Adjustable DC Power Supply Laboratory Power Supply Programmable Power Supply with Storage Function for Development Experiments

(0 reviews)

Ask a question

265.99€

Brand: CNCEST
Product Code: GYMYI3-000300EU
Availability: In Stock

Estimated Delivery:

Free Fast Shipping:

On all orders

Description
Reviews (0)
Recommer
Delivery and Return

High Accuracy

It allows you to adjust the output voltage and current within 0-15V and 0-60A. The 4-digit LED display and display with an accuracy of 0.5%+3 provide more accurate readings of voltage and current values.

Safe to Use

It has over-voltage, over-current, overload, over-temperature protection, and short-circuit alarm function, which not only protects the product itself as well as the circuit from being easily damaged but also makes your operation safer.

Excellent Performance

It has small voltage fluctuation, high power, low noise, stable output, and low interference, which can maintain a comfortable working environment and improve working efficiency.

Powerful Functions

It can automatically switch between C.C and C.V modes to ensure a stable output of voltage or current, and it also has a memory function to keep the last setting when it is turned on the next time or when it is turned on after a power failure.

High-quality and Durable

It is made of high-quality metal by painting, which is not easy to rust, break, corrode, or deform, and has a long service life.

Easy to Operate

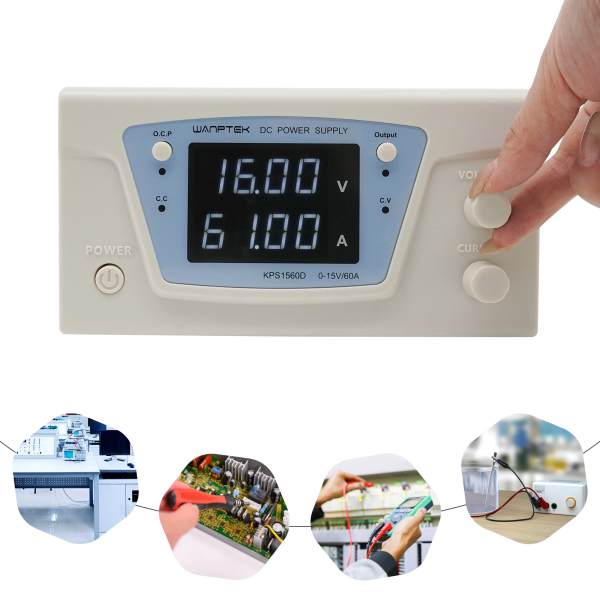

It can preset the voltage and current by encoder, you don't need to make short circuit adjustments to start using it and with a large LED screen, it’s easy to operate even for beginners.

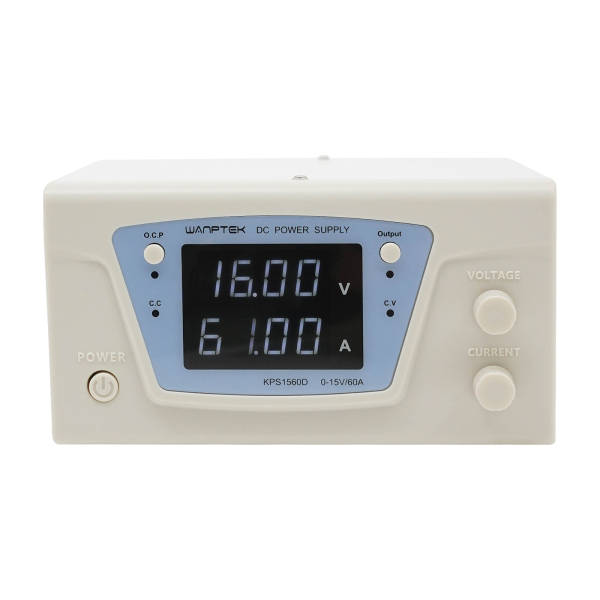

Indicator Lights

They can clearly show the constant voltage (C.V.) or constant current (C.C.) mode, making it easier for you to keep track of the product's working status.

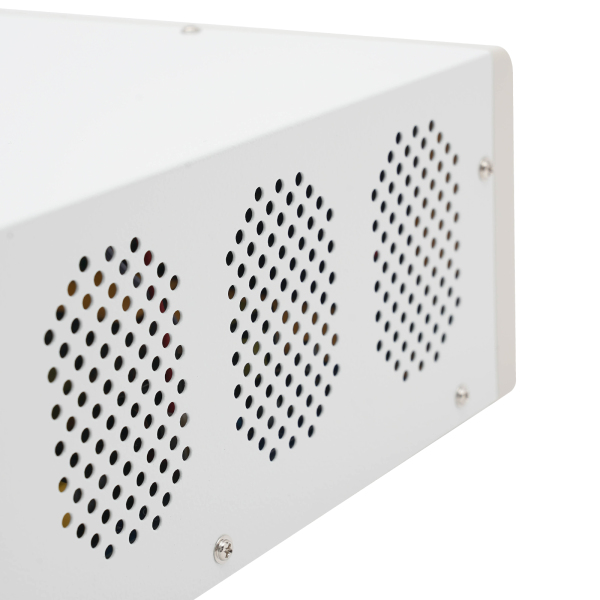

Heat Dissipation Holes

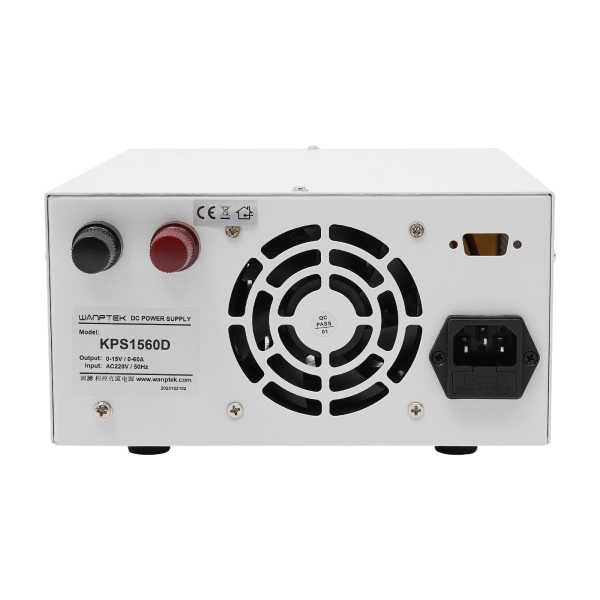

Multiple heat-sink holes on the body and built-in cooling fan can increase the heat dissipation ability of the product and prolong the service life of the product.

Anti-slip Feet

They help keep the machine running stably and prevent the table from being scratched.

Application

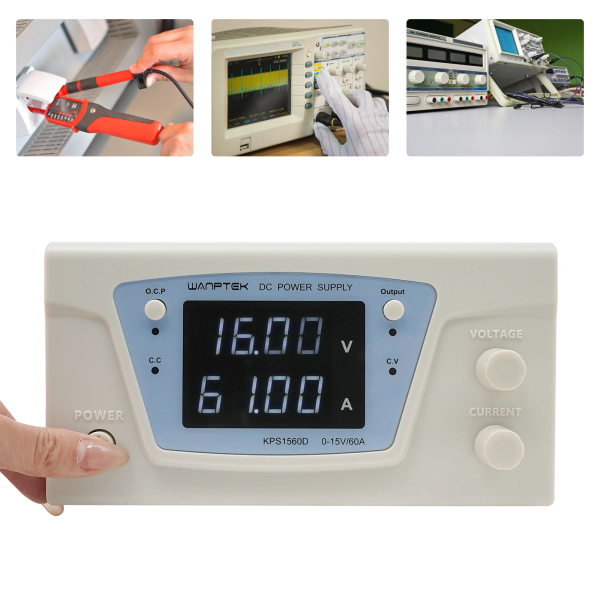

It is widely used in research and development experiments, production lines, maintenance, school experiments, computer maintenance, product aging testing, etc

Specifications

Model: KPS1560D

Material: Metal

Technics: Painting

Color: White

Shape: Rectangular

Assembly Required: No

Mount Type: Freestanding

Power Source: Corded Power

Plug Type: EU Standard

Display Type: LED

Heat Dissipation: Built-in Cooling Fan

Full Load Continuous Use Time: 24h

Input Voltage: AC 220V±10%

Output Voltage: 0-15V

Output Current: 0-60A

Output Power: 900W

Operating Temperature: 0℃~40℃/32℉-104℉

Storage Temperature: -10℃~70℃/14℉-158℉

Operating Humidity: <80%RH

Storage Humidity: <70%RH

Voltage Stability: ≤0.5%+20mV

Load Stability: ≤0.5%+20mV

Ripple Noise: ≤0.5%V P-P

Current Stability: ≤0.5%+20mA

Display Accuracy: 0.5%+3 Digits

Digital Display: 4 Digits

Product Size: 20*27.5*10.5cm/7.87*10.83*4.13in

Package Size: 37.5*26*17.5cm/14.76*10.24*6.89in

Gross Weight: 3.6kg/7.94lbs

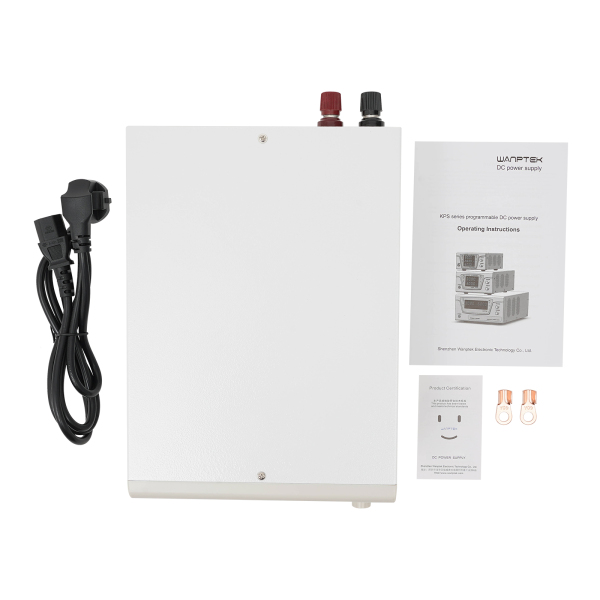

Package Included

1* DC Power Supply

1* Power Cord

2* Output Terminals

1* English Manual

Specifications

Model	KPS1560D	Material	Metal
Technics	Painting	Color	White
Shape	Rectangular	Assembly Required	No
Mount Type	Freestanding	Power Source	Corded Power
Plug Type	EU Standard	Display Type	LED
Heat Dissipation	Built-in Cooling Fan	Full Load Continuous Use Time	24h
Input Voltage	AC 220V±10%	Output Voltage	0-15V
Output Current	0-60A	Output Power	900W
Operating Temperature	0℃~40℃/32℉-104℉	Storage Temperature	-10℃~70℃/14℉-158℉
Operating Humidity	<80%RH	Storage Humidity	<70%RH
Voltage Stability	≤0.5%+20mV	Load Stability	≤0.5%+20mV
Ripple Noise	≤0.5%V P-P	Current Stability	≤0.5%+20mA
Display Accuracy	0.5%+3 Digits	Digital Display	4 Digits
Product Size	2027.510.5cm/7.8710.834.13in	Package Size	37.52617.5cm/14.7610.246.89in
Gross Weight	3.6kg/7.94lbs

Notes

1.Please read the manual carefully and pay attention to the safety precautions inside.
2.In actual CV operation, if the load resistance value decreases causing the output current to increase to the set current value, the power supply will automatically switch to CC mode. When the load resistance value continues to decrease, the current will remain at the current setting value, and the voltage will decrease proportionally (I=V/R). At this time, increasing the load resistance or increasing the current setting value can restore the CV output state.
3.This product determines whether the output is short-circuited or not according to whether the output current is greater than the current set by the user, so the product cannot be used for constant-current mode operation when the OCP short-circuit protection function is enabled.
