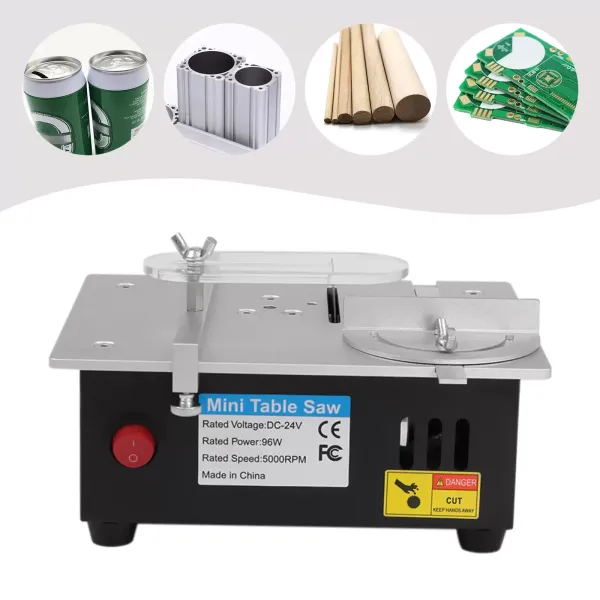

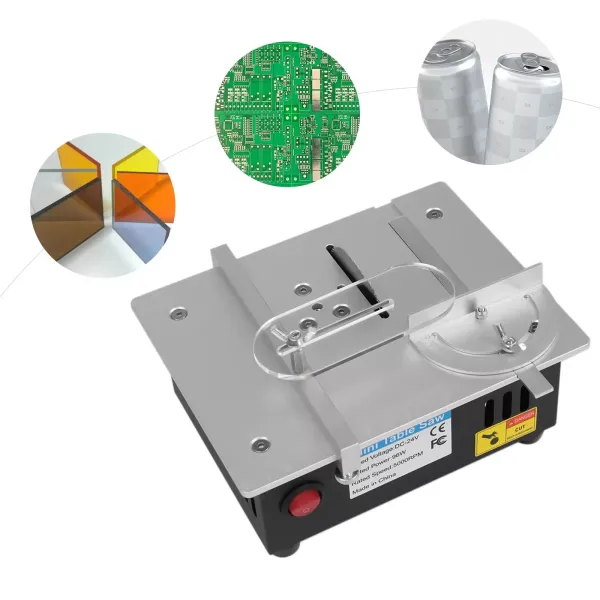

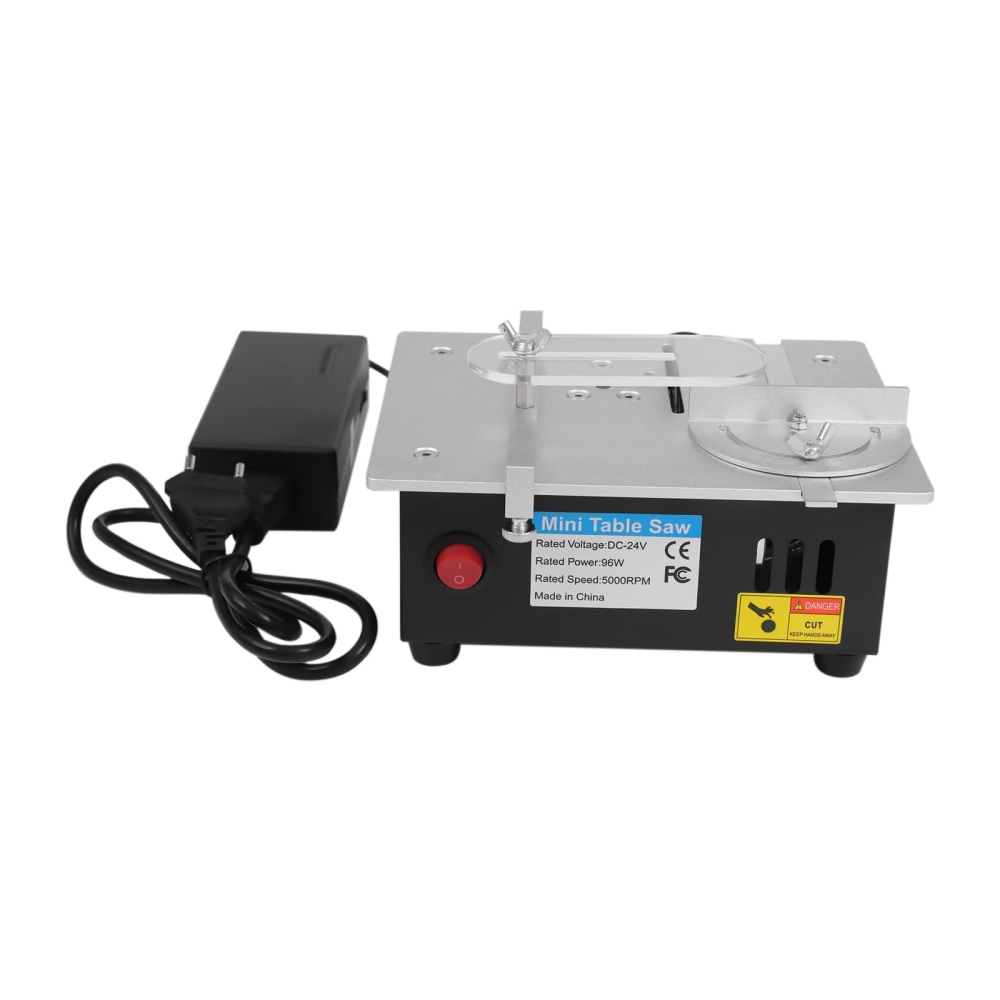

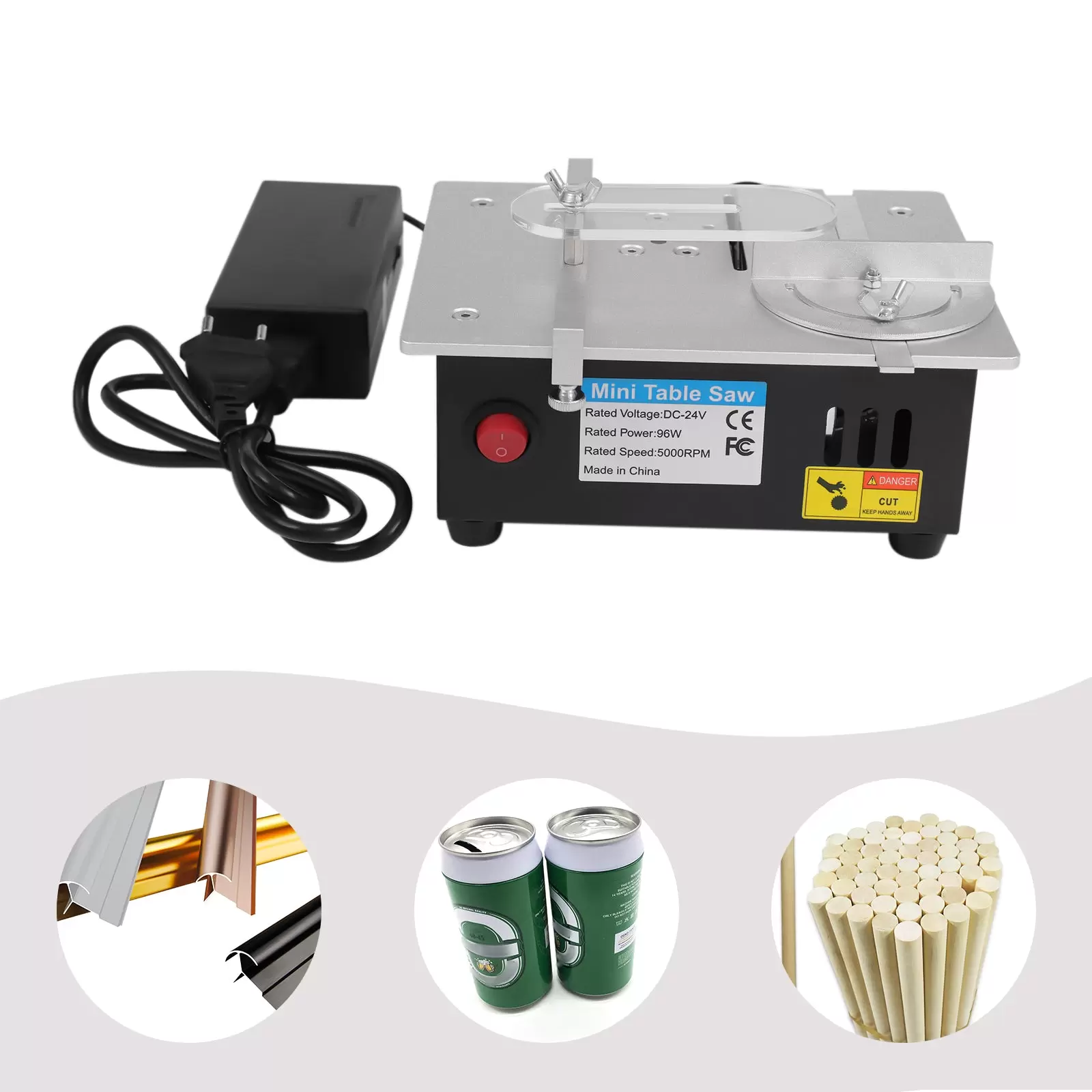

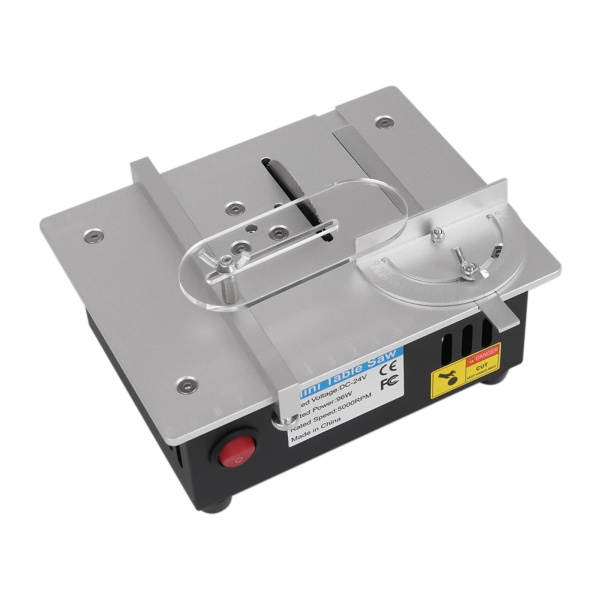

Mini Hobby Desktop Sawing Machine Woodworking Desktop Sawing Machine DIY Model Craft Cutting Tool Adjustable Power Blade
- Brand: CNCEST
- Product Code: JZONMPQ3EUWMT
- Availability: In Stock

Specifications
Model | S3 | Rated Voltage | DC24V |

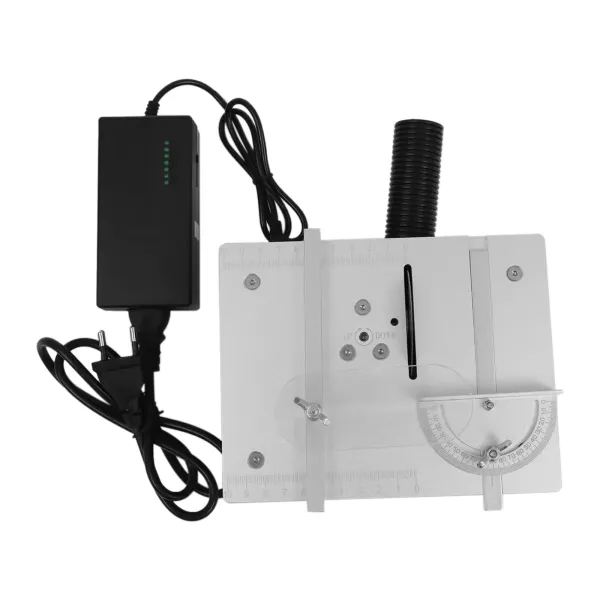

Voltage | 110-220V | Rated Power | 96W |
Rated Speed | 5000RPM | Motor Type | 775 Motor |

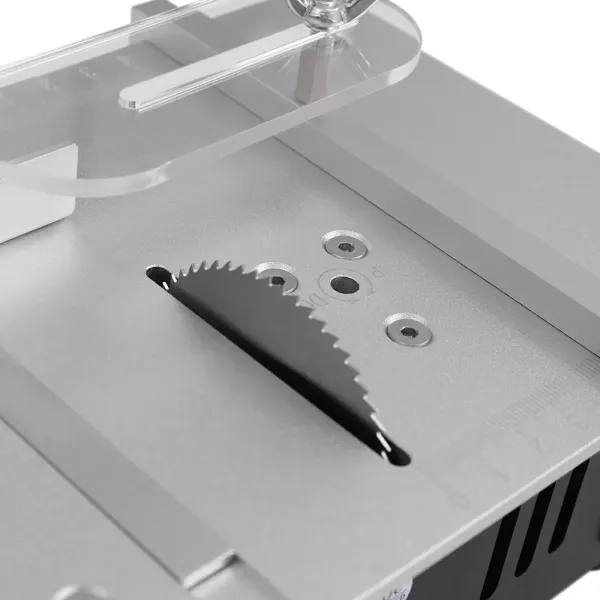

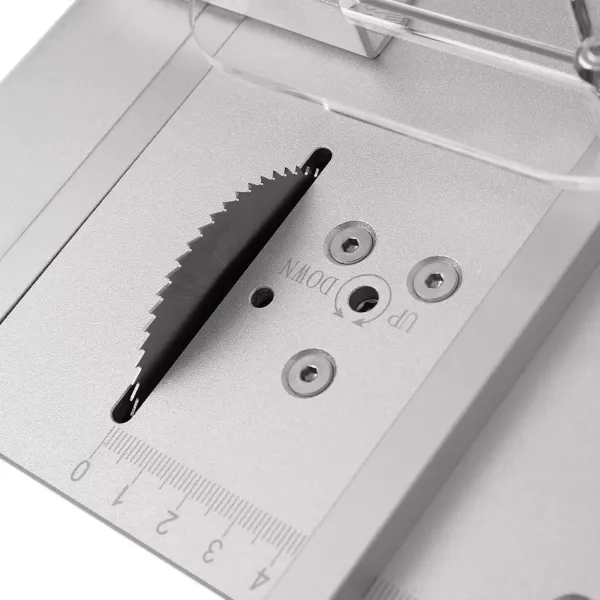

Saw Blade Lift Range | 0.1-15mm/0.04-0.59in | Material Stopper | Acrylic |

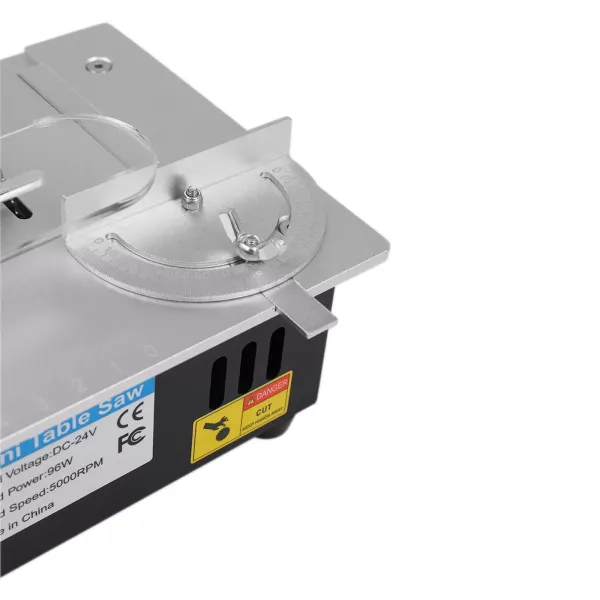

Panel/Backrest/Angle Ruler Material | Aluminium Alloy | Process | Laser Engraving, Bending, Welding, Plastic Spraying |
Applicable Saw Blade | Diameter ≤ 63mm/2.48in, Bore ≤ 16mm/0.62in, Thickness ≤ 1.5mm/0.59in | Color | Black |
Gross Weight | 1.9kg/4.18lbs | Net Weight | 1.5kg/3.3lbs |
Package Size | 29*10*17cm/11.41*3.93*6.69in | Product Size | 18*14*8cm/7.1*5.5*3.2in |
Product Tips


Notes

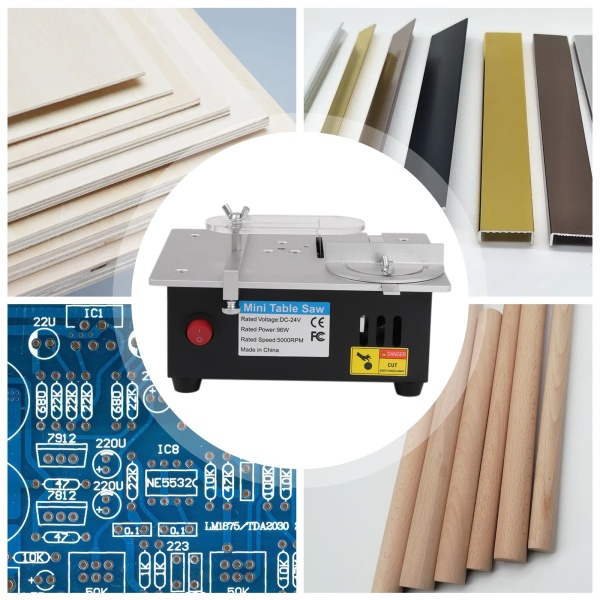

1.It is only suitable for cutting small parts for DIY handicraft, interest development and creative research and development, not a professional woodworking tool.
2.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement. Please make sure you do not mind before you order.

How to Replace the Saw Blade
1. Loosen the 4 screws at the corners, remove the table and invert it.
2. Use a small spanner to insert the shaft stop hole and then use a large spanner to loosen the screws.
3. Install the saw blade and tighten the pressure plate. The main saw teeth must not be fitted backward.
4. Cover the panel and tighten the screws to complete the installation.
