AC 220V to 36V transformer, switching power supply, adapter, electrical power supply

AC 220V to 36V transformer, switching power supply, adapter, electrical power supply

(0 reviews)

Ask a question

42.99€

Brand: CNCEST
Product Code: QCJLSN4PEUWMT
Availability: Out Of Stock

Estimated Delivery:

Free Fast Shipping:

On all orders

Description
Reviews (0)
Recommer
Delivery and Return

Stable Output

Using the pure copper coils/transformer, EMI filter capacitor, premium chip, high-performance IC, and the soft start current design, this switch power supply has stable performance converting AC voltage to stable DC voltage while effectively reducing electromagnetic interference. It has 2 output ports and each port outputs 0~16.7A automatically to match your device. The default output voltage is 36V, but it can be regulated by 5%.

Premium Material

The high-quality aluminum housing and premium interior materials such as PCB fiberglass board and pure copper make this product strong, wear-resistant, and durable. The wiring terminal has anti-rust and anti-corrosion functions.

A Great Helper

Once in operation, this SMPS can effectively convert AC 220V to DC 36V and provide different currents per watt for multiple devices, which is a great helper in your daily life.

Compact Size

The compact size(8.46*4.52*1.96 inches) means this machine won't occupy your space, so you can put it in any small corner.

Protective Package

To prevent the product from being damaged and bumped during transportation, we packed it with foam cotton to protect your products to the maximum extent possible.

Indicator Light

The indicator light shows the normal work condition of this switch power supply when it works for your convenience.

High Safety

Adopting a cooling fan with heat-sink holes, temperature detector, pure copper transformer, high-temperature-resistant capacitor, auto-reset or fuse function, surge protection, over-voltage protection, short-circuit protection, over-current protection, and overload protection, this product is safe to use.

Simple Installation

The simple structure and pre-drilled holes allow for easy and convenient installation.

Specifications

Model: S-600-36

Color: Silver

Style: Modern

Shape: Rectangular

Mounting Type: Wall Mount

Housing Material: Aluminum

Power Source: Corded Electric

AC Input: 220V

DC Output: 36V, 16.7A

Power: 600W

Frequency: 50-60Hz

Error Accuracy: ±1%

Efficiency: ＞80%

Output Adjustable Voltage Range: ±5%

Leakage Current: <1mA/230V

Temperature Coefficient: ±0.03%/℃(0~50℃/32~122°F)

Operating Temperature&Humidity: -10℃～+60℃/14~140°F, 20%～90%RH

Environment Temperature&Humidity: -20℃～+85℃/-4~185°F,10%～95%RH

Start/Up/Maintain Time: 200ms, 50ms, 20ms

Shock Resistance: 10～500Hz, 2G 10min /Period, 60min, Each Axis

Pressure Resistance between Input and Output: 1.5KvAC Input and Shell; 1.5KvAC Output and Shell; 0.5KvAC

Installation Hole Diameter: 2.5mm/0.01inch

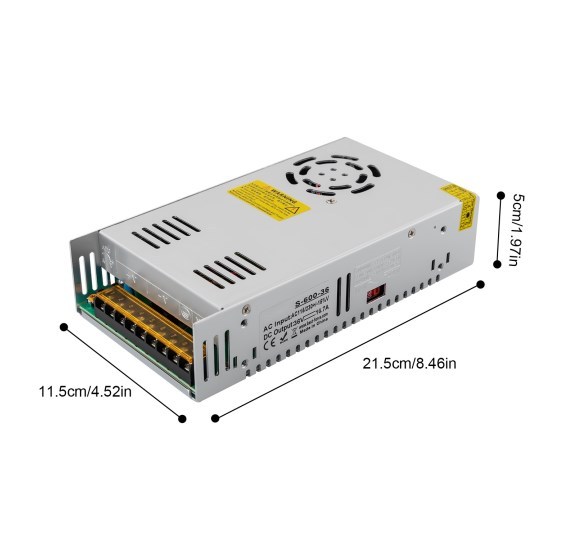

Product Size: 21.5*11.5*5cm/8.46*4.52*1.96inch

Package Size: 23*13*6cm/9.05*5.12*2.36inch

Gross Weight: 0.75kg/1.65 lbs

Package Included

1* Switch Power Supply

Specifications

Model	S-600-36	Color	Silver
Style	Modern	Shape	Rectangular
Mounting Type	Wall Mount	Housing Material	Aluminum
Power Source	Corded Electric	AC Input	220V
DC Output	36V, 16.7A	Power	600W
Frequency	50-60Hz	Error Accuracy	±1%
Efficiency	＞80%	Output Adjustable Voltage Range	±5%
Leakage Current	<1mA/230V	Temperature Coefficient	±0.03%/℃(0~50℃/32~122°F)
Operating Temperature&Humidity	-10℃～+60℃/14~140°F, 20%～90%RH	Environment Temperature&Humidity	-20℃～+85℃/-4~185°F,10%～95%RH
Start/Up/Maintain Time	200ms, 50ms, 20ms	Shock Resistance	10～500Hz, 2G 10min /Period, 60min, Each Axis
Pressure Resistance between Input and Output	1.5KvAC Input and Shell; 1.5KvAC Output and Shell; 0.5KvAC	Installation Hole Diameter	2.5mm/0.01inch
Product Size	21.511.55cm/8.464.521.96inch	Package Size	23136cm/9.055.122.36inch
Gross Weight	0.75kg/1.65 lbs

Product Tips

Notes

1.This item does not include the power cord and screws.
2.Please refer to the corresponding model "output voltage, current, and power". It does not apply to the battery, speed-regulating motor, heater, and engraving machine.
3.The testing condition for the parameter above is 220VAC input, rated load, 25℃ temperature, and 70% RH.
4.The error includes the setting error, ling stability, and load stability(The test of the load is from 0% to 100%.).
5.The wave test adopts A12 double wires for 30MHZ and 0.1uF847uF capacitor short-circuit for interrupting.
6.The inlet voltage stability test: when it is overloaded, the lowest voltage of the inlet is up to the highest voltage.
7.Please calculate the actual power before using the product to make sure of its lifespan. It‘s suggested that the total power consumption of the loads to be connected be not more than 75% of the rated power of the product. Please make sure your device has a voltage of 36V and uses power less than 600W. If it runs 24*7 hours, the power consumed should not exceed 40% of the full load.
8.Please switch to a suitable voltage before use. When working at 110V, please keep the load under 70%; When working at 220V, the load can reach 100%.
