440LBS 230V electric winch with wireless remote control 440LBS with remote control and slings electric winch
440LBS 230V electric winch with wireless remote control 440LBS with remote control and slings electric winch
440LBS 230V electric winch with wireless remote control 440LBS with remote control and slings electric winch
440LBS 230V electric winch with wireless remote control 440LBS with remote control and slings electric winch
440LBS 230V electric winch with wireless remote control 440LBS with remote control and slings electric winch
440LBS 230V electric winch with wireless remote control 440LBS with remote control and slings electric winch
440LBS 230V electric winch with wireless remote control 440LBS with remote control and slings electric winch
440LBS 230V electric winch with wireless remote control 440LBS with remote control and slings electric winch
440LBS 230V electric winch with wireless remote control 440LBS with remote control and slings electric winch
440LBS 230V electric winch with wireless remote control 440LBS with remote control and slings electric winch
440LBS 230V electric winch with wireless remote control 440LBS with remote control and slings electric winch
440LBS 230V electric winch with wireless remote control 440LBS with remote control and slings electric winch
440LBS 230V electric winch with wireless remote control 440LBS with remote control and slings electric winch
440LBS 230V electric winch with wireless remote control 440LBS with remote control and slings electric winch
440LBS 230V electric winch with wireless remote control 440LBS with remote control and slings electric winch
440LBS 230V electric winch with wireless remote control 440LBS with remote control and slings electric winch
440LBS 230V electric winch with wireless remote control 440LBS with remote control and slings electric winch
440LBS 230V electric winch with wireless remote control 440LBS with remote control and slings electric winch

440LBS 230V electric winch with wireless remote control 440LBS with remote control and slings electric winch

(1 reviews)
Ask a question
190.18 238.99
  • Brand: CNCEST
  • Product Code: BI-HJ5069-748EU
  • Availability: In Stock
Quantity
- +
Estimated Delivery:
Free Fast Shipping:
On all orders
estimated delivery guarantee

High Loading Capacity

The strong galvanized steel wires and forged hooks guarantee a high loading capacity. The load capacity is 220lbs on a single rope with a lifting speed of 32.8ft/min and 440 lbs on a double rope with 16.4ft/min.

Good Heat Dissipation

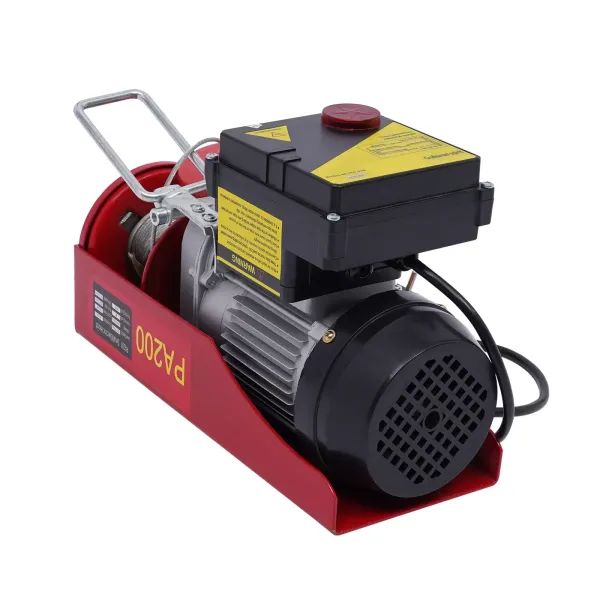

The motor has an aluminum casing and a large cooling fan on the side to ensure good heat dissipation, thus allowing longer continuous working hours and also extending its lifespan.

Sturdy and Durable

It is made of alloy steel housing, all copper motor, galvanized steel wire, and an alloy steel hook, which gives it good hardness and wear resistance so that you can use it for a long time.

Compact and Lightweight

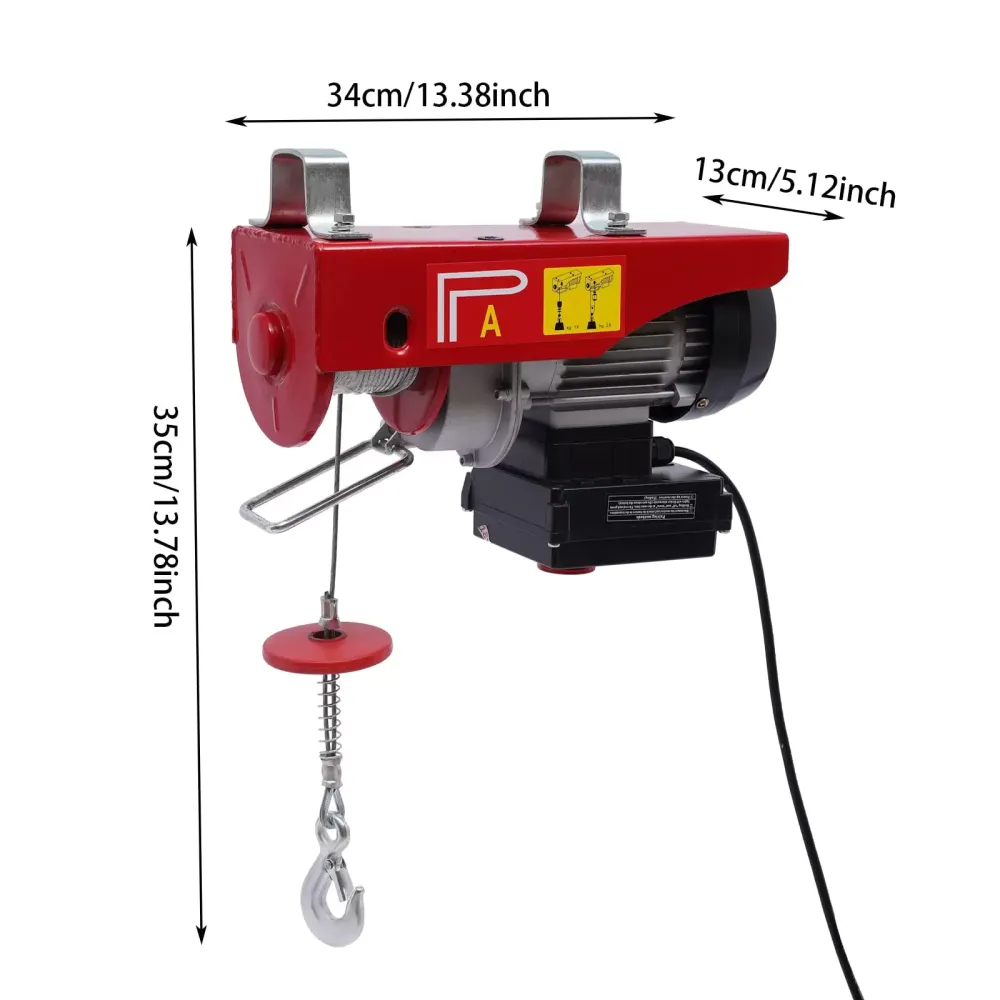

Its proper size (13.38*13.78*5.12in) and weight (22.27lbs) allow the electric hoist to be easily placed or carried wherever it is needed.

Stable Performance

It adopts high-speed bearings that keep the bearing rotation gap unchanged for a long time use of the motor. It has a stable rotor axially, high motor force, and low noise, ensuring good working performance.

Robust Steel Cable

It is equipped with a thickened braided steel cable (0.12in diameter) with a galvanized surface, which is strong, anti-twist, rust-proof, and break-resistant, making it safe and secure to use.

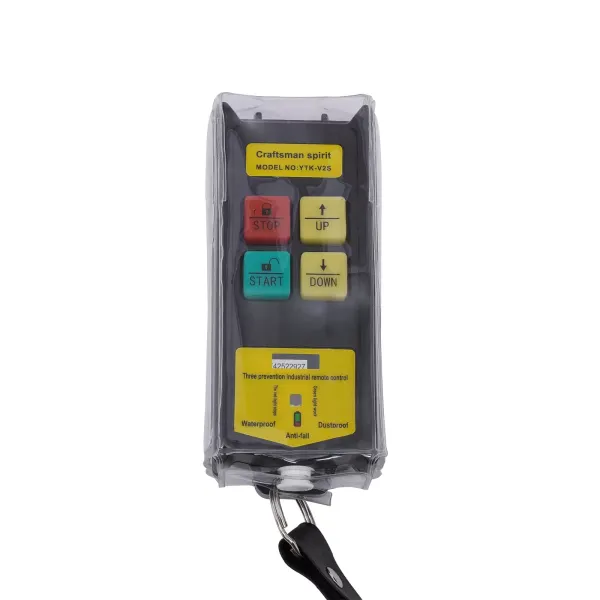

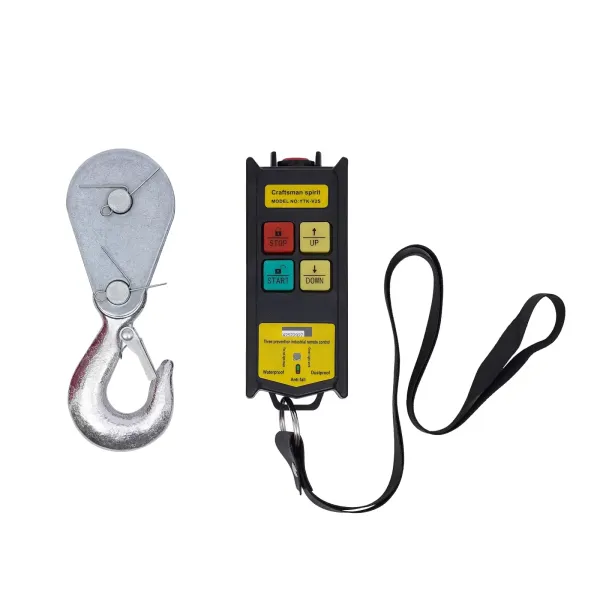

Wireless Remote Control

We are equipped with wireless remote control, which can control up and down, stop and start from a distance for great convenience. It is dustproof, anti-fall, and waterproof, making it suitable for harsh working environments.

Limit Switch

It is fitted with a limit switch to prevent the steel cable from swaying for increased stability during use. At the same time, it will automatically stop lifting when it touches the hook, avoiding damage to the machine if it is lifted too high, making it safe and convenient to use.

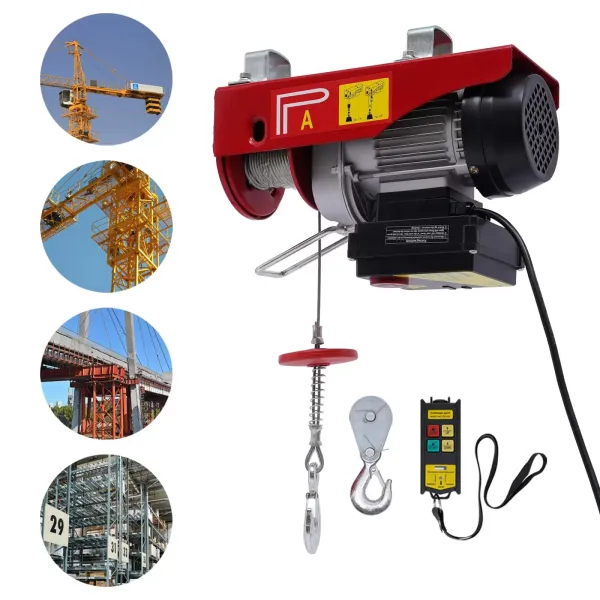

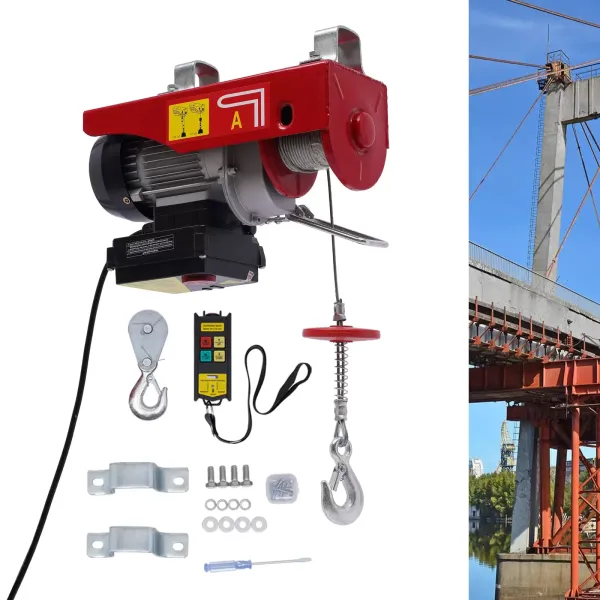

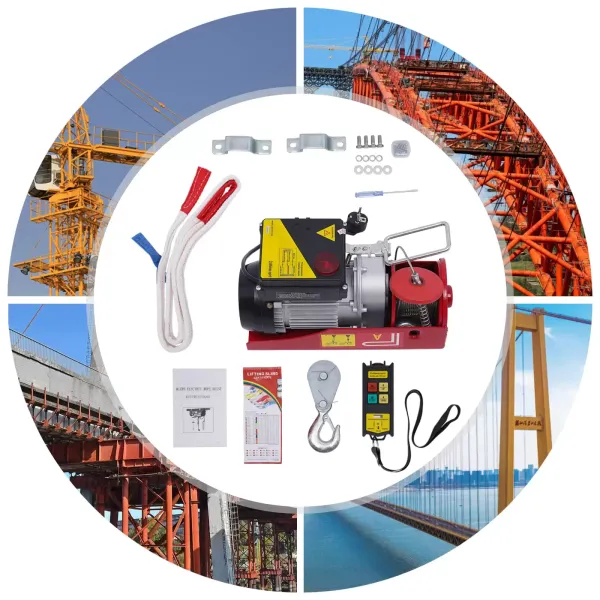

Application

The electric hoist is suitable for factories, docks, warehouses, logistics, construction sites, car manufacturers, railway construction, etc. for lifting regular or irregularly shaped objects.

Specifications
Model:  PA200
Housing Material:  Alloy Steel
Hook Material:  Galvanised Alloy Steel
Cable Material:  Galvanised Steel
Motor Housing Material:  Aluminum
Motor Type:  Pure Copper Motor
Color:  Red, Black
Plug Type:  EU Plug
Voltage:  220V
Input Power:  510W
Load Capacity:  100 kg/220lbs (Single Cable), 200 kg/440 lbs (Double Cable)
Single Cable Lifting Speed:  10m/min(32.8ft/min )
Double Cable Lifting Speed:  5m/min(16.4ft/min)
Lifting Height:  12 m/39.4ft (Single Cable), 6 m/20 ft (Double Cable)
Length of Steel Cord:  12m/39.4ft
Diameter of Steel Cord:  3mm/0.12in
Distance Controlled by Remote Control:  100-200m/328-656ft
Product Size:  34*35*13cm/13.38*13.78*5.12in
Package Size:  38.5*15.5*24cm/15.16*6.1*9.45in
Gross Weight:  11kg/24.25lbs
Net Weight:  10.1kg/22.27lbs

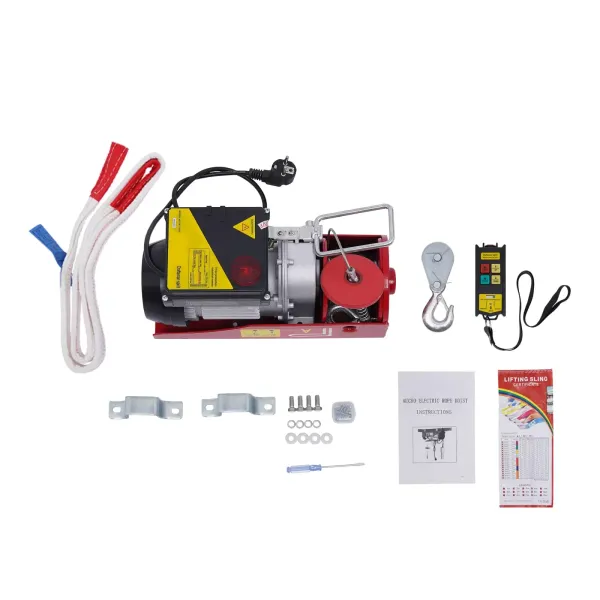

Package Included
1 * Electric Hoist
1 * Lifting Sling
1 * Hook
2 *Mounting Clamp Brackets
1* Remote Control
1* English Manual
All Accessories for Use

Specifications

Model PA200 Housing Material Alloy Steel
Hook Material Galvanised Alloy Steel Cable Material Galvanised Steel
Motor Housing Material Aluminum Motor Type Pure Copper Motor
Color Red, Black Plug Type EU Plug
Voltage 220V Input Power 510W
Load Capacity 100 kg/220lbs (Single Cable), 200 kg/440 lbs (Double Cable) Single Cable Lifting Speed 10m/min(32.8ft/min )
Double Cable Lifting Speed 5m/min(16.4ft/min) Lifting Height 12 m/39.4ft (Single Cable), 6 m/20 ft (Double Cable)
Length of Steel Cord 12m/39.4ft Diameter of Steel Cord 3mm/0.12in
Distance Controlled by Remote Control 100-200m/328-656ft Product Size 34*35*13cm/13.38*13.78*5.12in
Package Size 38.5*15.5*24cm/15.16*6.1*9.45in Gross Weight 11kg/24.25lbs
Net Weight 10.1kg/22.27lbs

Product Tips

Notes

1. Please note that the width and height of the boom should not exceed the internal dimensions of the mounting bracket.
2. If the specified object is too large or the object cannot be hung directly on the hook, you will need to tie a longer webbing around the object and then hook the webbing with the hook to lift the object.
3. Please ensure that all persons in the immediate area are informed and warned of the need for safety before lifting and moving heavy objects. If necessary, set up a lifting area to remind unoccupied and uninvolved persons that they are not allowed in.
