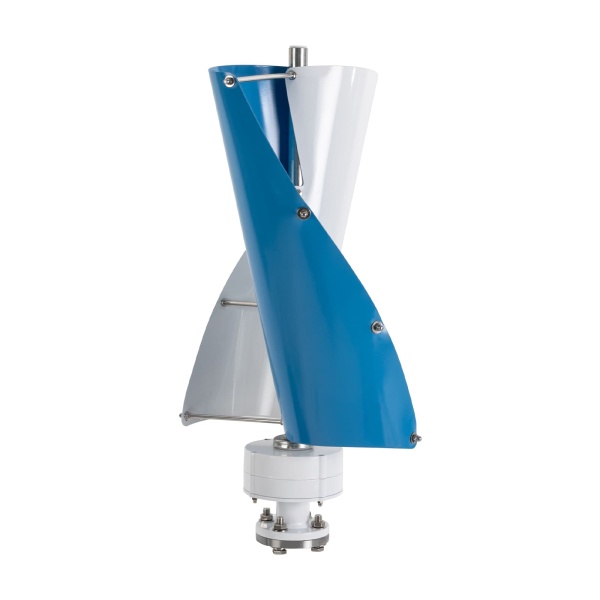

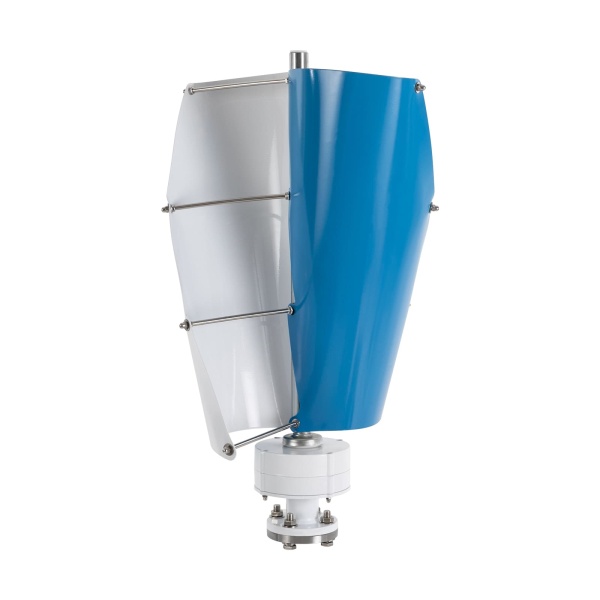

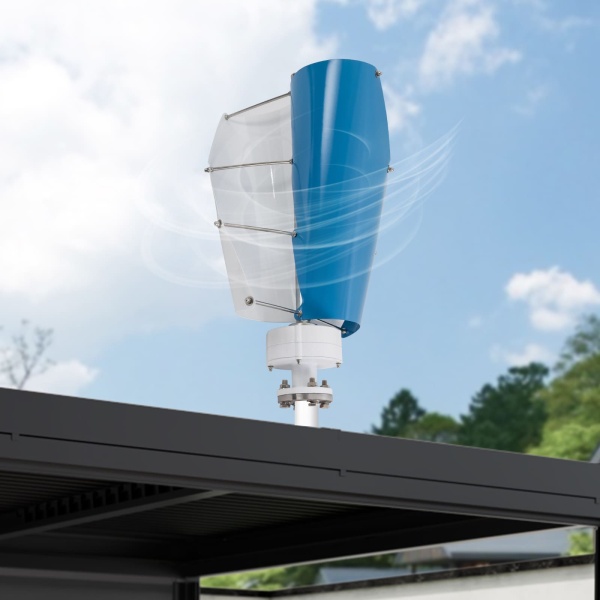

Wind Turbine, Vertical Axis Wind Turbine Generator with Controller, 24V Wind Power Generation (White and Blue)
- Brand: CNCEST
- Product Code: YLLNTC-000300
- Availability: In Stock

Specifications
Material | Iron, aluminum alloy, all copper | Color | white and blue |

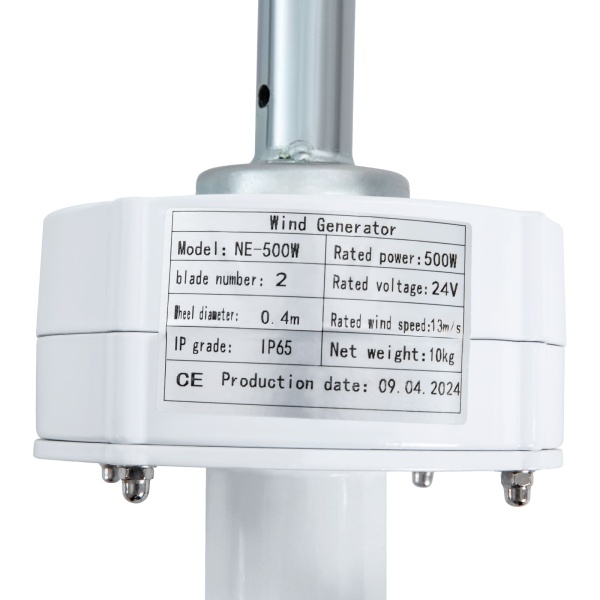

Process | Plastic spray treatment | Model | NE-500W |
Number of blades | 2 | Bride | DN25 |
Rated battery voltage | 12V/24V | IP protection level | IP67 |
Wheel diameter | 0.4m/1.31ft | Nominal power | 500W |
Nominal voltage | 24V | Rated wind speed | 13m/42.65ft/ s |
Control system | Electromagnetism | Assembly required | Yes |
Noise | Less than 62dB | Product size (L*H) | 40*71cm/15.75*27.95in |

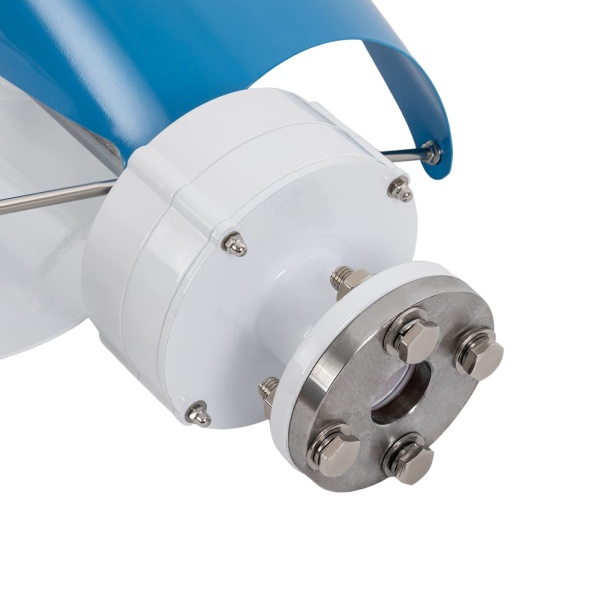

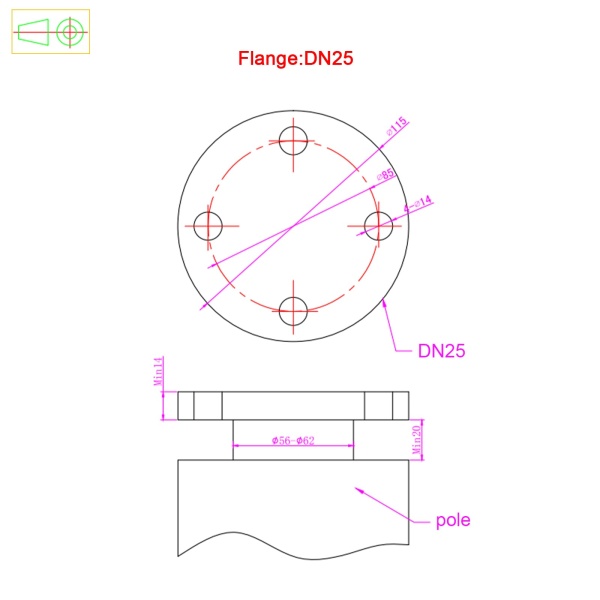

Flange Connection Size | φ14/0.55in, φ85/3.35in, φ115/4.53in | Number of connection holes (smallest) | 4 |
Flange thickness | Min14mm/0.55in | Distance between pylon and flange | Min20mm/0.79in |
Range of adaptable post sizes | φ56-φ62 mm/φ2.22-φ2.44in | Package size | 80.8*33*21cm/31.81*12.99*8.27in |
Net weight | 9kg/19.84lbs | Gross weight | 10kg/22.05lbs |
Remarks


1. Please check the style and size before purchasing. 2. Please read the instruction manual completely before installation and use, and pay particular attention to the included safety instructions. 3. Please connect the three green wires of the controller to the three wires of the fan (without distinguishing the poles), and the red and black wires to the positive and negative poles of the battery respectively. 4. Be sure to use gel batteries or lead-acid batteries, not lithium batteries. 5. Please accept the slight color difference caused by shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
