Vertical Wind Turbine, Wind Turbine Generator Kit, Vertical Wind Generator with Auxiliary Wind Wheel
- Brand: CNCEST
- Product Code: YLLNTC-001400
- Availability: Out Of Stock

Specifications
Color | Blue, White, Red | Material | Nylon Fibre, Aluminium, Stainless Steel, Copper, Magnet |
Process | Plastic Spraying | Style | Modern |
Assembly Required | Yes | Recommended for Use | Outdoor |

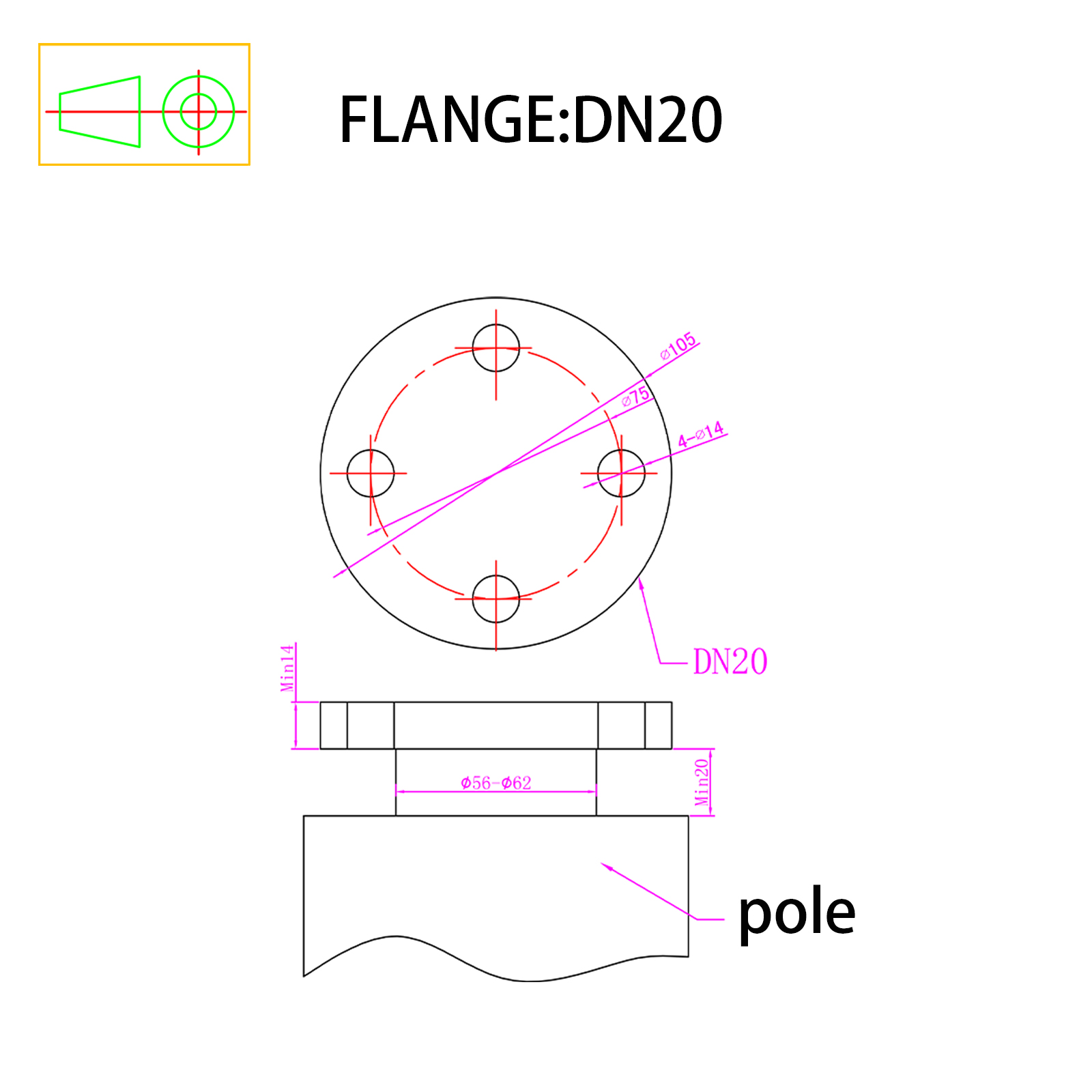

Installation Position | Top of Pole | Generator Type | Permanent Magnetic Levitation Generator |
Brake Type | Electromagnetic Brake | Wind Direction Adjustment | Automatic |
Battery Type | 1* 12V Gel or Lead-acid Battery(Not Included) | Noise | 30dB |
Working Temperature | -40°C-80°C/-40℉-176℉ | Maximum Power | 100 W |
Rated Voltage | 12V | Protection Grade | IP67 |
Starting Wind Speed | 2.5m/8.2ft/s | Rated Wind Speed | 13m/42.65ft/s |
Safe Wind Speed | 45m/147.63ft/s | Number of Blades | 4(Including the Auxiliary Wind Wheel) |
Product Size(D*H) | 53*75cm/20.87*29.53in | Package Size | 86*38*20cm/33.86*14.96*7.87in |
Gross Weight | 12kg/26.46lbs | Net Weight | 10.5kg/23.15lbs |
Product+Tips
.jpg)

Notes
1. Professional installation is highly recommended.
2. Please try to install this product in an open area without any obstruction around it for better access to wind resources.
3. Please note that the product does not contain batteries, please prepare your own 1 12V gel battery or lead-acid battery, and a lithium battery can not be used.
4. Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
5.Please note that the correct wiring sequence for the product should be: wind turbine - wind turbine controller - battery - inverter - load.
