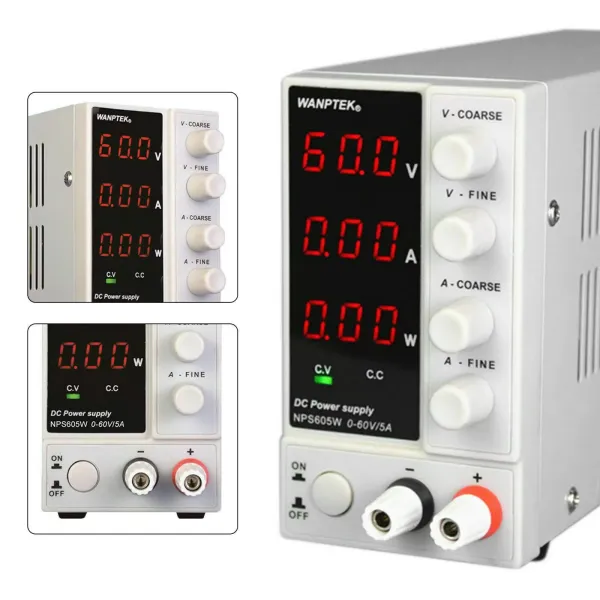

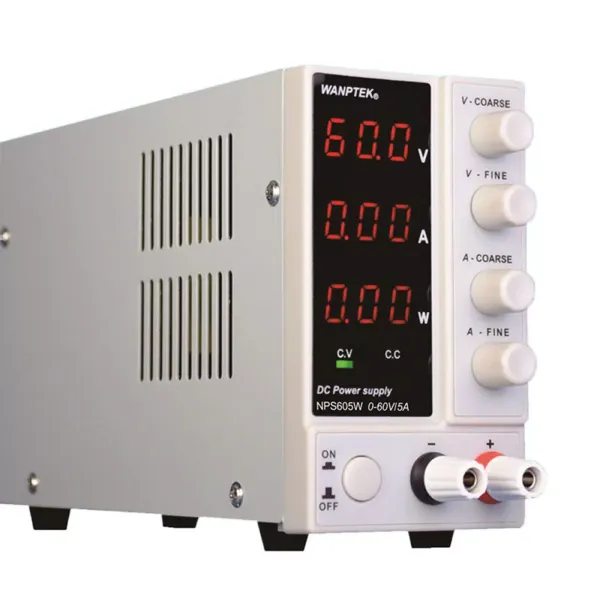

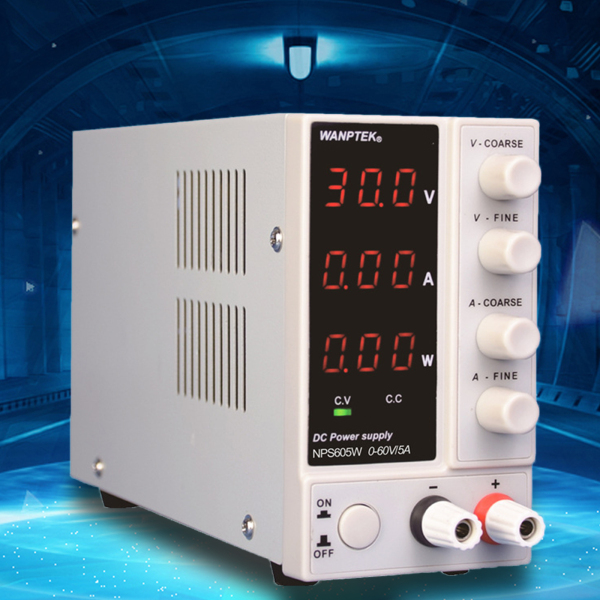

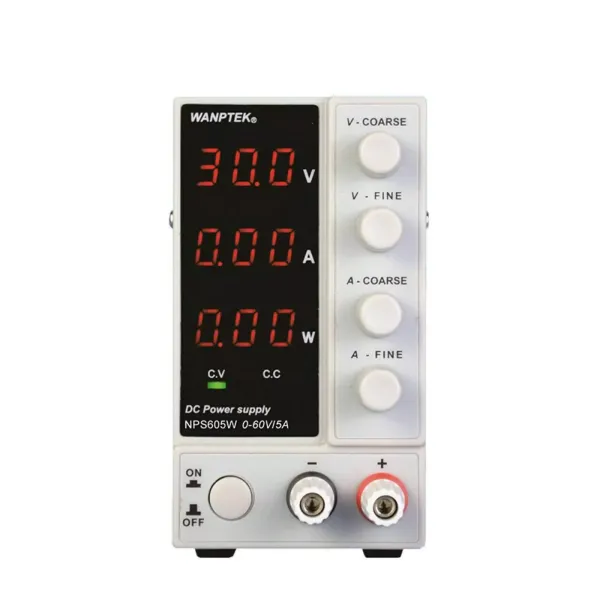

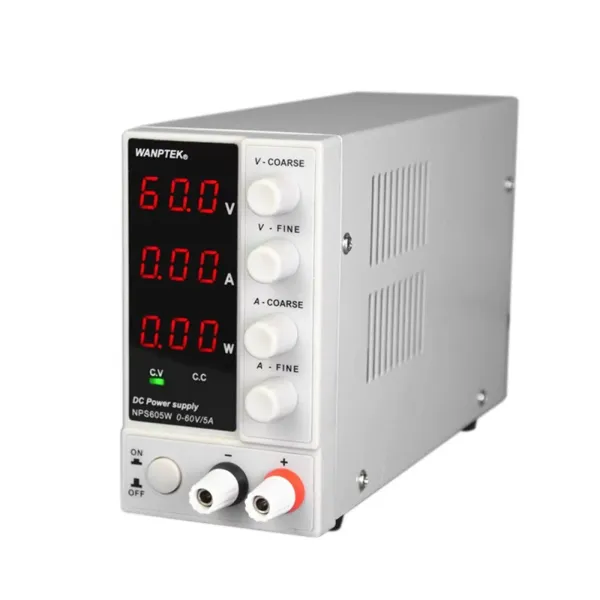

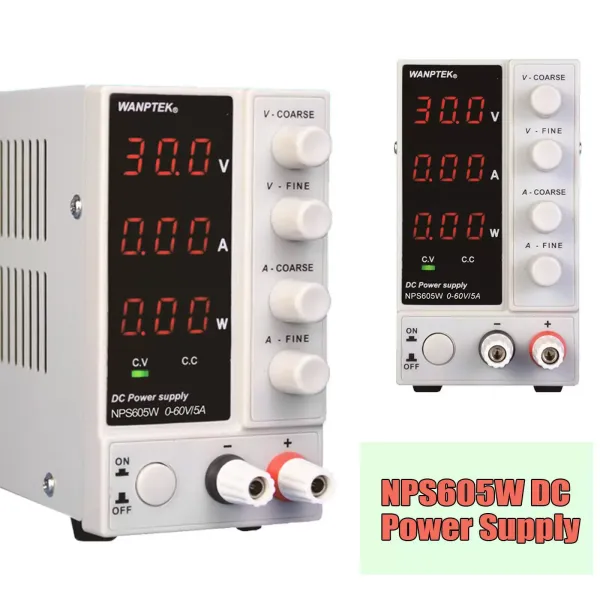

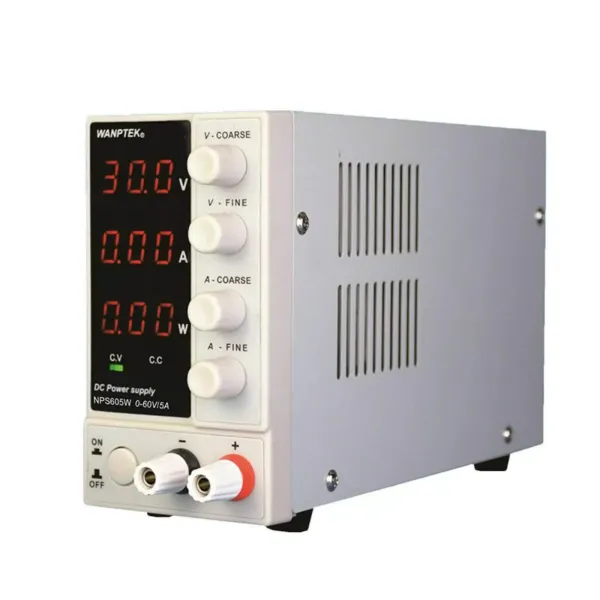

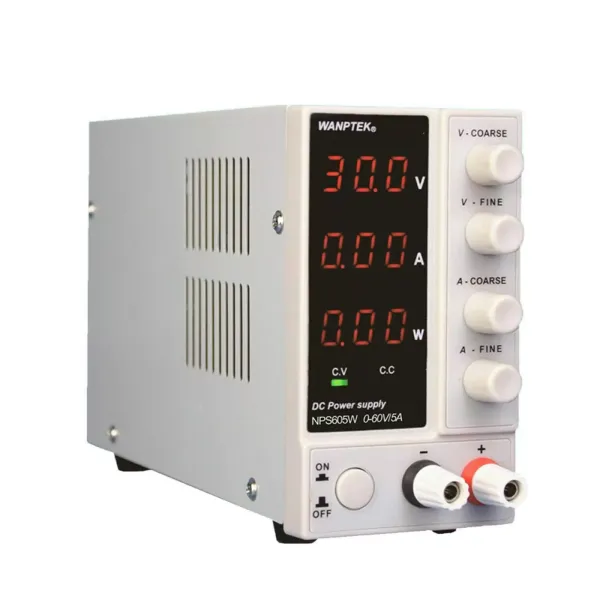

NPS605W DC Power Supply Adjustable Digital 220V 0-60V 0-5A Regulate Output Laboratory Power Supply with LED Display Switching Power Supplies for Measuring Instrument
- Brand: CNCEST
- Product Code: CE-WMTZXL-821-DE
- Availability: In Stock

Specifications
Model | NPS605W | Input Voltage | 220V/50Hz |
Power Plug | EU Plug | Output power | 300W |
Output Voltage | 0-60V | Output Current | 0-5A |
Packing Weight | Approx. 1615g / 57.0oz | Net weight | 1.3kg |
Product size | 23*7*13cm/9.05”*2.75”*5.1” |
Product Tips


Operation Environment
Input power supply: AC 230V / 115V ± 10%; 50Hz / 60Hz
Working temperature: 0 ℃ ~ 40 ℃; relative humidity: < 80% RH
Storage temperature: - 10 ℃ ~ 70 ℃; relative humidity: < 70% RH.

Constant Voltage Operation
Voltage stability: 0.1% ± 3MV
Load stability: 0.2% ± 3MV
Ripple voltage: ≤ 0.5% Vp-p
Continuously adjustable from 0 to rated voltage

Constant Current Operation
Current stability: 0.1% ± 3mA
Load stability: 0.2% ± 3mA
Ripple current: ≤ 0.5% Vp-p
Recovery time: ≤ 500 μ s
Temperature coefficient: ≤ 100ppm / ℃
0 to rated current continuously adjustable

Display
0.4 inch red three digit digital tube display
Display accuracy: 0.5% ± 3 words
Display resolution: voltage 0.1V, current 0.01A
