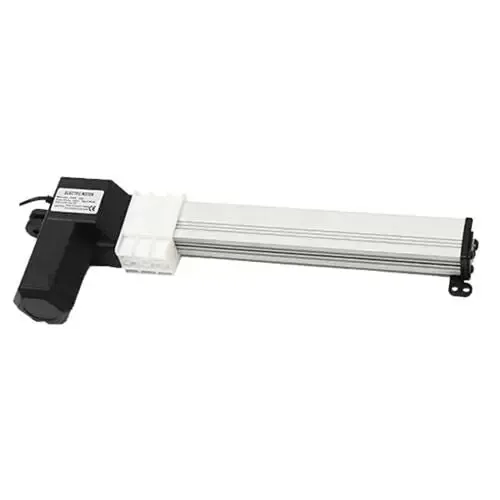

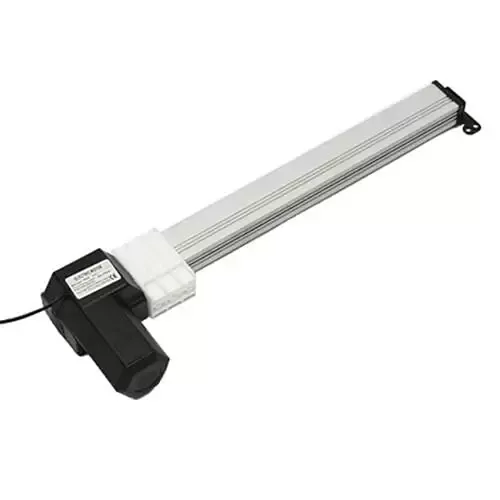

DC 24V 6000N Linear Actuator Electric Linear Drive 330mm for Car Furniture
- Brand: CNCEST
- Product Code: HG-WMTCXX-3950-DE
- Availability: In Stock

* 24V DC permanent magnetic motor
* Push force up to 6000 N and pull force up to 6000 N
* Sleek, compact design with small mounting dimensions
* Built-in switch (not adjustable)
* Duty cycle, maximum 10% or 2 minutes of continuous operation, followed by 18 minutes of non-use
Features:
Product: motorized motor.
Length: 330mm
Total size: 530 mm.
Permanent magnet DC motor.
Tension : 24 V CC.
Pression maximum : 600kg/6000N
Vitesse : maximum 5 mm/s.
Ambient temperature: -5°C + 50°C.
Standard protection level: IP44.
Features:
24 VDC permanent magnetic motor.
Thrust up to 6000 N and pulling force up to 6000 N.
Sleek, compact design with small mounting dimensions.
Integrated limit switch (non-adjustable).
Steel rear attachment.
Standard protection class IP44.
Noise level 48 dB (A), player not loaded.
Duty cycle, maximum 10% or 2 minutes of continuous operation, followed by 18 minutes of non-use.
Application:
This electric linear motor for lounge chair opens and closes the lifting mechanism of the lounge chair or electric lounger. It connects to the motor hand control via a 5-pin connector and to the power transformer via the standard 2-pin power transformer connector.

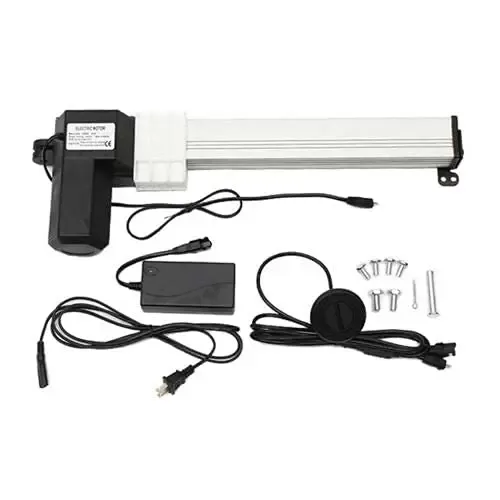

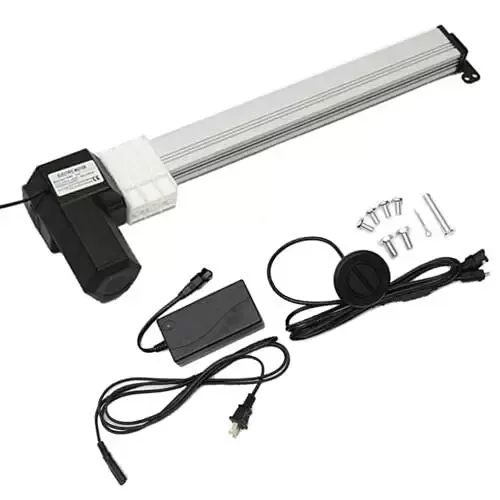

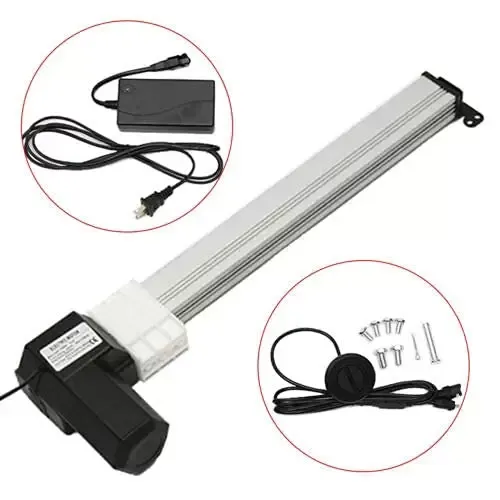

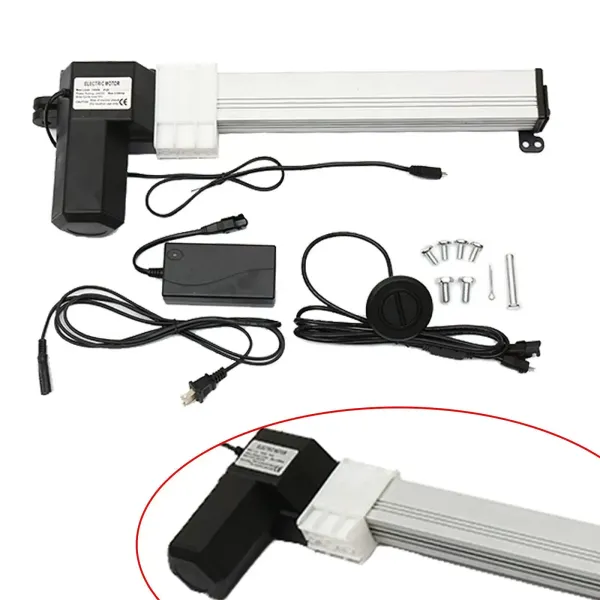

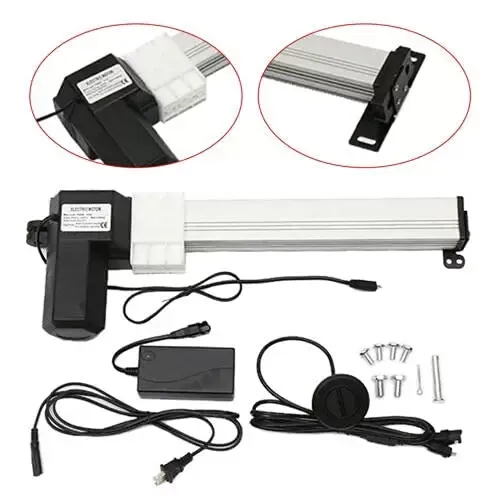

Package Contents:
1 pusher motor.
1 switching power supply.
1 x power cord.
1 wired remote control.
1 cotter pin.
1 stylo.
2 external hexagon head screws 10 x 20.
4 x 8 x 16 flat head screws.
