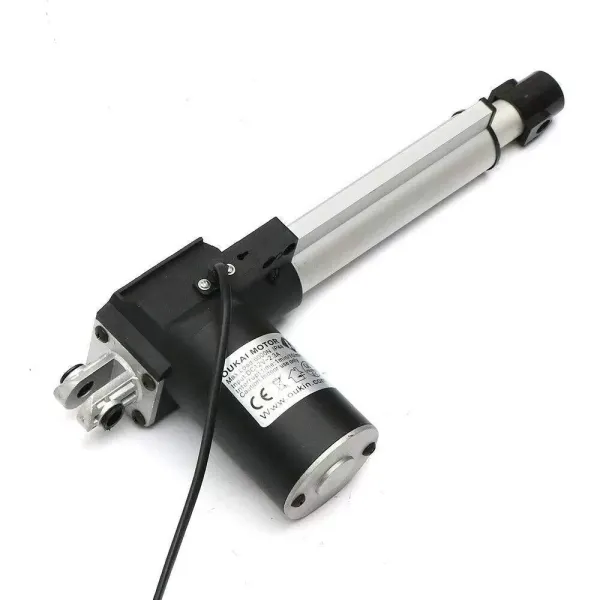

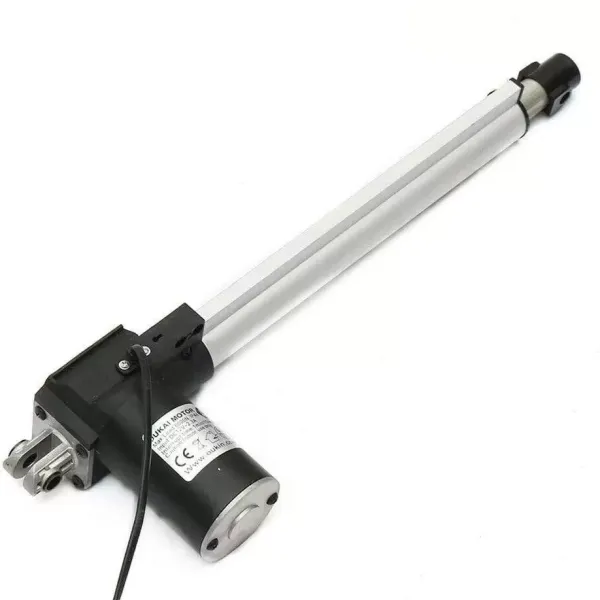

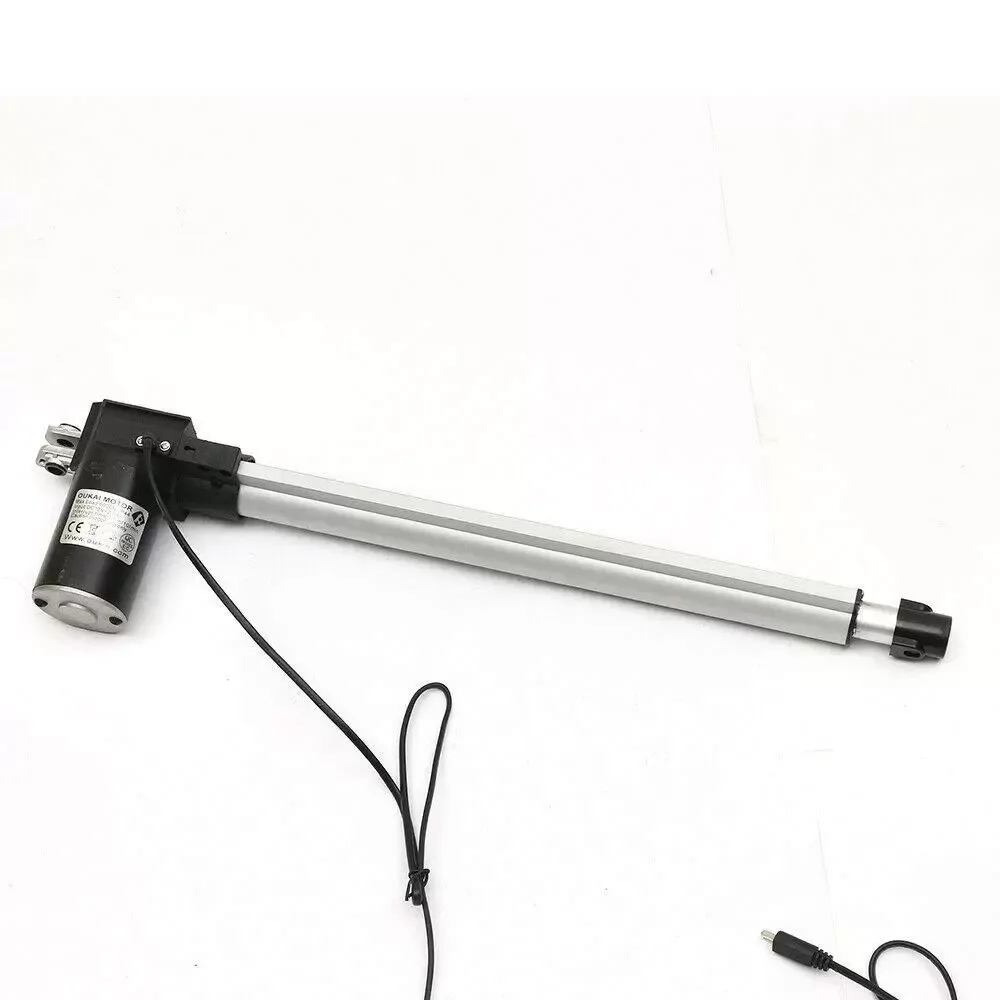

• 12V DC permanent magnet motor, pushing force up to 6000N and pulling force up to 4000N.
• Sleek, compact design with reduced installation dimensions.
• Integrated limit switches (non-adjustable), steel back, solid and sturdy.
• Noise level 48 dB (A), servomotor not loaded.
• Duty cycle, 10% max. or 2 minutes of continuous operation, followed by 18 minutes of non-use.

The push rod is driven by a DC motor with spindle drive, the telescopic rod can only be retracted without rotation. Stop power, it can be stopped at any position with self-locking.

Working principle: sliding bar on each side, there is a limit switch. When the telescopic rod goes up or down, the power supply is automatically cut off.

Application :
Electric treatment bed, operating bed, traction bed, massage chair, dentist chair, electric wheelchair, electric sofa, electric wheelchair.
exhibition stand, electric skylight, furniture for human technique and other occasions that require a
require linear motion actuator are very convenient to install, which is widely used Medical treatment,
Fire protection, furnishing textiles, electromechanics, chemical industry, sanitary, leisure and other fields.

Specifications:
Tension : DC12V
Course standard : 500mm
Speed: 5mm/s
Pression/traction maximale : 600 kg (6000 N) / 400 kg (4000 N)
Aluminum outer tube: Ø30mm
Aluminum inner tube: Ø24mm
Noise: 48 dB
Standard protection class: IP44
Temperature: -5°C to 50°C.
Note: Please check before purchasing
Minimum installation dimensions: 675 mm (the distance between the two holes before and after the push rod is fully retracted)
Dimensions of fully expanded product: 1175 mm

List of packages:

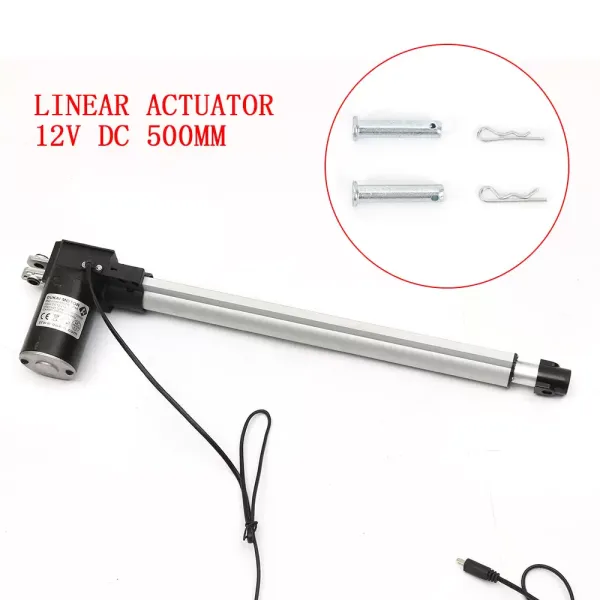

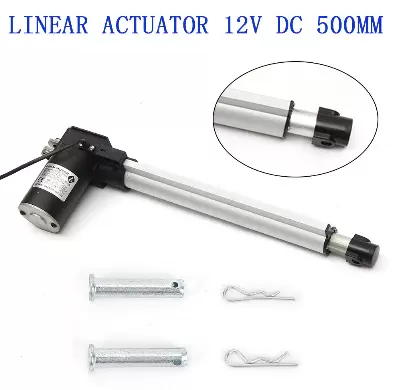

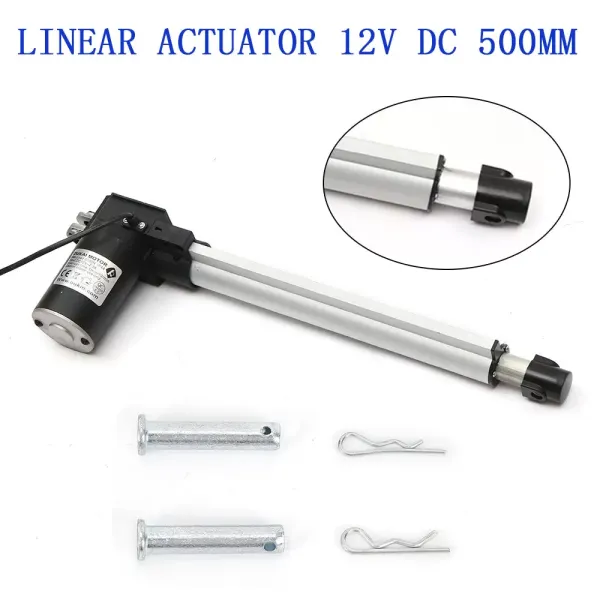

1 x 500mm linear actuator

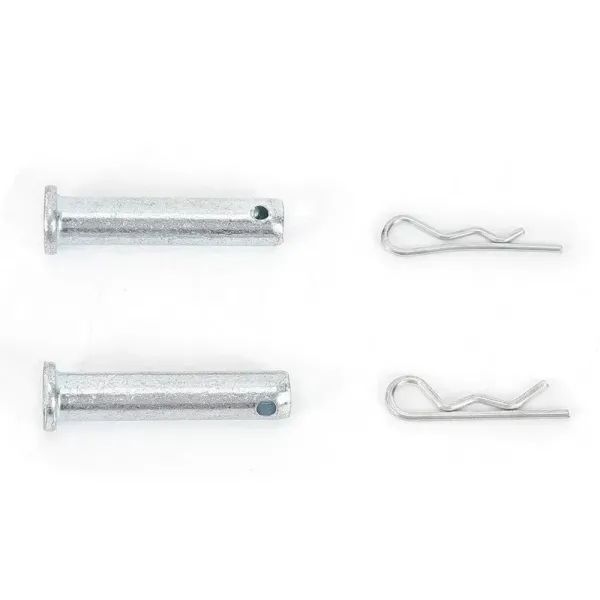

1 x accessory kit
