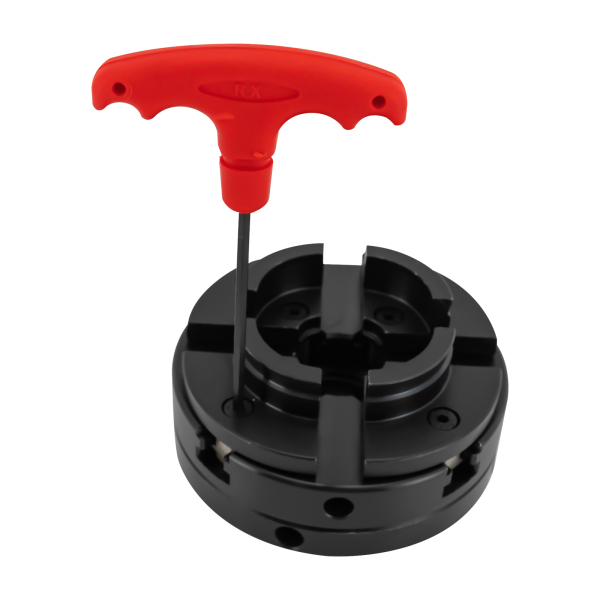

4in 4-jaw M33 chuck (with 1 set of jaws) + converter (M33 to M18)
4in 4-jaw M33 chuck (with 1 set of jaws) + converter (M33 to M18)
4in 4-jaw M33 chuck (with 1 set of jaws) + converter (M33 to M18)
4in 4-jaw M33 chuck (with 1 set of jaws) + converter (M33 to M18)
4in 4-jaw M33 chuck (with 1 set of jaws) + converter (M33 to M18)
4in 4-jaw M33 chuck (with 1 set of jaws) + converter (M33 to M18)
4in 4-jaw M33 chuck (with 1 set of jaws) + converter (M33 to M18)
4in 4-jaw M33 chuck (with 1 set of jaws) + converter (M33 to M18)
4in 4-jaw M33 chuck (with 1 set of jaws) + converter (M33 to M18)
4in 4-jaw M33 chuck (with 1 set of jaws) + converter (M33 to M18)
4in 4-jaw M33 chuck (with 1 set of jaws) + converter (M33 to M18)
4in 4-jaw M33 chuck (with 1 set of jaws) + converter (M33 to M18)
4in 4-jaw M33 chuck (with 1 set of jaws) + converter (M33 to M18)
4in 4-jaw M33 chuck (with 1 set of jaws) + converter (M33 to M18)

4in 4-jaw M33 chuck (with 1 set of jaws) + converter (M33 to M18)

(0 reviews)
Ask a question
95.00
  • Brand: CNCEST
  • Product Code: JZONQH-000400
  • Availability: In Stock
Quantity
- +
Estimated Delivery:
Free Fast Shipping:
On all orders
estimated delivery guarantee

Build to Last

High-quality 45 # steel, after being cast black, will not easily rust, corrode, deform, or fracture, and has high hardness, which can maintain superior performance for a long time.

Precision Work

Exquisite processing gives this product a powerful self-centering function (centering accuracy of 0.01 inches), it does not need to be repeatedly calibrated during clamping, ensuring precise processing.

Stable Clamping

The four claw design has four axisymmetric clamping points, so it will not easily occur or slip during clamping, making it more worry-free to use.

Good Adaptability

With a clamping range of 1.54 to 2.99 inches, the conventional round claw and the design that can both support and clamp, allow you to apply this product to a variety of workpieces, making it more economical.

Improving Efficiency

The product uses M33*0.14-inch threads, which are compatible with most woodworking lathes on the market, thereby converting the power of the motor into cutting or machining power to improve work efficiency.

Complete Set:

This set includes T-shaped wrenches, tightening levers and other accessories for packaging, fixing, and disassembling chucks, allowing you to purchase auxiliary tools without the need for repeated orders.

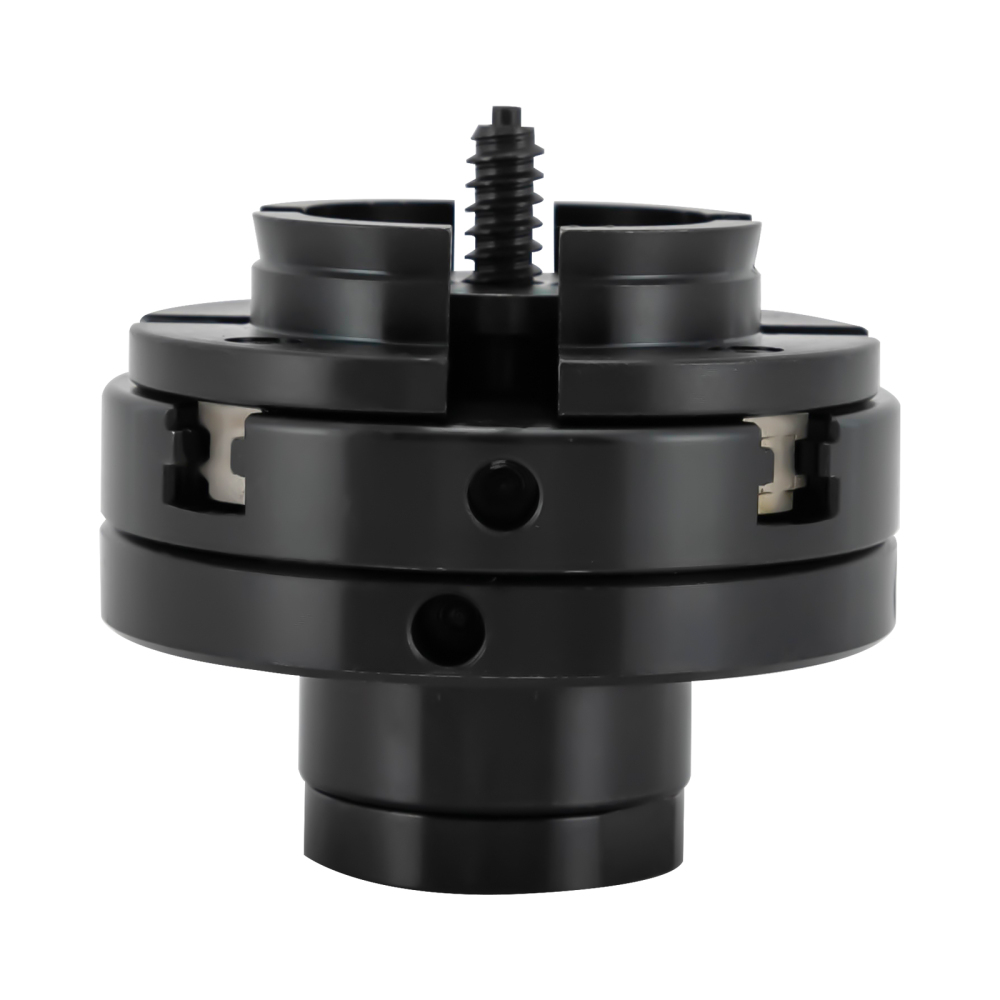

Umbrella-shaped Wood Screw:

It can tighten and clamp wood materials smaller than 1.5 inches, providing even more options for supporting your projects.

Converter:

It can convert M33*0.14in threads to M18*0.1in threads, allowing you to install it on other specifications of lathes.

Specifications
Material:  45 # Steel
Process:  Cast Black Treatment
Color:  Black
Shape:  Round
Assembly Required:  Yes
Chuck Structure:  Medium Solid Chuck
Chuck Aperture:  M33*3.5mm/0.14in
Outer Support Size:  51-92mm/2.01-3.62in
Clamping Size:  39-76mm/1.54-2.99in
Claw Height:  30mm/1.18in
Centering Accuracy:  0.3mm/0.01in

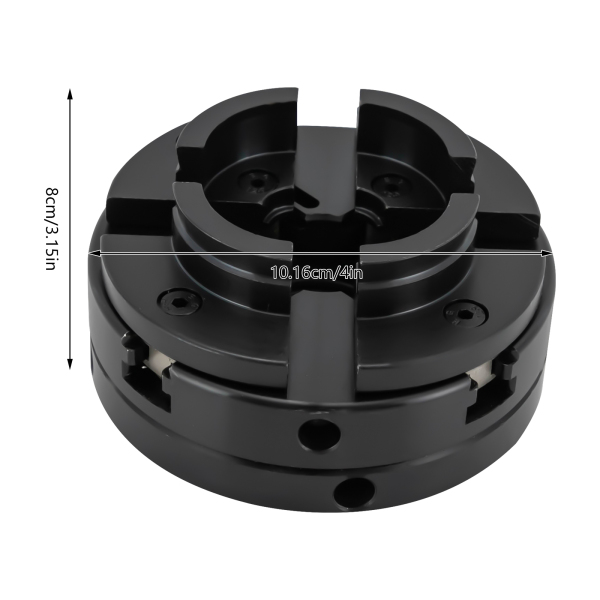

Product Size (D*H):  10.16*8cm/4*3.15in
Package Size:  15*14*9cm/5.91*5.51*3.54in
Gross Weight:  2.6kg/5.73lbs
Net Weight:  2.1kg/4.63lbs

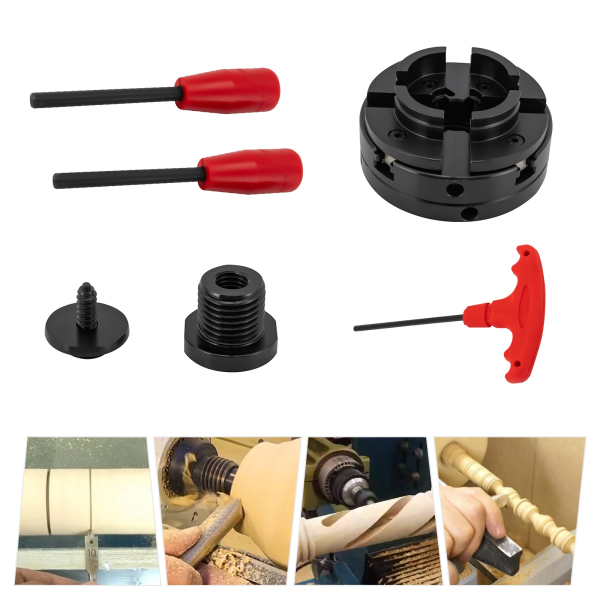

Package Included
1 * Chuck
1 Set * Claws (Already Installed)
2 * Tightening Levers
1 * T-Shaped Wrench
1 * Umbrella Shaped Wood Screw
1 * Converter

Specifications

Material 45 # Steel Process Cast Black Treatment
Color Black Shape Round
Assembly Required Yes Chuck Structure Medium Solid Chuck
Chuck Aperture M33*3.5mm/0.14in Outer Support Size 51-92mm/2.01-3.62in
Clamping Size 39-76mm/1.54-2.99in Claw Height 30mm/1.18in
Centering Accuracy 0.3mm/0.01in Product Size (D*H) 10.16*8cm/4*3.15in
Package Size 15*14*9cm/5.91*5.51*3.54in Gross Weight 2.6kg/5.73lbs
Net Weight 2.1kg/4.63lbs

Product Tips,

notes

1.Please note that protective goggles and gloves must be worn when using (both are not included).
2.Please be sure to check that your wood lathe spindle matches first to avoid a mismatch between chuck threads and wood lathe spindle.
3.A set of claws has already been installed on the chuck.
4.Before making adjustments or measurements, please be sure to stop the lathe.
5.We suggest that you roll up your sleeves above your elbow and remove all jewelry from your hands and wrists when using.
6.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
