350W 36V Electric Motor DC Motor Small High Speed 350w 24V/36V DC Permanent Magnet Motor Generator for Modified Bicycle Scooter
350W 36V Electric Motor DC Motor Small High Speed 350w 24V/36V DC Permanent Magnet Motor Generator for Modified Bicycle Scooter
350W 36V Electric Motor DC Motor Small High Speed 350w 24V/36V DC Permanent Magnet Motor Generator for Modified Bicycle Scooter
350W 36V Electric Motor DC Motor Small High Speed 350w 24V/36V DC Permanent Magnet Motor Generator for Modified Bicycle Scooter
350W 36V Electric Motor DC Motor Small High Speed 350w 24V/36V DC Permanent Magnet Motor Generator for Modified Bicycle Scooter
350W 36V Electric Motor DC Motor Small High Speed 350w 24V/36V DC Permanent Magnet Motor Generator for Modified Bicycle Scooter
350W 36V Electric Motor DC Motor Small High Speed 350w 24V/36V DC Permanent Magnet Motor Generator for Modified Bicycle Scooter
350W 36V Electric Motor DC Motor Small High Speed 350w 24V/36V DC Permanent Magnet Motor Generator for Modified Bicycle Scooter
350W 36V Electric Motor DC Motor Small High Speed 350w 24V/36V DC Permanent Magnet Motor Generator for Modified Bicycle Scooter
350W 36V Electric Motor DC Motor Small High Speed 350w 24V/36V DC Permanent Magnet Motor Generator for Modified Bicycle Scooter
350W 36V Electric Motor DC Motor Small High Speed 350w 24V/36V DC Permanent Magnet Motor Generator for Modified Bicycle Scooter
350W 36V Electric Motor DC Motor Small High Speed 350w 24V/36V DC Permanent Magnet Motor Generator for Modified Bicycle Scooter
350W 36V Electric Motor DC Motor Small High Speed 350w 24V/36V DC Permanent Magnet Motor Generator for Modified Bicycle Scooter
350W 36V Electric Motor DC Motor Small High Speed 350w 24V/36V DC Permanent Magnet Motor Generator for Modified Bicycle Scooter
350W 36V Electric Motor DC Motor Small High Speed 350w 24V/36V DC Permanent Magnet Motor Generator for Modified Bicycle Scooter
350W 36V Electric Motor DC Motor Small High Speed 350w 24V/36V DC Permanent Magnet Motor Generator for Modified Bicycle Scooter

350W 36V Electric Motor DC Motor Small High Speed 350w 24V/36V DC Permanent Magnet Motor Generator for Modified Bicycle Scooter

(0 reviews)
Ask a question
60.22 109.99
  • Brand: CNCEST
  • Product Code: TS-HSYXF-496
  • Availability: In Stock
Quantity
- +
Estimated Delivery:
Free Fast Shipping:
On all orders
estimated delivery guarantee

High Efficiency

With a power of 350W and a rigid 11-tooth movement, the maximum speed can reach 2750RPM, meeting your high requirements.

Stable Base

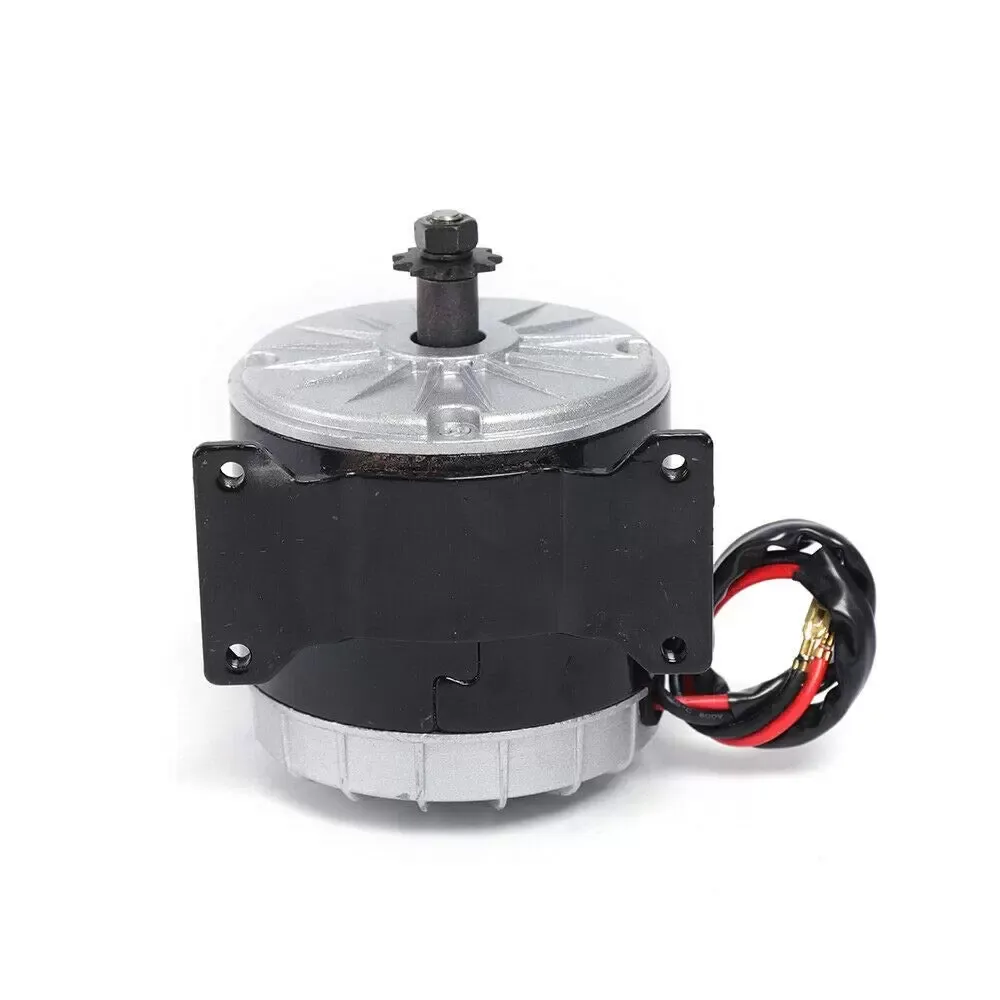

It is equipped with a bracket base(4.3*2.12in)that can be securely installed with screws (not included) to achieve a stable fixation effect.

Build to Last

It adopts pure copper coils and an aluminum alloy shell, with excellent heat resistance and heat dissipation, allowing you to use it with confidence for a long time. The combination of the iron casing and baking process ensures quality and provides a longer service life.

Closed Design

The closed design effectively prevents dust, water, oil, etc. from entering the machine, while minimizing the need for daily maintenance as much as possible.

Clear Wires

For different wires, they have different colors, thus easily distinguishing and connecting them without confusion.

Safe to Use

The protective sleeve provides better heat resistance to protect the motor. Paired with an aluminum alloy shell with good heat dissipation, it can be safely used for long hours.

Low Noise

The noise emitted by the pure copper motor during operation is only about 63-64 decibels, which is not easy to affect you or others.

Reversible Function

The reversible function provides a flexible opening and closing control system.

Stable Operation

All metal gears, ball bearings, and pure copper coils can reduce friction and temperature during use, ensuring stable operation, thereby increasing speed, and reducing overheating and load resistance.

Application

It is applicable to motorized scooters, small four-wheel vehicles, kart racing, off-road four-wheel kick scooter, electric bicycles, ATVs, mini electric motorcycles, and electric trikes with wheels less than 12 inches. It can also be applied to some mechanical equipment, such as lawnmowers.

Specifications
Model:  MY1016
Material:  Copper, Aluminum Alloy, Iron
Surface Treatment:  Baking Varnish
Color:  Black, Silver
Type of Motor:  DC, Brush
Special Features:  Reversible
Idle Current:  ≤1.4A
No Load Speed:  3450RPM
Rated Torque:  1.22/N.m
Efficiency:  ≥78
Working System:  S2-40/min
Insulation Level:  E
Protection Level:  IP44
Speed:  2750RPM
Rated Current:  12.5A
Voltage:  36 Volts
Chain Type:  #25
Operating Noise:  About 63-64dB
Wire Length:  34cm/13.38inMotor Gear
Horsepower:  350 Watts
Number of Items:  1
Gross Weight:  2.63kg/5.8lbs
Net Weight:  2.46kg/5.42lbs
Base Size(L*W):  10.9*5.4cm/4.3*2.12in
Gear Diameter:  25.2mm/1in
Base Hole Spacing:  42mm/1.65in
Screw Hole Diameter:  5mm/0.2in
Motor Size(D*L):  9.5*10.8cm/3.74*4.25in
Package Size:  15.5*15*15cm/6.1*5.9*5.9in
Package Included:
1*Electric Motor

Specifications

Model MY1016 Material Copper, Aluminum Alloy, Iron
Surface Treatment Baking Varnish Color Black, Silver
Type of Motor DC, Brush Special Features Reversible
Idle Current ≤1.4A No Load Speed 3450RPM
Rated Torque 1.22/N.m Efficiency ≥78
Working System S2-40/min Insulation Level E
Protection Level IP44 Speed 2750RPM
Rated Current 12.5A Voltage 36 Volts
Chain Type #25 Operating Noise About 63-64dB
Wire Length 34cm/13.38inMotor Gear Horsepower 350 Watts
Number of Items 1 Gross Weight 2.63kg/5.8lbs
Net Weight 2.46kg/5.42lbs Base Size(L*W) 10.9*5.4cm/4.3*2.12in
Gear Diameter 25.2mm/1in Base Hole Spacing 42mm/1.65in
Screw Hole Diameter 5mm/0.2in Motor Size(D*L) 9.5*10.8cm/3.74*4.25in
Package Size 15.5*15*15cm/6.1*5.9*5.9in
