Variable Frequency Drive AC 220V/0.75KW 1HP 4A CNC VFD Single Phase to 3 Phase Converter for Spindle Motor Speed Control Single Phase Input
Variable Frequency Drive AC 220V/0.75KW 1HP 4A CNC VFD Single Phase to 3 Phase Converter for Spindle Motor Speed Control Single Phase Input
Variable Frequency Drive AC 220V/0.75KW 1HP 4A CNC VFD Single Phase to 3 Phase Converter for Spindle Motor Speed Control Single Phase Input
Variable Frequency Drive AC 220V/0.75KW 1HP 4A CNC VFD Single Phase to 3 Phase Converter for Spindle Motor Speed Control Single Phase Input
Variable Frequency Drive AC 220V/0.75KW 1HP 4A CNC VFD Single Phase to 3 Phase Converter for Spindle Motor Speed Control Single Phase Input
Variable Frequency Drive AC 220V/0.75KW 1HP 4A CNC VFD Single Phase to 3 Phase Converter for Spindle Motor Speed Control Single Phase Input
Variable Frequency Drive AC 220V/0.75KW 1HP 4A CNC VFD Single Phase to 3 Phase Converter for Spindle Motor Speed Control Single Phase Input
Variable Frequency Drive AC 220V/0.75KW 1HP 4A CNC VFD Single Phase to 3 Phase Converter for Spindle Motor Speed Control Single Phase Input
Variable Frequency Drive AC 220V/0.75KW 1HP 4A CNC VFD Single Phase to 3 Phase Converter for Spindle Motor Speed Control Single Phase Input
Variable Frequency Drive AC 220V/0.75KW 1HP 4A CNC VFD Single Phase to 3 Phase Converter for Spindle Motor Speed Control Single Phase Input
Variable Frequency Drive AC 220V/0.75KW 1HP 4A CNC VFD Single Phase to 3 Phase Converter for Spindle Motor Speed Control Single Phase Input
Variable Frequency Drive AC 220V/0.75KW 1HP 4A CNC VFD Single Phase to 3 Phase Converter for Spindle Motor Speed Control Single Phase Input
Variable Frequency Drive AC 220V/0.75KW 1HP 4A CNC VFD Single Phase to 3 Phase Converter for Spindle Motor Speed Control Single Phase Input
Variable Frequency Drive AC 220V/0.75KW 1HP 4A CNC VFD Single Phase to 3 Phase Converter for Spindle Motor Speed Control Single Phase Input
Variable Frequency Drive AC 220V/0.75KW 1HP 4A CNC VFD Single Phase to 3 Phase Converter for Spindle Motor Speed Control Single Phase Input
Variable Frequency Drive AC 220V/0.75KW 1HP 4A CNC VFD Single Phase to 3 Phase Converter for Spindle Motor Speed Control Single Phase Input

Variable Frequency Drive AC 220V/0.75KW 1HP 4A CNC VFD Single Phase to 3 Phase Converter for Spindle Motor Speed Control Single Phase Input

(1 reviews)
Ask a question
102.99€ 149.00€
  • Brand: CNCEST
  • Product Code: BI-HS9540-088
  • Availability: Out Of Stock
Quantity
- +
Estimated Delivery:
Free Fast Shipping:
On all orders
estimated delivery guarantee
Variable Frequency Drive AC 220V/0.75KW 1HP 4A CNC VFD Single Phase to 3 Phase Converter for Spindle Motor Speed Control Single Phase Input

Variable Frequency Drive AC 220V/0.75KW 1HP 4A CNC VFD Single Phase to 3 Phase Converter for Spindle Motor Speed Control Single Phase Input

  • Description
  • Reviews (1)
  • Recommer
  • Delivery and Return

8-Way Protective System

Our 0.75kw VFD has 8 kinds of protection including over voltage, over current, overload, overheating, stalling and open phase to secure the utilization. Supporting external braking resistor for fast accelerating/decelerating speed control.

High Safety

The variable frequency drive is made of industrial flame retardant ABS plastic, which is high temperature resistant and flame retardant, so it has high safety and reliability.

Space-saving

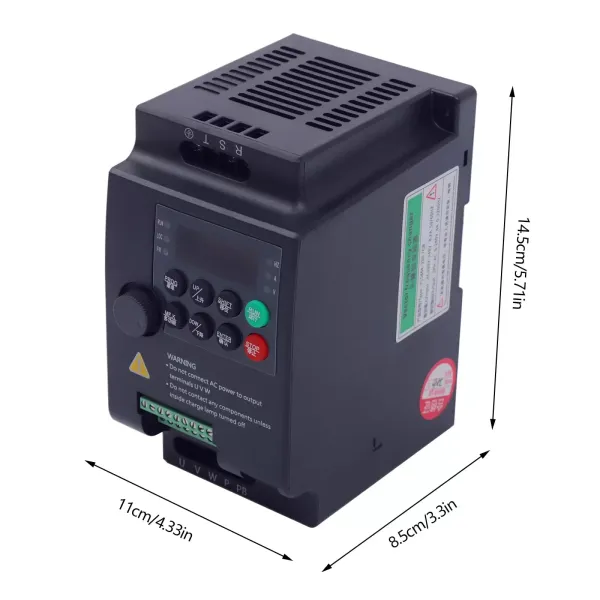

The variable frequency drive's size is only 4.33*3.3*5.71in, so it can save installation space for you.

Widely Used

This variable frequency drive could be used in various CNC, mechanical equipment, household washing machines, sewing machines, machine tool spindles, etc.

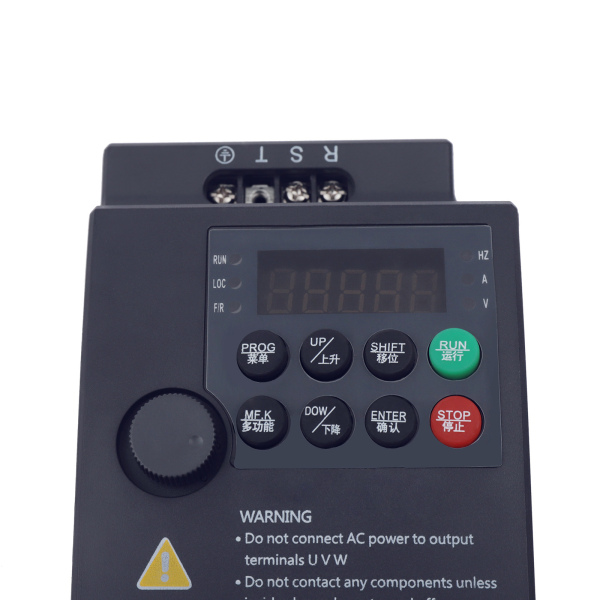

Easy to Operate

With a user-friendly and well-laid-out keyboard, it is easy to operate. The digital display allows you to see every step of the operation visually and clearly.

Protective Packaging

There is also foam protection in the product packaging carton, so you don't need to worry about the product being damaged by collision during transportation.

High-quality Motherboard

The surface of the motherboard is painted with tri-proof paint to protect the wiring from the environment and plays the role of insulation, moisture-proof, anti-leakage, shock-proof, dust-proof, anti-corrosion, anti-aging and corona-resistant.

Excellent Control Performance

With PG free vector control method, the control performance is excellent.

Remote Control

Remote operation is possible via an external extension panel up to 50m/164ft away, so you can easily operate the machine without being close to it.

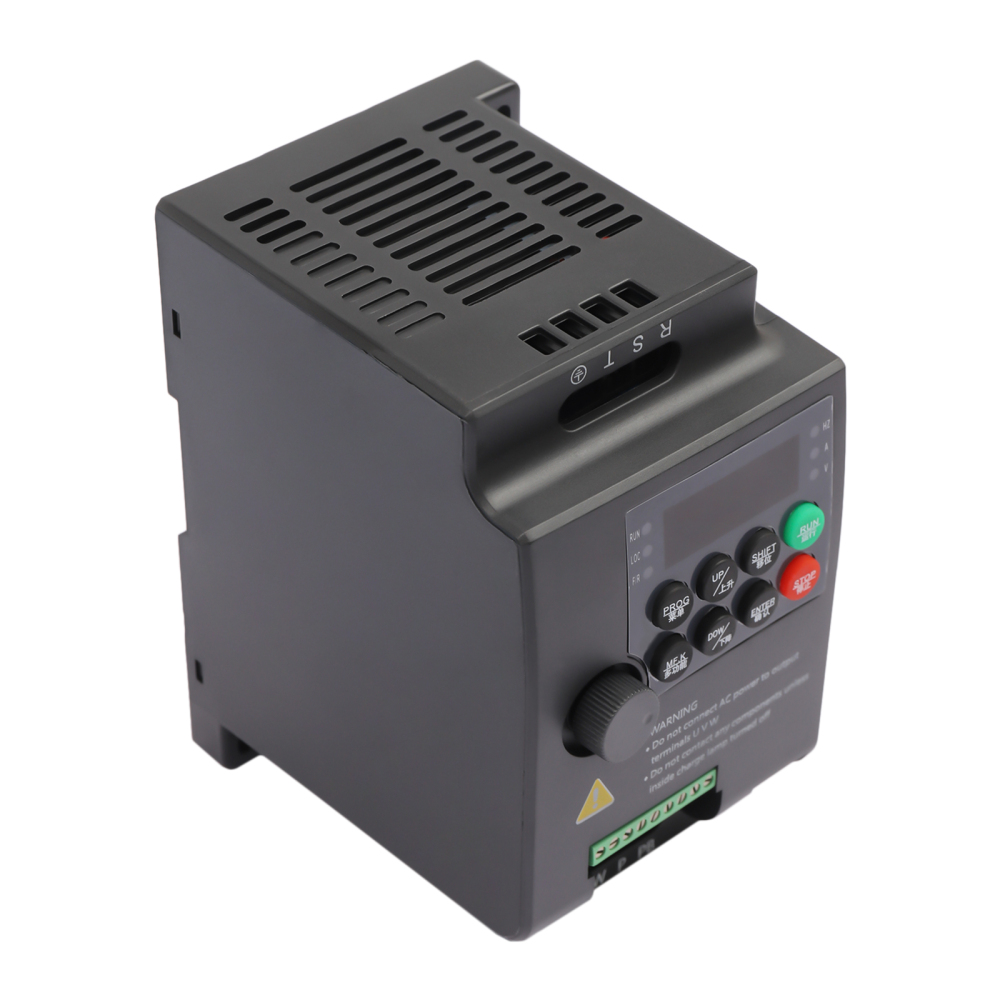

Heat Dissipation Holes

There are several heat dissipation holes on the surface of the machine to form a good heat dissipation system, keeping the machine running smoothly without burnout and extending its service life.

DC Cooling Fan

The variable frequency drive is equipped with a fan to improve the stability of the inverter. The fan runs automatically when the temperature rises and switches off when the temperature stabilizes.

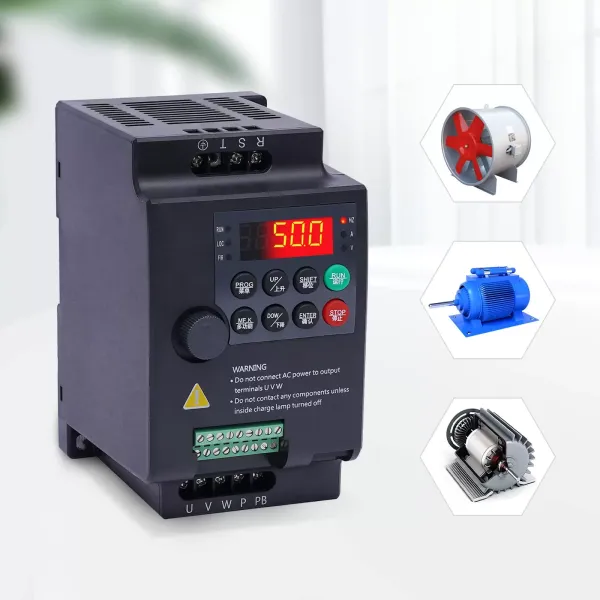

Application

It is suitable for spindle motor, drill press, CNC, HVAC, lathe, production lines, processing types of equipment, milling, pumps, conveyors, Mach3, Fan, cooling, compressor, three-phase motor, etc.

Specifications
Model:  YL568K
Application Range:  Universal
Color:  Black
Material:  ABS
Input Voltage:  220V
Output Voltage:  220V
Rated Current:  4A
Suitable Motor Power:  0.75KW, Horsepower
Power Supply Phase:  Single Phase
Output Phase:  3 Phase
DC Power Supply:  Voltage Type
Gross Weight:  1.2kg/2.7lbs
Net Weight:  1kg/2.2lbs
Product Size:  11*8.5*14.5cm/4.33*3.3*5.71in
Package Size:  20*16.5*12.5cm/7.97*6.5*4.92inch
Package Included
1* Variable Frequency Drive
1* English Manual

Specifications

Model YL568K Application Range Universal
Color Black Material ABS
Input Voltage 220V Output Voltage 220V
Rated Current 4A Suitable Motor Power 0.75KW, Horsepower
Power Supply Phase Single Phase Output Phase 3 Phase
DC Power Supply Voltage Type Gross Weight 1.2kg/2.7lbs
Net Weight 1kg/2.2lbs Product Size 11*8.5*14.5cm/4.33*3.3*5.71in
Package Size 20*16.5*12.5cm/7.97*6.5*4.92inch

Product Tips

Notes

1.Please avoid using the inverter in an environment where there is humidity, water mist, and metal debris falling, it may cause a short circuit. And your motor power should not be more than TWICE the power of this VFD.
2.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
