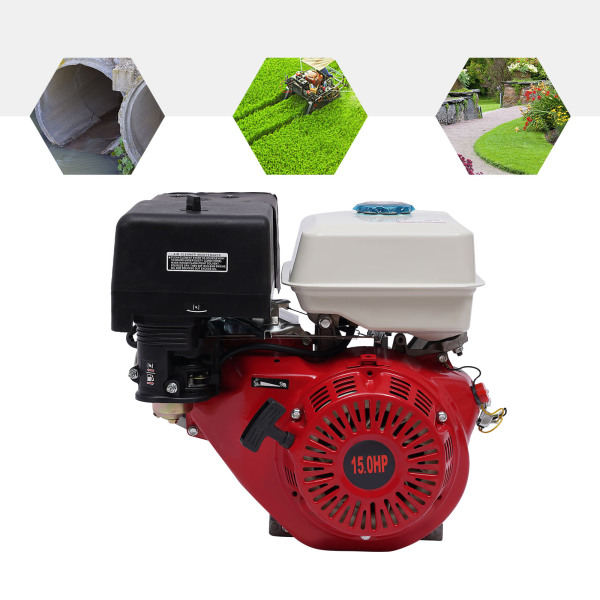

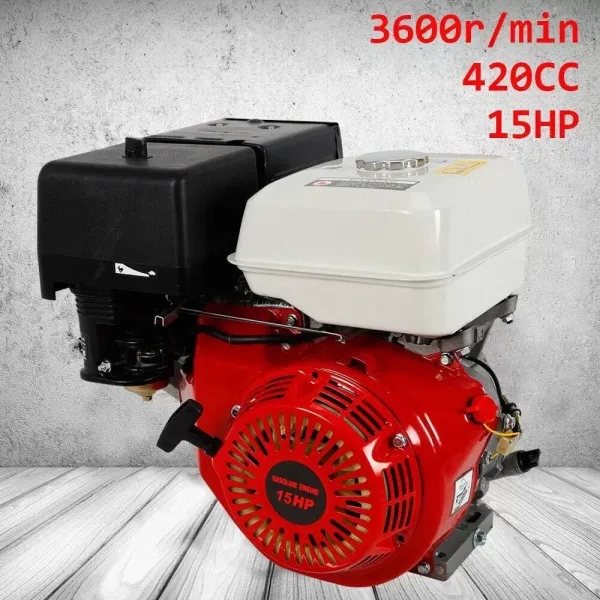

4 Stroke 420CC 9 KW 15 HP Petrol Engine Stationary Motor Kart Engine Drive Motor Replacement Engine Gasoline Engine 15 HP
4 Stroke 420CC 9 KW 15 HP Petrol Engine Stationary Motor Kart Engine Drive Motor Replacement Engine Gasoline Engine 15 HP
4 Stroke 420CC 9 KW 15 HP Petrol Engine Stationary Motor Kart Engine Drive Motor Replacement Engine Gasoline Engine 15 HP
4 Stroke 420CC 9 KW 15 HP Petrol Engine Stationary Motor Kart Engine Drive Motor Replacement Engine Gasoline Engine 15 HP
4 Stroke 420CC 9 KW 15 HP Petrol Engine Stationary Motor Kart Engine Drive Motor Replacement Engine Gasoline Engine 15 HP
4 Stroke 420CC 9 KW 15 HP Petrol Engine Stationary Motor Kart Engine Drive Motor Replacement Engine Gasoline Engine 15 HP
4 Stroke 420CC 9 KW 15 HP Petrol Engine Stationary Motor Kart Engine Drive Motor Replacement Engine Gasoline Engine 15 HP
4 Stroke 420CC 9 KW 15 HP Petrol Engine Stationary Motor Kart Engine Drive Motor Replacement Engine Gasoline Engine 15 HP
4 Stroke 420CC 9 KW 15 HP Petrol Engine Stationary Motor Kart Engine Drive Motor Replacement Engine Gasoline Engine 15 HP
4 Stroke 420CC 9 KW 15 HP Petrol Engine Stationary Motor Kart Engine Drive Motor Replacement Engine Gasoline Engine 15 HP
4 Stroke 420CC 9 KW 15 HP Petrol Engine Stationary Motor Kart Engine Drive Motor Replacement Engine Gasoline Engine 15 HP
4 Stroke 420CC 9 KW 15 HP Petrol Engine Stationary Motor Kart Engine Drive Motor Replacement Engine Gasoline Engine 15 HP
4 Stroke 420CC 9 KW 15 HP Petrol Engine Stationary Motor Kart Engine Drive Motor Replacement Engine Gasoline Engine 15 HP
4 Stroke 420CC 9 KW 15 HP Petrol Engine Stationary Motor Kart Engine Drive Motor Replacement Engine Gasoline Engine 15 HP
4 Stroke 420CC 9 KW 15 HP Petrol Engine Stationary Motor Kart Engine Drive Motor Replacement Engine Gasoline Engine 15 HP
4 Stroke 420CC 9 KW 15 HP Petrol Engine Stationary Motor Kart Engine Drive Motor Replacement Engine Gasoline Engine 15 HP

4 Stroke 420CC 9 KW 15 HP Petrol Engine Stationary Motor Kart Engine Drive Motor Replacement Engine Gasoline Engine 15 HP

(1 reviews)
Ask a question
298.99
  • Brand: CNCEST
  • Product Code: YLNXIK-001400
  • Availability: In Stock
Quantity
- +
Estimated Delivery:
Free Fast Shipping:
On all orders
estimated delivery guarantee

Strong Power

The engine has a power of up to 9.7Kw and a rated speed of up to 3600rpm/min, our engines produce a lot of power and help you get the job done quickly and well.

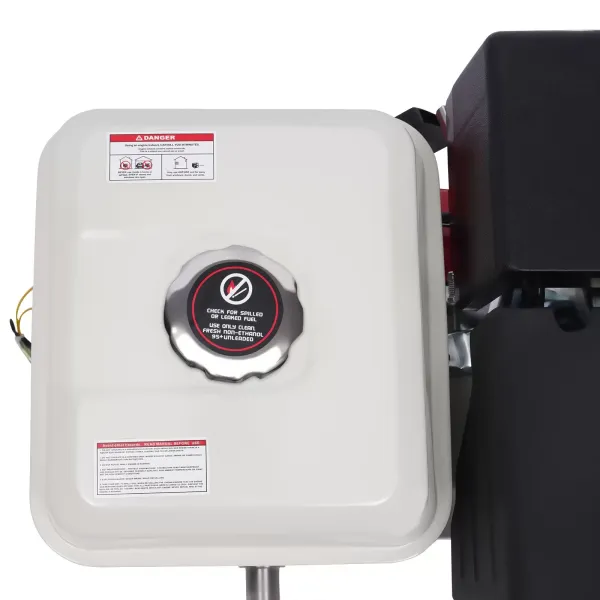

Large Fuel Tank

The engine has a large fuel tank capacity of 6.5L/274.74oz allowing it to work for a long time. You don't need to fill the tank frequently, which is very convenient.

Low Fuel Consumption

It comes with a high-precision carburetor that improves combustion efficiency, thus reducing fuel consumption.

Efficient Cooling System

The built-in forced air cooling system and ventilated heat sink are designed to keep the motor cool and provide high reliability and durability.

Oil Alarm Function

This engine has a low oil warning. It alerts you to add oil so that you can avoid the engine stopping suddenly while you are working.

Quality Service

Your satisfaction is our top priority, we will make things right for you. If you are unsatisfied with our products, you can contact us and we will ensure you have a pleasant shopping experience in our store.

Metal Camshaft

The camshaft is made of iron which has high wear resistance. It makes the engine work steadily. The air income and outcome are also better with the metal camshaft, so the engine has higher efficiency.

Sealed Oil Port

The sealed design of the oil port is easy to access and remove, making it easy to refuel.

Stable Operation

This engine features high-quality cast iron cylinder liners that make the engine work steadily and effectively.

Air Filter Cartridge

The air filter cartridge on top of the engine purifies the air and its high air filtration performance helps to reduce the wear and tear on the engine and prolong its life.

Oil Compartment

There are oil fill and drain ports at the front and rear, so you don't have to worry about the equipment getting in the way when filling and draining oil, making it easier for you to operate.

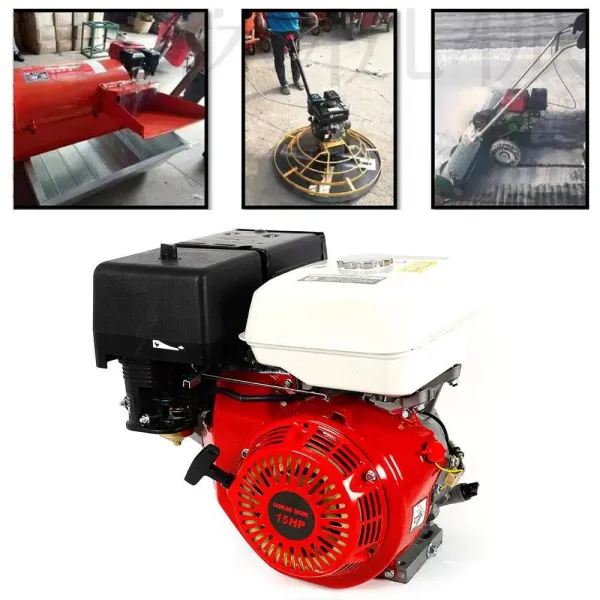

Application

This engine is suitable for water pumps, vibrators, generators, dosing machines, puffers, threshers, recreational vehicles, construction, farm/ranch, pressure washers, air compressors, trenchers, concrete/mortar mixers/saws, go-karts, minibikes, lawnmowers, log-splitter, vacuums, etc.

Specifications
Model:  190F
Material:  Aluminium+Iron
Engine Type:  4 Stroke
Description:  Gasoline Engine
Starting System:  Pull Start
Power:  9700W 15HP
Rated Power:  8800W
Color:  Red+Black
Fuel Type:  Gasoline
Engine Displacement:  420cc
Rotational Speed:  3000-3600rpm/min
Fuel Capacity:  6.5L/6.5L/274.74oz
Engine Oil Capacity:  1.1L/46.5oz
Gross Weight:  31kg/68.34lbs
Net Weight:  28.26kg/62.3lbs
Package Size:  48.92*39.9*46.55cm/19.26*15.71*18.33inch
Package Included
1*Engine
1*Spark Plug Sleeve
1*English Manual
Other Accessories for Use

Specifications

Model 190F Material Aluminium+Iron
Engine Type 4 Stroke Description Gasoline Engine
Starting System Pull Start Power 9700W 15HP
Rated Power 8800W Color Red+Black
Fuel Type Gasoline Engine Displacement 420cc
Rotational Speed 3000-3600rpm/min Fuel Capacity 6.5L/6.5L/274.74oz
Engine Oil Capacity 1.1L/46.5oz Gross Weight 31kg/68.34lbs
Net Weight 28.26kg/62.3lbs Package Size 48.92*39.9*46.55cm/19.26*15.71*18.33inch

Product Tips

How to Use:

1.Before starting the machine, take out this black rubber and put the red breath plug into it. If the red air is not changed, it will cause damage to the oil seal in the pump.
2.Check the oil level, to the line above H. Add about 700ml 4- stroke gasoline engine oil, series: 15W30 or 15W40 (Remark: if the engine oil is not enough will cause the engine can't start or if starts, the engine will work in shaking, seems will work.)
3.Add petrol 92# or 95#(Remark: when you put the fuel tank cap, you should fix the two ears in the cap well with the part concave in, the finger point part, then press the cap and turn the fuel tank cap.)
4.Turn the adjusted arm to the left side (new machine keep the position, don't move it). Turn the throttle to the left side. Turn the fuel control valve on the right side.
5.Turn the engine switch to the ON position.
6.Straighten the hose. 7.Start the engine.8.After the engine starts, turn the check valve to right.

Notes:

1.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
2.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
