High-quality Nut and Bolt Thread Checker Compact & Lightweight 34 Thread Identifier Gauge Thread Checker with Drill Bit Gauge for 4S Stores
AU $76.00
- Brand: CNCEST
- Product Code: GY5J3E-000600
- Availability: In Stock
Estimated Delivery:
Free Fast Shipping:
On all orders

Specifications
Color | Black | Style | Modern |
Shape | Rectangular | Material | Metal |

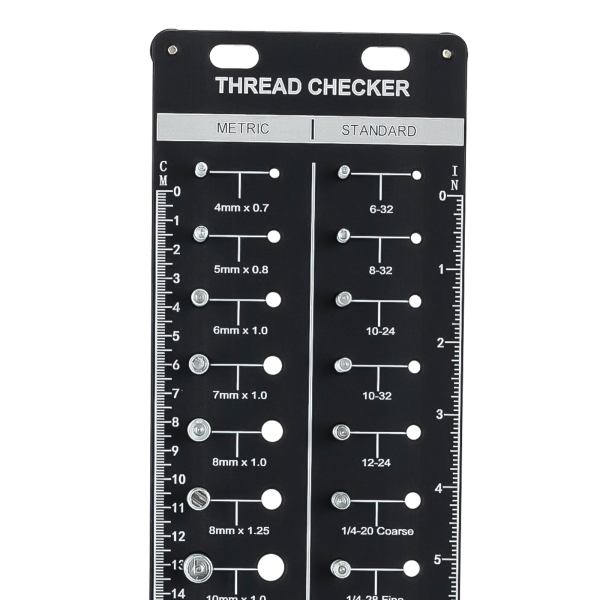

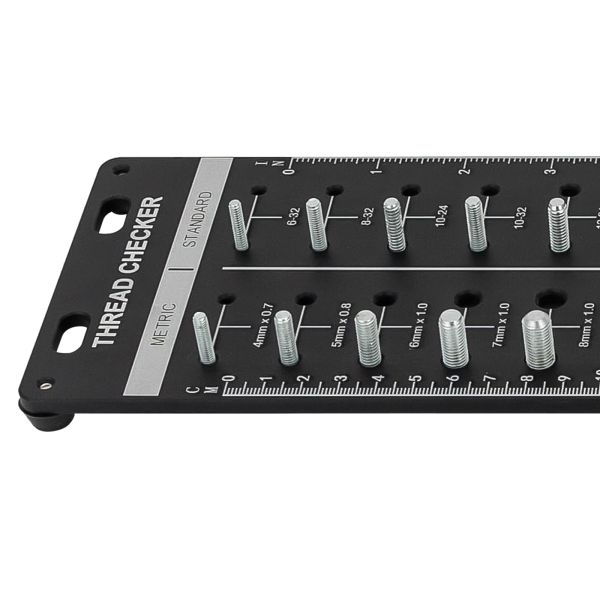

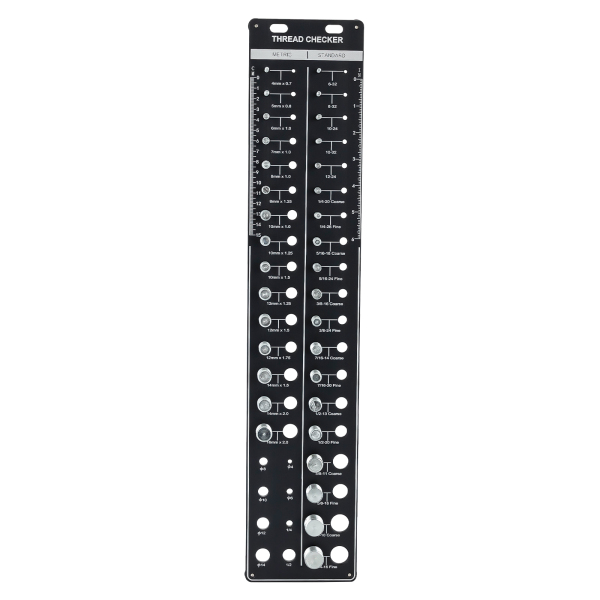

Assembly Required | No | 15 Metric Thread Sizes | 4mm x 0.7, 5mm x0.8, 6mm x 1.0, 7mm x 1.0, 8mm x 1.0, 8mm x 1.25, 10mm x1.0,10mm x 1.25, 10mm x 1.5,12mm x 1.25, 12mm x 1.5, 12mm x 1.75, 14mm x 1.5, 14mm x 2.0, 16mm x 2.0 |

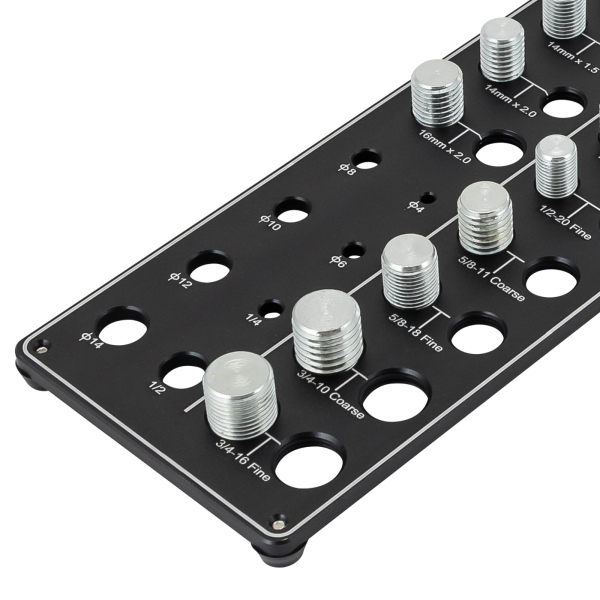

19 Standard Thread Sizes | 6-32, 8-32, 10-24, 10-32,12-24, 1/4-20 Coarse, 1/4-28 Fine, 5/16-18 Coarse, 5/16-24 Fine, 3/8-16 Coarse, 3/8-24 Fine, 7/16-14 Coarse, 7/16-20 Fine, 1/2-13 Coarse, 1/2-20 Fine, 5/8-11 Coarse, 5/8-18 Fine, 3/4-10 Coarse, 3/4-16 Fine | 8 Drill Bit Gauges | Φ4, Φ 6, Φ8, Φ10, Φ12, Φ14, 1/4, 1/2 |
Product Size | 52*10*2.5cm/20.47*3.94*0.98in | Package Size | 54*12*4.5cm/21.26*4.72*1.77in |
Gross Weight | 1.2kg/2.65lbs | Net Weight | 1.1kg/2.43lbs |
Product Tips


Notes
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
