Sturdy Construction: This valve applies a die-casting process and is fixed with strong screws, presenting a sturdy construction.

Safe to Use: It is mainly used for water flow in one direction to prevent accidents caused by water backflow.

Excellent Performance: This highly responsive valve will open and close in less than 1 second when actuated, which presents an excellent performance.

Good Sealing: The oil seal material is NBR, which has good water resistance, air tightness, and excellent adhesion, giving this valve a good sealing effect.

Customer Service: We devote ourselves to bringing the best shelf shopping experience to you. If there is any question about our product, please feel free to contact us.

Details

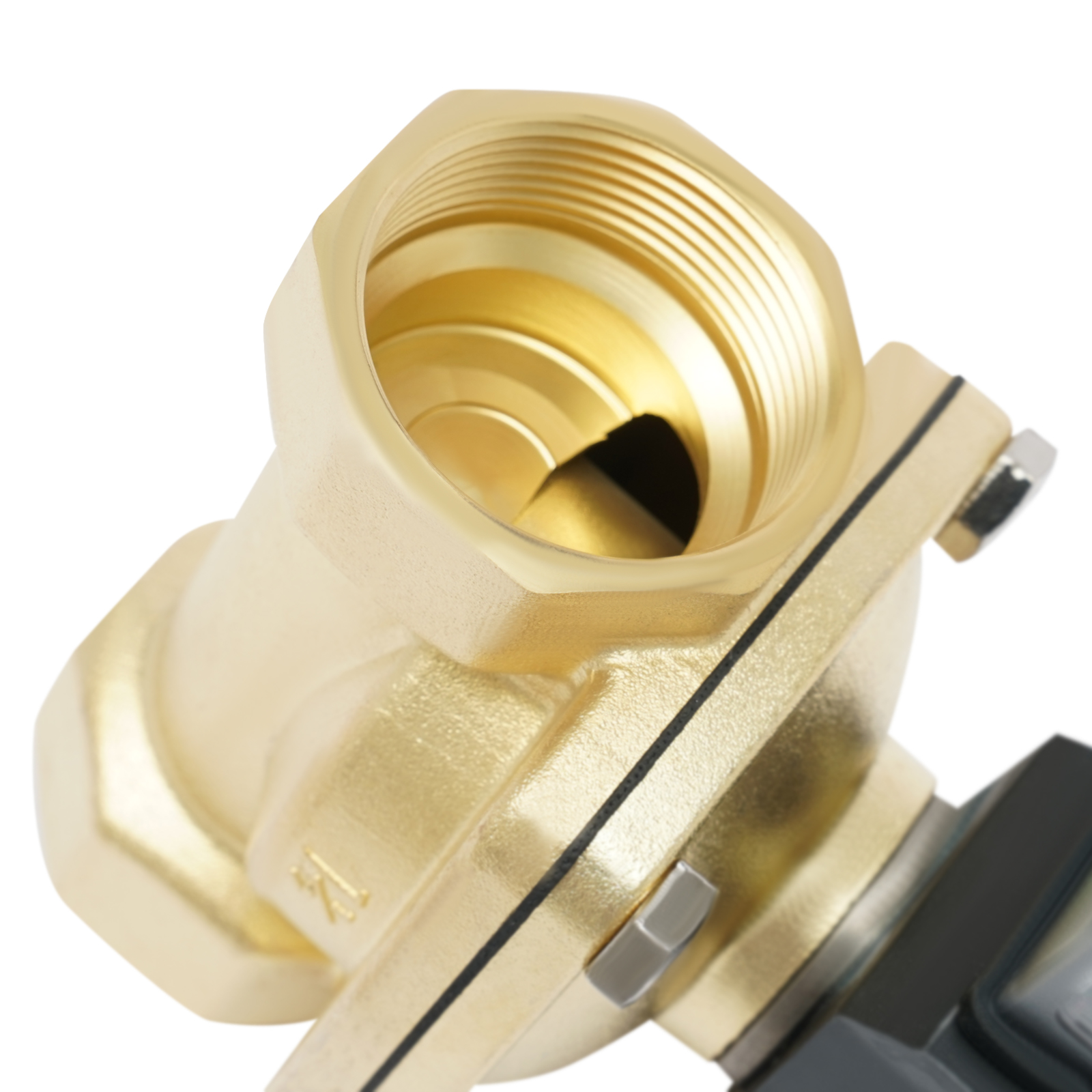

NPT Pipe Thread: The standard NPT 1-1/2" thread allows for easy and smooth connection.

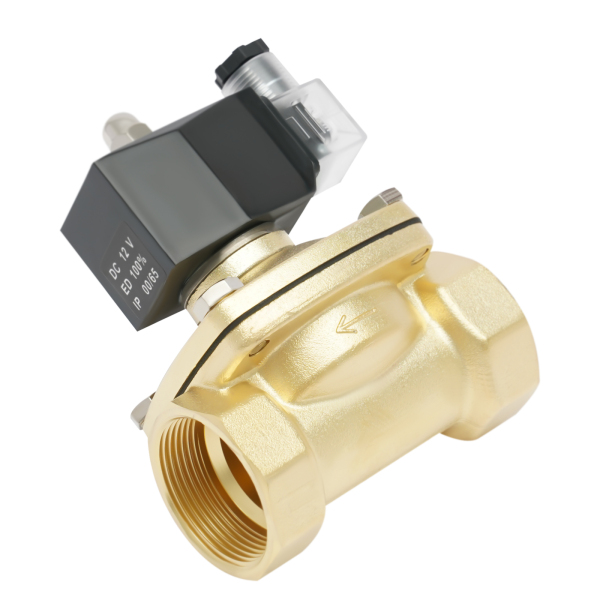

Arrow Mark: With the arrow mark, you can install this valve easily without worrying about the wrong direction installation.

Application

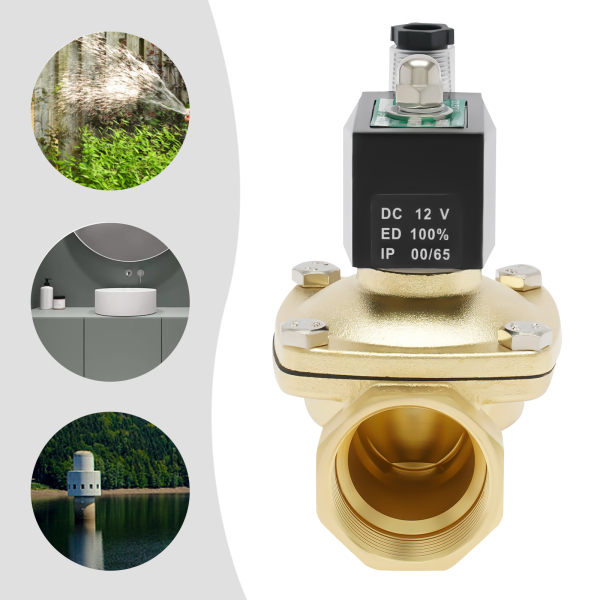

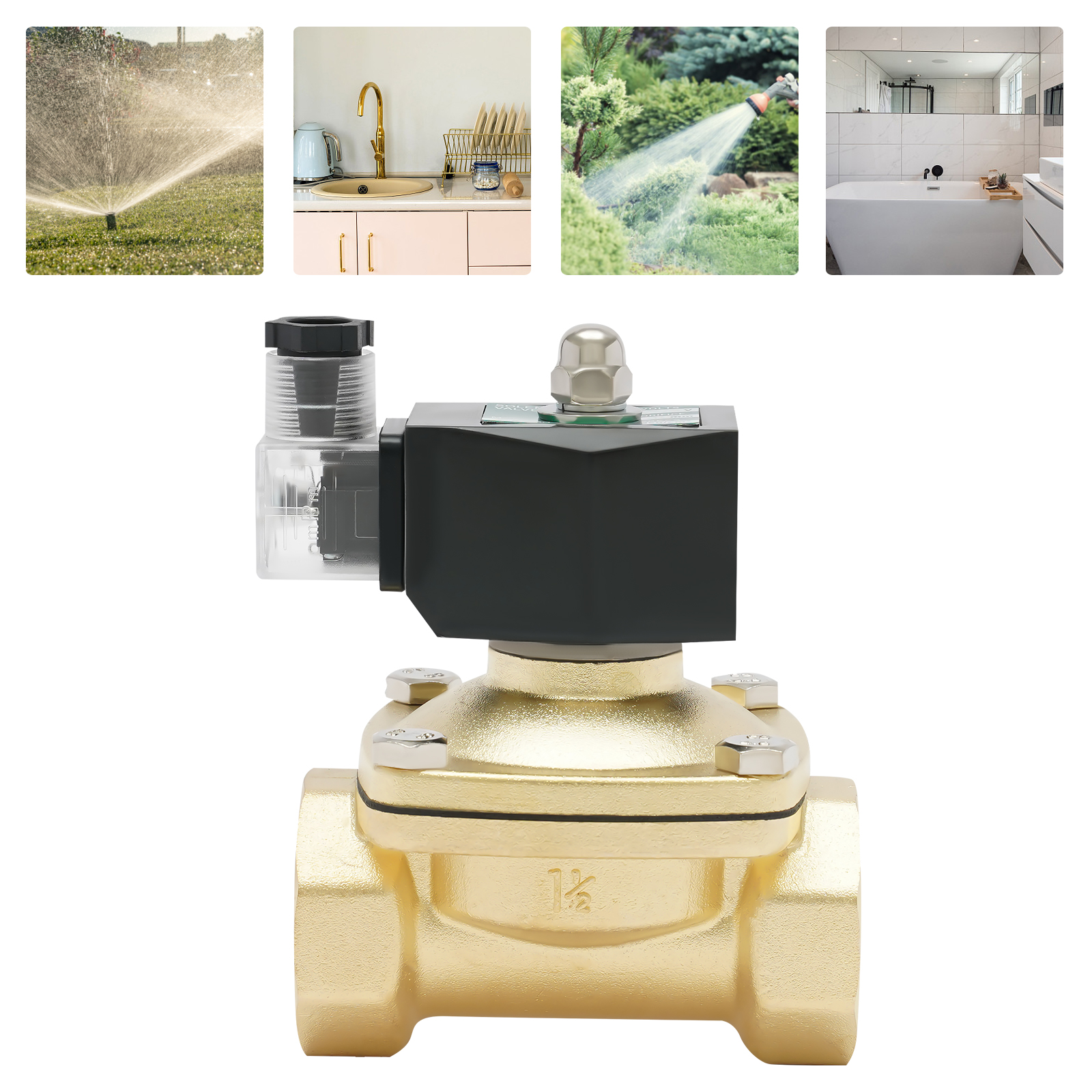

It can be used for water towers, water heaters, toilets, pipeline water control, home pipes, etc. The applicable fluid includes non-corrosive hot or cold water, gas, air, very low viscosity fluids (<20cst), oils, hydrocarbons (kerosene or diesel fuel), and so on.

Specifications

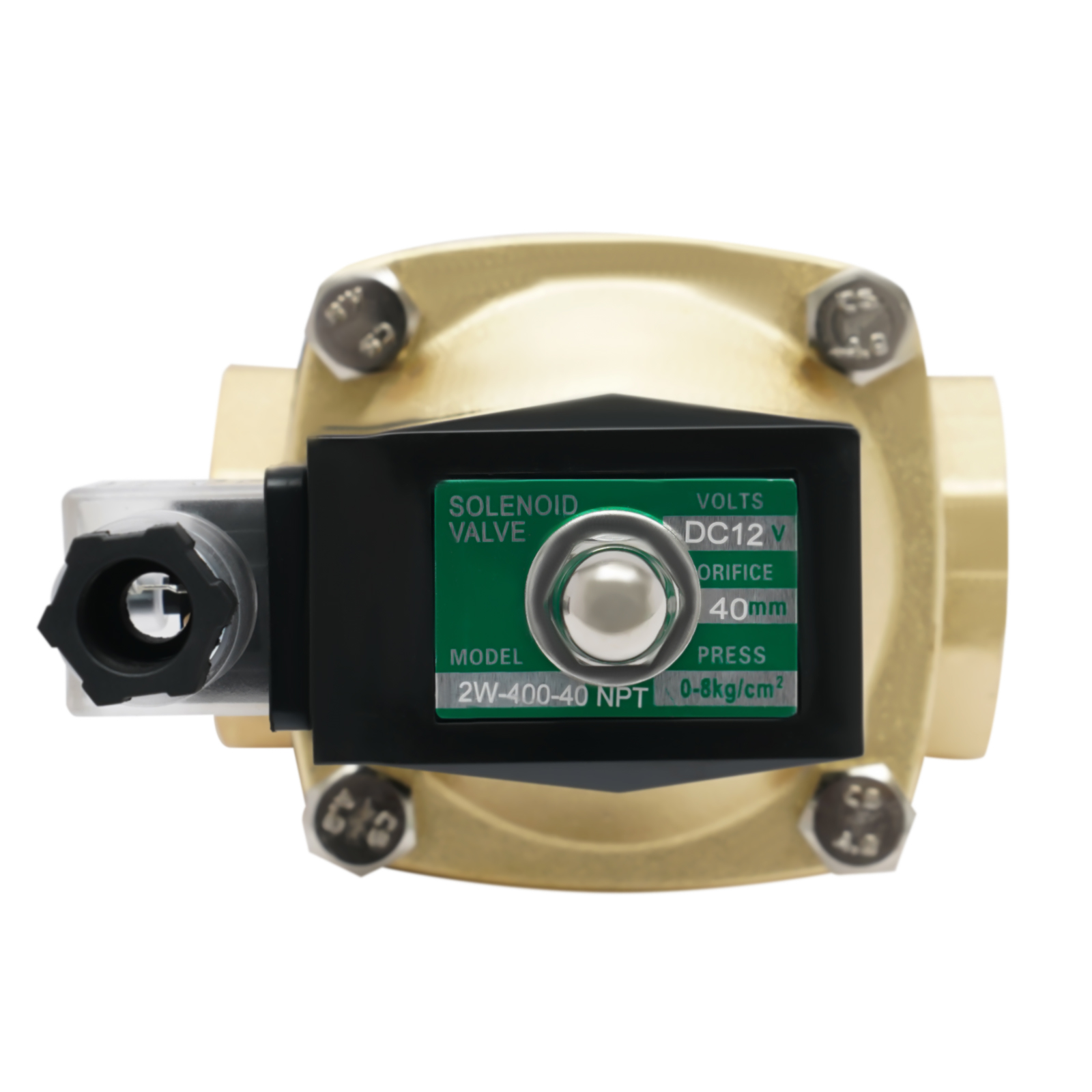

Model: 2W-400-40
Material: Brass
Process: Die-casting
Color: Gold, Black
Type: Electric Solenoid Valve
Shape: Round
Applicable Fluid: Air, Water, Oil (Non-corrosive)
Fluid Direction: Shown as the Arrow
Operation Mode: Normally Closed
Valve Type: Direct Acting, Wet Armature
Material of Oil Seal: NBR
Operation Fluid Viscosity: <20cst
Voltage: DC 12V
Press: 0-8kgf/cm², 0-114Psi
Pressure: Water and Oil: 0-0.5Mpa; Air: 0-0.7Mpa
Orifice: 40mm/1.57inch
Inlet/Outlet Ports: NPT 1-1/2-inch Female Threads
IP: 00/65
ED: 100%
Working Pressure: 0-1.0Mpa, 114Psi
Fluid Temperature: -5~80°C/23~176℉
Net Weight: 1.7kg/3.7lbs
Gross Weight: 1.95kg/4.3lbs
Product Size: 15*10*7cm/5.9*3.9*2.7inch
Package Size: 17*11*9cm/6.7*4.33*3.5inch

Package Included
1* Electric Solenoid Valve

Notes
1.It is not suitable for gasoline.
2.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
