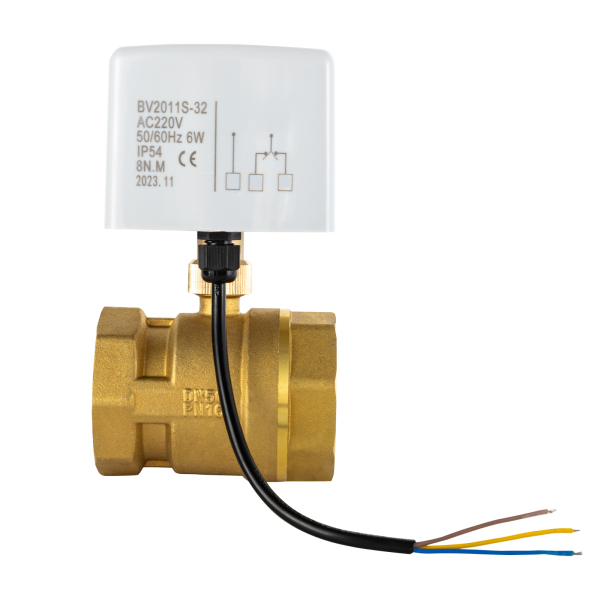

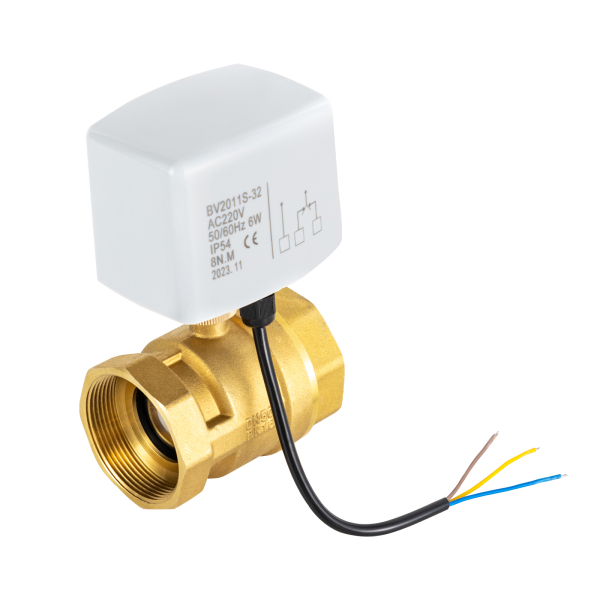

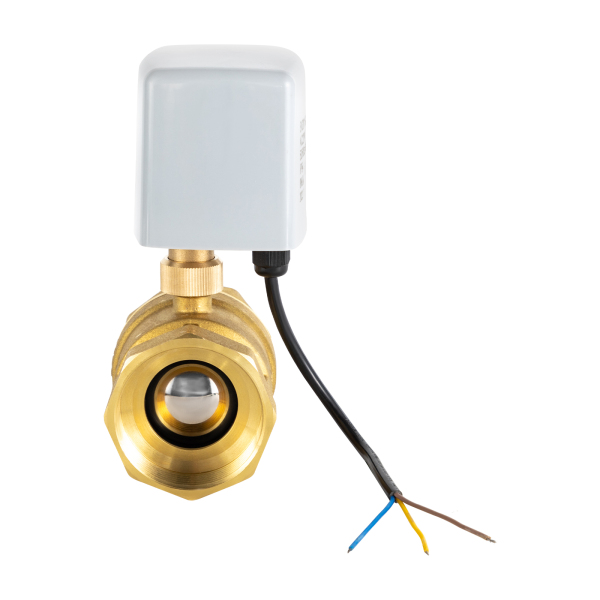

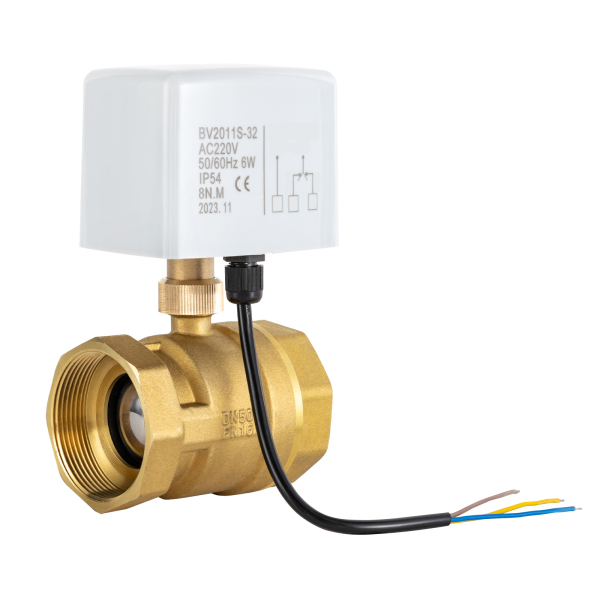

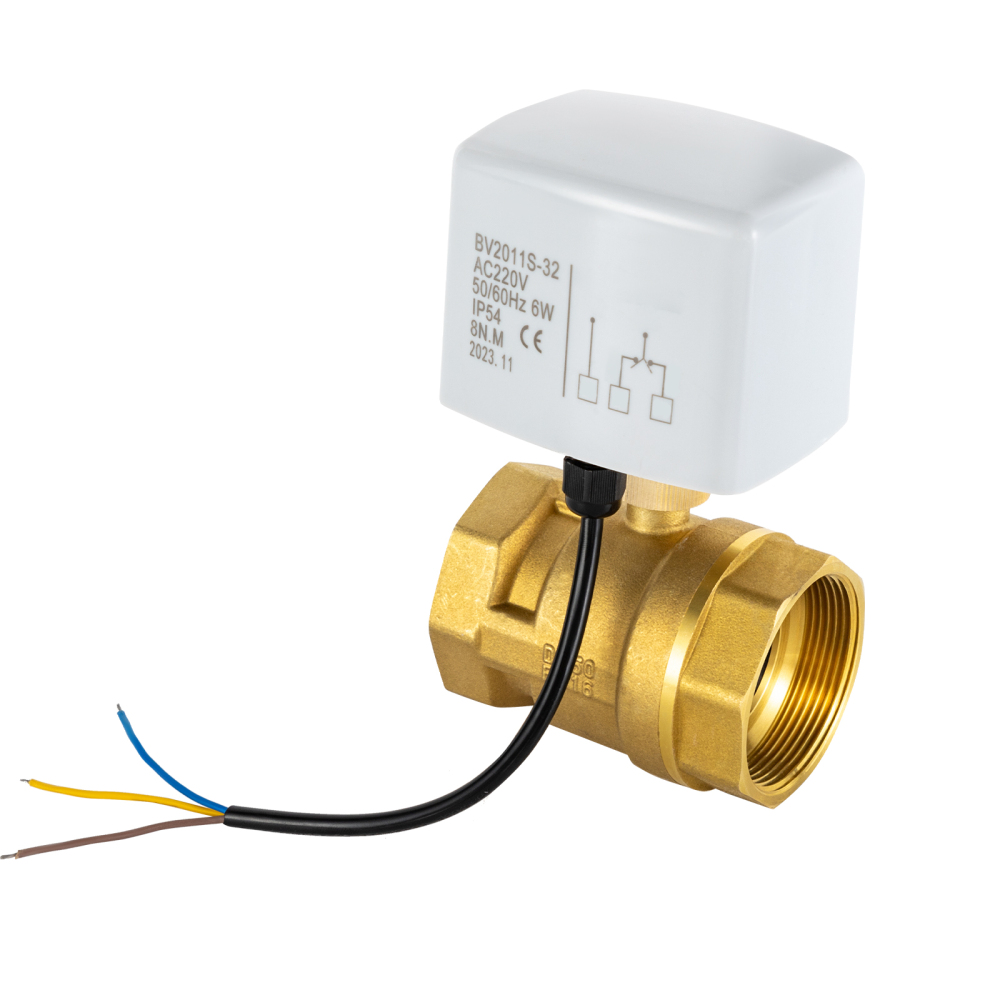

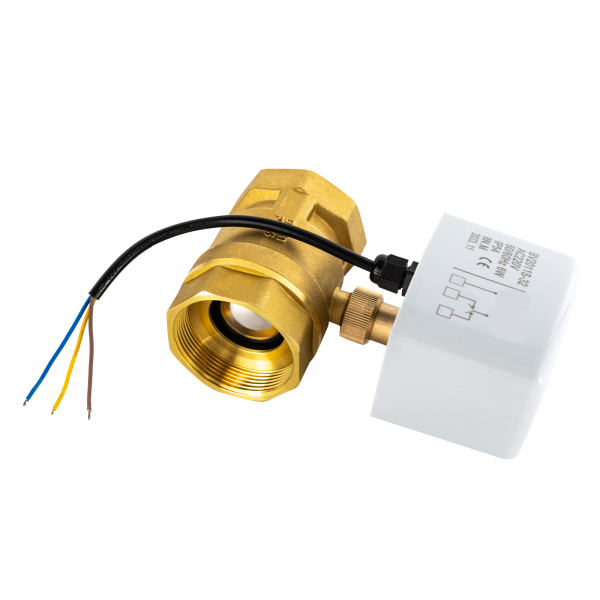

AC220V DN50 2 Inch 2‑Way 3‑Wire Brass Electric Motorized Ball Valve ESA
AC220V DN50 2 Inch 2‑Way 3‑Wire Brass Electric Motorized Ball Valve ESA
AC220V DN50 2 Inch 2‑Way 3‑Wire Brass Electric Motorized Ball Valve ESA
AC220V DN50 2 Inch 2‑Way 3‑Wire Brass Electric Motorized Ball Valve ESA
AC220V DN50 2 Inch 2‑Way 3‑Wire Brass Electric Motorized Ball Valve ESA
AC220V DN50 2 Inch 2‑Way 3‑Wire Brass Electric Motorized Ball Valve ESA
AC220V DN50 2 Inch 2‑Way 3‑Wire Brass Electric Motorized Ball Valve ESA
AC220V DN50 2 Inch 2‑Way 3‑Wire Brass Electric Motorized Ball Valve ESA
AC220V DN50 2 Inch 2‑Way 3‑Wire Brass Electric Motorized Ball Valve ESA
AC220V DN50 2 Inch 2‑Way 3‑Wire Brass Electric Motorized Ball Valve ESA
AC220V DN50 2 Inch 2‑Way 3‑Wire Brass Electric Motorized Ball Valve ESA
AC220V DN50 2 Inch 2‑Way 3‑Wire Brass Electric Motorized Ball Valve ESA
AC220V DN50 2 Inch 2‑Way 3‑Wire Brass Electric Motorized Ball Valve ESA
AC220V DN50 2 Inch 2‑Way 3‑Wire Brass Electric Motorized Ball Valve ESA
AC220V DN50 2 Inch 2‑Way 3‑Wire Brass Electric Motorized Ball Valve ESA
AC220V DN50 2 Inch 2‑Way 3‑Wire Brass Electric Motorized Ball Valve ESA

AC220V DN50 2 Inch 2‑Way 3‑Wire Brass Electric Motorized Ball Valve ESA

(0 reviews)
Ask a question
AU $75.00
  • Brand: CNCEST
  • Product Code: GY42SC-000100N2
  • Availability: In Stock
Quantity
- +
Estimated Delivery:
Free Fast Shipping:
On all orders
estimated delivery guarantee

Sturdy and Durable

The product is mainly made of high-quality brass, with a CNC machining process, which is hard, wear-resistant, corrosion-resistant, and not easy to rust and deform, ensuring a long service life.

Safe and Energy-saving

This product has a built-in travel limit switch, which can make the valve cut off power when it is fully open or fully closed, so it is safe and energy-saving.

Lightweight and Portable

With its compact size (3.74*2.72*6.77 inches) and lightweight (2.65 lbs), you can easily take it to wherever you need it.

Easy to Use

The valve switch is controlled by an electric driver, which takes only about 15 seconds to open or close, making it very easy and convenient to operate.

Simple Installation

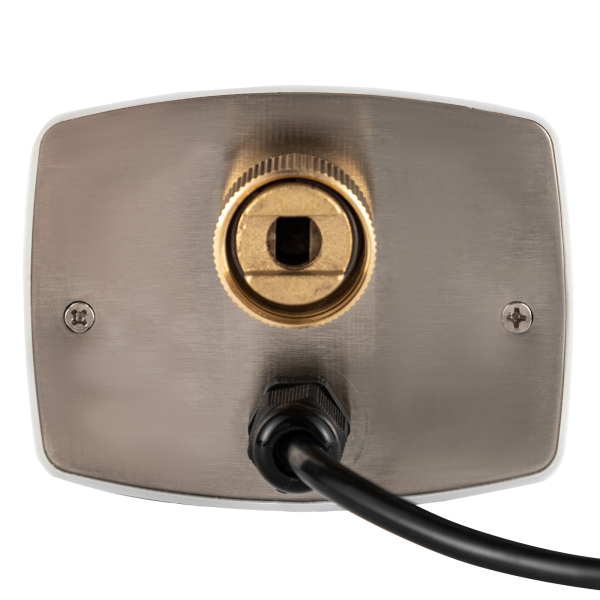

With its simple structure and removable driver, you can complete the installation quickly and accurately.

Low Noise

This product does not produce annoying noise when in use, so it will not disturb neighbors and others.

Obvious Wires

Three wires are in different colors for easy identification and to avoid misconnections.

Smooth Edge

The rounded and smooth edges not only add to the aesthetics of the product but also improve the safety of use.

Application

It is widely used in heating, ventilation, air conditioning, refrigeration, and other building automation systems to regulate the fluid flow in the piping system by controlling the opening or closing of the valve to achieve a comfortable greenhouse environment.

Specifications
Color:  Golden, White
Material:  Brass
Process:  CNC Machining
Assembly Required:  Yes
Wiring:  Zero Line (Two-color), Fire Line Close Valve ( Brown ), Fire Line Open Valve ( Blue )
Voltage:  AC 220V 50/60Hz
Power:  6W
Port Size:  DN50 2"
Action Time:  About 30s
Torsion:  8N.M
Close Pressure Difference:  ≤0.6MPa
Nominal Pressure:  PN16
Angle:  0-90°
Applicable Medium:  Cold/Hot Water, 50% Ethanol Solution
Medium Temperature:  5-95℃/ 41-203℉
Driver Size:  8.9*6.2*7cm/ 3.5*2.44*2.75in
Valve Inner Diameter:  5.7cm/ 2.24in
Valve Outer Diameter:  6.9cm/ 2.72in
Valve Length:  9.5cm/ 3.74in
Overall Height:  17.2cm/ 6.77in
Gross Weight:  1.4kg/ 3.09 lbs
Net Weight:  1.2kg/ 2.65 lbs
Package Size:  15*10.5*8 cm/ 5.91*4.13*3.15in
Package Included:
1* Electric 2-Way Ball Valve
1* English Manual

Specifications

Color Golden, White Material Brass
Process CNC Machining Assembly Required Yes
Wiring Zero Line (Two-color), Fire Line Close Valve ( Brown ), Fire Line Open Valve ( Blue ) Voltage AC 220V 50/60Hz
Power 6W Port Size DN50 2"
Action Time About 30s Torsion 8N.M
Close Pressure Difference ≤0.6MPa Nominal Pressure PN16
Angle 0-90° Applicable Medium Cold/Hot Water, 50% Ethanol Solution
Medium Temperature 5-95℃/ 41-203℉ Driver Size 8.9*6.2*7cm/ 3.5*2.44*2.75in
Valve Inner Diameter 5.7cm/ 2.24in Valve Outer Diameter 6.9cm/ 2.72in
Valve Length 9.5cm/ 3.74in Overall Height 17.2cm/ 6.77in
Gross Weight 1.4kg/ 3.09 lbs Net Weight 1.2kg/ 2.65 lbs
Package Size 15*10.5*8 cm/ 5.91*4.13*3.15in

Product Tips

Notes:

1.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
2.Please note that this product is not suitable for car use, because the voltage in the car is not stable, and the product is not waterproof or shock-resistant.
3.The diameter of the valve will be reduced to a certain degree, please check the size before purchasing.
4.This product is not recommended for installation in an outdoor wet environment.
5.There is a delay of about 6-15 seconds between opening and closing, which is not suitable for frequent switching.
6.If the ambient temperature is below 32℉ and the product is not in use, the water in the pipeline must be drained off in advance to avoid the expansion of the valve cracking after freezing.
7.Please note that the pressure difference between the two sides of the valve should be less than 0.1 MPA when operating.
8.Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
