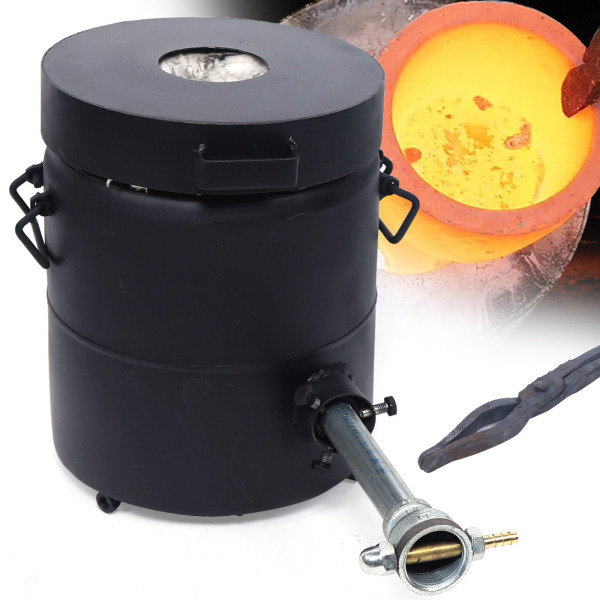

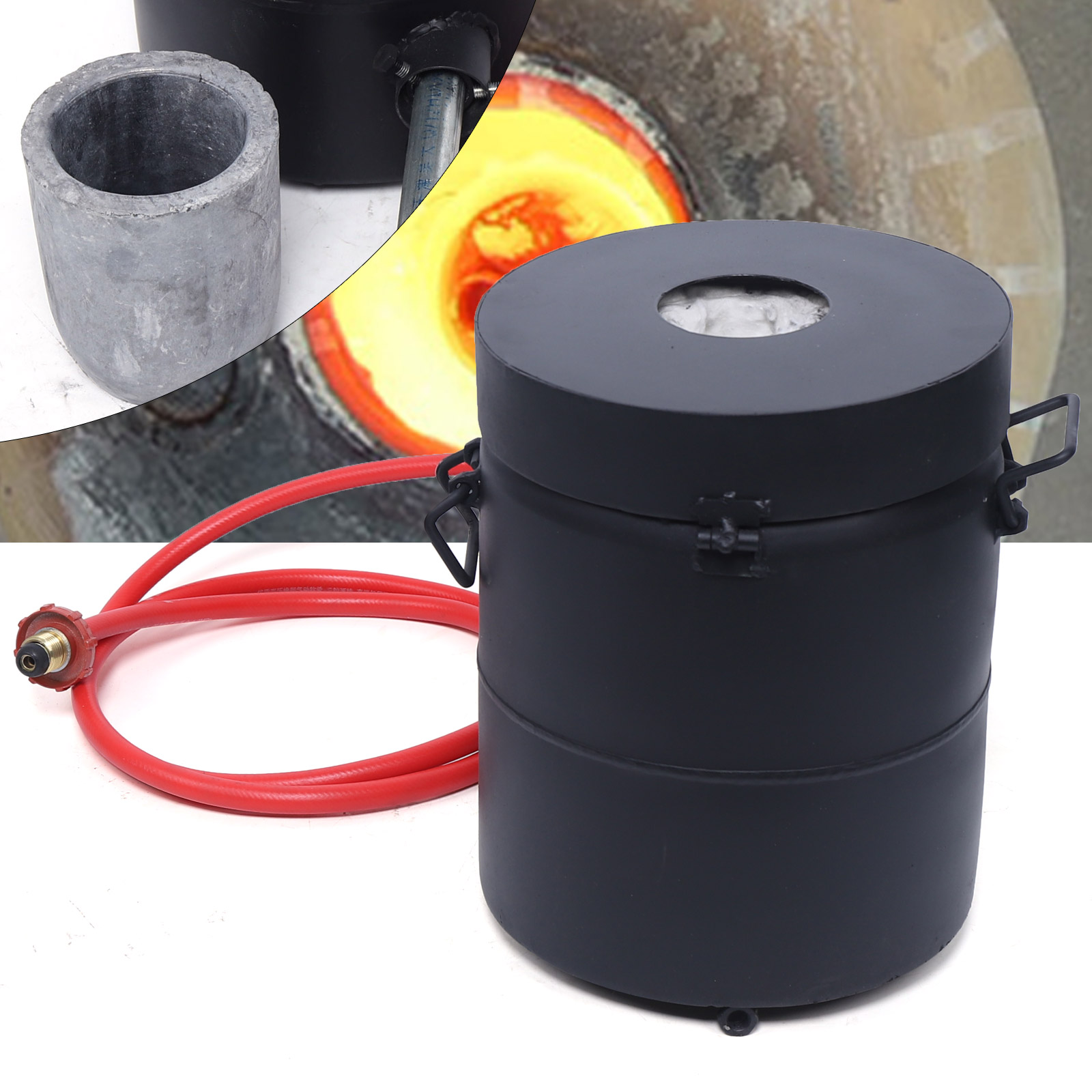

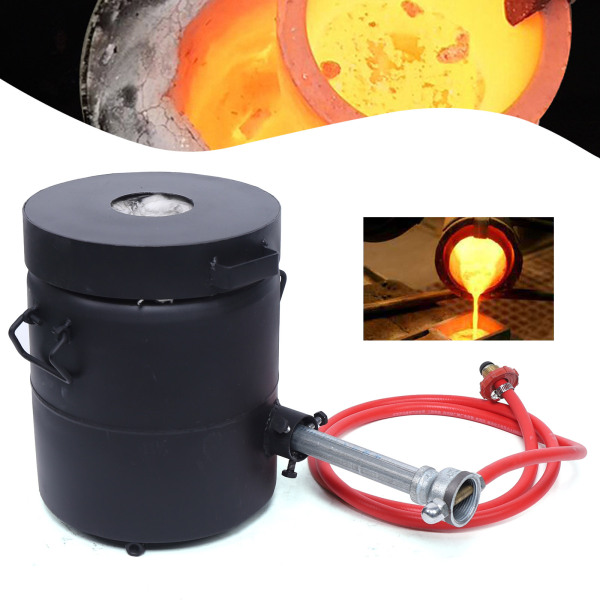

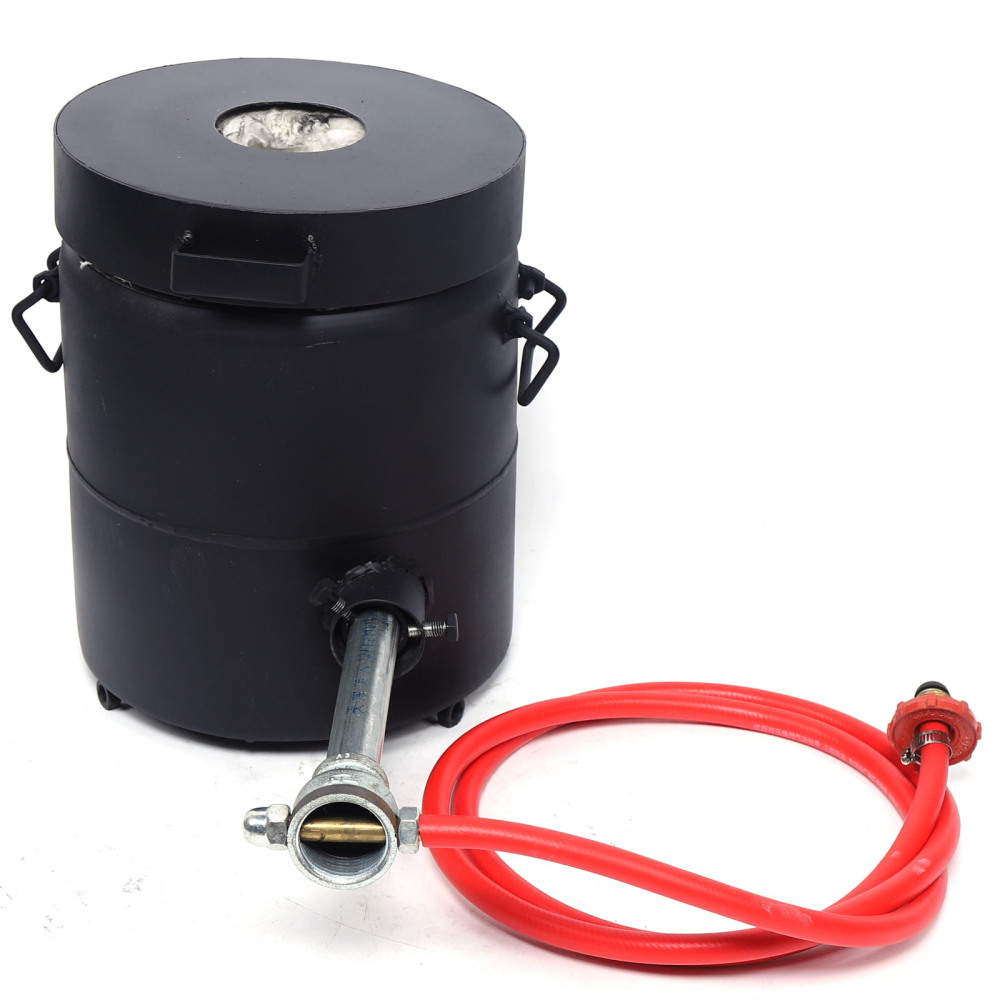

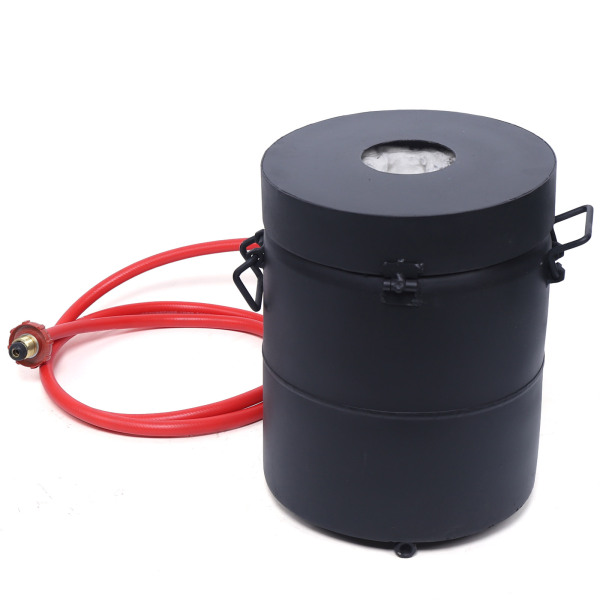

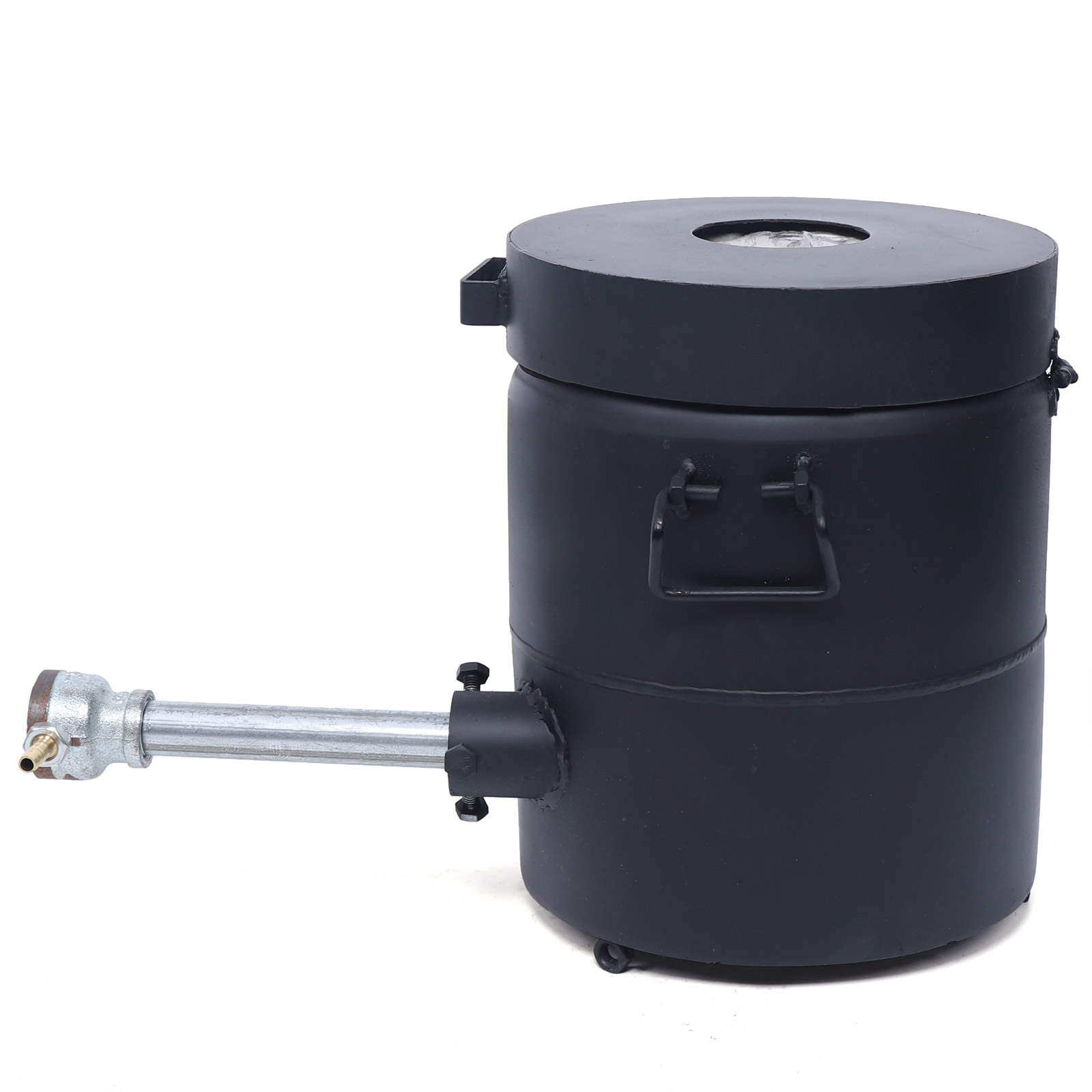

HOME SMELTING:The propane melting furnace designed and produced by us is an excellent choice for your home smelting. It is safe, efficient and economical.Whether you are a novice or an experienced craftsman, whether you want to create a unique gift or are committed to the environmentally friendly recycling of waste. This luxurious melting furnace suit can meet your needs.
EFFICIENT FUN: Output 135,000 BTU. Compared with the electrically heated melting furnace, we use propane as the fuel, which has absolute advantages in both the heating efficiency and the highest temperature that can be reached.The temperature rises quickly to reduce your waiting time, which can double your fun in the melting process. It is normal for the side of the melting furnace to turn red during use, don't worry!

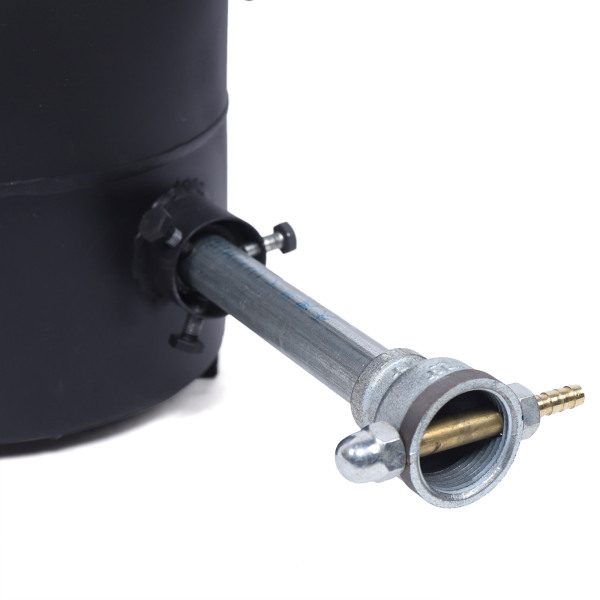

WIDE RANGE USES: Because of the use of efficient burners and excellent ceramic fiber insulation materials, the inside of the furnace can be heated up to 1400°C/2552°F. With a large-capacity crucible, you can use this furnace to melt aluminum, copper, silver, gold and other metal materials. Burner doesn't work right not enough power? Check your air intake control is it opened.Check your regulator is it opened.Check gas tank is it full. Or disconnect PVC pipe and try to clear the injector pipe.
RELIABLE: We also do our best in details. The rotatable stainless steel handles on the furnace make it easy for you to carry them. They are durable. The three supporting feet below the furnace body ensure that the furnace will not tip over and isolate the heat from being transferred to the equipment on which the furnace is placed, thereby enhancing safety.Use hard ceramic fiber mats instead of fire brick in the furnace during heating. More advantages you can experience after use.
STANDARD: We have conducted a lot of experiments on our products.The operation steps, precautions and common problem solutions we have summarized are clearly listed in this listing and the manual in the package.Please read it carefully before using this furnace.If you have any questions before purchase and during use, please don't hesitate to contact us. Our professional team will give you a satisfactory reply within 16 hours.

The highest temperature can reach 1300, and it can melt metals with a melting point lower than 1300. For example: gold, silver, copper, aluminum, zinc, tin, etc.

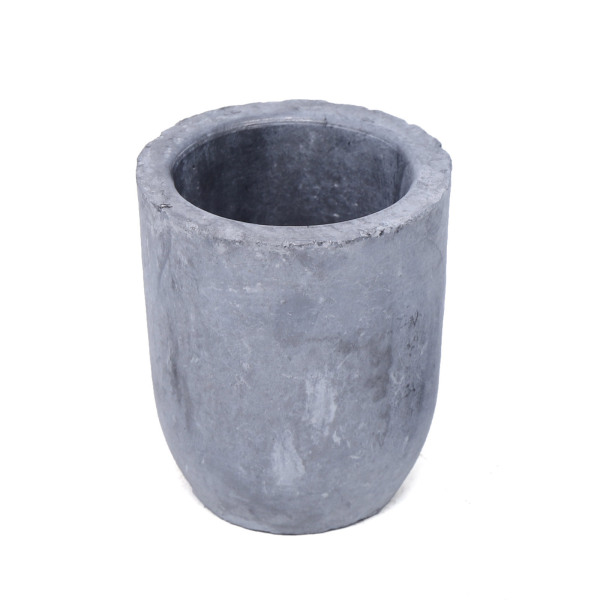

Using high-quality all-graphite crucible, the service life can be up to 500 times.

Large capacity, can melt 6KG copper, 1.6KG aluminum, 7KG silver, 12KG gold. It takes about 20-25 minutes to melt 6KG copper.

Specifications:
Furnace wall material: refractory ceramic wool (replaceable consumables)
Usable Fuel: Liquefied gas, natural gas, propane
Molten Metals: Gold, silver, aluminum, copper, brass, bronze, tin K gold and other Metals with a melting point below 1300°C
Crucible Height: 145mm
Inner Height of Crucible: 134mm
Crucible Capacity: 650ML
Maximum outer diameter of crucible: φ120mm
Maximum inner diameter of crucible: φ90mm
Minimum inner diameter of crucible: φ85mm
Outer diameter of furnace: φ28cm
Furnace Height: 27cm
Furnace inner diameter: φ16cm
Furnace Height: 17cm
Maximum Temperature: 1300°C (2372°F)
Packing Size: about 38*29*29cm
Package Weight: 12kg

Precautions:
1) Before use, the melting furnace and crucible must be preheated at a temperature of 300-500 within 5 to 6 minutes. After use, it cannot be cooled quickly, please cool naturally. Graphite crucibles are consumables, you can replace them with new ones as needed.
2) In order to control the combustion temperature more conveniently, please install a pressure regulating valve and a pressure gauge, and connect them to the air pipe.
3) Do not use it to melt iron, manganese and other metals whose melting point is higher than 1400, otherwise the furnace wall will melt. Remelting is prohibited to prevent liquid metal from flowing out.
4) Please wear high temperature gloves, high temperature mask and high temperature clothes before use. Prepare a bottle of fire extinguisher nearby to prevent accidents.
5) The inner wall of our product is insulated with refractory cement, which may cause cracks during transportation and use, please don't worry, it will not affect the use and will not cause any danger.

Packing Included:
1*melting furnace
1*6KG capacity crucible

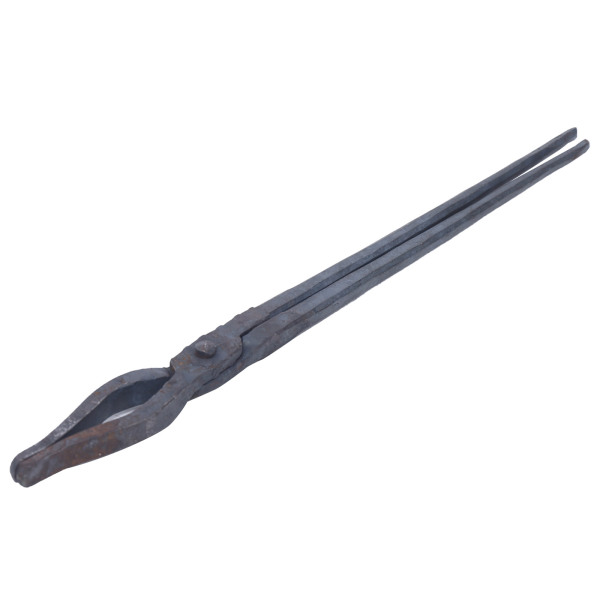

1*Crucible Tongs
1*Oil tank
1*trachea
