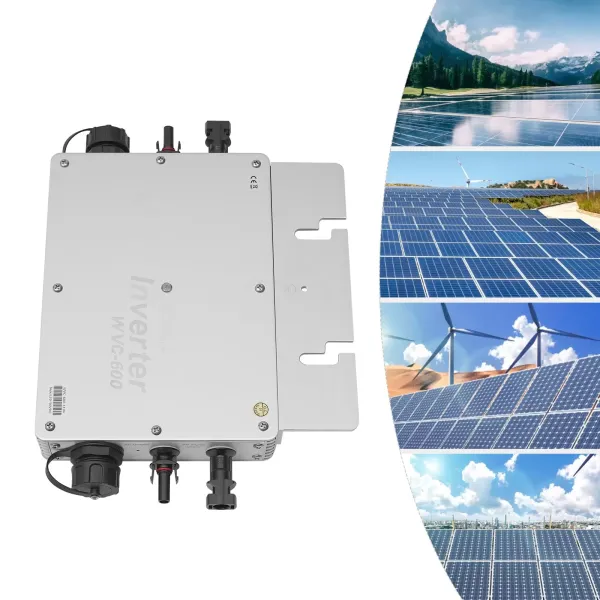

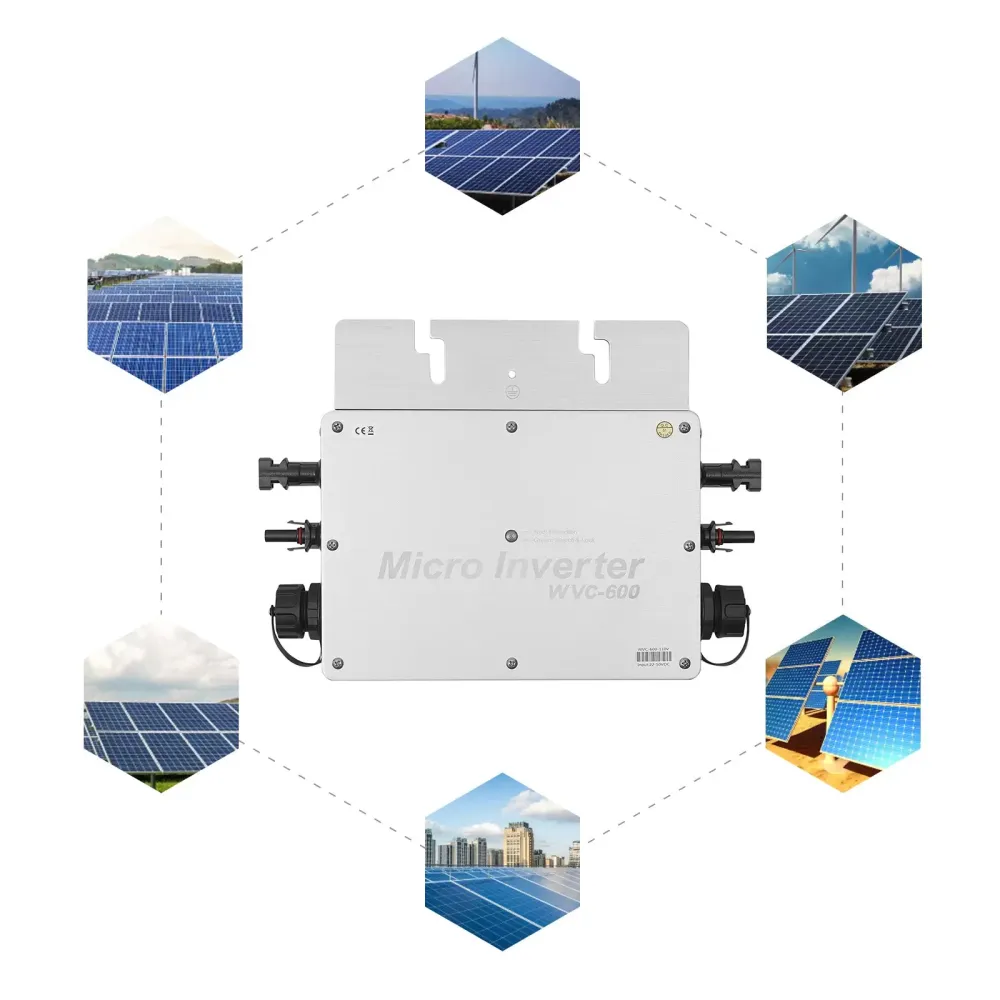

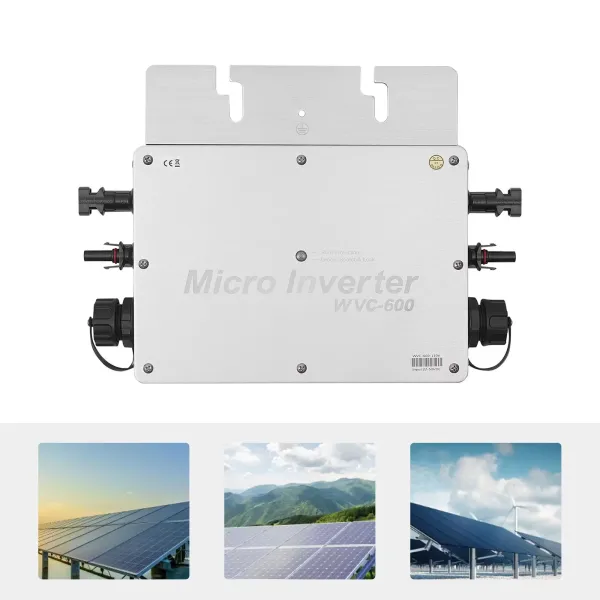

600W Solar Micro Inverter Grid Tie MPPT Pure Sine Wave DC to AC IP65 Waterproof
- Brand: CNCEST
- Product Code: YLLNMVO8AUZFP
- Availability: Out Of Stock

6-stage Power Search: The inverter automatically switches on the 6-stage power search function when the output current of the solar cells is extremely low on cloudy days, enabling a constant, stable and efficient power output at low power levels, which greatly increases the power generation capacity of the system.
Direct Use: It uses solar power directly, so you can simply connect the solar panels directly to the grid-connected inverter to get AC power without having to connect the batteries, which is convenient and energy efficient.
High Performance: It has a powerful MPPT (Maximum Power Point Tracking) algorithm and APL function to optimize the power collection from the solar panels while making the output power more stable. It accurately captures and locks in the maximum output power point even under fluctuations in current intensity, resulting in a significant increase in power generation to greater than 25%.
Multiple Protection Functions: It provides six protection functions, over temperature protection, under voltage alarm, under voltage protection, over voltage protection, short circuit protection and overload protection functions, so you can use it with confidence.
Reliable Circuit System: The product has a constant current and output power, and features galvanic isolation technology to provide a fully isolated boost circuit, making the circuit safe and reliable. In addition, the output is automatically switched off when there is an obstruction in the main network.

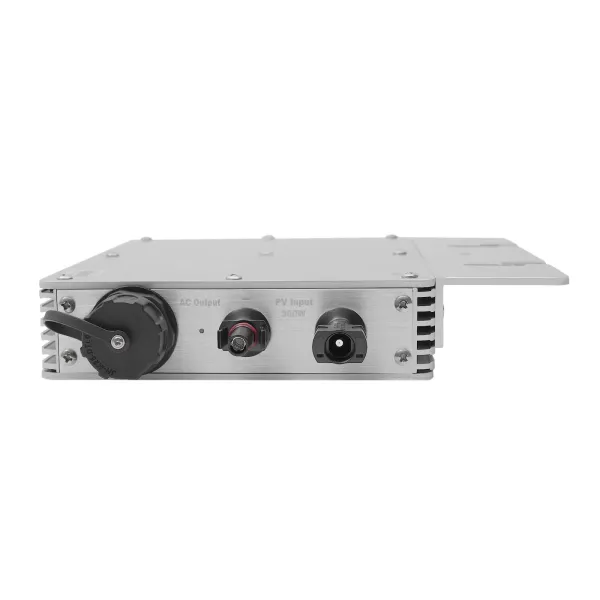

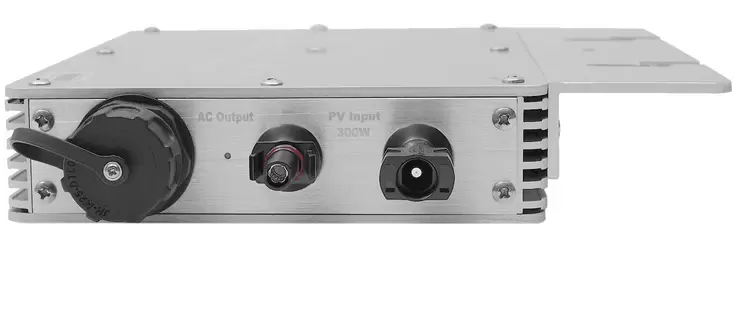

Waterproof Cover: The AC and DC interface are equipped with a waterproof cover to prevent dust and water from entering when not in use for a longer service life. The cover and the interface are connected together to prevent loss.
LED Indicator: The LED indicator on the body allows you to control its operating status through different flashing conditions.
Digital Control: It adopts 32-bit DSP fully digital SPWM control technology, featuring strong anti-interference capability, fast computing speed and high intelligence to improve control accuracy and output waveform quality.
Application
This product is applicable to 30V or 36V solar panels, 36V batteries. It can be used in residential and small commercial environments. It is suitable for various household appliances.
How to Use
Step 1: Install the inverter on the support of the photovoltaic panel with the screws provided by the machine.
Step 2: Connect the positive and negative poles of the DC connection plug on the photovoltaic panel to the DC input terminal of the inverter.
Step 3: Open the waterproof cover of the AC output interface of the inverter and connect the AC cable to the AC waterproof plug.
Step 4: Connect the AC output cable to the AC main cable.
Step 5: Repeat steps 1 to 3 to install and connect all inverters.
Step 6: Connect the AC main cable to the public grid and start your green energy journey
Specifications
Material: Aluminum Alloy
Color: Silver
Power Source: Solar Powered
Maximum Input Power: 600Watt
Recommend the Use of PV Modules: 2x300W & Vmp>30V & Voc<50V
Maximum Input DC Voltage: 54V
Peak Power Tracking Voltage: 22-45V
Operating Voltage Range: 17- 50V
Min/Max Starting Voltage: 22- 50V
Maximum DC Short-circuit: 40A
Maximum Input Operating Current: 27.2A
Peak Power Output: 600Watt
Rated Output Power: 550Watt
Rated Output Current: 2.39A
Rated Voltage Range: 180-260VAC
Rated Frequency Range: 47-52.5Hz
Power Factor: >99%
Max Unit Per Branch Circuit: 12pcs (Single-phase)
Output Efficiency: @230V
Static MPPT Efficiency: 99.5%
Night Time Power Consumption: < 1W
THD: < 5%
Ambient Temperature Range: -40°C to + 60°C
Waterproof Rating: IP65
Cooling: Self-cooling
Packing Size: 32*22*9.5cm/12.59*8.66*3.74in

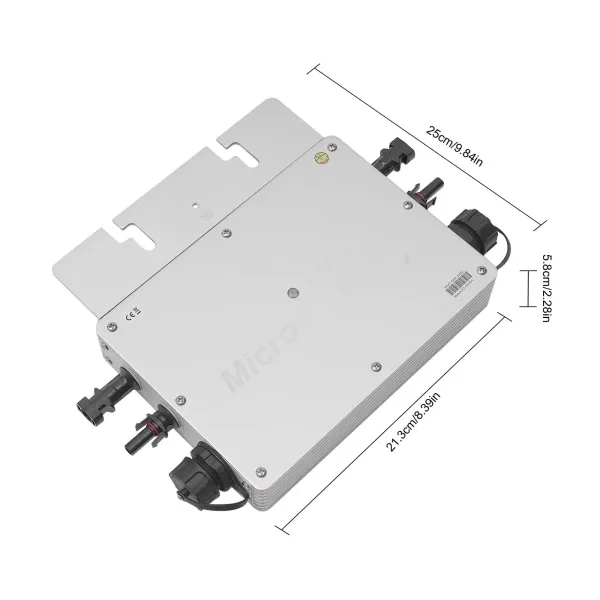

Product Size: 21.3*5.8*25cm/8.39*2.28*9.84in
Gross Weight: 2.45kg/5.4lbs
Net Weight: 1.6kg/3.52lbs

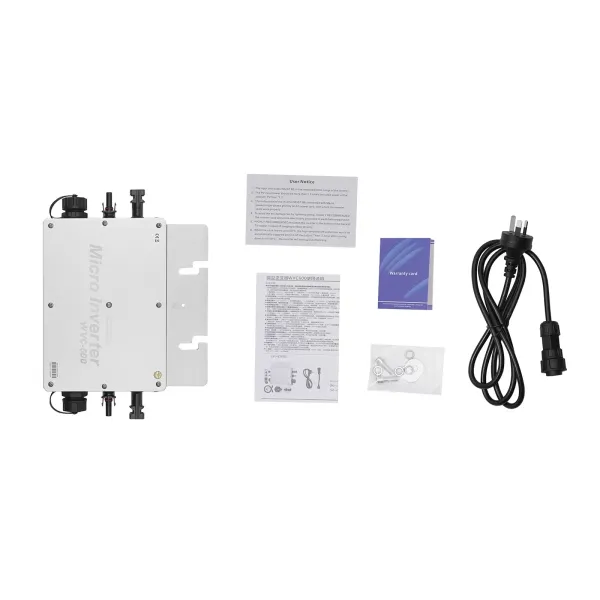

Package Included
1* Micro Inverter
1* AC Connection Cable
1* English User Notice Manual
1* Chinese English Integrated Instruction
Other Accessories for Installation
Notes
1. Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
2. If using solar PV panels, it is important that the VOC voltage is between 30-48V and it is recommended that the solar panel configuration is >20% of the product's power. For example, if the product is 600W, then the total power of the solar panel should be between 700-750W.
3. If the input load is a battery, it is recommended that the battery voltage is 36V, or 3 12V batteries can be connected in series. Please note that when connecting the product, the positive and negative polarity should not be reversed.
4. The input and output voltage of the configuration is within the normal operating voltage range of the product in order for the product to work properly and achieve grid-connected power generation.
5. Please do not dismantle the inverter by non-specialists, only qualified service personnel should repair this product.
