120W 30K 110V Adjustable Variable Gear Reducer Motor AC Gear Motor with Speed Controller High Torque Single-Phase Electric Gear Motor
120W 30K 110V Adjustable Variable Gear Reducer Motor AC Gear Motor with Speed Controller High Torque Single-Phase Electric Gear Motor
120W 30K 110V Adjustable Variable Gear Reducer Motor AC Gear Motor with Speed Controller High Torque Single-Phase Electric Gear Motor
120W 30K 110V Adjustable Variable Gear Reducer Motor AC Gear Motor with Speed Controller High Torque Single-Phase Electric Gear Motor
120W 30K 110V Adjustable Variable Gear Reducer Motor AC Gear Motor with Speed Controller High Torque Single-Phase Electric Gear Motor
120W 30K 110V Adjustable Variable Gear Reducer Motor AC Gear Motor with Speed Controller High Torque Single-Phase Electric Gear Motor
120W 30K 110V Adjustable Variable Gear Reducer Motor AC Gear Motor with Speed Controller High Torque Single-Phase Electric Gear Motor
120W 30K 110V Adjustable Variable Gear Reducer Motor AC Gear Motor with Speed Controller High Torque Single-Phase Electric Gear Motor
120W 30K 110V Adjustable Variable Gear Reducer Motor AC Gear Motor with Speed Controller High Torque Single-Phase Electric Gear Motor
120W 30K 110V Adjustable Variable Gear Reducer Motor AC Gear Motor with Speed Controller High Torque Single-Phase Electric Gear Motor
120W 30K 110V Adjustable Variable Gear Reducer Motor AC Gear Motor with Speed Controller High Torque Single-Phase Electric Gear Motor
120W 30K 110V Adjustable Variable Gear Reducer Motor AC Gear Motor with Speed Controller High Torque Single-Phase Electric Gear Motor
120W 30K 110V Adjustable Variable Gear Reducer Motor AC Gear Motor with Speed Controller High Torque Single-Phase Electric Gear Motor
120W 30K 110V Adjustable Variable Gear Reducer Motor AC Gear Motor with Speed Controller High Torque Single-Phase Electric Gear Motor
120W 30K 110V Adjustable Variable Gear Reducer Motor AC Gear Motor with Speed Controller High Torque Single-Phase Electric Gear Motor
120W 30K 110V Adjustable Variable Gear Reducer Motor AC Gear Motor with Speed Controller High Torque Single-Phase Electric Gear Motor
120W 30K 110V Adjustable Variable Gear Reducer Motor AC Gear Motor with Speed Controller High Torque Single-Phase Electric Gear Motor
120W 30K 110V Adjustable Variable Gear Reducer Motor AC Gear Motor with Speed Controller High Torque Single-Phase Electric Gear Motor
120W 30K 110V Adjustable Variable Gear Reducer Motor AC Gear Motor with Speed Controller High Torque Single-Phase Electric Gear Motor
120W 30K 110V Adjustable Variable Gear Reducer Motor AC Gear Motor with Speed Controller High Torque Single-Phase Electric Gear Motor
120W 30K 110V Adjustable Variable Gear Reducer Motor AC Gear Motor with Speed Controller High Torque Single-Phase Electric Gear Motor
120W 30K 110V Adjustable Variable Gear Reducer Motor AC Gear Motor with Speed Controller High Torque Single-Phase Electric Gear Motor
120W 30K 110V Adjustable Variable Gear Reducer Motor AC Gear Motor with Speed Controller High Torque Single-Phase Electric Gear Motor
120W 30K 110V Adjustable Variable Gear Reducer Motor AC Gear Motor with Speed Controller High Torque Single-Phase Electric Gear Motor

120W 30K 110V Adjustable Variable Gear Reducer Motor AC Gear Motor with Speed Controller High Torque Single-Phase Electric Gear Motor

(0 reviews)
Ask a question
AU $189.00
  • Brand: CNCEST
  • Product Code: JZ8V7C3GNSWMT
  • Availability: In Stock
Quantity
- +
Estimated Delivery:
Free Fast Shipping:
On all orders
estimated delivery guarantee
120W 30K 110V Adjustable Variable Gear Reducer Motor AC Gear Motor with Speed Controller High Torque Single-Phase Electric Gear Motor

120W 30K 110V Adjustable Variable Gear Reducer Motor AC Gear Motor with Speed Controller High Torque Single-Phase Electric Gear Motor

  • Description
  • Reviews (0)
  • Recommer
  • Delivery and Return

High-quality Material

This product is made of high-quality medium carbon tempered steel, with high hardness, strong wear resistance, anti-corrosion, anti-rust performance, and long service life.

High Efficiency

The speed of a 120W motor can reach 45rpm, ensuring high efficiency and saving you a lot of working time.

Commutation Function

This product has flexible normally open and normally closed control system by changing wires or adding switches, providing you with higher freedom of use.

Large Torque

The stable pure purple copper coil and gear set consisting of full ball bearings and medium carbon tempered steel gears can effectively increase the torque of the motor, providing you with smoother and more powerful operation.

Easy to Clean

The surface of the product is smooth and flat to clean. You can easily wipe off the dust and stains on the surface with a rag.

Stator:

Both ends of the stator are equipped with ball-bearing axle wheels, resulting in low friction, temperature, and noise.

Fine Fittings:

The fine fittings make the top cover and bottom cover tightly combined, thus making the rotor run stably.

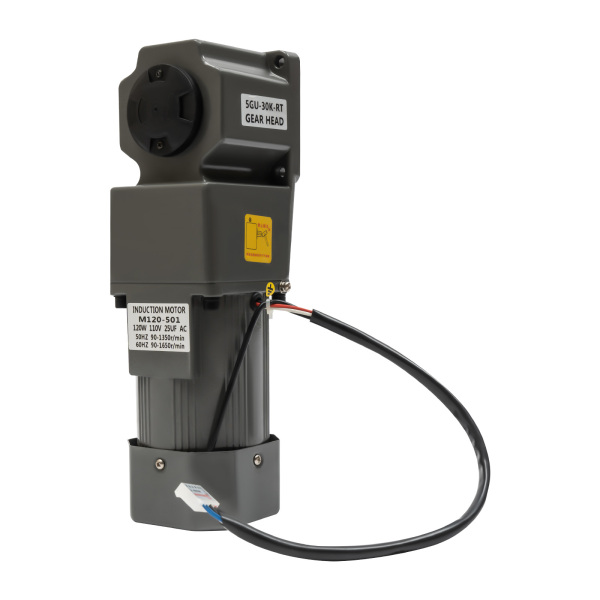

Gearbox:

5GU gears are vacuum plasma nitrided for high strength and its shaft keyway is equipped with fixed key pins for wear resistance and stability. The gearbox has built-in solid lubricant for smoother rotation.

Efficient Heat Dissipation:

Built-in cooling fan, bottom cooling window design, and stable performance of pure purple copper coil can effectively dissipate heat, thus ensuring long-term stable operation.

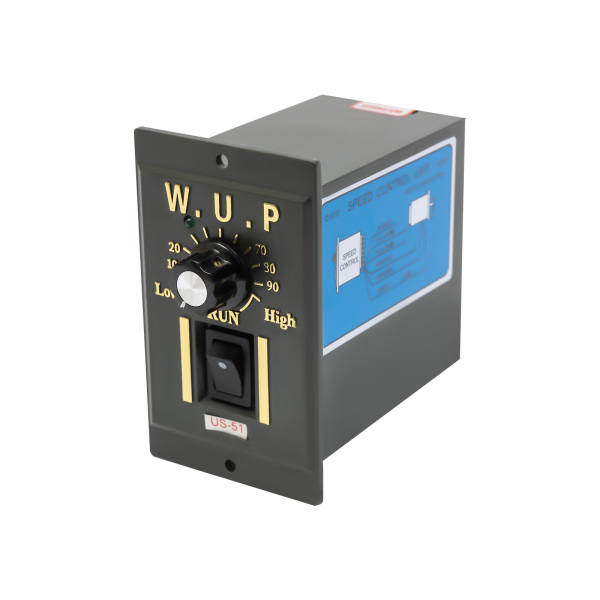

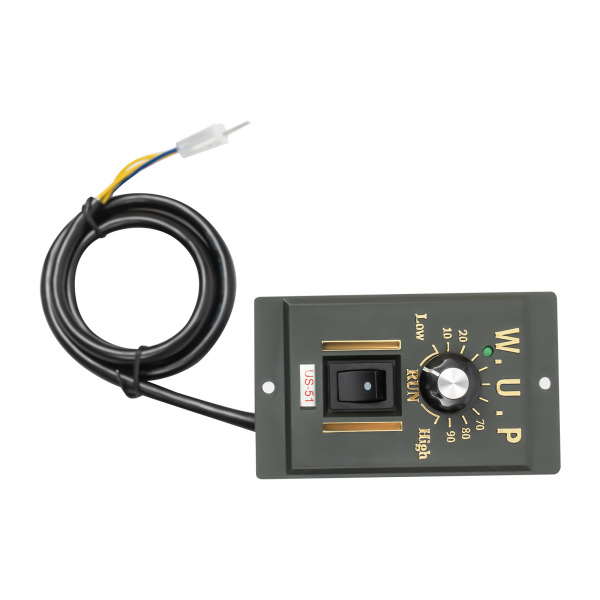

Adjustable Speed:

The speed regulator with high precision and wide speed range allows you to adjust different speeds according to different applications to achieve the expected results.

Application:

This product can be used in packaging, printing, textile, printing and dyeing, chemical, food, pharmaceutical, and other engineering machinery, as well as advertising, office, petrochemical, instrumentation, stage lighting, transmission, automated warehouse, parking lot, and other equipment.

Specifications
Material:  Medium Carbon Tempered Steel
Color:  Dark Grey
Process:  Plastic Spraying, One-piece Forming, Heat Treatment
Type:  Medium Solid Motor
Reduction Ratio:  1
Power Supply:  Wiring
Voltage:  110V
Power:  120W
Torque:  20NM
Rotational Speed:  45R/MIN
Output:  90° Right Angle Output
Gross Weight:  8kg/ 17.64 lbs
Total Height:  31.9cm/12.6in
Reduction Box Size:  9*9cm/3.5*3.5in
Governor Size:  10*6*9cm/3.9*2.4*3.5in
Package Size:  33*16*12 cm/ 12.99*6.3*4.72 in

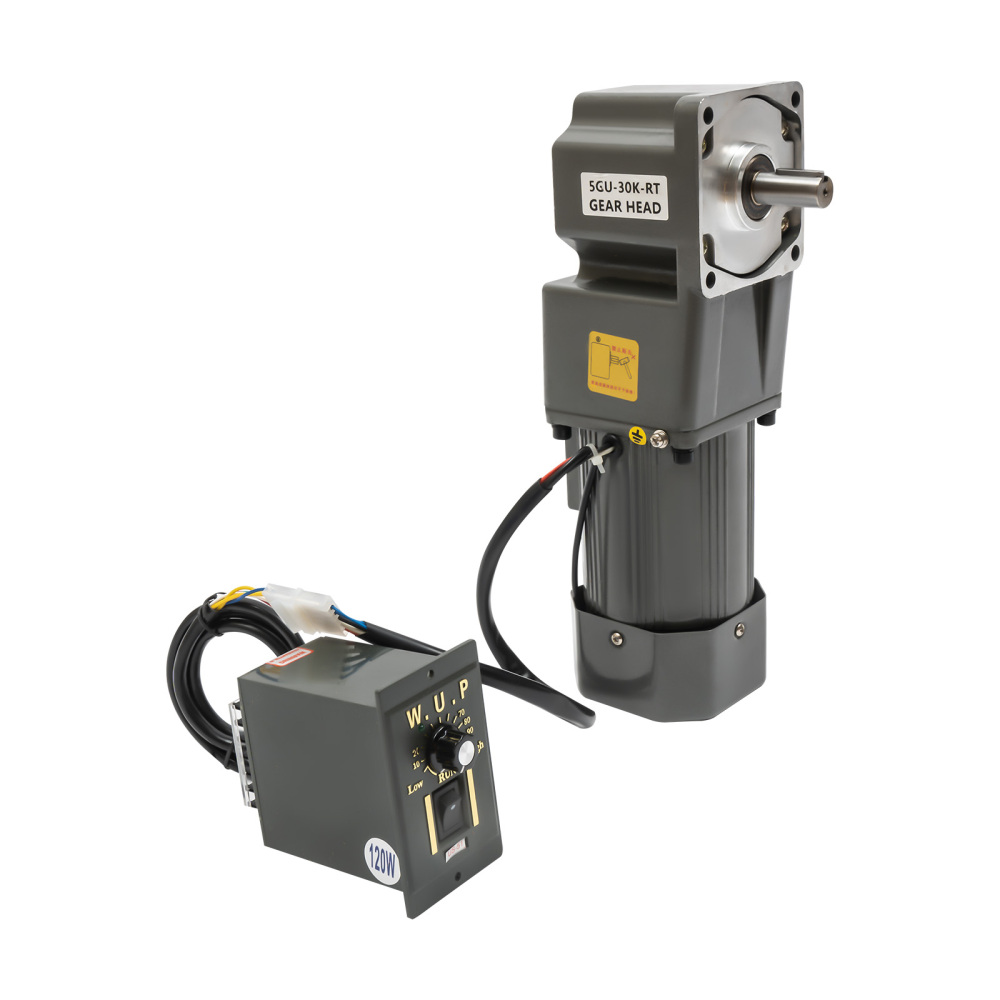

Package Included
1 * Speed Reduction Motor
1 * Speed Governor
1 * English Manual
All Accessories for Installation

Specifications

Material Medium Carbon Tempered Steel Color Dark Grey
Process Plastic Spraying, One-piece Forming, Heat Treatment Type Medium Solid Motor
Reduction Ratio 1 Power Supply Wiring
Voltage 110V Power 120W
Torque 20NM Rotational Speed 45R/MIN
Output 90° Right Angle Output Gross Weight 8kg/ 17.64 lbs
Total Height 31.9cm/12.6in Reduction Box Size 9*9cm/3.5*3.5in
Governor Size 10*6*9cm/3.9*2.4*3.5in Package Size 33*16*12 cm/ 12.99*6.3*4.72 in

Product Tips

Speed Range

1. The lower the governor's speed, the slower the speed, the smaller the force. The normal reasonable speed range is 50%~100%.
2. The larger the speed ratio, the slower the speed, the greater the force; the smaller the speed ratio, the faster the speed, the smaller the force. (Example: Both are 20 revolutions, but the 20 revolutions directly from the reducer are 2-3 times smaller than selecting a 40 revolution and then adjusting to 20 revolutions.)

Notes

1.Our motors do not include the power cord and the bracket.
2.Please do not plug and unplug the power cord with the power on. Please do not knock on the machine.
3.The speed reduction motor is composed of a motor and a speed reduction gear. Different speed ratios can achieve different speed regulation ranges, and they have different strengths.
4.The speed of the output shaft is different under different reduction ratios. When the gearbox decelerates, the higher the reduction ratio, the higher the force. The slower the speed regulated by the governor, the lower the torque.
5.The motor can run for a long time within the safe speed regulation range. The safe speed regulation range for small loads is 50% of full speed-full speed. The safe speed regulation range for large loads is 70% of full speed-full speed.
