Self Centering Dowelling Jig Metric Wood Punch Drilling Jig Accessories Wavy Woodworking Dowel Hole Drilling Guide Positioner Locator Tool Red
Self Centering Dowelling Jig Metric Wood Punch Drilling Jig Accessories Wavy Woodworking Dowel Hole Drilling Guide Positioner Locator Tool Red
Self Centering Dowelling Jig Metric Wood Punch Drilling Jig Accessories Wavy Woodworking Dowel Hole Drilling Guide Positioner Locator Tool Red
Self Centering Dowelling Jig Metric Wood Punch Drilling Jig Accessories Wavy Woodworking Dowel Hole Drilling Guide Positioner Locator Tool Red
Self Centering Dowelling Jig Metric Wood Punch Drilling Jig Accessories Wavy Woodworking Dowel Hole Drilling Guide Positioner Locator Tool Red
Self Centering Dowelling Jig Metric Wood Punch Drilling Jig Accessories Wavy Woodworking Dowel Hole Drilling Guide Positioner Locator Tool Red
Self Centering Dowelling Jig Metric Wood Punch Drilling Jig Accessories Wavy Woodworking Dowel Hole Drilling Guide Positioner Locator Tool Red
Self Centering Dowelling Jig Metric Wood Punch Drilling Jig Accessories Wavy Woodworking Dowel Hole Drilling Guide Positioner Locator Tool Red
Self Centering Dowelling Jig Metric Wood Punch Drilling Jig Accessories Wavy Woodworking Dowel Hole Drilling Guide Positioner Locator Tool Red
Self Centering Dowelling Jig Metric Wood Punch Drilling Jig Accessories Wavy Woodworking Dowel Hole Drilling Guide Positioner Locator Tool Red
Self Centering Dowelling Jig Metric Wood Punch Drilling Jig Accessories Wavy Woodworking Dowel Hole Drilling Guide Positioner Locator Tool Red
Self Centering Dowelling Jig Metric Wood Punch Drilling Jig Accessories Wavy Woodworking Dowel Hole Drilling Guide Positioner Locator Tool Red
Self Centering Dowelling Jig Metric Wood Punch Drilling Jig Accessories Wavy Woodworking Dowel Hole Drilling Guide Positioner Locator Tool Red
Self Centering Dowelling Jig Metric Wood Punch Drilling Jig Accessories Wavy Woodworking Dowel Hole Drilling Guide Positioner Locator Tool Red
Self Centering Dowelling Jig Metric Wood Punch Drilling Jig Accessories Wavy Woodworking Dowel Hole Drilling Guide Positioner Locator Tool Red
Self Centering Dowelling Jig Metric Wood Punch Drilling Jig Accessories Wavy Woodworking Dowel Hole Drilling Guide Positioner Locator Tool Red

Self Centering Dowelling Jig Metric Wood Punch Drilling Jig Accessories Wavy Woodworking Dowel Hole Drilling Guide Positioner Locator Tool Red

(2 reviews)
Ask a question
AU $76.00
  • Brand: CNCEST
  • Product Code: JZONFTU5WDWJ8
  • Availability: In Stock
Quantity
- +
Estimated Delivery:
Free Fast Shipping:
On all orders
estimated delivery guarantee
Self Centering Dowelling Jig Metric Wood Punch Drilling Jig Accessories Wavy Woodworking Dowel Hole Drilling Guide Positioner Locator Tool Red

Self Centering Dowelling Jig Metric Wood Punch Drilling Jig Accessories Wavy Woodworking Dowel Hole Drilling Guide Positioner Locator Tool Red

  • Description
  • Reviews (2)
  • Recommer
  • Delivery and Return

Premium Material

This positioner locator tool consists of an industrial-grade aluminum alloy pliers body and 60CRV bearing steel drill sleeves, together with an anodic oxidation treatment, making it corrosion-resistant, wear-resistant, durable, and has high hardness. You can use it for many years with just one purchase.

Precise Positioning

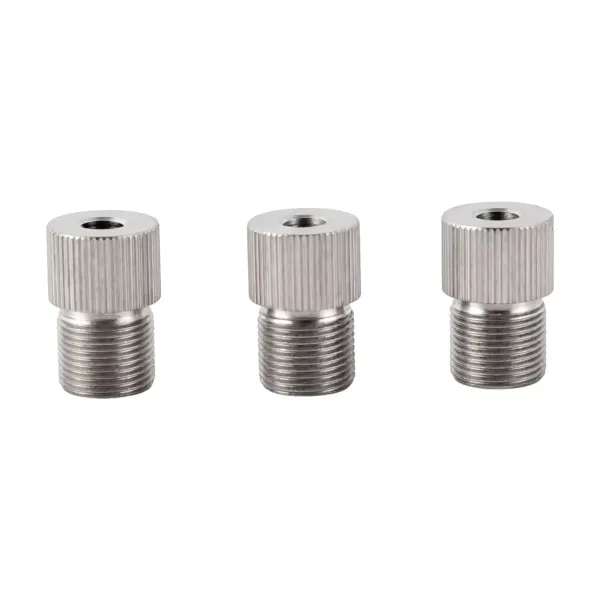

The bearing steel drill sleeves, which are threaded for precise positioning, provide 6mm, 8mm, and 10mm drill sleeves for making different sizes of holes. So you can easily and accurately find the center of the required positioning.

Two-in-one Function

This positioner locator tool can be used for round wood mortise and tenon planking, and scribing functions, which is optional and practical.

Great Accessories

This positioner locator tool is equipped with 9 threaded drill sleeves, including 3 each of 6/8/10mm inner diameter, and 1 each of 6/8/10mm size dowel pin, so it is a great choice for DIY and woodworking enthusiasts.

High Portablity

The positioner locator tool weighs only 0.7kg/0.5lbs, which is easy and convenient to carry and store. It is a good helper for you to repair daily furniture.

Customer Service

If you have any questions about the product, please feel free to contact us. We will reply to you as soon as possible.

Clear Scale

This positioner locator tool has a clear and precise metric scale, making it easy and accurate to find the center of a board’s edge every time without tedious trial and adjustments.

Parallelogram Design

Due to the high reliability of a parallelogram, the positioner locator tool features two precision-machined parallel arms that can quickly adjust to the stock thickness, and then place the center bar on the center of the material, making your operation easier and more precise.

Wavy Edge

The unique design of this positioner locator tool is wavy on both sides, making it not easy to slip.

Adjustable Clamping Range

The centering dowelling jig is adjustable to clamp on different thicknesses of wood boards from 0.67" to 2.3'', so it has stronger adaptabilty.

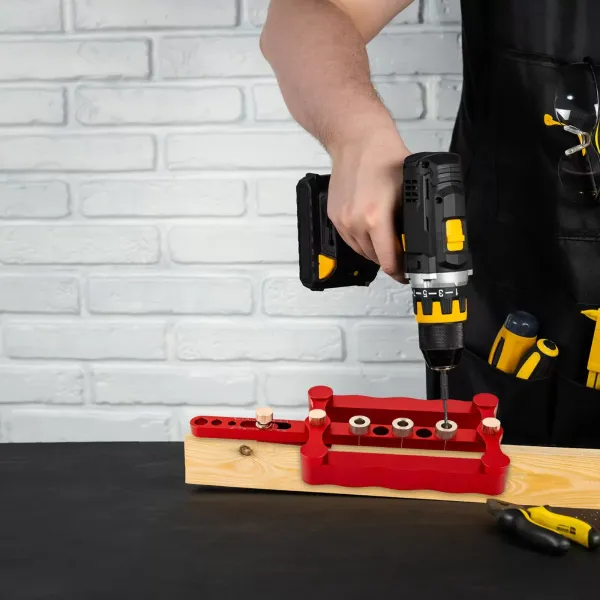

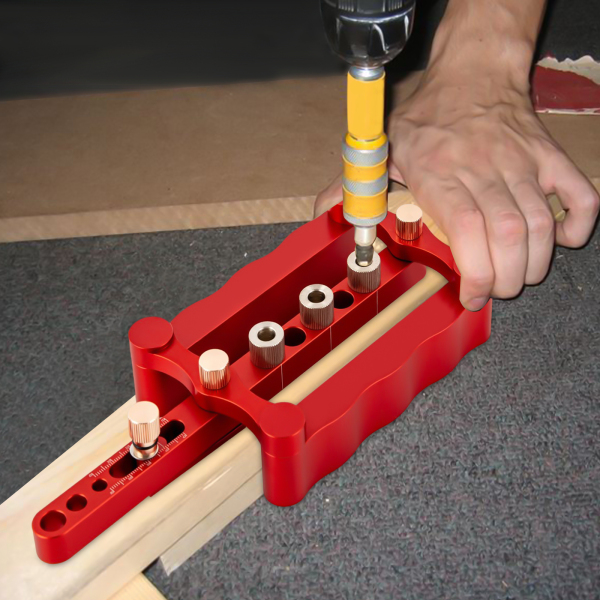

Easy to Drill

You just need to align the precision-machined notch on the dowel jig's center bar with the dowel location mark on your board, then hold the jig and drill, which is fast, easy, and accurate.

Application

It is suitable for all kinds of furniture such as doors, windows, cabinets, tables, etc. And it is an ideal choice for clamping boards with a thickness of 17-60mm/0.67-2.36 inches.

Specifications
Material:  Aluminum Alloy
Drill Sleeves Material:  Steel
Surface Treatment:  Anodic Oxidation Treatment
Color:  Red
Style:  Practical
Hole Spacing:  32mm/1.26inch
Drill Sleeve Size:  6mm (1/4''), 8mm (5/16''), 10mm (3/8'')
Adjustable Clamping Range:  17-60mm/0.67-2.36inch
Centering Dowelling Jig Size:  23.50*6.00*3.60cm/9*2.3*1.4inch
Package Size:  20*15*10cm/7.87*5.9*3.94inch
Net Weight:  0.7kg/0.5lbs
Gross Weight:  0.8kg/1.76lbs

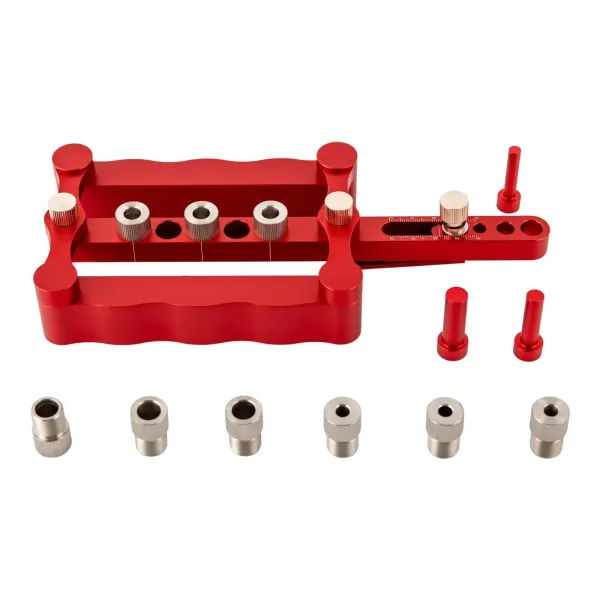

Package Included
1* Centering Dowelling Jig
1* 6mm Dowel Pin
1* 8mm Dowel Pin
1* 10mm Dowel Pin
3* 6mm Drill Sleeves
3* 8mm Drill Sleeves
3* 10mm Drill Sleeves

Specifications

Material Aluminum Alloy Drill Sleeves Material Steel
Surface Treatment Anodic Oxidation Treatment Color Red
Style Practical Hole Spacing 32mm/1.26inch
Drill Sleeve Size 6mm (1/4''), 8mm (5/16''), 10mm (3/8'') Adjustable Clamping Range 17-60mm/0.67-2.36inch
Centering Dowelling Jig Size 23.50*6.00*3.60cm/9*2.3*1.4inch Package Size 20*15*10cm/7.87*5.9*3.94inch
Net Weight 0.7kg/0.5lbs Gross Weight 0.8kg/1.76lbs

Product Tips

Notes

Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.

How to Use

1.Adjust the positioning scale to determine the distance between the first hole and the board end.
2.After fixing the position, select the drill bit that matches the drill bushings to start drilling.
3.Remove the nuts on the scale after holing three holes.
4.Use the positioning pin to fix the hole on the third hole (make sure the distance of each hole is the same.
5.Drill all straight holes.
6.Stick the round wood pin with glue firmly to the punched hole.
