Transformer DC 60V 20A 1200W Switch Power Supply 220V AC to DC Power Supply 60Volt Industrial Adapter LED Sensors System Lamp

Transformer DC 60V 20A 1200W Switch Power Supply 220V AC to DC Power Supply 60Volt Industrial Adapter LED Sensors System Lamp

(2 reviews)

Ask a question

AU $99.00

Brand: CNCEST
Product Code: QCJLSN8NAUWMT
Availability: In Stock

Estimated Delivery:

Free Fast Shipping:

On all orders

Description
Reviews (2)
Recommer
Delivery and Return

Stable Output

Using the pure copper coils, EMI filter capacitor, premium chip, high-performance IC, and the soft start current design, this switch power supply has stable performance converting AC voltage to stable DC voltage while effectively reducing electromagnetic interference. It has 2 output ports and each port outputs 0~20A automatically to match your device. The default output voltage is 60V, but it can be regulated by 5%.

Premium Material

The high-quality aluminum housing and premium interior materials such as PCB fiberglass board and pure copper make this product strong, wear-resistant, and durable. The wiring terminal has anti-rust and anti-corrosion functions.

High Safety

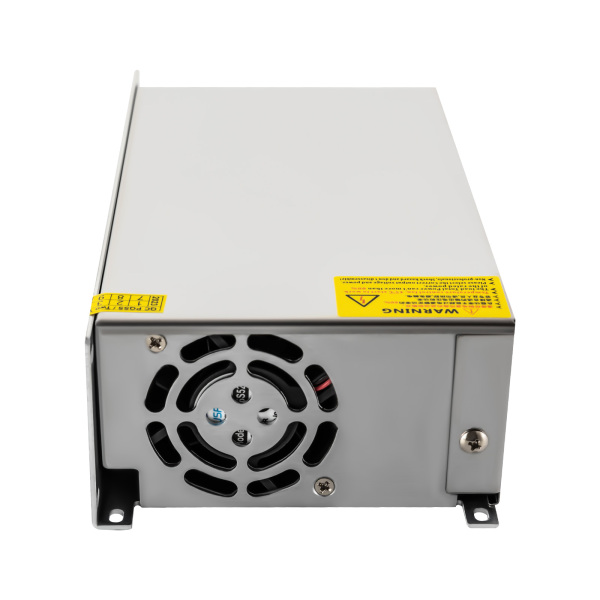

Adopting a cooling fan with heat-sink holes, temperature detector, pure copper transformer, high-temperature-resistant capacitor, auto-reset or fuse function, surge protection, over-voltage protection, short-circuit protection, over-current protection, and overload protection, this product is safe to use.

Protective Package

To prevent the product from being damaged and bumped during transportation, we packed it with foam cotton to protect your products to the maximum extent possible.

Buy with Confidence

We have been working hard to provide better service and quality for our customers, which is our goal. If there is any problem with our products. Please contact us in time.

Indicator Light

The indicator light shows the normal work condition of this switch power supply when it works for your convenience.

Clear Cover

The safety protection cover is dustproof and better avoids accidental electric shock during power operation.

A Great Helper

Once in operation, it can effectively convert AC 220V to DC 60V and provide different currents per watt for multiple devices, which is a great helper in your daily life.

Compact Size

The compact size(9.65*4.92*2.56 inches) means this machine won't occupy your space, so you can put it in any small corner.

Simple Installation

The simple structure and pre-drilled holes allow for easy and convenient installation.

Application

It is suitable for LED power supplies, medical power supplies, display screen power supplies, industrial control systems, power equipment, instruments, solar photovoltaic power supplies, stepper motors, PLC control systems, surveillance cameras, LED light boxes, LED lamps, luminous characters, communication equipment, home appliances, industrial equipment, building lighting, medical equipment, traffic signal control, etc.

Specifications

Model: S-1200-60

Color: Silver

Style: Modern

Shape: Rectangular

Mounting Type: Wall Mount

Housing Material: Aluminum

Power Source: Corded Electric

AC Input: AC220V

DC Output: 60V, 20A

Power: 1200W

Frequency: 50-60Hz

Error Accuracy: ±1%

Efficiency: ＞80%

Output Adjustable Voltage Range: ±5%

Leakage Current: <1mA/230V

Temperature Coefficient: ±0.03%/℃(0~50℃/32~122°F)

Operating Temperature&Humidity: -10℃～+60℃/14~140°F, 20%～90%RH

Environment Temperature&Humidity: -20℃～+85℃/-4~185°F,10%～95%RH

Start/Up/Maintain Time: 200ms, 50ms, 20ms

Shock Resistance: 10～500Hz, 2G 10min /Period, 60min, Each Axis

Pressure Resistance Between Input and Output: 1.5KvAC Input and Shell; 1.5KvAC Output and Shell; 0.5KvAC

Installation Hole Diameter: 2.5mm/0.01inch

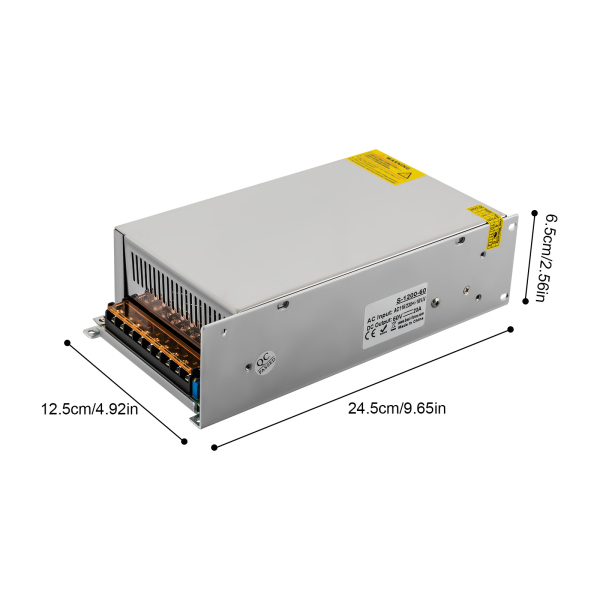

Product Size: 24.5*12.5*6.5cm/9.65*4.92*2.56inch

Package Size: 26*13*8cm/10.23*5.12*3.15inch

Gross Weight: 1.5kg/3.3 lbs

Package Included

1* Switch Power Supply

Specifications

Model	S-1200-60	Color	Silver
Style	Modern	Shape	Rectangular
Mounting Type	Wall Mount	Housing Material	Aluminum
Power Source	Corded Electric	AC Input	AC220V
DC Output	60V, 20A	Power	1200W
Frequency	50-60Hz	Error Accuracy	±1%
Efficiency	＞80%	Output Adjustable Voltage Range	±5%
Leakage Current	<1mA/230V	Temperature Coefficient	±0.03%/℃(0~50℃/32~122°F)
Operating Temperature&Humidity	-10℃～+60℃/14~140°F, 20%～90%RH	Environment Temperature&Humidity	-20℃～+85℃/-4~185°F,10%～95%RH
Start/Up/Maintain Time	200ms, 50ms, 20ms	Shock Resistance	10～500Hz, 2G 10min /Period, 60min, Each Axis
Pressure Resistance Between Input and Output	1.5KvAC Input and Shell; 1.5KvAC Output and Shell; 0.5KvAC	Installation Hole Diameter	2.5mm/0.01inch
Product Size	24.512.56.5cm/9.654.922.56inch	Package Size	26138cm/10.235.123.15inch
Gross Weight	1.5kg/3.3 lbs

Product Tips

Notes

1.This item does not include the power cord and screws.
2.Please pay attention to the reminder on the machine. Please refer to the corresponding model "output voltage, current, and power". It does not apply to the battery, speed-regulating motor, heater, and engraving machine.
3.The testing condition for the parameter above is 220VAC input, rated load, 25℃ temperature, and 70% RH. The error includes the setting error, ling stability, and load stability(The test of the load is from 0% to 100%.).

How to Calculate Support Max. LED Strip Length

1.Assumption: Your LED strip is 60LEDs/m and each LED 0.2W, then calculate max LED strip length: 0.2W/LED × 60LEDs/m=12W/m, 24W(this listing)÷12W/m=2m.
2.So, it supports the LED strip(60LEDs/m, 0.2W/LED) length (Max)=2m light.

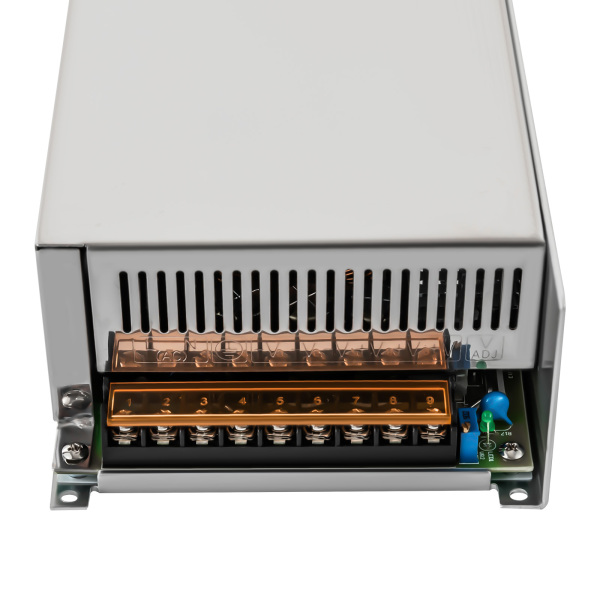

Wiring Description

L, N: AC Power Input
GND: Ground Wiring
-V: DC Power Output "-"
+V: DC Power Output "+"
ADJ: Adjust the Output Voltage(±5%)
