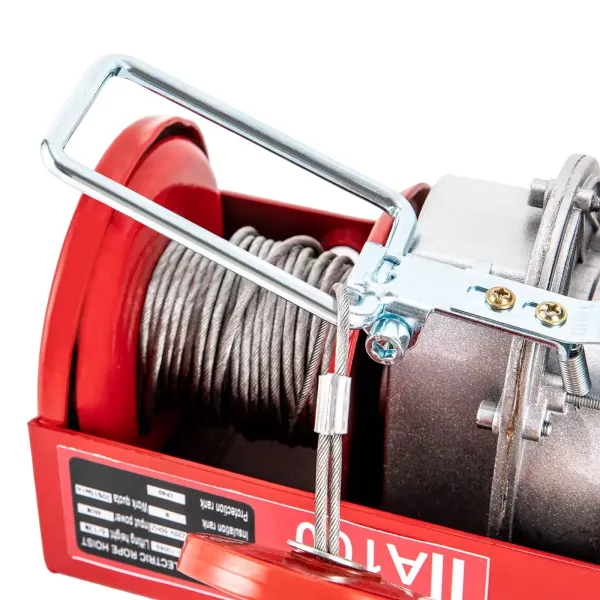

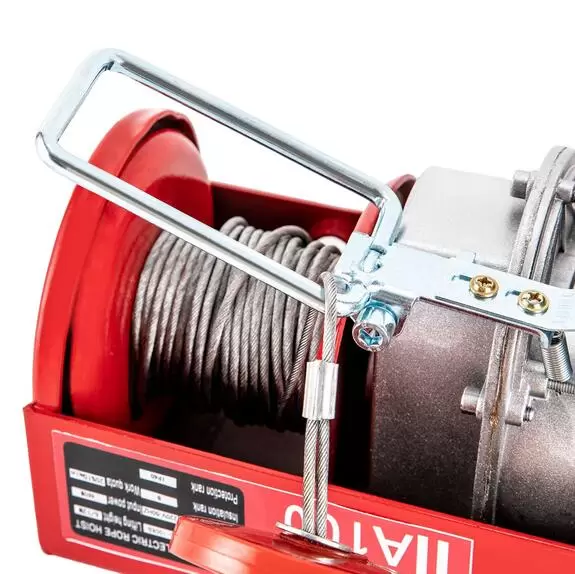

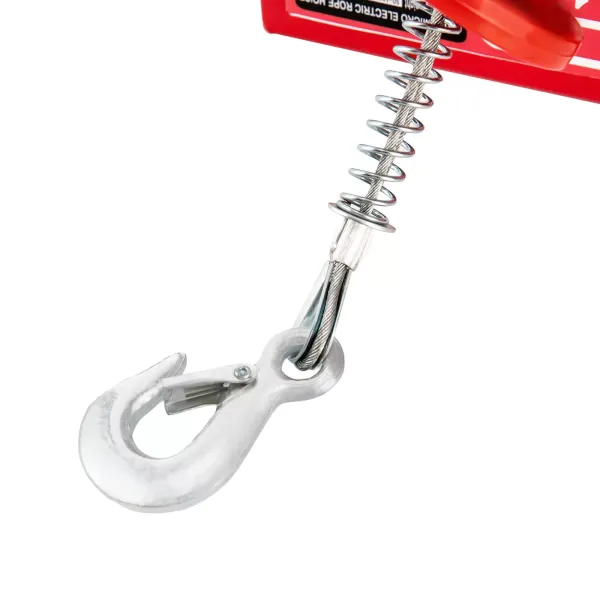

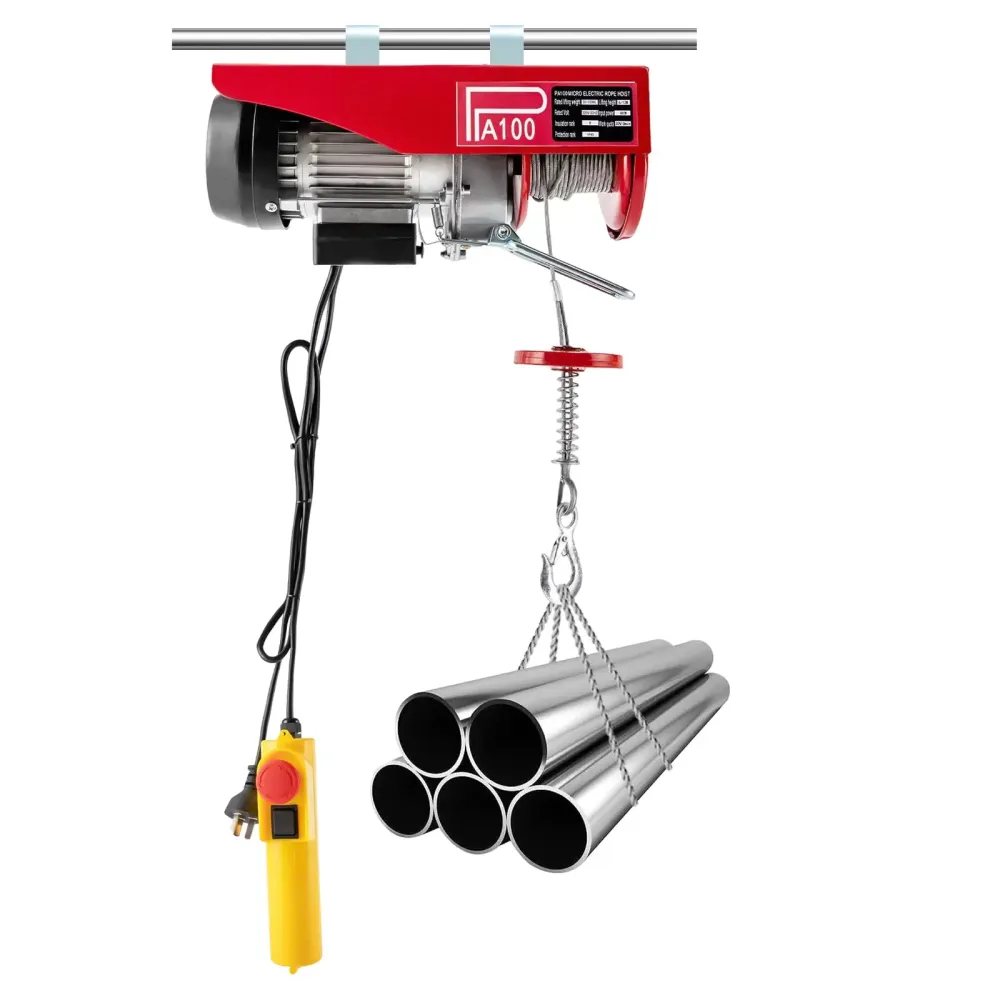

Robust and Durable: It features carbon steel stamped housing with a plastic spraying finish, braided galvanized carbon steel wire, and galvanized alloy steel hook, which is high hardness, ensuring a long service life.
High Load Capacity: The strong wires and hooks guarantee a high loading capacity. The load capacity is 110lbs on a single rope with a lifting speed of 32.8ft/min and 220lbs on a double rope with 16.4ft/min.
Strong Heat Dissipation: This electric hoist has a fan and mesh-type heat dissipation holes, which can quickly dissipate heat and reduce the risk of burning out the machine, ensuring the stable operation of the machine for a long time.
Compact and Lightweight: Its proper size (9.5*4*4.7in) and weight (21.6lbs) allow the electric hoist to be easily placed or carried wherever it is needed.
Stable Performance: It adopts high-speed bearings that keep the bearing rotation gap unchanged for a long time use of the motor. It has a stable rotor axially, high motor force, and low noise, ensuring good working performance.

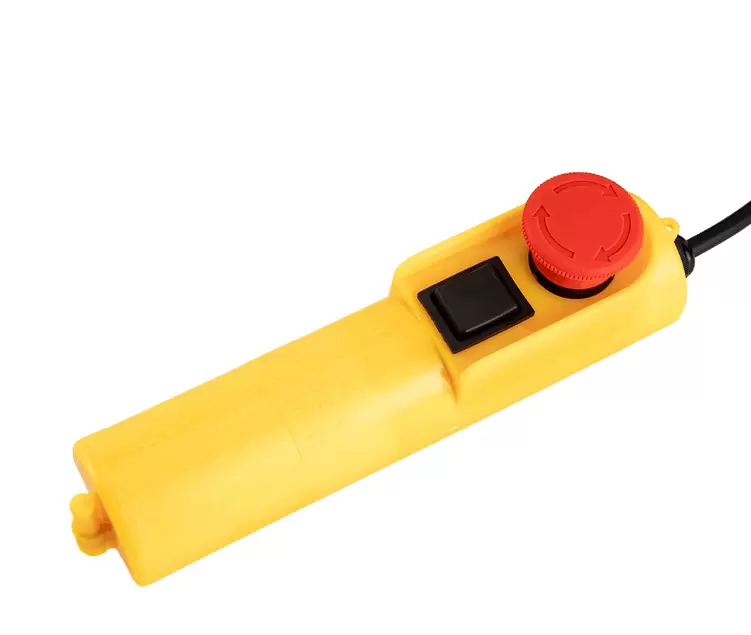

Wired Remote Controller: It is equipped with a long wired remote control, which allows you to control the lifting and lowering functions of the electric hoist from a safe distance. Also, the red button on it allows for an emergency stop of the equipment to prevent sudden accidents.



Pure Copper Motor: It adopts a high-powered pure copper motor(480W), with good heat dissipation and stability, providing strong power for lifting. In addition, it operates at low noise, giving you a more comfortable working environment.

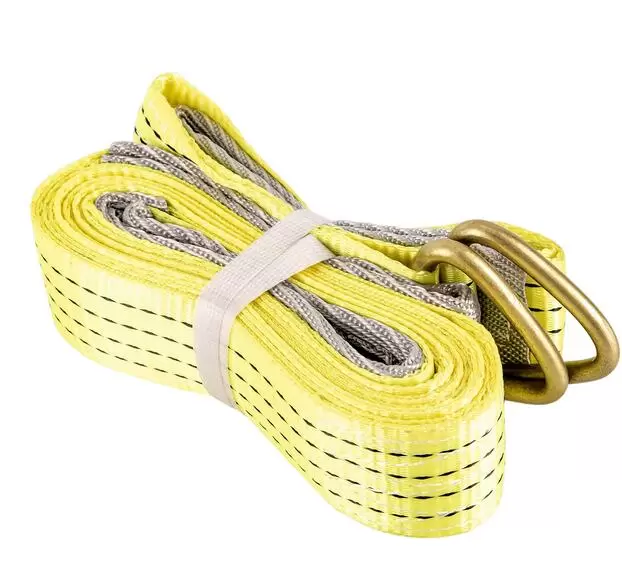

Practical Lifting Straps: The package is equipped with two additional lifting straps for securing hard-to-hook goods, so you don't need to buy extra, which is economical and convenient.





Specifications
Housing Material: Carbon Steel
Finish: Plastic Spray
Hook Material: Galvanised Alloy Steel
Cable Material: Galvanised Carbon Steel
Motor Housing Material: Aluminum
Motor Type: Pure Copper Motor
Color: Red
Model: PA100
Plug Type: Australian Standard
Voltage: 220V-50Hz
Power: 480W
Insulation Rank: B
Protection Rank: IP40
Load Capacity: 50kg/110lbs(Single Cable), 100kg/220lbs(Double Cable)
Lifting Speed: 32.8ft/min (Single Cable) , 16.4ft/min (Double Cable)
Lifting Height: 12m/39.4ft(Single Cable), 6 m/20 ft(Double Cable)
Work Quota: 20%10min

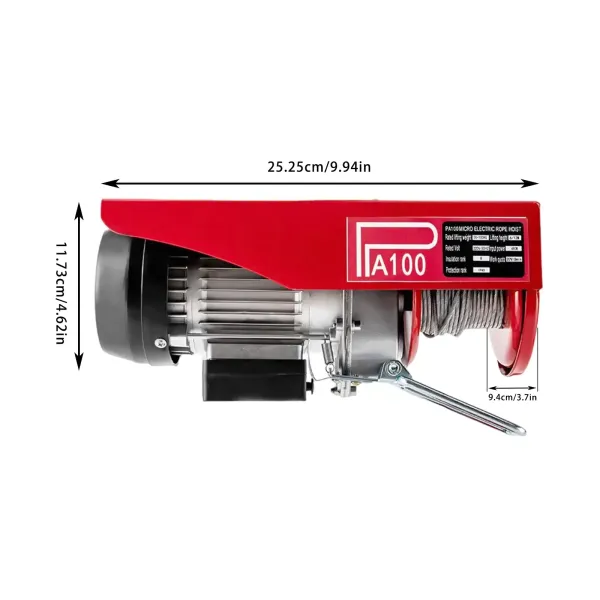

Product Size: 24*10*12cm/9.5*4*4.7in
Large Hook Length: 11.5cm/4.5in
Small Hook Length: 10cm/4in
Packing Size: 38*16*27cm/14.96*6.29*10.62in
Gross Weight: 9.8kg/21.6lbs

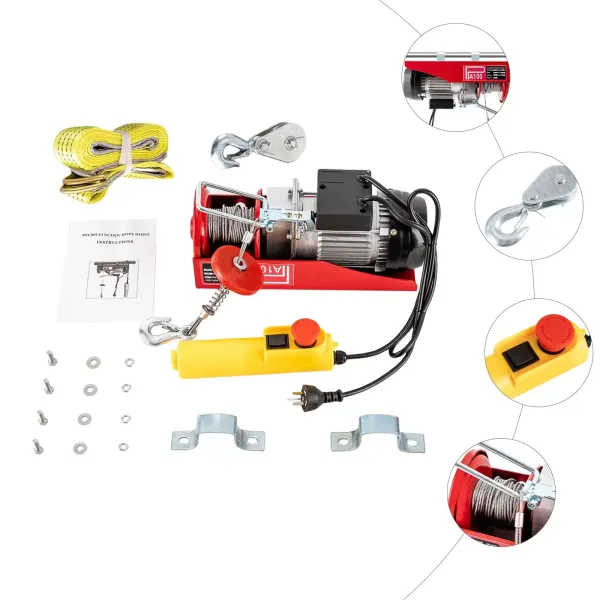

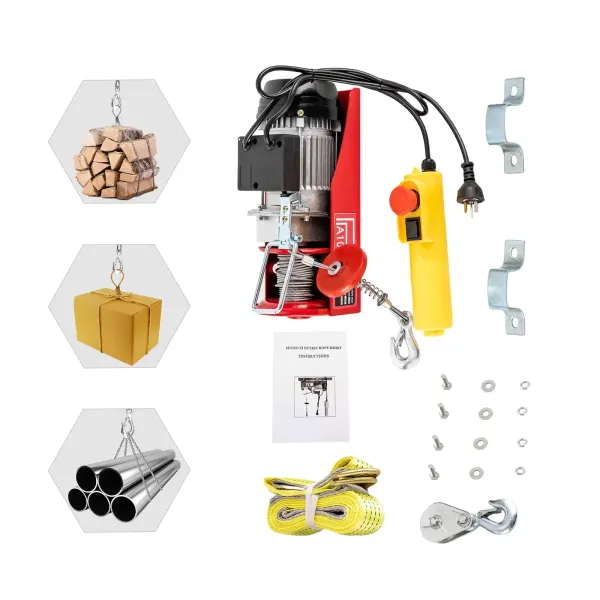

Package Included
1 * Electric Hoist
2 * Lifting Straps
1 * Hook
2 *Mounting Clamp Brackets
1* Wired Remote Control
1* English Manual
All Accessories for Use

Notes
1. Please note that the width and height of the boom should not exceed the internal dimensions of the mounting bracket.

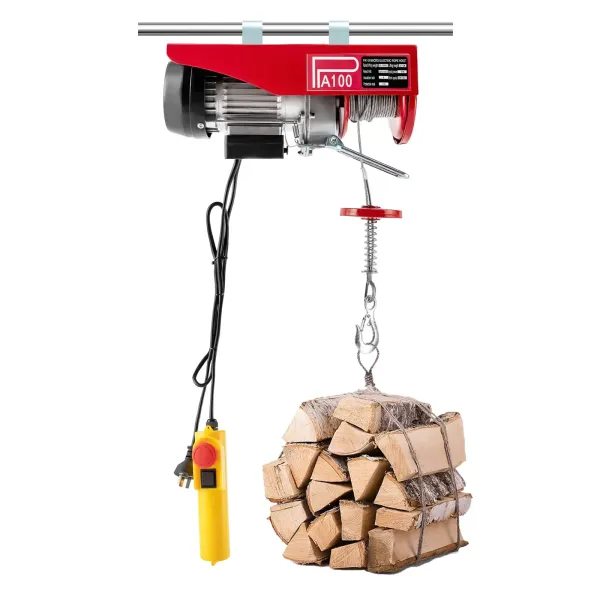

2. If the specified object is too large or the object cannot be hung directly on the hook, you will need to tie a longer webbing around the object and then hook the webbing with the hook to lift the object.
3. Please ensure that all persons in the immediate area are informed and warned of the need for safety before lifting and moving heavy objects. If necessary, set up a lifting area to remind unoccupied and uninvolved persons that they are not allowed in.
4. Please purchase the electric hoist corresponding to the weight required for the job.
5. If the hook is cracked or deformed, or if the wire rope is kinked or corroded, please do not use the product.
6. Please do not leave lifted heavy objects unsupervised for long periods as this may cause injury.
7. Before using the machine, please read carefully all the safety instructions in the product manual.
8. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
