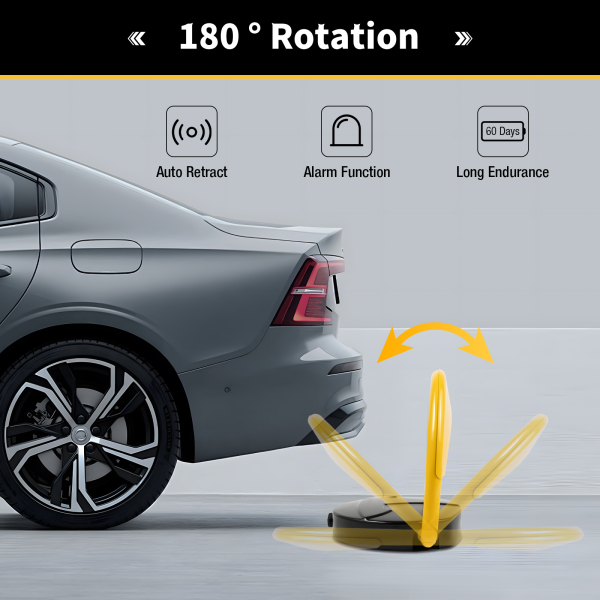

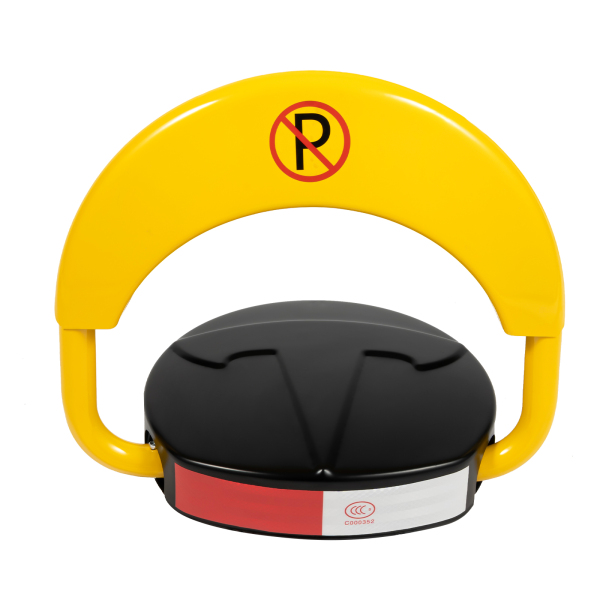

Remote Control Car Parking Latch Space Saver Lock Barrier Warning Sign Keys 180 ° Rotating Rocker Arm
- Brand: CNCEST
- Product Code: OT-ZMWHY-2290-1
- Availability: Out Of Stock

Specifications
Material | High-Temperature Alloy Steel | Color | Yellow, Black |
Style | Modern | Surface Treatment | Baking Paint, Phosphating |

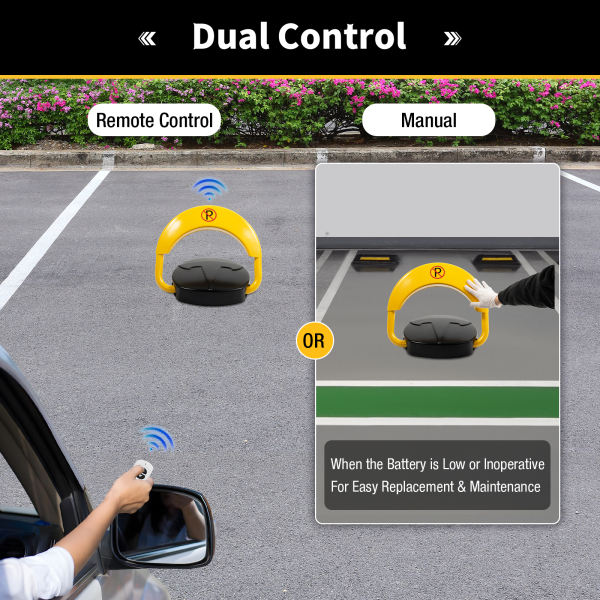

Special Feature | Foldable | Controller Type | Hand Control, Remote Control |
Voltage | 3.7VDC | Static Current | ≤0.8mA |
Working Current | ≤0.85A | Running Time of Rises or Falls | ≤5 second |
Battery Required | Yes | Battery | 3*D Batteries (Not Included) |

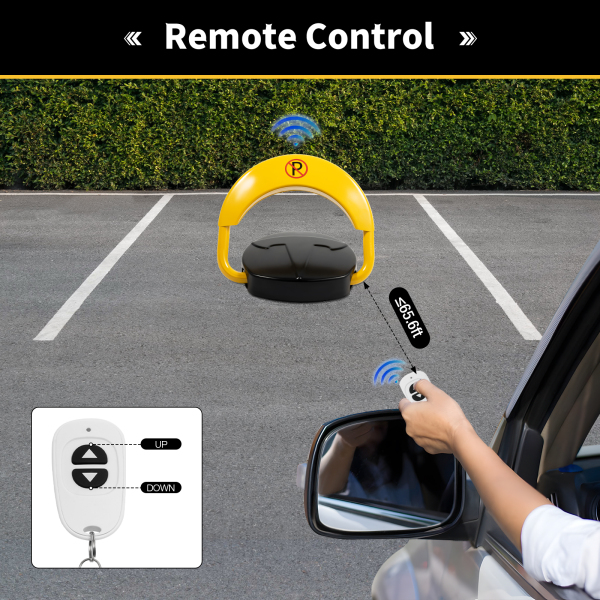

Remote Controlled Distance | ≤20M/65.6ft | Environment Temperature | -25℃~+55℃/-13 °F~131 °F |
Waterproof Level | IP67 | Gross Weight | 6.3kg/13.88lbs |

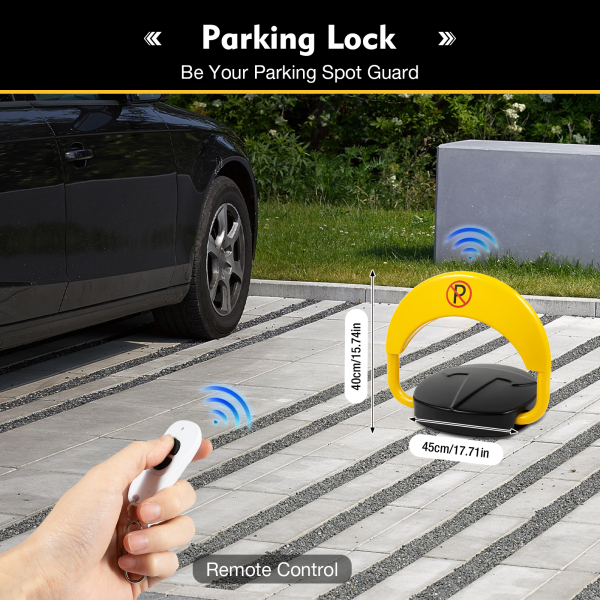

Net Weight | 5.5kg/12.12lbs | Product Width | 45cm/17.71in |

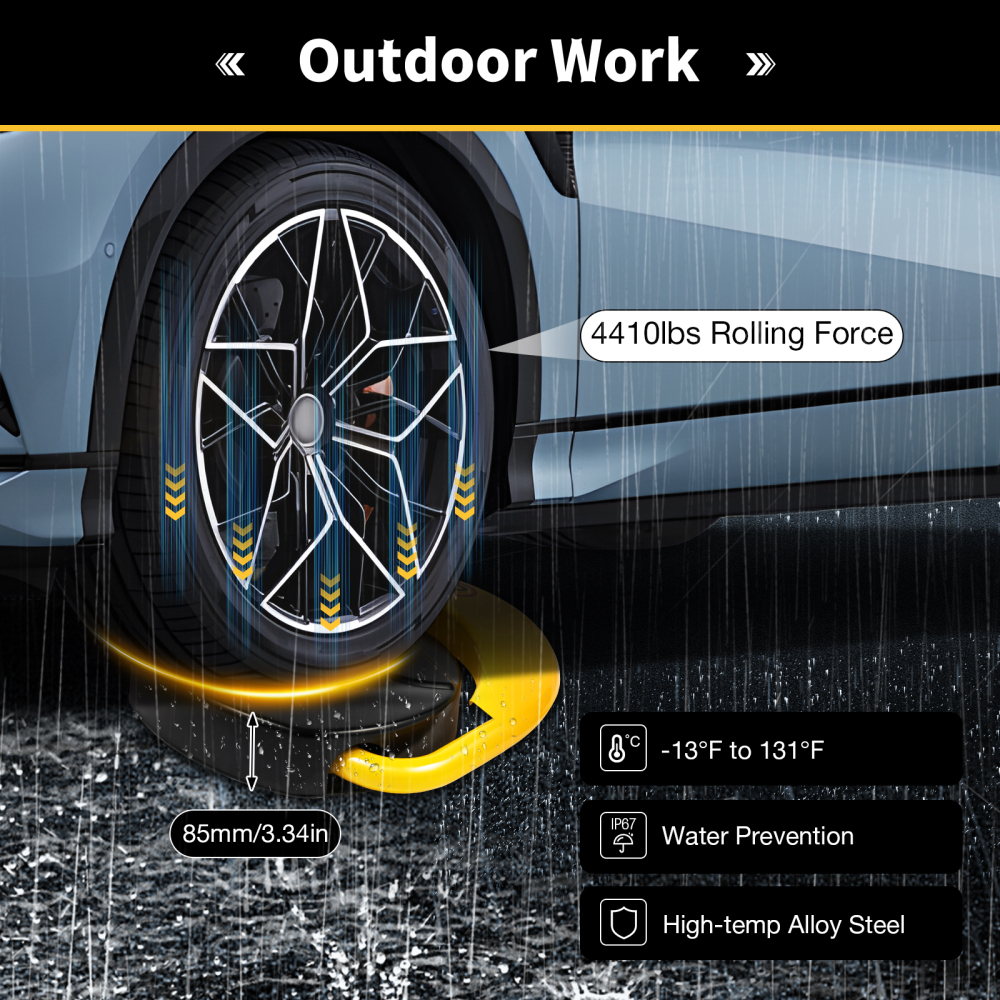

After Rising Altitude | 400mm/15.74in | After Dropping Altitude | 85mm/3.34in |
Package Size | 47*46.5*10cm/18.5*18.3*3.93in |
Product Tips


Notes
1.Please carefully read the manual and strictly follow the precautions to have a better experience.
2.Please note that this product does not include batteries.
3.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.

How to Install
1.Lift the rocking arm manually with your hands, and open the lock with the key. Open the upper cover to install the lock.
2.Drill three holes (12mm in diameter and 50mm in depth) and install M8 expansion bolts on the ground according to the locations of the three installation holes on the parking lock foundation.
3.Cover three foundation spacers on the expansion bolts, and then cover the parking lock foundation, install and tighten the bolts to finish the installation.
4.Before using, first, install 3 batteries(not included) into the battery box, and close the battery box cover tightly, and then connect the plug to the socket of the parking lock, and sort up the wires.
5.Install the upper cover. Keep the upper and lower fixed blocks jogging. Then lock the upper cover.
