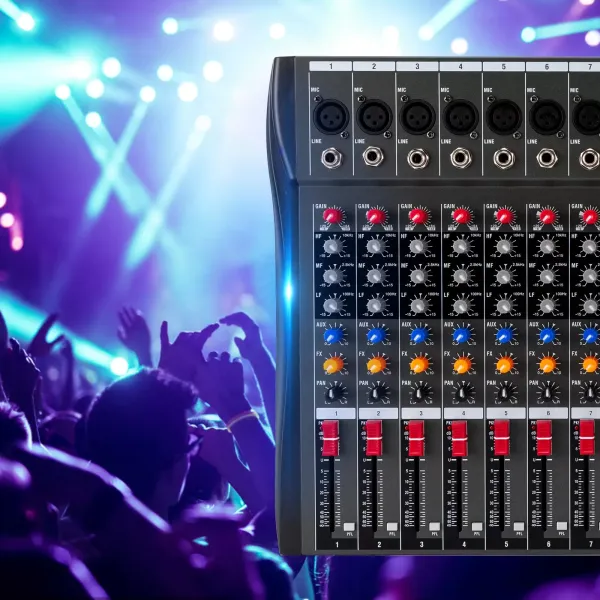

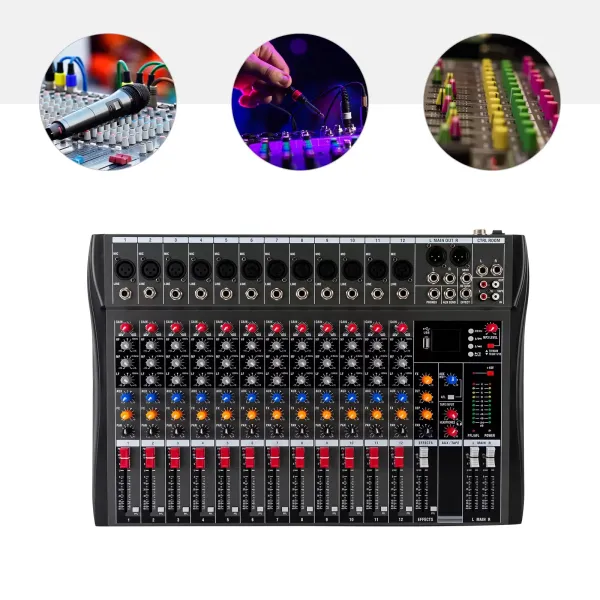

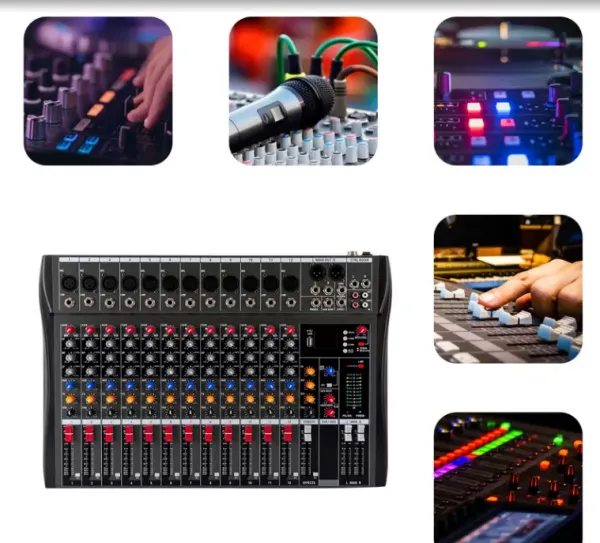

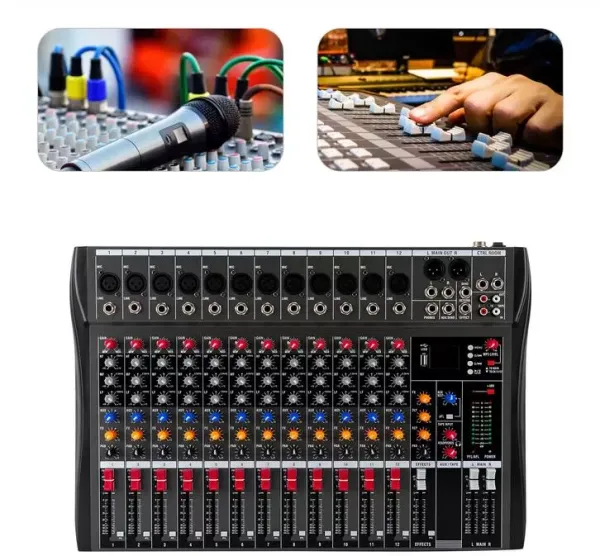

12 Channel Bluetooth Live Studio Audio Mixer Mixing Console USB Audio Mixer
AU $268.99
AU $279.99
- Brand: CNCEST
- Product Code: YQ8EQKK7AUHJ8
- Availability: Out Of Stock
Estimated Delivery:
Free Fast Shipping:
On all orders

Specifications
Model | CT-120S | Material | ABS |
Color | Black | Number of Channels | 12 |

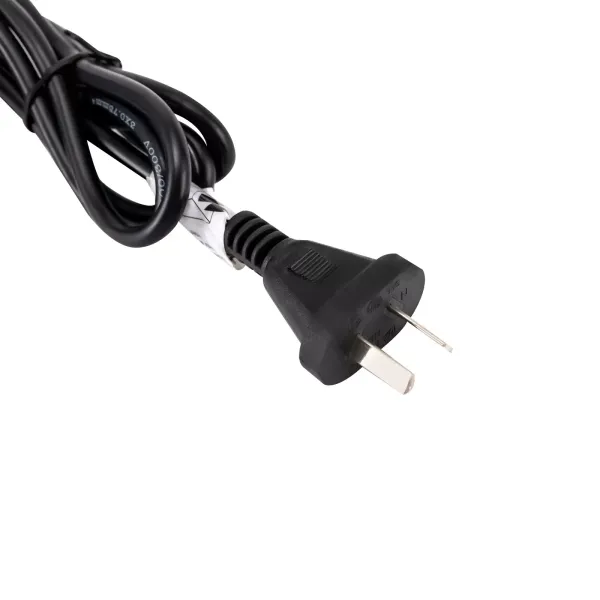

Plug | AU Standard | Power Source | Corded Electric |
Connection Technology | USB, Bluetooth | Input | AC 230V 50HZ 18W |

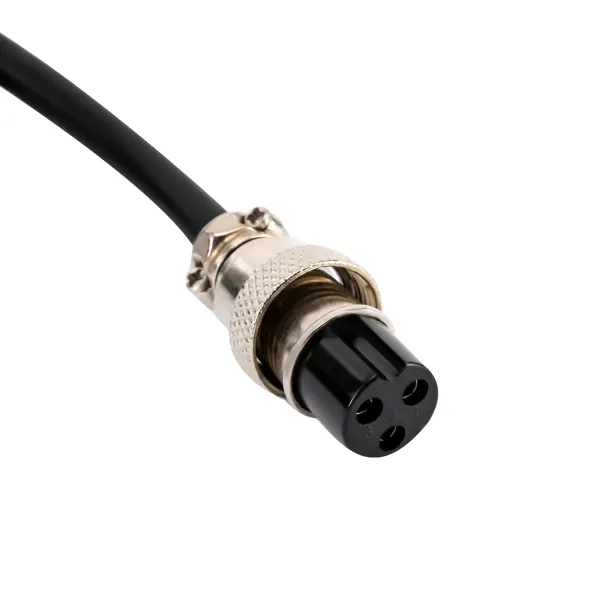

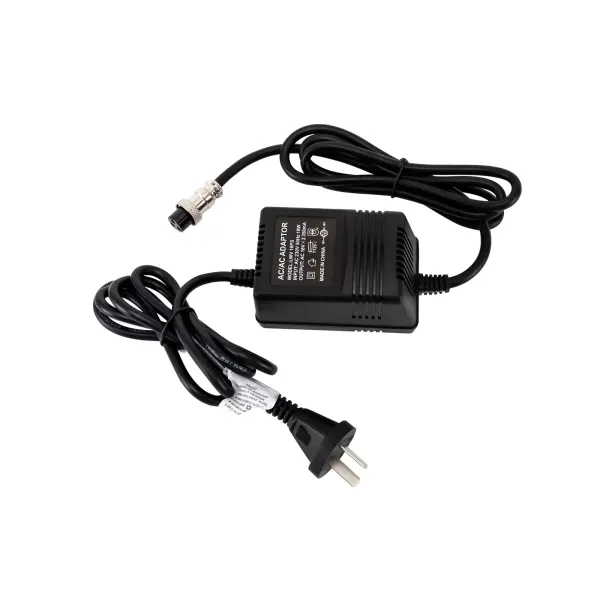

Output | AC18V*2 350mA | Maximum Input Level of the Microphone | + 24dBu |
Maximum Input Level of the Line | + 24dBu | Maximum Output Level | XLR Card + 26dBu |
Main Level Meter | 10-segment LED, -24 dB to CLIP | Frequency Response | 20Hz-30Khz ± 0.5dB |
Maximum Input Power | 18W | Total Chopping Distortion (RHD + N) | <0.01%. |
Crosstalk (1 kHz) | Fader off> 85 dB Channel> 82 dB | Noise (22Hz-22KHz) | Equivalent Input Noise -122dBu Remaining Output Noise <-90dBu |
Mono / Stereo Channel EQ | High Frequency +/- 15 dB, 12 kHz Low Frequency +/- 15 dB, 80 kHz High IF +/- 15 dB, 2.5 kHz | Mono | XLR Balanced, 2-pin Hot End, 2Kohm, Sensitivity -60-14dbu TRS Balanced, Tip Hot End, 10Kohm, Sensitivity -40+14dbu XLR Fantasy Power +48V |

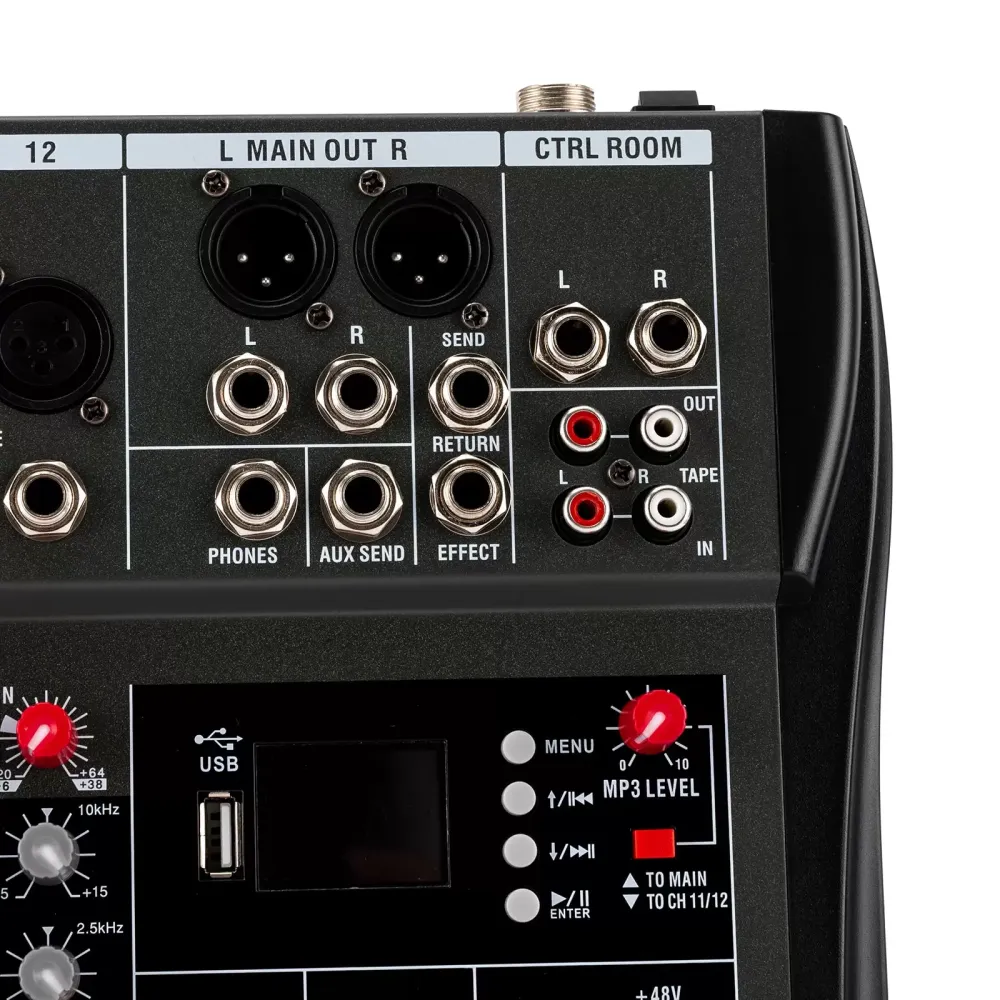

2-track Return | RCA-seat, Unbalanced, 4K ohms, -2dBu | 2-track Gear | RCA-seat, Unbalanced, <75 Ohm, -2dBu |

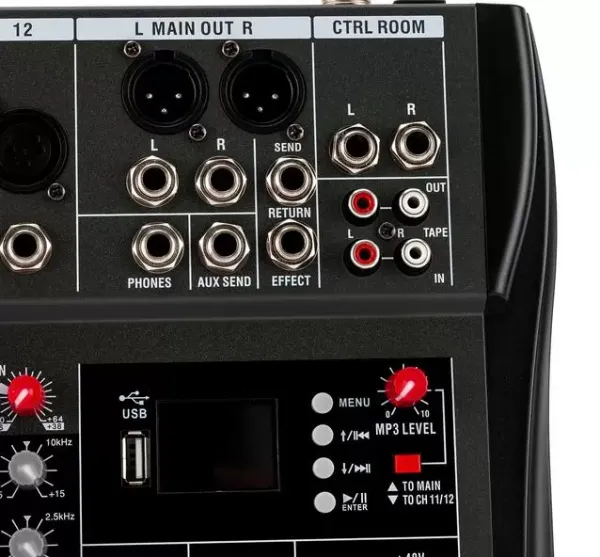

L / R Output | XLR, Balanced, Hot End of the Tip, <75 ohms, + 4 dBu, Max + 22 dBu | FX / AUX Output | TRS, Unbalanced, Hot End of Tip, <75 ohms, -2dBu, max + 18dBu |
Headphone | TRS, Tip L, Ring R, Recommended Headphones with 30 to 600 ohms | Bluetooth Wireless Control Range | Max 4.6m/15ft |

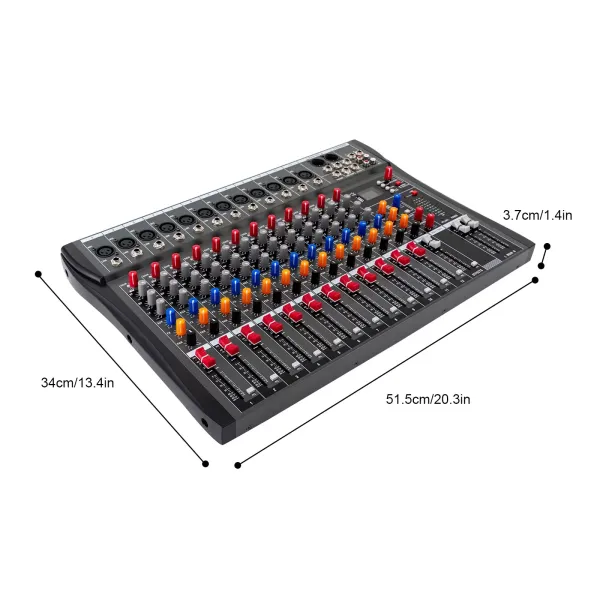

Package Size | 54*9*41cm/21.26*3.54*16.14in | Product Size | 51.5*34*3.7cm/20.3*13.4*1.4in |
Gross Weight | 6.2kg/13.67lbs | Net Weight | 5.9kg/13lbs |
Notes:


Notes:

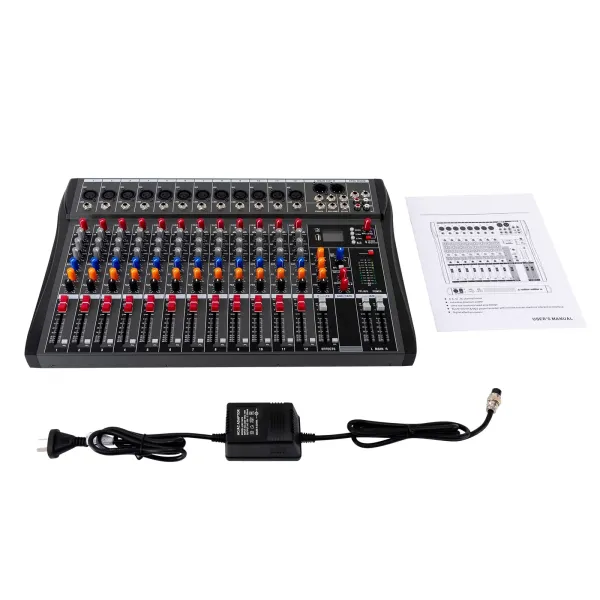

1. Please read the user manual carefully before use and pay special attention to the safety precautions included.
2. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you place the order.
