Environmental-friendly: This solar grid tie micro-inverter converts the direct current generated by the solar panel into alternating current, providing an environment-friendly and pollution-free continuous energy source.
Optimization and Upgrade: The built-in powerful MPPT algorithm can optimize the power collection from the solar panel, accurately capture and lock the maximum output power point, and greatly increase power generation to more than 25%.
Reverse Power Transmission: Efficient reverse power transmission technology, which can automatically detect the load in the circuit and give priority to use. Only the power that cannot be used up can be transmitted to the grid in the opposite direction and used in other places. The power transmission rate can reach 99.9%. This makes the output efficiency higher in the photovoltaic power generation application system;
Smooth Operation: It adopts full digital control, and the charging module adopts intelligent soft switch technology and a built-in MCU. Its inverter module adopts high-frequency switching power supply technology and 32-bit DSP full digital SPWM control technology. It has strong anti-interference ability, fast operation speed, high intelligence, etc., which enables you to control accurately.
Multiple Protection: It has multiple protection functions such as over-temperature protection, under-voltage alarm, under-voltage protection, over-voltage protection, short circuit protection, overload protection, etc., providing you with a safer user experience.





Simple Maintenance: After the installation of the solar grid tie micro-inverter, all you need to do is clear the dust on the panel after a long time of use which is easy to maintain.





LED Display Lamp: The clear LED display lamp allows you to easily understand the status of the product for operation.



Soft Corners: The edges and corners of this product are smooth, and burr-free, which can effectively prevent bumps and scratches. So you can use it with confidence.



Application

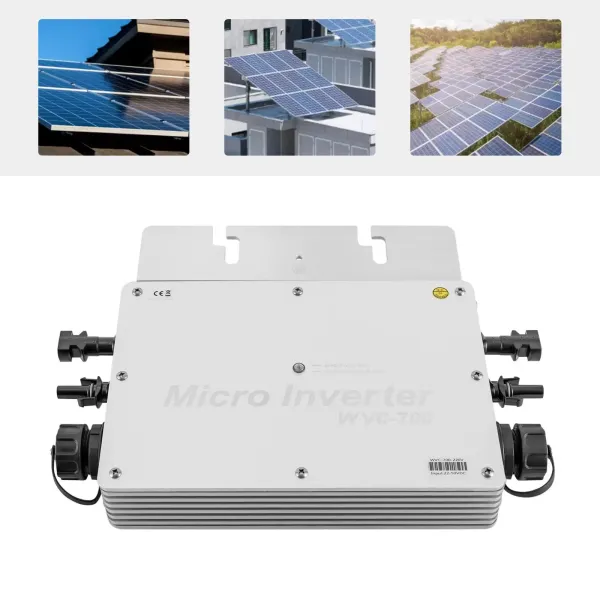

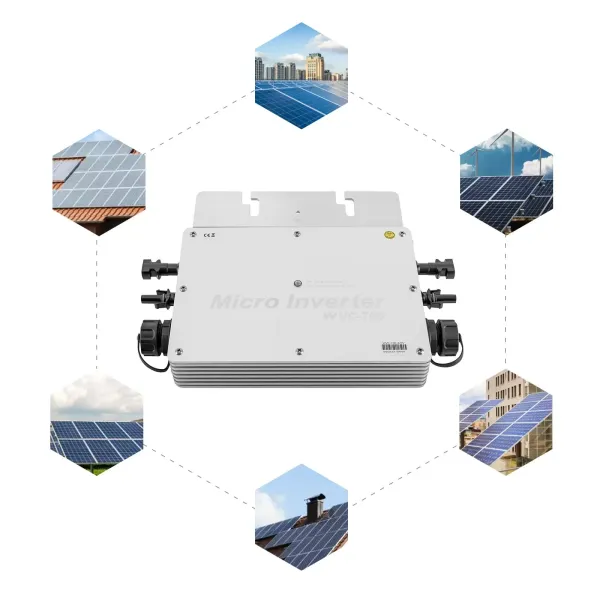

This solar grid tie micro-inverter is mainly used for power stations, schools, home grid connections, etc.

Installation
1. Install the inverter on the bracket of the photovoltaic panel with the screws.

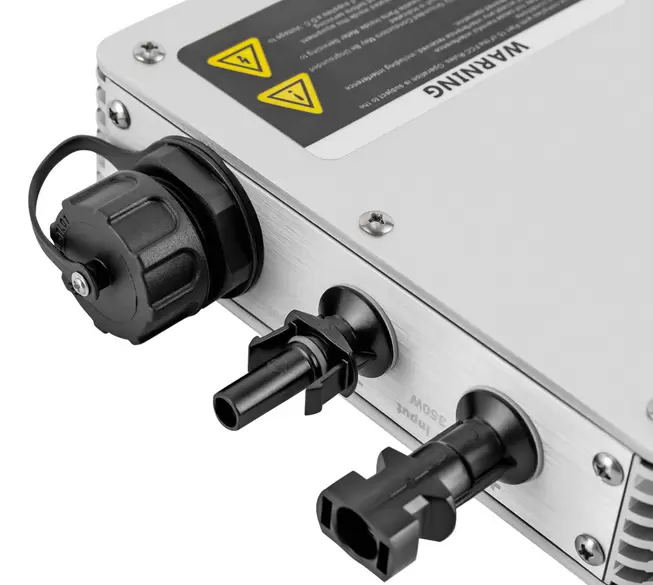

2. Connect the positive and negative poles of the DC connection plug on the photovoltaic board to the DC input terminal of the inverter.
3. Open the waterproof cover of the AC output connector of the inverter and connect the AC cable to the AC waterproof plug.
4. Connect the AC output cable to the AC main cable;
5. Repeat steps 1 to 3, and install and connect all inverters;
6. Connect the AC main cable to the utility grid to start your green energy journey.

Specifications

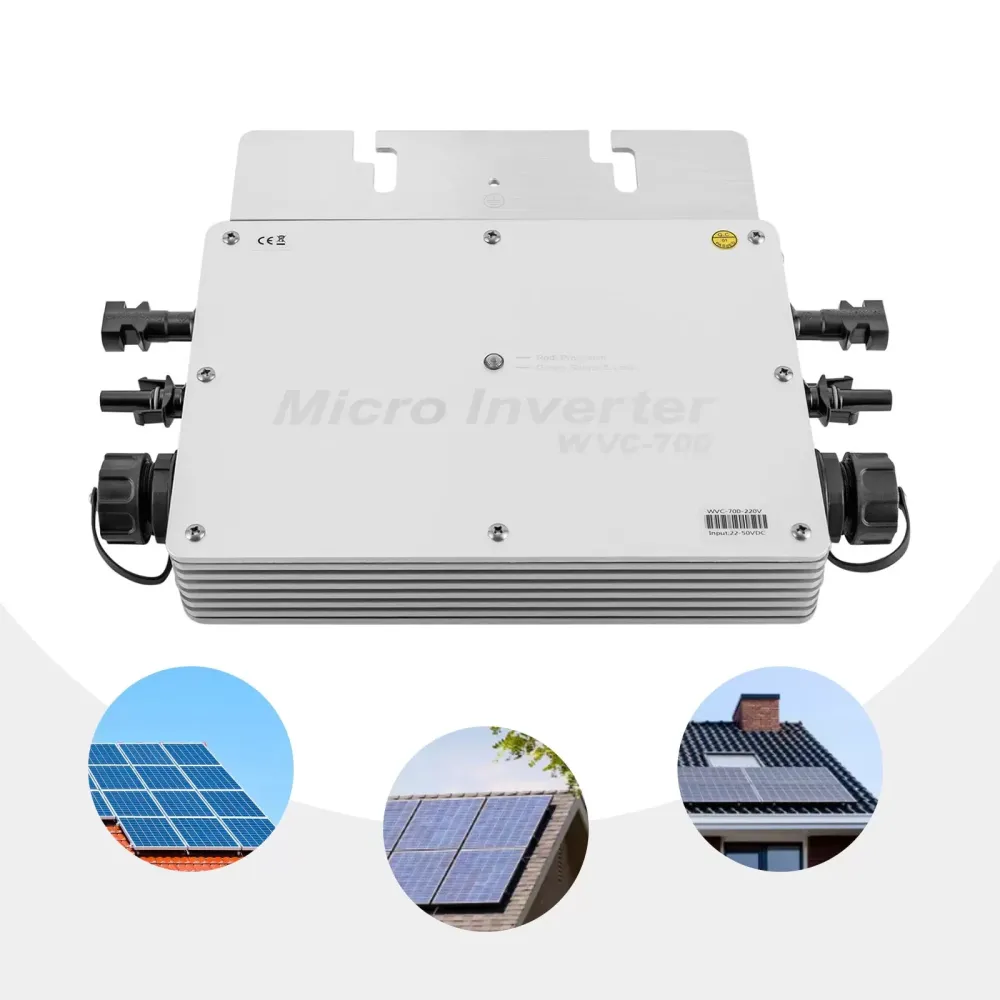

Model: WVC700W
Color: Silver
Style: Modern
Material: Aluminum Alloy
Surface Treatment: Sanding Treatment
Power Source: Solar Energy
Plug: AU Standard
Output Voltage: 220V (180-260VAC)
Input Voltage: 22-50VDC
Power: 700W
Maximum Input Power: 2 × 350Watt
Recommended Solar Panel: Power 2 × 350W, Open Circuit Voltage 36-50VOC
Open Circuit Voltage Range of Solar Panel: 36-50VOC
Peak Power Tracking Voltage: 22-45V
Minimum/Maximum Starting Voltage: 22-50V
Maximum DC Short Circuit Current: 40A
Maximum Input Working Current: 27.2A
Output Parameters: 120VAC, 230VAC
Output Peak Power: 700Watt
Rated Output Power: 650Watt
Rated Output Current: 3.05A
Rated Voltage Range: 190-260VAC
Rated Frequency Range: 57-62.5Hz
Power Factor:>99%
Number of Connections per Series Circuit: 10 (single-phase)
Output Efficiency: 230VAC
Static MPPT Efficiency: 99.5%
Maximum Output Efficiency: 90.5%
Power Loss at Night:<1W
Total Wave Distortion:<5%
Operating Temperature Range: - 40 ℃ to+60 ℃
Waterproof Grade: IP65
Heat Dissipation Mode: Self-cooling
Electromagnetic Compatibility: EN50081.Part1 EN50082.Part1
Power Grid Disturbance: EN61000-3-2 Safety Regulation EN62109
Grid Detection: DIN VDE 1026 UL1741
Certificate: CEC, CE

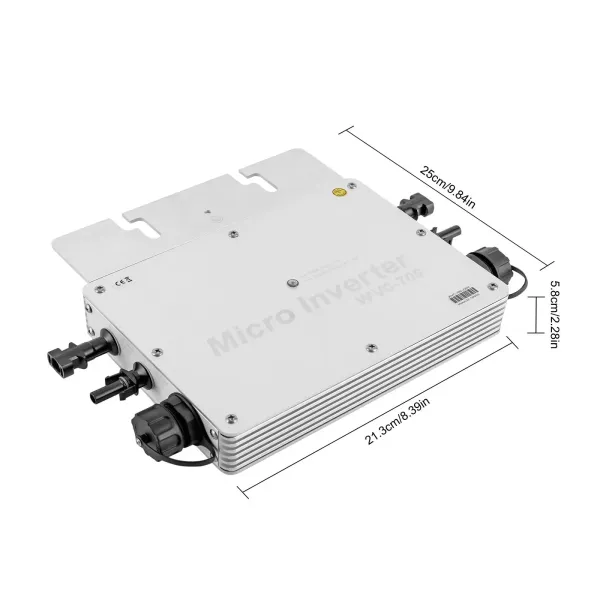

Product Size: 21.3*25*5.8cm/ 8.39*9.84*2.28in
Package Size: 34*24*11.5cm/ 13.39*9.45*4.53in
Net Weight: 1.8kg/ 3.97lbs
Gross Weight: 2.45kg/ 5.4lbs

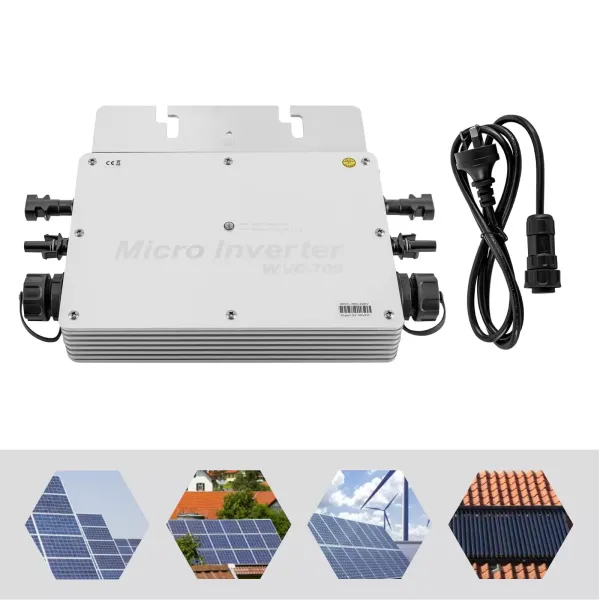

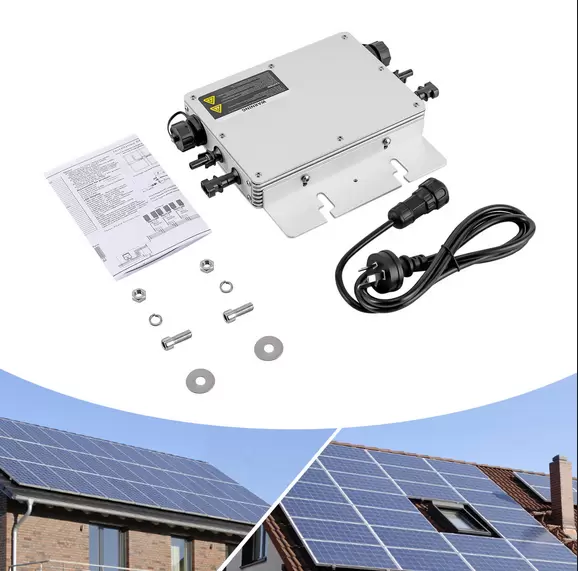

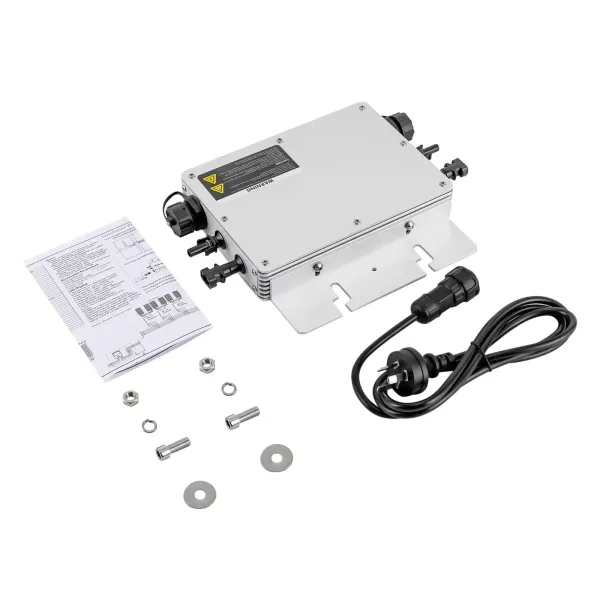

Package Included
1* Solar Grid Tie Micro-inverter
1* Power Cord
1* English and Chinese User Manual
All Needed Accessories

Notes
1. Please correctly install the inverter according to the instructions. If you have any questions, please contact the relevant personnel.
2. Non-professional personnel is not allowed to disassemble the machine. Only qualified maintenance personnel can repair the product.
3. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
