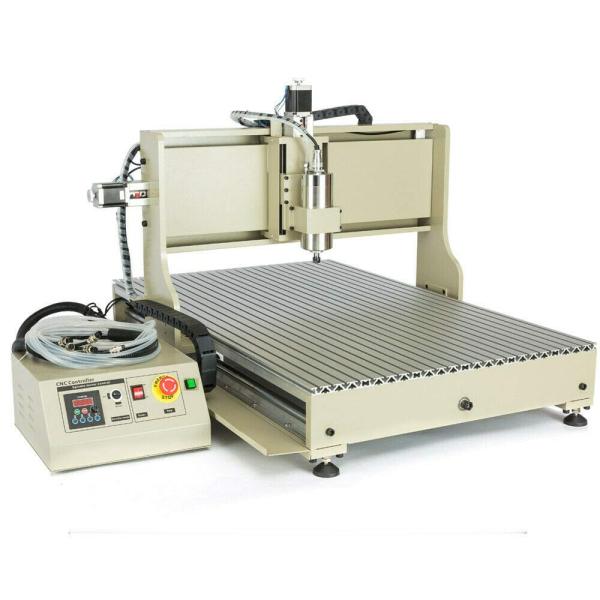

○ This CNC 6090 machine is suitable for industry, Technology Research, Advertising Design,Arts Creation, Teaching, Student Project and Hobby Purposes.
○ It can work with various materials(metallic & non-metallic), such as: wood, pmma or other plastic, MDF board, native wood, PVC, Acrylic, wood, composite board plywood. and soft metal. like aluminum, copper and silver to engrave them into 3D/2D works etc.
○ It can used for engraving: advertising signs, PCB, nameplates, badges, seals, bronzing plate, aluminum alloy, acrylic plates, ABS resin double color plate, PVC foaming board, indentation plates, signs, construction models, instrument panels, wooden products, etc.
○ The mini CNC router Frame is movable. The machine can connect with computer as other external device such as printer, scanner...
○ With the assist of the CNC ROUTER 6090, your design idea will be real-time display.

The NEW 1.5KW water-cooled VFD is available operating for long time,which can reinforced the processing ability of the machine and can be used to engrave on aluminum alloy and hard wood.

Water cooling spindle works more stable and durable.

High quality accurate ball Screws drive make the engrving more precision.

Anti-blackflash, high precision, long life circle.

CNC Router Engraving Machine Parameters:
Model: CNC6090GZ
Outside dimension: 1150*970*650mm(L*W*H)
Working platform size: 1045*720mm(L*W)
Frame Material：The whole machine used 6061 aluminum profiles
Max. Feeding height: ≤140mm(From base of Z axis to platform)
X,Y,Z Working Area: 900(Y)*600(X)*140mm(Z)

Sliding Unit:
X axis:SFU1605 Ball Screws
Y axis:SFU1605 Ball Screws
Z axis:SFU1204 Ball Screws

Drive Unit:
X axis: ø20 High intensity round rail,
Y axis: SBRø20 high-strength aluminum base rails
Z axis: ø12 high-strength round rail
Stepping motor: 57 two-phase 3A (with handwheels)
Driving Power for Stepping motor: AC220, 240W, out put: DC24V, 10A
Maximum Idle speed: 1500mm/min
Working Speed: 50-1500mm / min (different material with different speed settings)
Spindle motor: 1500W high-speed variable frequency spindle motor , ER11 chuck, with 6mm collet.
(tips：1. The spindle motor must connect with the VFD.
2. It cannot directly connect with the supply voltage (AC220V).
3. Please don’t change the data setting of the VFD if you are not professional technicians, or it might damage the spindle motor.)
Drive of Stepping motor: 0-3.5A adjustable four-axis drive
(TB6560AHQ chip, 24V power supply, 2,4,8,16 subdivision can be set, factory settings 8 subdivision)
Repositioning precision: ≤0.05mm
Cooling: Water-cooling
Speed: 0-24000r/m
Spindle precision: Radial runout ≤ 0.03mm
Carving command: G code / TAB file / nc file / NCC file
VFD: AC220V, 1500W, 0-400Hz (built-in control box)
USB Control box parameters
Protection: Emergency stop button
Recommend software: Mach3, EMC2
Communication interface: through USB PORT connect with computer
Software environment: Windows XP / win7 with 32 bit (proper computer system makes the software run, otherwise it will not work)
Input Volts: AC220V

Tips:
The software perform better on the Windows XP/Windows 7 and 32 bites system computer, it will not work on Win 8/10 and 64 bites system computer.
Please close the firewall and antivirus software on the computer before DOWNLOAD AND install the software.(This is very important)
Otherwise, the antivirus will regards the CNC software is virus and stop the installation.

PS:
Please don't update the software when installed, then it will not need the license Numbers.
Free Version means---Free version does not have the copyright but the function is same with the genuine version.
